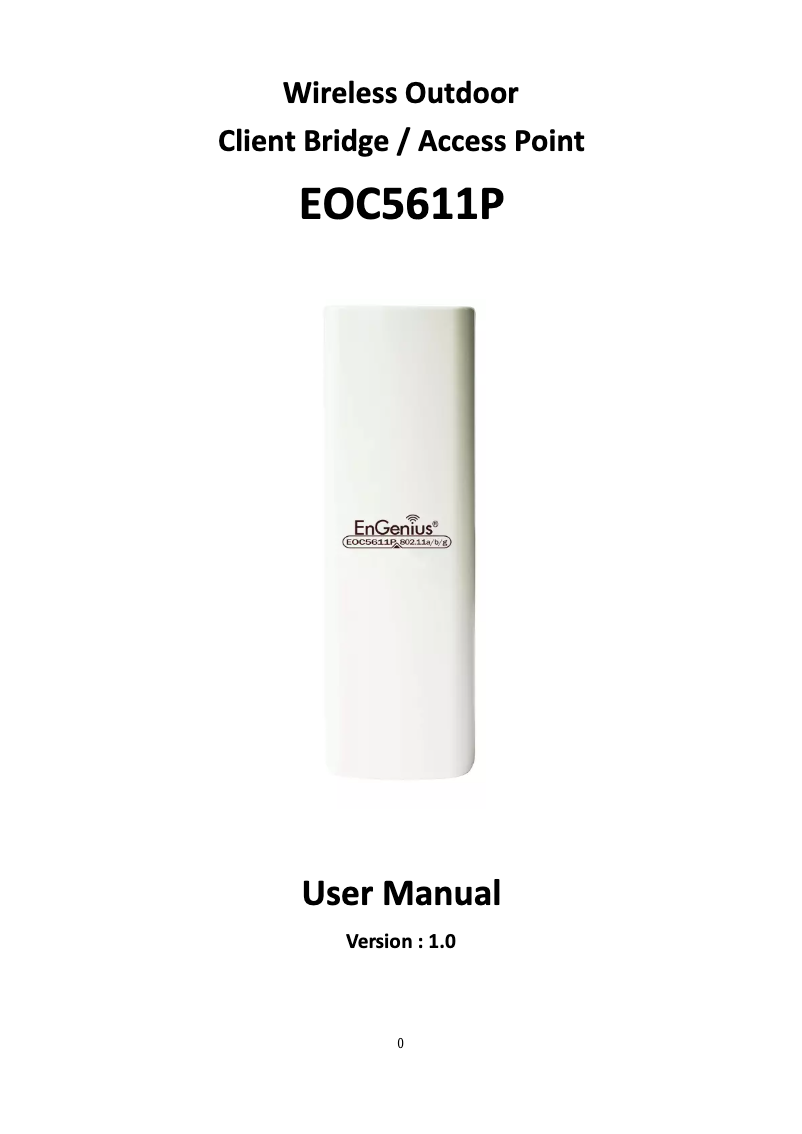

Manual of product EOC5611P
Technical Specifications EOC5611P
General Information
-
ModelEOC5611P
-
Brand
-
Category
-
Type
-
SKU134068
-
MPN134068
Features
-
Maximum data transfer rate54 Mbit/s
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Frequency band5.1 - 5.8 GHz
-
Modulation16-QAM, 64-QAM, CCK, DQPSK, QPSK
-
Quality of Service (QoS)Yes
Other features
-
Data transfer rate54
-
Maximum range outdoors48
-
Wireless technology36
-
Network features24
-
Compliance with industry standards18
-
Power LED indicator12
-
11
-
9
-
6
-
5.5
-
2
-
1 Mbit/s
-
1 - 30km
-
802.11a/b/g
-
Fast Ethernet
-
802.3, 802.3u, 802.11a, 802.11b/g
-
Yes
Antenna
-
Antenna connector typeRP-SMA
-
Antenna gain level (max)14 dBi
Design
-
InternalNo
-
IndicatorsYes
Protocols
-
DHCP serverYes
-
DHCP serverYes
-
Management protocolsSNMP v1, v2c
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Security
-
Security-supported algorithm802.1x RADIUS
-
MAC address filteringSSID
-
MAC address filteringWEP
-
WPA
-
WPA2
-
Yes
-
Yes
Management features
-
Web-based managementYes
Weight and dimensions
-
Dimensions (LxWxH)84 x 260 x 55 mm
-
Weight300 g
Environmental conditions
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature
-
Temperature out of operation-20 - 70 °C
-
-
-30 - 80 °C
Certificate
-
CertificationFCC Part 15C/15B/15E
-
EN301 893
-
EN 300 328
-
EN 301 489-1/-17
-
EN60950
-
IC
Power
-
Power requirements24V/ 1A DC
-
Ethernet connection, supporting power over this port (PoE)Yes
Representation / realization
-
Internal memory32 MB
-
Flash memory8 MB
-
Processor modelQualcomm Atheros AR2313 + AR5112
-
Integrated into the processorYes
Similar products
More product categories from brand EnGenius
More product types from brand EnGenius
Presentation of product EOC5611P specifications from brand EnGenius
Generalities
The brand of the product EnGenius EOC5611P is EnGenius. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product EnGenius EOC5611P is 655216004757, 0655216004757. This code allows for the unique identification of the product in the distribution system. The product model EnGenius EOC5611P is EOC5611P | EOC-5611P. This model ensures optimal performance and an enhanced user experience.
Antenna
The type of antenna connector of the product EnGenius EOC5611P is RP-SMA. This connector is essential for ensuring good signal reception. The maximum gain level of the antenna for the product EnGenius EOC5611P is 14 dBi. This gain level helps optimize the reception and transmission of signals.
Features
The data transfer rate of the product EnGenius EOC5611P is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The maximum data transfer rate of the product EnGenius EOC5611P is 54 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. The modulation of the product EnGenius EOC5611P is 16-QAM, 64-QAM, CCK, DQPSK, QPSK. This feature allows for the operation of the product to be adapted according to the specific needs of the user. The frequency band of the product EnGenius EOC5611P is 5.1 - 5.8 GHz. This feature allows for effective communication within the specified frequency range. Does the product EnGenius EOC5611P have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Other features
The data transfer rate of the product EnGenius EOC5611P is 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbit/s. This rate allows for efficient and fast communication, tailored to modern needs. The EnGenius EOC5611P network has Fast Ethernet network features. These features ensure a fast and reliable connection for all your digital needs. The maximum range outdoors of the product EnGenius EOC5611P is 1 - 30km. This feature allows for efficient use even in extensive outdoor environments. The product EnGenius EOC5611P features a wireless technology 802.11a/b/g. This functionality allows for a quick and efficient connection to various devices without the need for bulky cables. The product EnGenius EOC5611P has compliance with industrial standards 802.3, 802.3u, 802.11a, 802.11b/g. This compliance ensures that the product meets the established standards to ensure its quality and safety. Does the product EnGenius EOC5611P have a power LED indicator? Oui. This indicator provides a clear visual indication of the device's power status.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product EnGenius EOC5611P is 1. These ports provide a stable and fast network connection for your devices.
Protocols
The product management protocol EnGenius EOC5611P contains SNMP v1, v2c. This protocol allows for efficient and centralized management of network devices. The DHCP server of the product EnGenius EOC5611P is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. The DHCP client of the product EnGenius EOC5611P is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network.
Design
Does the product EnGenius EOC5611P have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product EnGenius EOC5611P have an Internal? No. This product does not have any internal components.
Security
The VPN support of the product EnGenius EOC5611P contains Oui. This support allows for a secure and reliable connection for your online data. The supported security algorithm of the product EnGenius EOC5611P contains 802.1x RADIUS, SSID, WEP, WPA, WPA2. This algorithm ensures optimal protection of your data. Does the product EnGenius EOC5611P have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses.
Management features
The EnGenius EOC5611P product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Weight and dimensions
The dimensions (LxWxH) of the product EnGenius EOC5611P are 84 x 260 x 55 mm. These dimensions ensure an optimal fit in your space. The weight of the product EnGenius EOC5611P is 300 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The product EnGenius EOC5611P has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product EnGenius EOC5611P is -30 - 80 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product EnGenius EOC5611P is -20 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Certificate
The certification of the product EnGenius EOC5611P contains FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17, EN60950, IC. This certification guarantees compliance with the required safety and performance standards.
Power
The power requirements of the product EnGenius EOC5611P are 24V/ 1A DC. These requirements ensure optimal operation of the device. Does the EnGenius EOC5611P have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Representation / realization
The internal memory of the product EnGenius EOC5611P contains 32 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product EnGenius EOC5611P has a flash memory of 8 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The technical detail "Integrated into the processor" of the product EnGenius EOC5611P is Oui. This essential component ensures optimal performance and increased efficiency. The processor model of the product EnGenius EOC5611P is Qualcomm Atheros AR2313 + AR5112. This model ensures optimal performance for smooth and efficient use.
