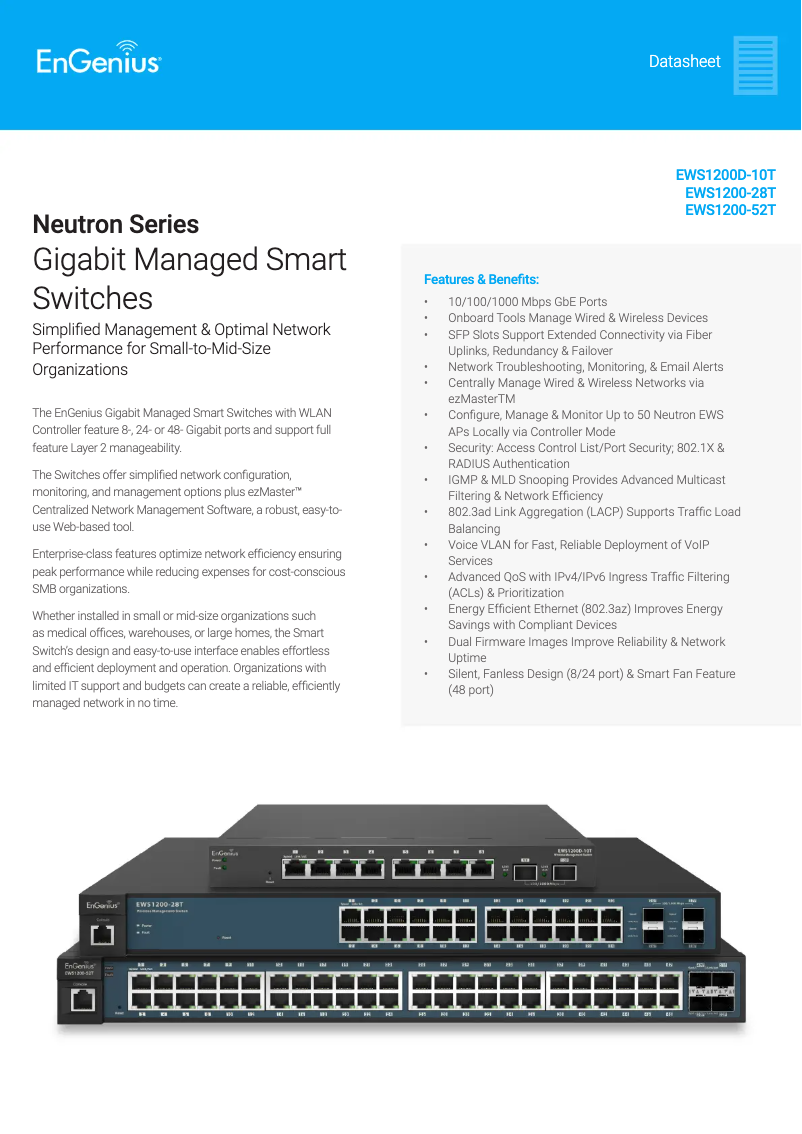

Manuals of product EWS1200D-10T
Technical Specifications EWS1200D-10T
General Information
-
ModelEWS1200D-10T
-
Brand
-
Category
-
Type
-
SKU2019282
-
MPN2019282
Network
-
Network standardsIEEE 802.1D
-
Broadcast storm controlIEEE 802.1Q
-
Broadcast storm controlIEEE 802.1p
-
Broadcast storm controlIEEE 802.1s
-
Broadcast storm controlIEEE 802.1w
-
Number of VLANsIEEE 802.3
-
Virtual LAN functionsIEEE 802.3ab
-
Broadcast storm controlIEEE 802.3u
-
IEEE 802.3x
-
Yes
-
Yes
-
Yes
-
Yes
-
4094
-
Port-based VLAN
-
Yes
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports8
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
-
Console portRJ-45
-
Power connectorDC-in jack
-
Quantity of SFP module slots2
Data transmission
-
Switching capacity20 Gbit/s
-
Support for jumbo framesYes
-
Packet cache memory1.5 MB
-
MAC Directory8000 entries
-
Support for jumbo framesYes
-
Giant frames9216
Representation / realization
-
Internal memory256 MB
-
Flash memory32 MB
Power
-
Typical electricity consumption6.59 W
-
Input current1 A
-
Input voltage12 V
Design
-
Stackable-
-
IndicatorsPower, Reset
-
Assembly gridYes
-
Format1U
-
Product colorBlack
Management features
-
Switch typeManaged
-
Switching benchL2
-
Quality of Service (QoS)Yes
Security
-
Access Control List (ACL)Yes
-
Access Control List (ACL)Yes
-
Access control list rules50
Weight and dimensions
-
Width240 mm
-
Depth105 mm
-
Height27 mm
-
Weight610 g
Packaging contents
-
Cables includedSector
-
Quick Start GuideYes
-
Quick Start GuideYes
Certificate
-
CertificationCE
-
FCC
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)-
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 70 °C
-
Operating relative humidity (H-H)5 - 95 %
Protocols
-
Management protocolsSNMP
-
SSH
-
Telnet
-
TFTP
-
HTTPS
Similar products
More product categories from brand EnGenius
More product types from brand EnGenius
Presentation of product EWS1200D-10T specifications from brand EnGenius
Generalities
The EAN code of the product EnGenius EWS1200D-10T is 0655216008021, 4713361931437, 655216008021, 6552160080216. This code allows for the unique identification of the product in the distribution system. The product model EnGenius EWS1200D-10T is EWS1200D-10T | EWS1200D-10T. This model ensures optimal performance and an enhanced user experience. The brand of the product EnGenius EWS1200D-10T is EnGenius. This brand is known for its quality and innovation in the field of household appliances.
Network
The network standards of the product EnGenius EWS1200D-10T are IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product EnGenius EWS1200D-10T have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. Does the product EnGenius EWS1200D-10T have Port mirroring? Oui. This feature allows for duplicating traffic from one port to another, thus facilitating network analysis and monitoring. Does the product EnGenius EWS1200D-10T have Spanning Tree Protocols (STP)? Oui. This protocol is essential to prevent loops in networks. Does the product EnGenius EWS1200D-10T support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The number of VLANs for the product EnGenius EWS1200D-10T is 4094. This high number allows for effective network segmentation for better management and security. The virtual LAN functions of the EnGenius EWS1200D-10T product contain Port-based VLAN. This feature allows for network segmentation for better data management and security. Does the product EnGenius EWS1200D-10T have a Broadcast storm Control? Oui. This feature allows for efficient network traffic management by preventing broadcast storms, thus ensuring optimal performance.
Data transmission
The switching capacity of the product EnGenius EWS1200D-10T is 20 Gbit/s. This specification ensures efficient data transmission. The MAC directory of the product EnGenius EWS1200D-10T contains 8000 entrées. This directory allows for precise identification of devices on the network. The packet cache memory of the product EnGenius EWS1200D-10T contains 1.5 Mo. This memory helps optimize data transmission by temporarily storing packets for faster access. Does the product EnGenius EWS1200D-10T have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The product EnGenius EWS1200D-10T supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The product EnGenius EWS1200D-10T contains 15000 giant frames. These giant frames allow for efficient data management within the network.
Representation / realization
The internal memory of the product EnGenius EWS1200D-10T contains 256 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product EnGenius EWS1200D-10T has a flash memory of 32 Mo. This memory provides an ideal storage capacity for your files, photos, and videos.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product EnGenius EWS1200D-10T is 8. These ports enable efficient and fast network connectivity. The basic switching RJ-45 Ethernet port type of the product EnGenius EWS1200D-10T is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of SFP modules installed for the product EnGenius EWS1200D-10T is 0. This number helps optimize connectivity and ensure efficient network performance. The number of installed SFP+ modules for the product EnGenius EWS1200D-10T is 0. This number helps optimize connectivity and ensure high performance. The console port of the product EnGenius EWS1200D-10T contains RJ-45. This port allows for effective communication with other devices. The power connector of the product EnGenius EWS1200D-10T contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply. The number of SFP module slots for the EnGenius EWS1200D-10T product is 2. These slots allow for increased flexibility in network connectivity.
Power
The typical power consumption of the product EnGenius EWS1200D-10T is 6.59 W. This feature allows for the assessment of the energy efficiency of the device. The input voltage of the product EnGenius EWS1200D-10T is 12 V. This feature ensures compatibility with standard electrical systems. The input current of the product EnGenius EWS1200D-10T is 1 A. This input current ensures optimal performance and increased energy efficiency.
Design
Does the product EnGenius EWS1200D-10T have indicators? Power, Reset. These indicators allow you to visualize the operating status of the device. Does the product EnGenius EWS1200D-10T have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The format of the product EnGenius EWS1200D-10T is a bar. This format allows for practical and efficient use in various contexts. The color of the product EnGenius EWS1200D-10T is Noir. This shade gives it a modern and elegant look. Is the product EnGenius EWS1200D-10T stackable? No. This product cannot be stacked.
Management features
The switch type of the product EnGenius EWS1200D-10T is Géré. This type of switch allows for advanced management and optimal control of the network. The switchboard of the product EnGenius EWS1200D-10T contains L2. This switchboard allows for efficient and optimized network management. Does the product EnGenius EWS1200D-10T have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Security
The access control list rules of the product EnGenius EWS1200D-10T contain 50. These rules ensure precise management of access permissions to enhance security. Does the product EnGenius EWS1200D-10T have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance. Does the product EnGenius EWS1200D-10T have an Access Control List (ACL)? Oui. This feature allows for precise and secure management of user access rights.
Weight and dimensions
The weight of the product EnGenius EWS1200D-10T is 610 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product EnGenius EWS1200D-10T is 240 mm. This dimension is essential to ensure optimal integration into your space. The height of the product EnGenius EWS1200D-10T is 27 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product EnGenius EWS1200D-10T is 105 mm. This dimension allows for optimal integration into your space.
Certificate
The certification of the product EnGenius EWS1200D-10T contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Packaging contents
The included cable of the product EnGenius EWS1200D-10T contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product EnGenius EWS1200D-10T have a rack mounting kit? Oui. This kit allows for easy and secure installation in a standard rack. Does the product EnGenius EWS1200D-10T have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
PoE (Power over Ethernet)
Does the EnGenius EWS1200D-10T have an Ethernet connection, supporting power over this port (PoE)? -. This feature allows for simplified and efficient power supply to connected devices.
Protocols
The product management protocol EnGenius EWS1200D-10T contains SNMP, SSH, Telnet, TFTP, HTTPS. This protocol allows for efficient and centralized management of network devices.
Environmental conditions
The operating temperature of the product EnGenius EWS1200D-10T is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product EnGenius EWS1200D-10T has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product EnGenius EWS1200D-10T is -20 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
