Thumbnail of product EZN368 from brand EverFocus
Logo of brand EverFocus

Surveillance camera EverFocus EZN368

EverFocus
Camera and photography
Surveillance camera

The EZN368 is a product in the category Camera and photography, specifically of type Surveillance camera. We have listed 1 manual of type User Manual for product Surveillance camera EverFocus EZN368. We have also listed 87 specifications for product Surveillance camera EverFocus EZN368. Have a question about product EverFocus EZN368 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product EZN368

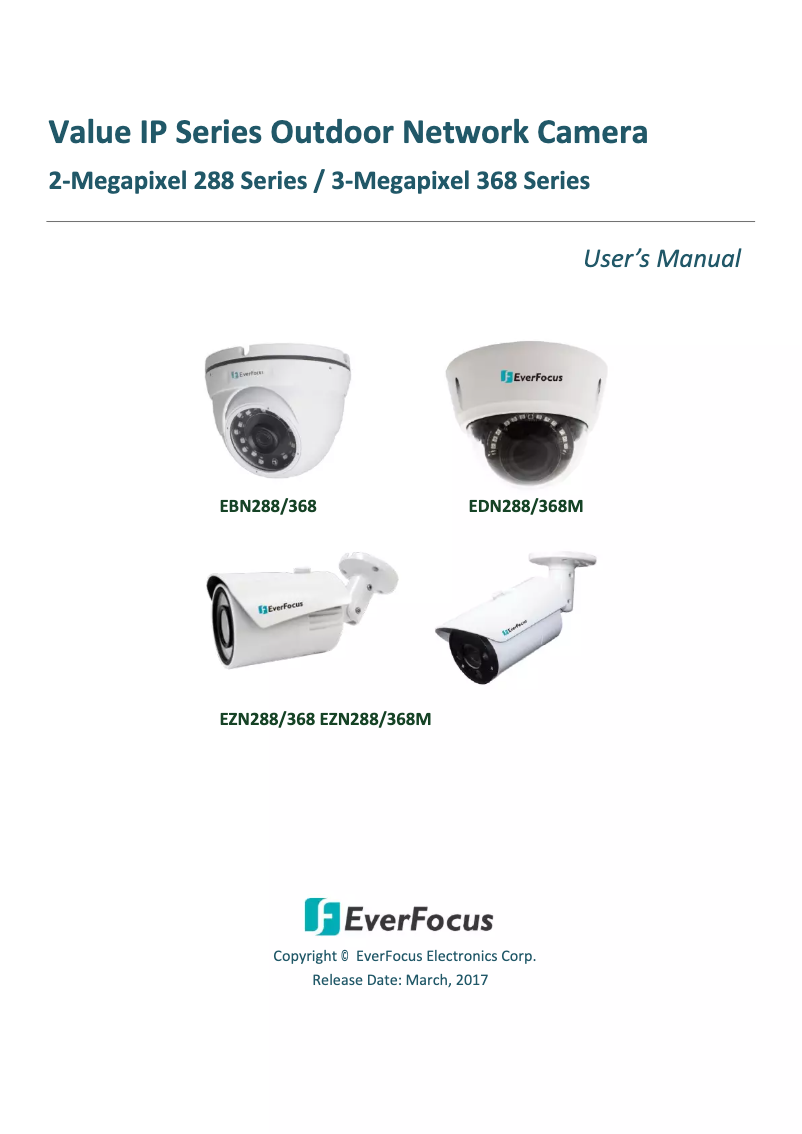

First page image of the manual for EZN368

User Manual
88 pages
View manual

Technical Specifications EZN368

General Information

Representation / realization

  • Type
    IP security camera
  • Supported installation
    Outdoor
  • Plug and Play
    Yes
  • Plug and Play
    Yes
  • Plug and Play
    Yes
  • Plug and Play
    Yes
  • Plug and Play
    Yes
  • Plug and Play
    Yes
  • Connectivity technology
    Wired
  • Certification
    CE, FCC

Design

  • Format
    Terminal
  • Product color
    White
  • Mounting type
    Ceiling/wall
  • International Protection Code (IP)
    IP66

Video

  • Maximum resolution
    2048 x 1536 pixels
  • Total megapixels
    3 MP
  • Masking of personal data
    Yes
  • Masking of personal data
    Yes
  • Noise reduction technology
    Ultra 3D noise reduction
  • Number of images per second
    30 fps
  • Masking of personal data
    Yes
  • Visual compression formats
    H.264, H.265
  • Supported graphic resolutions
    2048 x 1536 (QXGA)

Camera

  • Minimum illumination
    - lux
  • Field of view (FOV)
    97 °
  • Rotation angle
    360 °
  • Adjustment of shutter speed
    Auto/Manual
  • Camera shutter speed
    1/25 - 1/10000 s

Image sensor

  • Sensor type
    CMOS
  • Number of sensors
    1
  • Progressive scan
    Yes

Objective system

  • Number of lenses
    1
  • Minimum opening amount
    1.4
  • Minimum opening amount
    1.4
  • Fixed Focal Length
    3.6 mm

Security

  • Motion detector
    Yes
  • Alert notification type
    E-mail
  • Motion detector
    Yes

Storage support

  • Built-in memory card reader
    Yes
  • Compatible memory cards
    MicroSD (TransFlash), MicroSDHC, MicroSDXC
  • Integrated hard drive
    No

Night vision

  • Night vision
    Yes
  • Night vision distance
    30 m
  • Type of LED
    IR
  • Number of lighting LEDs
    15

Network

  • E-mail
    Yes
  • Bluetooth
    No
  • Bluetooth
    No
  • Type of Ethernet interface
    Fast Ethernet
  • Wiring technology
    10/100Base-T(X)
  • Supported network protocols
    TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP, ONVIF
  • E-mail
    Yes

Connectivity

  • RS-485 ports
    1
  • Interface
    RJ-45
  • RS-485 ports
    1
  • DC Input
    Yes

Audio

  • Audio output channels
    1 channels
  • Audio output channels
    1 channels
  • Signal-to-noise ratio report
    50 dB
  • Supported audio formats
    G.711
  • Voice codecs
    G.711a

Weight and dimensions

  • Diameter
    71 mm
  • Product length
    186 mm
  • Weight
    600 g

Power

  • Power supply type
    DC, PoE
  • Consumption (max)
    3.5 W
  • Output CC in volts
    12
  • Consumption (max)
    3.5 W
  • Energy consumption (Power over Ethernet (PoE))
    3.9 W

Management features

  • Optimized cable management
    Yes
  • Optimized cable management
    Yes
  • Optimized cable management
    Yes
  • Optimized cable management
    Yes
  • Optimized cable management
    Yes

Sustainability

  • Sustainability certificates
    RoHS

Environmental conditions

  • Operating temperature
    -10 - 50 °C
  • Operating relative humidity (H-H)
    0 - 90 %

Minimum system requirements

  • Supported mobile system
    Yes
  • Supported mobile system
    Yes
  • Supported mobile system
    Yes
  • Supported mobile system
    Yes

Packaging contents

  • Number of cameras
    2
