Motherboard Gigabyte B560M Aorus PRO AX

Gigabyte
Computers and accessories
Motherboard

The B560M Aorus PRO AX is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte B560M Aorus PRO AX. We have also listed 91 specifications for product Motherboard Gigabyte B560M Aorus PRO AX. Have a question about product Gigabyte B560M Aorus PRO AX and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product B560M Aorus PRO AX

First page image of the manual for B560M Aorus PRO AX

User Manual
52 pages
View manual
First page image of the manual for B560M Aorus PRO AX

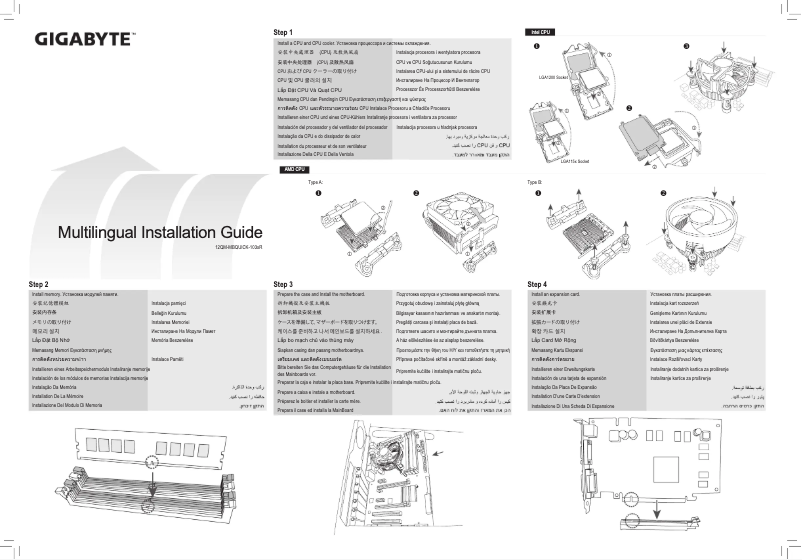

Installation Guide
2 pages
View manual

Technical Specifications B560M Aorus PRO AX

General Information

Processor

  • Processor manufacturer
    Intel
  • Processor socket (processor receptacle)
    LGA 1200 (Socket H5)
  • Compatible processors
    Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
  • Processor socket (processor receptacle)
    LGA 1200 (Socket H5)

Memory

  • Supported memory types
    DDR4-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Support for memory clock speed
    2133,2400,2666,2933,3000,3200 MHz
  • Maximum internal memory
    128 GB
  • Bufferless memory
    Yes

Storage controller

  • Supported storage reader interfaces
    M.2, SATA III
  • Supported storage drive types
    HDD & SSD
  • Number of supported storage units
    8

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • HDCP
    Quad-GPU CrossFireX
  • Maximum resolution
    Yes
  • 4096 x 2304 pixels

Internal I/O

  • Thunderbolt bases
    2
  • Thunderbolt bases
    2
  • Number of Parallel ATA connectors
    0
  • Number of SATA III connectors
    6
  • Number of Parallel ATA connectors
    0
  • Number of Parallel ATA connectors
    0
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • Number of connectors for the case fan
    3
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • Thunderbolt bases
    2
  • Series headsets
    1
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes

Extension connectors

  • PCI Express x16 slots
    2
  • PCI Express x1 slot
    1
  • PCI Express x16 slots
    2

Back panel of I/O ports (Input/Output)

  • Quantity of DisplayPort interfaces
    1
  • Quantity of DisplayPort interfaces
    1
  • Jack WIFI-AP antenna
    2
  • Headset output
    6
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • HDMI version
    1.4
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • DisplayPort version
    1.2
  • Headset output
    6
  • Microphone jack input
    Yes
  • Jack WIFI-AP antenna
    2
  • USB connector
    USB Type-A, USB Type-C

Network

  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Type of Ethernet interface
    2.5 Gigabit Ethernet
  • WLAN controller model
    Intel Wi-Fi 6 AX200
  • Wi-Fi standard
    Wi-Fi 6 (802.11ax)
  • Wifi standards
    802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth
    Yes
  • Bluetooth model
    5.1

Features

  • Component for
    PC
  • Motherboard form factor
    micro ATX
  • Motherboard chipset
    Intel B560 Express
  • Product component family
    Intel
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    FAN, Temperature, Voltage
  • Support for the Windows operating system
    Windows 10 x64

BIOS

  • BIOS Type
    UEFI AMI
  • Memory capacity of the BIOS
    256 Mbit
  • ACPI Version
    5.0
  • CMOS erase driver
    Yes
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7

Weight and dimensions

  • Depth
    244 mm
  • Depth
    244 mm

Packaging contents

  • Provided software
    Norton Internet Security
  • cFosSpeed

Logistics data

  • Harmonized System Code
    84733020

Similar products

Gigabyte Z390 AORUS Ultra
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 AORUS Ultra
Discover the technical sheet of Z390 AORUS Ultra from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 Aorus Elite
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 Aorus Elite
Discover the technical sheet of Z390 Aorus Elite from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 UD
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 UD
Discover the technical sheet of Z390 UD from Gigabyte and its manuals...
Available manuals:

Gigabyte GA-5EASV-RH
1
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte GA-5EASV-RH
Discover the technical sheet of GA-5EASV-RH from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 Aorus Pro
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 Aorus Pro
Discover the technical sheet of Z390 Aorus Pro from Gigabyte and its manuals...
Available manuals:

Gigabyte GA-3CCWL-RH
1
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte GA-3CCWL-RH
Discover the technical sheet of GA-3CCWL-RH from Gigabyte and its manuals...
Available manuals:

Asrock N68-VS3
1
Asrock Computers and accessories Motherboard
Thumbnail of product Asrock N68-VS3
Discover the technical sheet of N68-VS3 from Asrock and its manuals...
Available manuals:

More product categories from brand Gigabyte

More product types from brand Gigabyte

Presentation of product B560M Aorus PRO AX specifications from brand Gigabyte

Generalities

The brand of the product Gigabyte B560M Aorus PRO AX is Gigabyte. This brand is known for its quality and innovation in the field of household appliances. The product model Gigabyte B560M Aorus PRO AX is B560M Aorus PRO AX | B560M AORUS PRO AX. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Gigabyte B560M Aorus PRO AX is 4719331815318, 0889523027226. This code allows for the unique identification of the product in the distribution system.

Storage controller

The storage support of the product Gigabyte B560M Aorus PRO AX contains supported storage reader interfaces: M.2, SATA III. These interfaces ensure optimal compatibility with various storage devices. The type of storage drives supported by the product Gigabyte B560M Aorus PRO AX is HDD and SSD. These options ensure flexibility and optimal performance for all your storage needs. The number of storage units supported by the product Gigabyte B560M Aorus PRO AX is 8. This feature allows for optimizing the management of your data and ensuring enhanced performance.

Processor

The processor socket of the Gigabyte B560M Aorus PRO AX contains LGA 1200 (Socket H5). This socket is designed to ensure an optimal connection between the processor and the motherboard. The compatible processor of the product Gigabyte B560M Aorus PRO AX contains Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium. This processor ensures optimal performance for your computing needs. The processor manufacturer of the product Gigabyte B560M Aorus PRO AX is Intel. This manufacturer is known for its performance and reliability in the field of information technology. The support for the processor sockets of the product Gigabyte B560M Aorus PRO AX contains LGA 1200 (Socket H5). This support allows for optimal compatibility with various processors.

Graphique

The maximum resolution of the product Gigabyte B560M Aorus PRO AX is 4096 x 2304 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Gigabyte B560M Aorus PRO AX have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The Gigabyte B560M Aorus PRO AX processor does not support parallel processing technology. This feature may limit certain performance in applications requiring simultaneous processing.

Extension connectors

The number of M.2 slots of the product Gigabyte B560M Aorus PRO AX is 2. This number of slots allows for the installation of multiple storage devices to enhance the performance and capacity of your system. The PCI Express x1 slot of the product Gigabyte B560M Aorus PRO AX contains 1. This connector allows for easy addition of expansion cards to enhance your system's performance. The Gigabyte B560M Aorus PRO AX has 1 PCI Express x16 slot. This type of expansion connector allows for the installation of graphics cards and other high-performance peripherals to enhance your system's capabilities.

Memory

The type of memory supported by the product Gigabyte B560M Aorus PRO AX is DDR4-SDRAM. This type of memory ensures optimal performance for your applications. The memory channel of the product Gigabyte B560M Aorus PRO AX is Double canal. This channel allows for better performance and optimized data management. The type of support for the product Gigabyte B560M Aorus PRO AX is DIMM. This type of support is essential to ensure compatibility and performance of the memory. The number of memory units for the product Gigabyte B560M Aorus PRO AX is 4. This product allows for optimizing memory management for enhanced performance. Does the product Gigabyte B560M Aorus PRO AX have ECC? Oui. This feature allows for the detection and correction of memory errors, thus ensuring better data reliability. Does the product Gigabyte B560M Aorus PRO AX have a Non-ECC? Oui. This specification indicates that the memory does not have error correction, which may be sufficient for common applications. The clock speed memory support of the product Gigabyte B560M Aorus PRO AX is 2133,2400,2666,2933,3000,3200 MHz. This specification ensures optimal performance for your applications and games. Does the product Gigabyte B560M Aorus PRO AX have a Buffered Memory? Oui. This feature helps improve system performance and stability. The maximum internal memory of the product Gigabyte B560M Aorus PRO AX is 128 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files.

Internal I/O

The number of SATA III connectors of the product Gigabyte B560M Aorus PRO AX is 6. These connectors allow for a fast and efficient connection of hard drives and SSDs. The USB 3.2 Gen 2 (3.1 Gen 2) connector of the Gigabyte B560M Aorus PRO AX contains 0. This connector offers high data transfer speeds, ideal for modern devices. The product Gigabyte B560M Aorus PRO AX contains 2 USB 2.0 connectors. These connectors allow for fast and efficient data transmission, ideal for your internal connectivity needs. The product Gigabyte B560M Aorus PRO AX contains USB 3.2 Gen 1 (3.1 Gen 1) connectors 2. These connectors provide high data transfer speeds, ideal for modern devices. The number of SATA II connectors of the product Gigabyte B560M Aorus PRO AX is 0. This specification determines the capacity to integrate additional storage devices. The number of Parallel ATA connectors of the product Gigabyte B560M Aorus PRO AX is 0. This product does not have any connectors of this type, which can be an advantage for those looking for a simplified setup. Does the Gigabyte B560M Aorus PRO AX have a front panel audio connector? Oui. This connector allows for easy connection of audio devices to the front panel of the device. Does the product Gigabyte B560M Aorus PRO AX have a front panel connector? Oui. This connector allows for easy and efficient connection of internal components. Does the product Gigabyte B560M Aorus PRO AX have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. Does the Gigabyte B560M Aorus PRO AX have a CPU FAN Connector? Oui. This connector allows you to connect the processor fan to ensure optimal cooling. The number of connectors for the fan of the Gigabyte B560M Aorus PRO AX case is 3. This number helps optimize cooling and air circulation inside the case. Does the Gigabyte B560M Aorus PRO AX have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. Does the product Gigabyte B560M Aorus PRO AX have a TPM Connector? Oui. This connector is essential for ensuring data security within your system. The product Gigabyte B560M Aorus PRO AX features Thunderbolt docks. These docks allow for a fast and efficient connection for your devices, ensuring optimal performance. The number of product Gigabyte B560M Aorus PRO AX port heads is 1. These heads enable effective communication between the various internal components. Does the product Gigabyte B560M Aorus PRO AX have an RGB LED Connector? Oui. This connector allows for the addition of RGB LED lighting for optimal visual customization. Does the product Gigabyte B560M Aorus PRO AX have a 12 V power connector? Oui. This connector ensures a stable and efficient power supply for your devices.

Network

Does the product Gigabyte B560M Aorus PRO AX have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The WLAN controller model of the product Gigabyte B560M Aorus PRO AX is Intel Wi-Fi 6 AX200. This model ensures a reliable and high-performance network connection. The Wifi of the product Gigabyte B560M Aorus PRO AX contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Gigabyte B560M Aorus PRO AX is 2.5 Gigabit Ethernet. This type of interface allows for fast and efficient network connections. The Wi-Fi standard of the product Gigabyte B560M Aorus PRO AX is Wi-Fi 6 (802.11ax). This standard ensures a fast and reliable wireless connection for your devices. The wifi standard of the product Gigabyte B560M Aorus PRO AX contains 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). This wifi standard ensures a fast and reliable connection for all your devices. Does the Gigabyte B560M Aorus PRO AX have Bluetooth? Oui. This feature allows for a convenient wireless connection with other compatible devices. The Bluetooth model of the product Gigabyte B560M Aorus PRO AX is 5.1. This model ensures fast and efficient connectivity for your devices.

Features

The component for the product Gigabyte B560M Aorus PRO AX is PC. This component is essential to ensure compatibility and proper functioning of the device. The motherboard format of the product Gigabyte B560M Aorus PRO AX is micro ATX. This format determines the size and layout of the components, thus providing customization and performance options tailored to your needs. The motherboard of the product Gigabyte B560M Aorus PRO AX contains Intel B560 Express. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The product component Gigabyte B560M Aorus PRO AX belongs to the product component family Intel. This specification ensures compatibility and optimal performance of the device. The audio output channels of the Gigabyte B560M Aorus PRO AX are 7.1 canaux. This specification allows for an immersive and high-quality sound experience. The monitoring system for the proper functioning of the product Gigabyte B560M Aorus PRO AX includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer. Does the product Gigabyte B560M Aorus PRO AX support the Windows operating system? Windows 10 x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.

Back panel of I/O ports (Input/Output)

The Gigabyte B560M Aorus PRO AX product has 0 Type A USB 3.2 Gen 2 (3.1 Gen 2) ports. This specification allows for fast and efficient connectivity for your devices. The number of USB 2.0 ports on the Gigabyte B560M Aorus PRO AX is 6. These ports allow for a fast and efficient connection for your devices. The product Gigabyte B560M Aorus PRO AX has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The product Gigabyte B560M Aorus PRO AX has 1 USB Type-C 3.2 Gen 2 (3.1 Gen 2) port. This port allows for fast data transfers and modern connectivity for your devices. The product Gigabyte B560M Aorus PRO AX has 0 USB Type-C 3.2 Gen 1 (3.1 Gen 1) ports. This means there is no additional connectivity via this type of port. The number of Ethernet LAN (RJ-45) ports of the product Gigabyte B560M Aorus PRO AX is 1. These ports provide a stable and fast network connection for your devices. The number of eSATA ports on the Gigabyte B560M Aorus PRO AX is 0. This port allows for a fast and efficient connection for your external storage devices. The number of PS/2 ports of the product Gigabyte B560M Aorus PRO AX is 1. This feature allows for easy and quick connection with compatible devices. The number of VGA (D-Sub) ports on the Gigabyte B560M Aorus PRO AX is 0. This port allows for easy connection with various devices and monitors. The number of IEEE 1394/Firewire ports on the Gigabyte B560M Aorus PRO AX is 0. These ports allow for a fast and efficient connection for various devices. The product Gigabyte B560M Aorus PRO AX has an HDMI Version 1.4. This specification ensures optimal connectivity for your multimedia devices. The number of HDMI ports on the Gigabyte B560M Aorus PRO AX is 1. This detail is essential for determining compatibility with your multimedia devices. The product Gigabyte B560M Aorus PRO AX does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of DisplayPort interfaces of the product Gigabyte B560M Aorus PRO AX is 1. This specification allows for optimal connectivity with various devices. The product Gigabyte B560M Aorus PRO AX has DisplayPort version 1.2. This specification allows for improved connectivity for high resolutions and refresh rates. The headphone output of the Gigabyte B560M Aorus PRO AX is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. Does the product Gigabyte B560M Aorus PRO AX have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The Jack WIFI-AP antenna of the product Gigabyte B560M Aorus PRO AX contains 2. This Jack antenna is essential for ensuring an optimal wireless connection. The USB connector of the product Gigabyte B560M Aorus PRO AX is USB Type-A, USB Type-C. This connector allows for a fast and efficient connection for data transfer and device charging.

Weight and dimensions

The depth of the product Gigabyte B560M Aorus PRO AX is 244 mm. This dimension allows for optimal integration into your space. The width of the product Gigabyte B560M Aorus PRO AX is 244 mm. This dimension is essential to ensure optimal integration into your space.

Packaging contents

The software provided with the product Gigabyte B560M Aorus PRO AX contains Norton Internet Security, cFosSpeed. This software enhances the user experience and optimizes the device's performance.

BIOS

The BIOS type of the product Gigabyte B560M Aorus PRO AX is UEFI AMI. This type of BIOS is essential for the proper functioning and compatibility of your system. Does the product Gigabyte B560M Aorus PRO AX have a CMOS clear jumper? Oui. This component allows you to reset the BIOS settings, thus ensuring optimal operation of your system. The memory capacity of the BIOS of the product Gigabyte B560M Aorus PRO AX is 256 Mbit. This specification ensures optimal performance and efficient management of system resources. The ACPI version of the product Gigabyte B560M Aorus PRO AX is 5.0. This version ensures advanced power management and sleep features. The DMI (Desktop Management Interface) version of the Gigabyte B560M Aorus PRO AX is 2.7. This specification allows for efficient and simplified management of system settings. The system management BIOS (SMBIOS) version of the product Gigabyte B560M Aorus PRO AX is 2.7. This specification ensures optimal compatibility and performance for the system.

Logistics data

The Harmonized System code for the product Gigabyte B560M Aorus PRO AX is 84733020. This code allows for the unique identification of goods in international trade.
