Motherboard Gigabyte B660 Aorus ELITE DDR4

Gigabyte
Computers and accessories
Motherboard

The B660 Aorus ELITE DDR4 is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte B660 Aorus ELITE DDR4. We have also listed 73 specifications for product Motherboard Gigabyte B660 Aorus ELITE DDR4. Have a question about product Gigabyte B660 Aorus ELITE DDR4 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product B660 Aorus ELITE DDR4

First page image of the manual for B660 Aorus ELITE DDR4

User Manual
39 pages
View manual

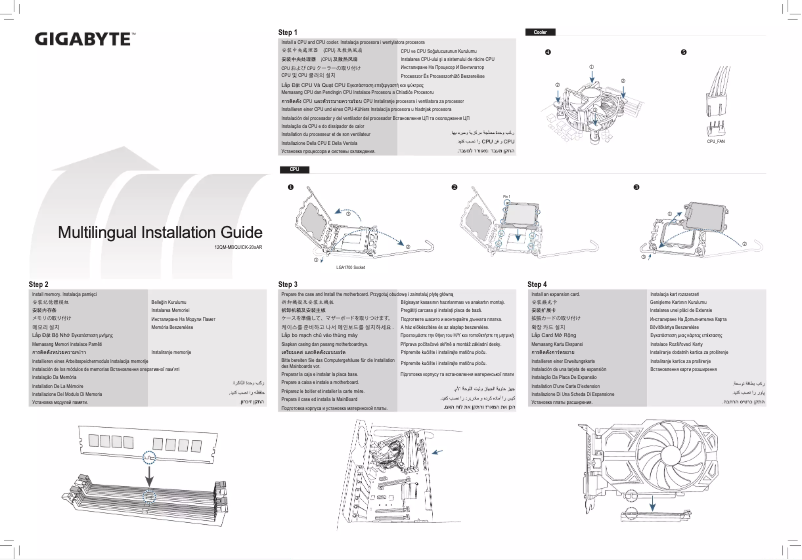

First page image of the manual for B660 Aorus ELITE DDR4

Installation Guide
2 pages
View manual

Technical Specifications B660 Aorus ELITE DDR4

General Information

Processor

  • Processor socket (processor receptacle)
    LGA 1700
  • Compatible processors
    Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
  • Processor manufacturer
    Intel

Memory

  • Maximum internal memory
    128 GB
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Support for memory clock speed
    2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
  • Supported memory types
    DDR4-SDRAM
  • Type of support (slot)
    DIMM
  • Bufferless memory
    Yes
  • Number of housing units for reference
    4

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm

Network

  • Type of Ethernet interface
    2.5 Gigabit Ethernet
  • Ethernet/LAN
    Yes
  • Wifi
    No

Internal I/O

  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • Number of SATA III connectors
    4
  • 12 V power connector
    Yes
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes

Back panel of I/O ports (Input/Output)

  • Jack WIFI-AP antenna
    2
  • S/PDIF output port
    Yes
  • Jack WIFI-AP antenna
    2
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    0
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    0
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • HDMI version
    2.1
  • DisplayPort version
    1.2
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    0
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    4
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    0
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1

Storage controller

  • Supported storage drive types
    HDD & SSD
  • Supported storage reader interfaces
    M.2, SATA III
  • RAID Levels
    0, 1.5, 10
  • RAID support
    Yes

Packaging contents

  • Cables included
    SATA
  • Drivers included
    Yes

Extension connectors

  • Number of M.2 slots (M)
    1
  • Number of M.2 slots (M)
    1

BIOS

  • BIOS Type
    UEFI AMI
  • Memory capacity of the BIOS
    256 Mbit
  • ACPI Version
    5.0
  • DMI Version (Desktop Management Interface)
    2.7
  • DMI Version (Desktop Management Interface)
    2.7

Graphique

  • Parallel Processing Technology
    Not supported
  • HDCP
    Yes
  • Maximum resolution
    4096 x 2160 pixels

Features

  • Motherboard chipset
    Intel B660
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    CPU, FAN, Temperature, Voltage
  • Support for the Windows operating system
    Windows 10 x64, Windows 11 x64
  • Motherboard form factor
    ATX
  • Product component family
    Intel
  • Component for
    PC
