Motherboard Gigabyte B760 DS3H AX

Gigabyte
Computers and accessories
Motherboard

The B760 DS3H AX is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte B760 DS3H AX. We have also listed 108 specifications for product Motherboard Gigabyte B760 DS3H AX. Have a question about product Gigabyte B760 DS3H AX and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product B760 DS3H AX

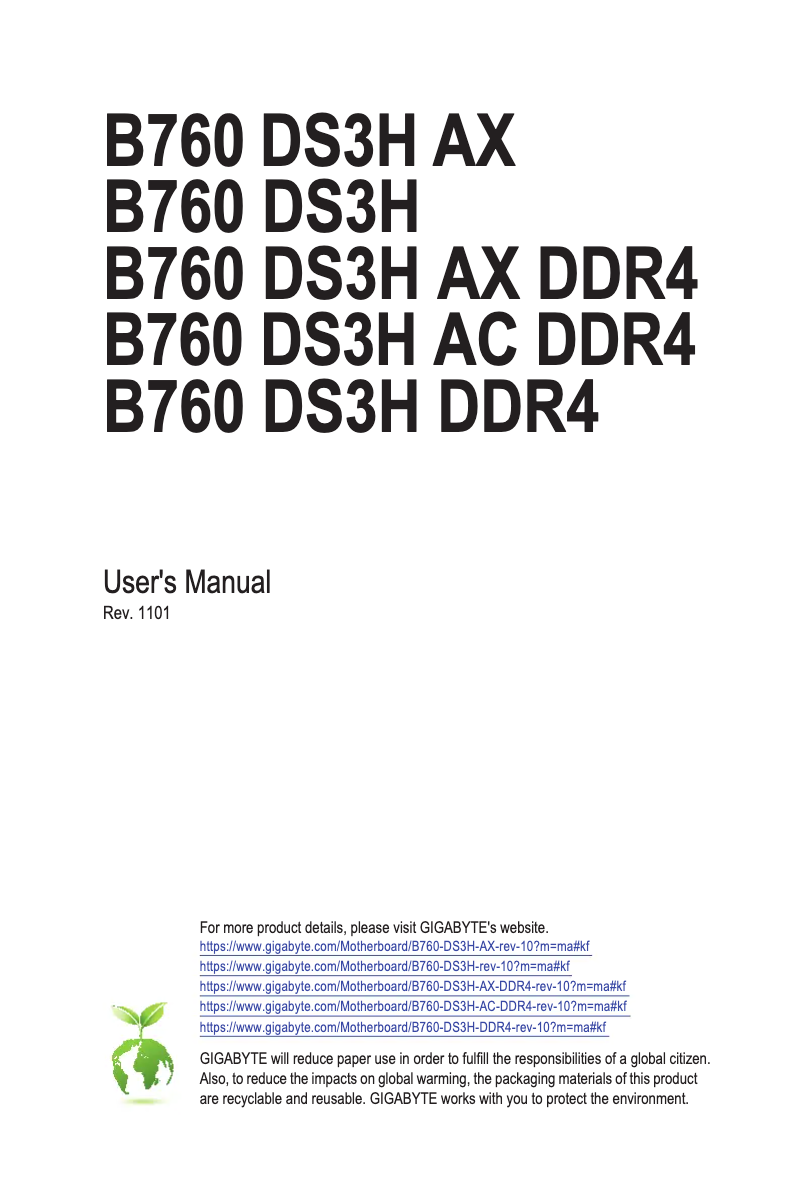

First page image of the manual for B760 DS3H AX

User Manual
41 pages
View manual
First page image of the manual for B760 DS3H AX

Installation Guide
29 pages
View manual

Technical Specifications B760 DS3H AX

General Information

Features

  • Component for
    PC
  • Power supply type
    ATX
  • Product component family
    Intel
  • Motherboard chipset
    Intel B760 Express
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    FAN, Temperature, Voltage, Water cooling
  • Support for the Windows operating system
    Windows 10 x64, Windows 11 x64
  • Power supply type
    ATX
  • Product color
    Brown

Processor

  • Processor manufacturer
    Intel
  • Support for processor sockets
    LGA 1700
  • Support for processor sockets
    LGA 1700
  • Compatible processors
    Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
  • Maximum internal memory supported by the processor
    192 GB

Memory

  • Supported memory types
    DDR5-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Maximum internal memory
    192 GB
  • Supported memory clock speed (max)
    7600 MHz
  • Support for memory clock speed
    4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
  • Supported the memory module capabilities
    1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Storage controller

  • Supported storage drive types
    HDD & SSD
  • Supported storage reader interfaces
    M.2, SATA III
  • Number of supported storage units
    6
  • RAID support
    Yes
  • RAID Levels
    0, 1.5, 10
  • Number of supported hard drives
    4

Graphique

  • Parallel Processing Technology
    Not supported
  • Maximum resolution
    4096 x 2304 pixels
  • HDCP
    Yes
  • DirectX Version
    12.0

Internal I/O

  • USB 2.0 connectors
    2
  • USB 2.0 connectors
    2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    0
  • Total number of SATA connectors
    4
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • Series headsets
    1
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • Total number of SATA connectors
    4

Extension connectors

  • Number of M.2 slots (M)
    2
  • PCI Express x16 slots
    5

Back panel of I/O ports (Input/Output)

  • Quantity of USB 2.0 Ports
    4
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DisplayPort interfaces
    1
  • HDMI version
    2.0
  • DisplayPort version
    1.2
  • Headset output
    3
  • Microphone jack input
    Yes
  • Jack WIFI-AP antenna
    2
  • USB connector
    USB Type-A, USB Type-C

Network

  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet
  • Wi-Fi standard
    Wi-Fi 6E (802.11ax)
  • Wifi standards
    802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth
    Yes
  • Bluetooth model
    5.3
  • WLAN controller model
    Realtek RTL8852CE

BIOS

  • Memory capacity of the BIOS
    128 Mbit
  • BIOS Type
    UEFI AMI
  • ACPI Version
    5.0
  • CMOS erase driver
    Yes
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm
  • Height
    35 mm

Packaging contents

  • Cables included
    SATA
  • Provided software
    Norton Internet Security
  • Batteries included
    Yes

Packaging information

  • Package width
    335 mm
  • Package depth
    270 mm
  • Package height
    80 mm
  • Package weight
    1340 g

Logistics data

  • Country of origin
    China
  • Product by shipping crate (internal)
    1 piece(s)

Technical details

  • Warranty period
    3 year(s)

Battery

  • Battery weight
    3 g
  • Weight of lithium per battery
    0.07 g
  • Number of battery cells
    1
  • Battery technology
    Lithium-Manganese Dioxide (LiMnO2)
  • Battery type
    CR2032
