Motherboard Gigabyte GA-970A-UD3P

Gigabyte
Computers and accessories
Motherboard

The GA-970A-UD3P is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 1 manual of type User Manual for product Motherboard Gigabyte GA-970A-UD3P. We have also listed 73 specifications for product Motherboard Gigabyte GA-970A-UD3P. Have a question about product Gigabyte GA-970A-UD3P and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product GA-970A-UD3P

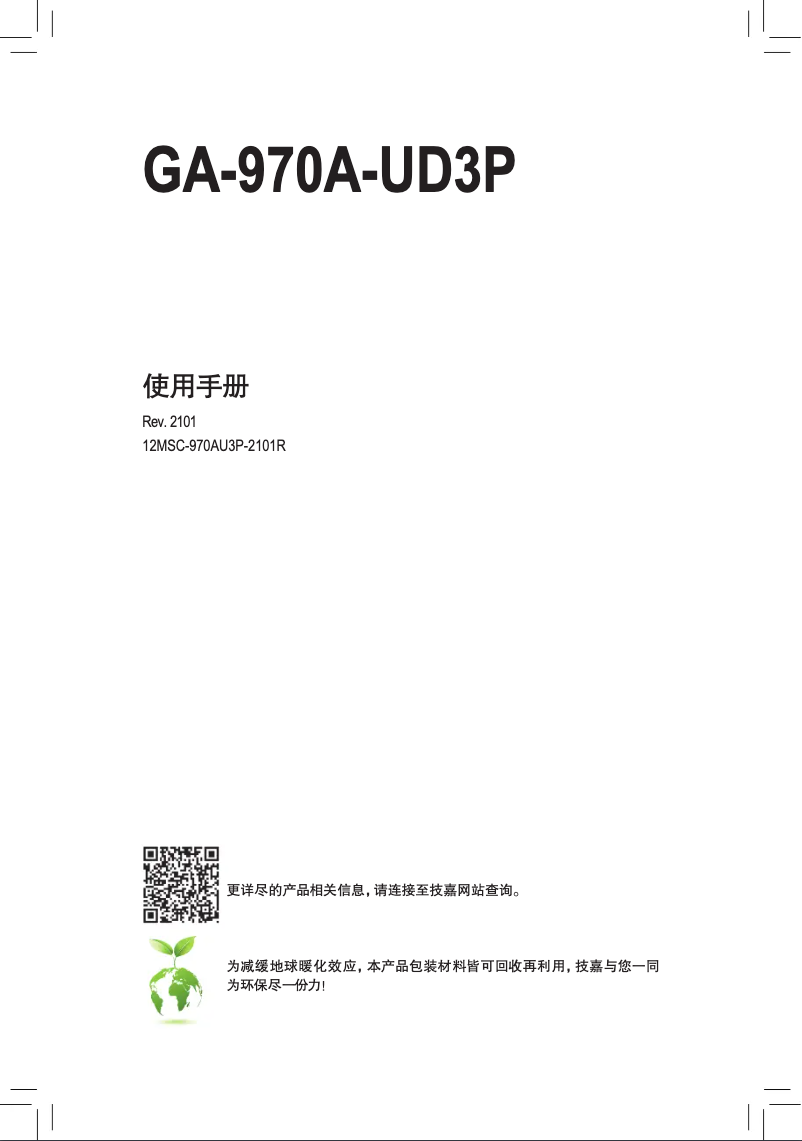

First page image of the manual for GA-970A-UD3P

User Manual
40 pages
View manual

Technical Specifications GA-970A-UD3P

General Information

Memory

  • Supported memory types
    DDR3-SDRAM
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Support for memory clock speed
    1066,1333,1600,1866,2000 MHz
  • Maximum internal memory
    32 GB
  • Number of housing units for reference
    4

Processor

  • Processor manufacturer
    AMD
  • Compatible processors
    AMD Phenom FX, AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
  • Processor socket (processor receptacle)
    Socket AM3+
  • Computer bus
    4.8 GT/s

Internal I/O

  • Number of SATA connectors
    -
  • USB 2.0 connectors
    3
  • Series headsets
    1
  • TPM connector
    Yes
  • TPM connector
    Yes
  • TPM connector
    Yes
  • Number of connectors for the case fan
    2
  • Number of SATA II connectors
    0
  • TPM connector
    Yes
  • TPM connector
    Yes
  • TPM connector
    Yes
  • Number of SATA II connectors
    0
  • Number of SATA III connectors
    6
  • Series headsets
    1

Back panel of I/O ports (Input/Output)

  • Quantity of USB 2.0 Ports
    8
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    2
  • Digital Audio Output (Optical)
    1
  • Quantity of HDMI ports
    0
  • Digital Audio Output (Optical)
    1
  • Quantity of HDMI ports
    0
  • Digital Audio Output (Optical)
    1
  • S/PDIF output port
    Yes
  • S/PDIF output port
    Yes
  • Quantity of HDMI ports
    0
  • Quantity of HDMI ports
    0
  • Digital Audio Output (Optical)
    1
  • Quantity of HDMI ports
    0

Features

  • Component for
    PC
  • Product component family
    AMD
  • Motherboard chipset
    AMD 970
  • Power supply type
    ATX
  • Motherboard southbridge
    AMD SB950
  • Cooling type
    Passive
  • Audio output channels
    7.1 channels
  • Audio chip
    VIA VT2021
  • Support for the Windows operating system
    Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
  • Monitoring of PC functionality
    CPU, FAN, Power supply, Temperature
  • Power supply type
    ATX

Storage controller

  • Supported storage reader interfaces
    SATA III
  • RAID Levels
    0, 1.5, 10, JBOD

Special features of the processor

  • TPM chip (Trusted Platform Module)
    Yes

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • Discrete graphic support
    Yes

Other features

  • Number of supported processors
    1
  • Serial port via internal connector
    Yes
  • PCI express slots quantity
    5

Extension connectors

  • PCI Express x1 slot (Gen 2.x)
    3
  • PCI Locations
    2
  • PCI Locations
    2

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm

Network

  • Ethernet/LAN
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet

BIOS

  • BIOS Type
    EFI AMI
  • Memory capacity of the BIOS
    32 Mbit
  • ACPI Version
    2.0a
  • CMOS erase driver
    Yes

Similar products

Gigabyte Z390 AORUS Ultra
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 AORUS Ultra
Discover the technical sheet of Z390 AORUS Ultra from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 Aorus Elite
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 Aorus Elite
Discover the technical sheet of Z390 Aorus Elite from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 UD
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 UD
Discover the technical sheet of Z390 UD from Gigabyte and its manuals...
Available manuals:

Gigabyte GA-5EASV-RH
1
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte GA-5EASV-RH
Discover the technical sheet of GA-5EASV-RH from Gigabyte and its manuals...
Available manuals:

Gigabyte Z390 Aorus Pro
2
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte Z390 Aorus Pro
Discover the technical sheet of Z390 Aorus Pro from Gigabyte and its manuals...
Available manuals:

Gigabyte GA-3CCWL-RH
1
Gigabyte Computers and accessories Motherboard
Thumbnail of product Gigabyte GA-3CCWL-RH
Discover the technical sheet of GA-3CCWL-RH from Gigabyte and its manuals...
Available manuals:

Asrock N68-VS3
1
Asrock Computers and accessories Motherboard
Thumbnail of product Asrock N68-VS3
Discover the technical sheet of N68-VS3 from Asrock and its manuals...
Available manuals:

More product categories from brand Gigabyte

More product types from brand Gigabyte

Presentation of product GA-970A-UD3P specifications from brand Gigabyte

Generalities

The brand of the product Gigabyte GA-970A-UD3P is Gigabyte. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Gigabyte GA-970A-UD3P is 4719331833176, 5052183779322, 818313017284, 0818313017284, 0172304258491, 5054629355145, 7734322922995, 0872182687252, 0115971061346, 5054531415555, 0168141508912, 6081582597991, 0825698959245, 0132018150801, 5283566774478, 5054533495111, 0998196944287, 5054531316487, 5054484495116. This code allows for the unique identification of the product in the distribution system. The product model Gigabyte GA-970A-UD3P is GA-970A-UD3P | GA-970A-UD3P. This model ensures optimal performance and an enhanced user experience.

Processor

The processor manufacturer of the product Gigabyte GA-970A-UD3P is AMD. This manufacturer is known for its performance and reliability in the field of information technology. The processor socket of the Gigabyte GA-970A-UD3P contains Socket AM3+. This socket is designed to ensure an optimal connection between the processor and the motherboard. The computer bus of the product Gigabyte GA-970A-UD3P has 4.8 GT/s. This bus allows for fast communication between the different components of the system. The compatible processor of the product Gigabyte GA-970A-UD3P contains AMD Phenom FX, AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8. This processor ensures optimal performance for your computing needs.

Memory

The type of memory supported by the product Gigabyte GA-970A-UD3P is DDR3-SDRAM. This type of memory ensures optimal performance for your applications. The clock speed memory support of the product Gigabyte GA-970A-UD3P is 1066,1333,1600,1866,2000 MHz. This specification ensures optimal performance for your applications and games. The type of support for the product Gigabyte GA-970A-UD3P is DIMM. This type of support is essential to ensure compatibility and performance of the memory. The memory channel of the product Gigabyte GA-970A-UD3P is Double canal. This channel allows for better performance and optimized data management. The maximum internal memory of the product Gigabyte GA-970A-UD3P is 32 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files. The number of memory units for the product Gigabyte GA-970A-UD3P is 4. This product allows for optimizing memory management for enhanced performance.

Storage controller

The RAID levels of the Gigabyte GA-970A-UD3P product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security. The storage support of the product Gigabyte GA-970A-UD3P contains supported storage reader interfaces: SATA III. These interfaces ensure optimal compatibility with various storage devices.

Internal I/O

The product Gigabyte GA-970A-UD3P contains 2 USB 2.0 connectors. These connectors allow for fast and efficient data transmission, ideal for your internal connectivity needs. Does the Gigabyte GA-970A-UD3P have a CPU FAN Connector? Oui. This connector allows you to connect the processor fan to ensure optimal cooling. Does the product Gigabyte GA-970A-UD3P have an S/PDIF output connector? Oui. This connector allows for high-quality digital audio transmission. Does the product Gigabyte GA-970A-UD3P have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The product Gigabyte GA-970A-UD3P contains USB 3.2 Gen 1 (3.1 Gen 1) connectors 1. These connectors provide high data transfer speeds, ideal for modern devices. The number of connectors for the fan of the Gigabyte GA-970A-UD3P case is 2. This number helps optimize cooling and air circulation inside the case. Does the Gigabyte GA-970A-UD3P have a front panel audio connector? Oui. This connector allows for easy connection of audio devices to the front panel of the device. Does the product Gigabyte GA-970A-UD3P have a fan power connector? Oui. This connector is essential for ensuring the proper functioning of the fan. The number of Parallel ATA connectors of the product Gigabyte GA-970A-UD3P is 0. This product does not have any connectors of this type, which can be an advantage for those looking for a simplified setup. Does the product Gigabyte GA-970A-UD3P have a TPM Connector? Oui. This connector is essential for ensuring data security within your system. The number of SATA II connectors of the product Gigabyte GA-970A-UD3P is 0. This specification determines the capacity to integrate additional storage devices. The number of SATA III connectors of the product Gigabyte GA-970A-UD3P is 6. These connectors allow for a fast and efficient connection of hard drives and SSDs. The number of product Gigabyte GA-970A-UD3P port heads is 1. These heads enable effective communication between the various internal components. The number of SATA connectors of the product Gigabyte GA-970A-UD3P is -. This feature allows for optimizing connectivity and expanding storage devices.

Back panel of I/O ports (Input/Output)

The number of eSATA ports on the Gigabyte GA-970A-UD3P is 0. This port allows for a fast and efficient connection for your external storage devices. The number of Ethernet LAN (RJ-45) ports of the product Gigabyte GA-970A-UD3P is 1. These ports provide a stable and fast network connection for your devices. The product Gigabyte GA-970A-UD3P has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Gigabyte GA-970A-UD3P is 8. These ports allow for a fast and efficient connection for your devices. The number of PS/2 ports of the product Gigabyte GA-970A-UD3P is 1. This feature allows for easy and quick connection with compatible devices. The number of IEEE 1394/Firewire ports on the Gigabyte GA-970A-UD3P is 0. These ports allow for a fast and efficient connection for various devices. The headphone output of the Gigabyte GA-970A-UD3P is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. Does the product Gigabyte GA-970A-UD3P have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. Does the product Gigabyte GA-970A-UD3P have an S/PDIF output port? Oui. This feature allows for a high-quality digital audio connection. The number of VGA (D-Sub) ports on the Gigabyte GA-970A-UD3P is 0. This port allows for easy connection with various devices and monitors. The product Gigabyte GA-970A-UD3P does not have DVI-D ports. This feature may be important depending on your connectivity needs. The product Gigabyte GA-970A-UD3P has a digital audio output (optical) of 1. This output allows for high-quality audio transmission, ideal for home theater systems and high-end audio equipment. The number of HDMI ports on the Gigabyte GA-970A-UD3P is 0. This detail is essential for determining compatibility with your multimedia devices.

Special features of the processor

Does the product Gigabyte GA-970A-UD3P have a TPM (Trusted Platform Module) chip? Oui. This chip provides an enhanced level of security to protect your sensitive data.

Graphique

The Gigabyte GA-970A-UD3P processor does not support parallel processing technology. This feature may limit certain performance in applications requiring simultaneous processing. Does the product Gigabyte GA-970A-UD3P have a discreet graphic support? Oui. This support allows for a harmonious and discreet integration into your space.

Features

The component for the product Gigabyte GA-970A-UD3P is PC. This component is essential to ensure compatibility and proper functioning of the device. The motherboard of the product Gigabyte GA-970A-UD3P contains AMD 970. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The motherboard format of the product Gigabyte GA-970A-UD3P is ATX. This format determines the size and layout of the components, thus providing customization and performance options tailored to your needs. The product component Gigabyte GA-970A-UD3P belongs to the product component family AMD. This specification ensures compatibility and optimal performance of the device. The southbridge motherboard of the Gigabyte GA-970A-UD3P product contains AMD SB950. This southbridge motherboard ensures optimal connectivity and efficient data management within the system. The cooling type of the product Gigabyte GA-970A-UD3P is active. This system ensures optimal temperature management for improved performance. Does the product Gigabyte GA-970A-UD3P support the Windows operating system? Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The monitoring system for the proper functioning of the product Gigabyte GA-970A-UD3P includes FAN, Temperature, Voltage. This system ensures optimal performance by monitoring the essential parameters of your computer. The audio output channels of the Gigabyte GA-970A-UD3P are 7.1 canaux. This specification allows for an immersive and high-quality sound experience. The product Gigabyte GA-970A-UD3P features an audio chip VIA VT2021. This chip ensures optimal sound quality for an immersive audio experience. The type of power source for the product Gigabyte GA-970A-UD3P is ATX. This type of power supply ensures optimal performance and efficient use of the device.

Other features

The number of supported processors for the product Gigabyte GA-970A-UD3P is 1. This number determines the processing capacity and overall performance of the device. Does the product Gigabyte GA-970A-UD3P have a serial port via internal connector? Oui. This feature allows for easy and quick connection with other devices. The number of PCI express slots of the product Gigabyte GA-970A-UD3P is 5. These slots allow you to add expansion cards to enhance the performance and features of your system.

Extension connectors

The PCI Express x1 slot (Gen 2.x) of the product Gigabyte GA-970A-UD3P contains 3. This expansion connector allows for fast and efficient communication with compatible expansion cards. The PCI Express x16 expansion connector of the product Gigabyte GA-970A-UD3P contains 2. This connector allows for the installation of graphics cards and other devices with high bandwidth for optimal performance. The number of PCI slots for the Gigabyte GA-970A-UD3P is 2. These slots allow you to add expansion cards to enhance the performance and features of your system.

Weight and dimensions

The depth of the product Gigabyte GA-970A-UD3P is 244 mm. This dimension allows for optimal integration into your space. The width of the product Gigabyte GA-970A-UD3P is 305 mm. This dimension is essential to ensure optimal integration into your space.

Network

Does the product Gigabyte GA-970A-UD3P have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Gigabyte GA-970A-UD3P is Gigabit Ethernet. This type of interface allows for fast and efficient network connections.

BIOS

The BIOS type of the product Gigabyte GA-970A-UD3P is EFI AMI. This type of BIOS is essential for the proper functioning and compatibility of your system. The memory capacity of the BIOS of the product Gigabyte GA-970A-UD3P is 32 Mbit. This specification ensures optimal performance and efficient management of system resources. Does the product Gigabyte GA-970A-UD3P have a CMOS clear jumper? Oui. This component allows you to reset the BIOS settings, thus ensuring optimal operation of your system. The ACPI version of the product Gigabyte GA-970A-UD3P is 2.0a. This version ensures advanced power management and sleep features.
