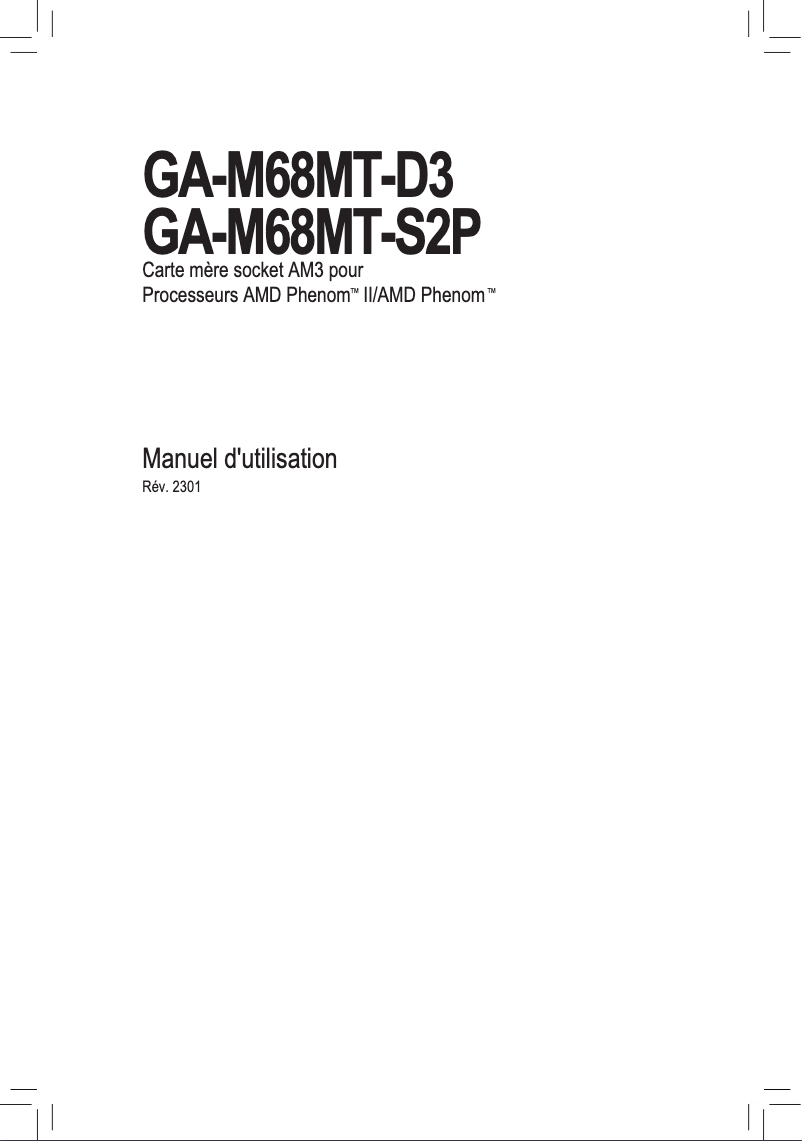

Manuals of product GA-M68MT-D3
Technical Specifications GA-M68MT-D3
General Information
-
ModelGA-M68MT-D3
-
Brand
-
Category
-
Type
-
SKU1511115
-
MPN1511115
Memory
-
Maximum internal memory8 GB
-
Number of housing units for reference2
-
Voltage memory1.5 V
-
Memory channelsDual channel
Processor
-
Processor manufacturerAMD
-
Processor socket (processor receptacle)AM3 Socket
-
Compatible processorsAMD Phenom II X2
Internal I/O
-
Number of Parallel ATA connectors-
-
ATX connector (24-pin)Yes
-
Number of SATA connectors4
-
USB 2.0 connectors2
-
ATX connector (24-pin)Yes
-
ATX connector (24-pin)Yes
-
Molex peripheral connector (4-pin)1
Back panel of I/O ports (Input/Output)
-
Number of IEEE 1394/Firewire Ports-
-
Quantity of eSATA Ports-
-
Quantity of DVI-D ports-
-
Quantity of HDMI ports-
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports-
-
Quantity of USB 2.0 Ports4
-
Headset output2
-
Quantity of USB 2.0 Ports4
-
Number of VGA (D-Sub) ports1
-
Headset output2
-
Microphone jack inputYes
-
Number of VGA (D-Sub) ports1
Features
-
Motherboard form factormicro ATX
-
Motherboard chipsetNVIDIA nForce 630a
-
Compatible operating systemsWindows 7/Vista/XP
-
Component forPC
-
Audio output channels7.1 channels
-
Power supply typeATX
Graphique
-
Integrated graphics card-
-
Parallel Processing TechnologyNot supported
-
Graphics adapterGeForce 7025
-
Graphics adapter familyNVIDIA
Extension connectors
-
PCI Express x1 slot1
-
PCI Locations2
-
PCI Express x1 slot1
Weight and dimensions
-
Width244 mm
-
Depth225 mm
Other features
-
Graphic controllerGeForce 7025
Storage controller
-
RAID Levels0
-
1,5
-
10
-
JBOD
Network
-
Local Area Network (LAN) ControllerRealtek RTL8211CL
-
Type of Ethernet interfaceGigabit Ethernet
BIOS
-
BIOS TypeAWARD
Similar products
More product categories from brand Gigabyte
More product types from brand Gigabyte
Presentation of product GA-M68MT-D3 specifications from brand Gigabyte
Memory
The number of memory units for the product Gigabyte GA-M68MT-D3 is 2. This product allows for optimizing memory management for enhanced performance. The voltage memory of the product Gigabyte GA-M68MT-D3 is 1.5 V. This specification ensures optimal performance and compatibility with modern systems. The memory channel of the product Gigabyte GA-M68MT-D3 is Double canal. This channel allows for better performance and optimized data management. The maximum internal memory of the product Gigabyte GA-M68MT-D3 is 8 Go. This capacity allows for the storage of a large amount of data, applications, and multimedia files.
Internal I/O
Does the product Gigabyte GA-M68MT-D3 have a fan power connector? Oui. This connector is essential for ensuring the proper functioning of the fan. The product Gigabyte GA-M68MT-D3 contains 2 USB 2.0 connectors. These connectors allow for fast and efficient data transmission, ideal for your internal connectivity needs. The number of SATA connectors of the product Gigabyte GA-M68MT-D3 is 4. This feature allows for optimizing connectivity and expanding storage devices. Does the Gigabyte GA-M68MT-D3 have a CPU FAN Connector? Oui. This connector allows you to connect the processor fan to ensure optimal cooling. Does the product Gigabyte GA-M68MT-D3 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The number of Parallel ATA connectors of the product Gigabyte GA-M68MT-D3 is -. This product does not have any connectors of this type, which can be an advantage for those looking for a simplified setup. The Molex peripheral connector (4-pin) of the product Gigabyte GA-M68MT-D3 contains 1. This connector is essential for ensuring a reliable connection between electronic components.
Generalities
The brand of the product Gigabyte GA-M68MT-D3 is Gigabyte. This brand is known for its quality and innovation in the field of household appliances. The product model Gigabyte GA-M68MT-D3 is GA-M68MT-D3 | GA-M68MT-D3. This model ensures optimal performance and an enhanced user experience.
Processor
The processor socket of the Gigabyte GA-M68MT-D3 contains Prise AM3. This socket is designed to ensure an optimal connection between the processor and the motherboard. The processor manufacturer of the product Gigabyte GA-M68MT-D3 is AMD. This manufacturer is known for its performance and reliability in the field of information technology. The compatible processor of the product Gigabyte GA-M68MT-D3 contains AMD Phenom II X2. This processor ensures optimal performance for your computing needs.
Features
The component for the product Gigabyte GA-M68MT-D3 is PC. This component is essential to ensure compatibility and proper functioning of the device. The motherboard of the product Gigabyte GA-M68MT-D3 contains NVIDIA nForce 630a. This motherboard is equipped with a high-performance chipset to ensure excellent resource management and optimal performance. The motherboard format of the product Gigabyte GA-M68MT-D3 is micro ATX. This format determines the size and layout of the components, thus providing customization and performance options tailored to your needs. The compatible operating system for the product Gigabyte GA-M68MT-D3 is Windows XP, Windows Vista, Windows 7. These operating systems ensure optimal and smooth use of the product. The audio output channels of the Gigabyte GA-M68MT-D3 are 7.1 canaux. This specification allows for an immersive and high-quality sound experience. The type of power source for the product Gigabyte GA-M68MT-D3 is ATX. This type of power supply ensures optimal performance and efficient use of the device.
Extension connectors
The number of PCI slots for the Gigabyte GA-M68MT-D3 is 2. These slots allow you to add expansion cards to enhance the performance and features of your system. The Gigabyte GA-M68MT-D3 has 1 PCI Express x16 slot. This type of expansion connector allows for the installation of graphics cards and other high-performance peripherals to enhance your system's capabilities. The PCI Express x1 slot of the product Gigabyte GA-M68MT-D3 contains 1. This connector allows for easy addition of expansion cards to enhance your system's performance.
Graphique
The product Gigabyte GA-M68MT-D3 has a GeForce 7025 graphics adapter. This adapter enhances visual performance and ensures optimal compatibility with various devices. Does the product Gigabyte GA-M68MT-D3 have an integrated graphics card? -. This feature allows for optimizing graphics performance without requiring a dedicated card. The Gigabyte GA-M68MT-D3 processor does not support parallel processing technology. This feature may limit certain performance in applications requiring simultaneous processing. The graphics adapter family of the product Gigabyte GA-M68MT-D3 includes NVIDIA. This specification ensures optimal graphics performance for an enhanced user experience.
Back panel of I/O ports (Input/Output)
The number of serial ports of the product Gigabyte GA-M68MT-D3 is 4. This number of serial ports allows for efficient connectivity for your devices. The number of IEEE 1394/Firewire ports on the Gigabyte GA-M68MT-D3 is -. These ports allow for a fast and efficient connection for various devices. The number of USB 2.0 ports on the Gigabyte GA-M68MT-D3 is 4. These ports allow for a fast and efficient connection for your devices. The number of PS/2 ports of the product Gigabyte GA-M68MT-D3 is 2. This feature allows for easy and quick connection with compatible devices. The number of Ethernet LAN (RJ-45) ports of the product Gigabyte GA-M68MT-D3 is 1. These ports provide a stable and fast network connection for your devices. The headphone output of the Gigabyte GA-M68MT-D3 is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. Does the product Gigabyte GA-M68MT-D3 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of VGA (D-Sub) ports on the Gigabyte GA-M68MT-D3 is 1. This port allows for easy connection with various devices and monitors. The number of eSATA ports on the Gigabyte GA-M68MT-D3 is -. This port allows for a fast and efficient connection for your external storage devices. The product Gigabyte GA-M68MT-D3 does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of HDMI ports on the Gigabyte GA-M68MT-D3 is -. This detail is essential for determining compatibility with your multimedia devices. The product Gigabyte GA-M68MT-D3 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed.
Weight and dimensions
The width of the product Gigabyte GA-M68MT-D3 is 244 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Gigabyte GA-M68MT-D3 is 225 mm. This dimension allows for optimal integration into your space.
Other features
The graphics controller of the product Gigabyte GA-M68MT-D3 contains GeForce 7025. This graphics controller ensures optimal graphics performance for a smooth user experience.
Storage controller
The RAID levels of the Gigabyte GA-M68MT-D3 product are 0, 1, 10. These RAID levels offer different configurations to optimize performance and data security.
BIOS
The BIOS type of the product Gigabyte GA-M68MT-D3 is AWARD. This type of BIOS is essential for the proper functioning and compatibility of your system.
Network
The local area network (LAN) controller of the product Gigabyte GA-M68MT-D3 has Realtek RTL8211CL. This controller ensures a stable and fast connection to the network, thereby optimizing the performance of your system. The Ethernet interface type of the product Gigabyte GA-M68MT-D3 is Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
