Thumbnail of product GA-Z87X-OC from brand Gigabyte
Logo of brand Gigabyte

Motherboard Gigabyte GA-Z87X-OC

Gigabyte
Computers and accessories
Motherboard

The GA-Z87X-OC is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte GA-Z87X-OC. We have also listed 97 specifications for product Motherboard Gigabyte GA-Z87X-OC. Have a question about product Gigabyte GA-Z87X-OC and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product GA-Z87X-OC

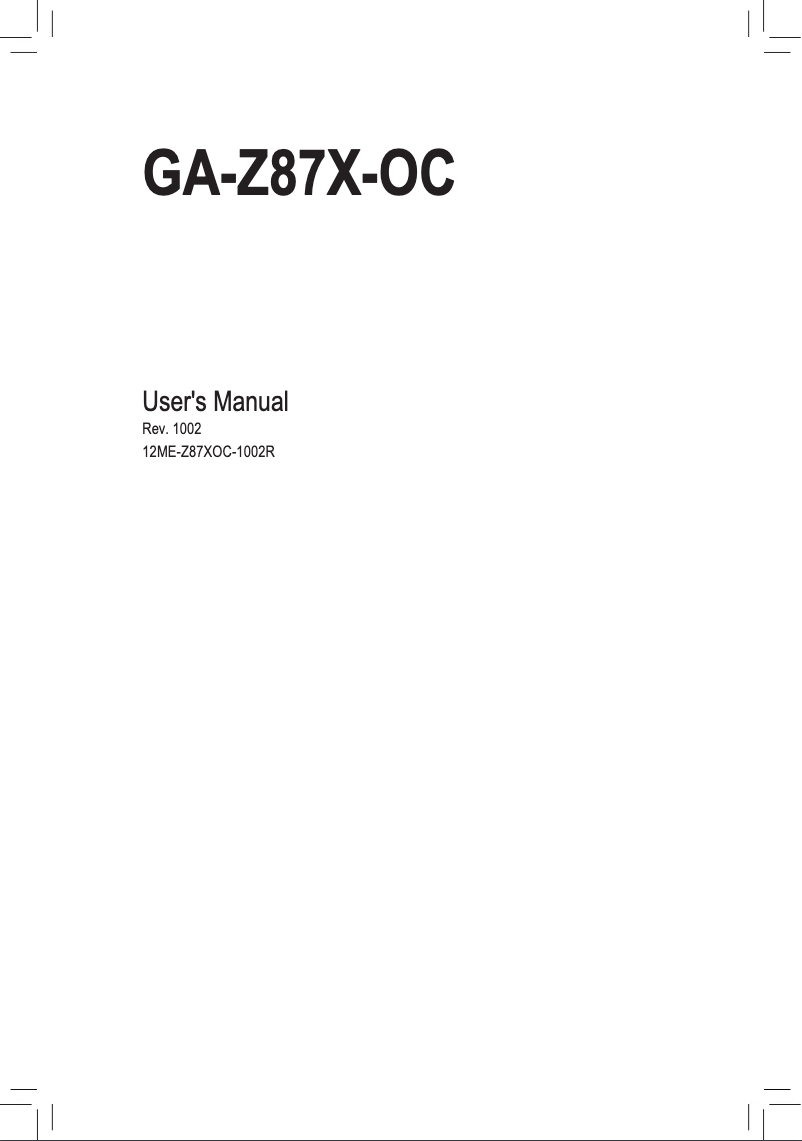

First page image of the manual for GA-Z87X-OC

User Manual
112 pages
View manual
First page image of the manual for GA-Z87X-OC

Installation Guide
72 pages
View manual

Technical Specifications GA-Z87X-OC

General Information

Memory

  • Supported memory types
    DDR3-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Voltage memory
    1.5 V
  • ECC
    No
  • Bufferless memory
    Yes
  • Support for memory clock speed
    1333,1600,3000 MHz
  • Maximum internal memory
    32 GB
  • Bufferless memory
    Yes

Processor

  • Processor manufacturer
    Intel
  • Compatible processors
    Intel Celeron, Intel Pentium
  • Maximum number of SMP processors
    1
  • Processor socket (processor receptacle)
    LGA 1150 (Socket H3)
  • Processor socket (processor receptacle)
    LGA 1150 (Socket H3)

Internal I/O

  • USB 2.0 connectors
    4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • Series headsets
    1
  • Number of connectors for the case fan
    7
  • Number of SATA II connectors
    0
  • EPS power connector (8-pin)
    Yes
  • Number of SATA II connectors
    0
  • Number of SATA III connectors
    6
  • EPS power connector (8-pin)
    Yes
  • Series headsets
    1

Other features

  • Quick Installation Guide
    Yes
  • PCI Express connector (6 pins)
    1
  • Quick Installation Guide
    Yes
  • Quick Installation Guide
    Yes

Back panel of I/O ports (Input/Output)

  • Quantity of HDMI ports
    2
  • Headset output
    6
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Headset output
    6
  • S/PDIF output port
    Yes
  • S/PDIF output port
    Yes
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of HDMI ports
    2
  • Quantity of DisplayPort interfaces
    1
  • HDMI version
    1.4a

Features

  • Component for
    PC
  • Product component family
    Intel
  • Motherboard chipset
    Intel® Z87
  • Power supply type
    ATX
  • Cooling type
    Passive
  • Monitoring of PC functionality
    CPU, FAN, Temperature
  • Audio output channels
    7.1 channels
  • Audio chip
    Realtek ALC892
  • Support for the Windows operating system
    Yes
  • Power supply type
    ATX

Storage controller

  • Supported storage reader interfaces
    SATA
  • RAID Levels
    SATA II
  • SATA III
  • 0
  • 1.5
  • 10

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • Discrete graphic support
    2-Way SLI
  • Graphics adapter
    3-Way CrossFireX
  • Discrete graphic support
    4-Way CrossFireX
  • Graphics adapter family
    Yes
  • Maximum resolution
    HD Graphics
  • Discrete graphic support
    Yes
  • Intel
  • 4096 x 2160 pixels
  • Yes

Special features of the processor

  • Intel Graphics processor with the necessary technology
    Yes
  • Intel Graphics processor with the necessary technology
    Yes

Extension connectors

  • PCI Express x16 slots
    4
  • PCI Locations
    2
  • PCI Express x1 slot
    1
  • Version of PCI Express locations
    2.0, 3.0
  • PCI Express Configurations
    1x8, 1x16, 2x4

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm

Packaging contents

  • Cables included
    SATA

Network

  • Ethernet/LAN
    Yes
  • Bluetooth
    No
  • Bluetooth
    No
  • Type of Ethernet interface
    Gigabit Ethernet

BIOS

  • BIOS Type
    EFI AMI
  • Memory capacity of the BIOS
    16 Mbit
  • ACPI Version
    2.0a
  • CMOS clear button
    Yes
  • CMOS clear button
    Yes
