Motherboard Gigabyte GA-Z87X-UD7 TH

Gigabyte
Computers and accessories
Motherboard

The GA-Z87X-UD7 TH is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 1 manual of type User Manual for product Motherboard Gigabyte GA-Z87X-UD7 TH. We have also listed 89 specifications for product Motherboard Gigabyte GA-Z87X-UD7 TH. Have a question about product Gigabyte GA-Z87X-UD7 TH and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product GA-Z87X-UD7 TH

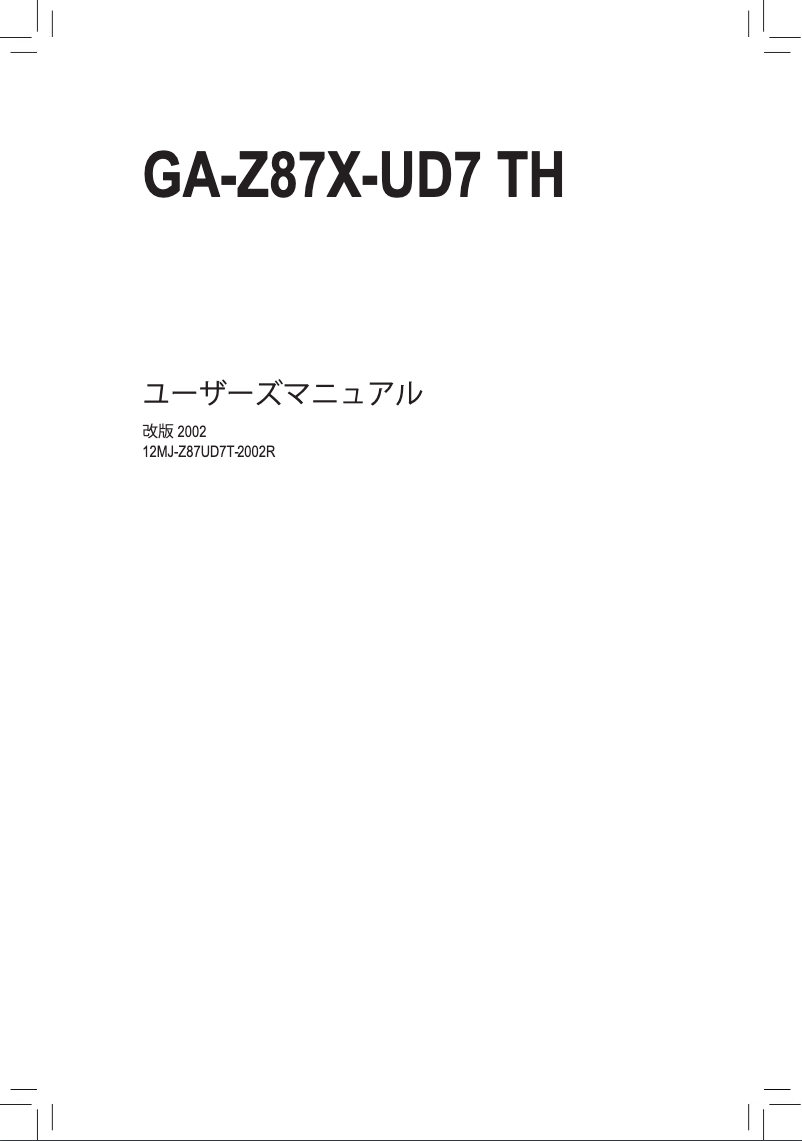

First page image of the manual for GA-Z87X-UD7 TH

User Manual
128 pages
View manual

Technical Specifications GA-Z87X-UD7 TH

General Information

Memory

  • Supported memory types
    DDR3-SDRAM
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Voltage memory
    1.5 V
  • Non-ECC
    Yes
  • Support for memory clock speed
    1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,3000 MHz
  • Maximum internal memory
    32 GB
  • Number of housing units for reference
    4

Processor

  • Processor manufacturer
    Intel
  • Compatible processors
    Intel Celeron, Intel Pentium
  • Processor socket (processor receptacle)
    LGA 1150 (Socket H3)
  • Intel® i3/i5/i7/i9 core series
    i3-4xxx, i5-4xxx, i7-4xxx

Internal I/O

  • Number of SATA connectors
    -
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • EPS power connector (8-pin)
    Yes
  • Number of connectors for the case fan
    7
  • Number of SATA II connectors
    0
  • EPS power connector (8-pin)
    Yes
  • Number of SATA II connectors
    0
  • Number of SATA III connectors
    10
  • EPS power connector (8-pin)
    Yes
  • Series headsets
    1

Other features

  • BIOS button-
    Yes
  • Number of DIMM slots
    4
  • BIOS button-
    Yes
  • PCI express slots quantity
    7
  • BIOS button-
    Yes
  • Quantity of ports 2 Thunderbolt
    2

Back panel of I/O ports (Input/Output)

  • Quantity of DVI-D ports
    0
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    6
  • Quantity of HDMI ports
    2
  • Quantity of DVI-D ports
    0
  • Digital Audio Output (Optical)
    1
  • Quantity of DVI-D ports
    0
  • Digital Audio Output (Optical)
    1
  • S/PDIF output port
    Yes
  • S/PDIF output port
    Yes
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Digital Audio Output (Optical)
    1
  • Quantity of HDMI ports
    2
  • HDMI version
    1.4a

Features

  • Component for
    PC
  • Product component family
    Intel
  • Motherboard chipset
    Intel® Z87
  • Motherboard form factor
    Extended ATX
  • Cooling type
    Passive
  • Monitoring of PC functionality
    CPU, FAN, Power supply, Temperature
  • Audio output channels
    7.1 channels
  • Audio chip
    Realtek ALC898
  • Support for the Windows operating system
    Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Power supply type
    ATX

Storage controller

  • Supported storage reader interfaces
    SATA III
  • RAID Levels
    0, 1.5, 10

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • Video memory size
    2-Way SLI
  • Graphics adapter family
    3-Way CrossFireX
  • Maximum resolution
    3-Way SLI
  • Discrete graphic support
    4-Way CrossFireX
  • 4-Way SLI
  • 1024 MB
  • Intel
  • 4096 x 2160 pixels
  • Yes

Special features of the processor

  • Intel Graphics processor with the necessary technology
    Yes

Extension connectors

  • PCI Express x1 slot (Gen 2.x)
    2
  • PCI Express x16 slot(s) (Gen 3.x)
    5

Weight and dimensions

  • Width
    305 mm
  • Depth
    264 mm

Network

  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet
  • Bluetooth
    Yes
  • Wifi standards
    802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • Bluetooth model
    4.0

BIOS

  • BIOS Type
    EFI AMI
  • Memory capacity of the BIOS
    64 Mbit
  • ACPI Version
    2.0a
  • CMOS clear button
    Yes
  • CMOS clear button
    Yes
