Motherboard Gigabyte X570 Aorus PRO WIFI

Gigabyte
Computers and accessories
Motherboard

The X570 Aorus PRO WIFI is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte X570 Aorus PRO WIFI. We have also listed 94 specifications for product Motherboard Gigabyte X570 Aorus PRO WIFI. Have a question about product Gigabyte X570 Aorus PRO WIFI and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product X570 Aorus PRO WIFI

First page image of the manual for X570 Aorus PRO WIFI

User Manual
48 pages
View manual

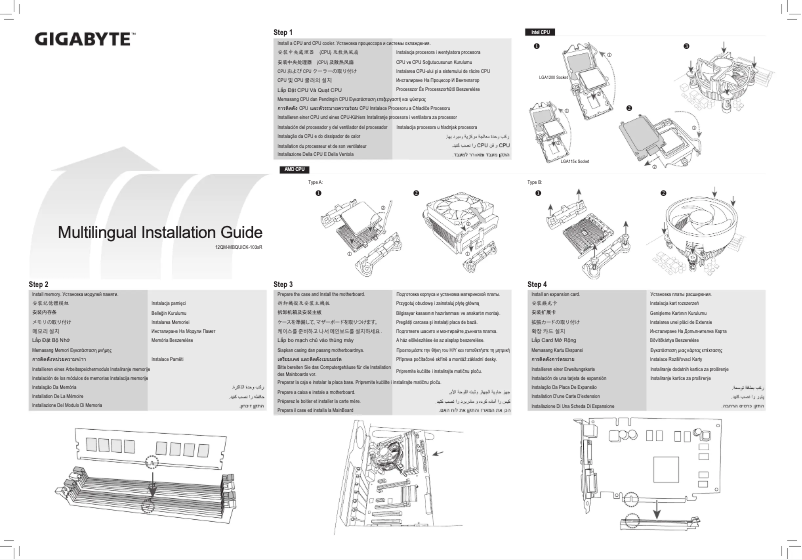

First page image of the manual for X570 Aorus PRO WIFI

Installation Guide
2 pages
View manual

Technical Specifications X570 Aorus PRO WIFI

General Information

Features

  • Component for
    PC
  • Motherboard form factor
    ATX
  • Product component family
    AMD
  • Motherboard chipset
    AMD X570
  • Audio output channels
    7.1 channels
  • Support for the Windows operating system
    Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
  • Monitoring of PC functionality
    FAN, Temperature, Voltage
  • Audio chip
    Realtek ALC1220-VB

Processor

  • Compatible processors
    AMD Ryzen 3 2nd Gen
  • Maximum number of SMP processors
    AMD Ryzen 3 3rd Gen
  • Processor socket (processor receptacle)
    AMD Ryzen 5 2nd Gen
  • Processor manufacturer
    AMD Ryzen 5 3rd Gen
  • AMD Ryzen 7 2nd Gen
  • AMD Ryzen 7 3rd Gen
  • AMD Ryzen 9 3rd Gen
  • 1
  • AM4 Socket
  • AMD

Memory

  • Supported memory types
    DDR4-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Maximum internal memory
    128 GB
  • Support for memory clock speed
    2133,2400,2667,2933,3200,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266,4300,4400 MHz
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm

Packaging contents

  • Cables included
    SATA
  • Drivers included
    Yes

Other features

  • DualBIOS
    Yes
  • DualBIOS
    Yes

Network

  • Bluetooth
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet
  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Wifi standards
    802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth model
    5.0

BIOS

  • Memory capacity of the BIOS
    128 Mbit
  • BIOS Type
    UEFI AMI
  • DMI Version (Desktop Management Interface)
    2.7
  • ACPI Version
    5.0
  • DMI Version (Desktop Management Interface)
    2.7
  • CMOS erase driver
    Yes

Back panel of I/O ports (Input/Output)

  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    2
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • S/PDIF output port
    Yes
  • Quantity of USB 2.0 Ports
    4
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    3
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    2
  • Quantity of eSATA Ports
    0
  • HDMI version
    2.0
  • Quantity of eSATA Ports
    0
  • Quantity of eSATA Ports
    0
  • Quantity of eSATA Ports
    0
  • Quantity of eSATA Ports
    0
  • Quantity of eSATA Ports
    0

Internal I/O

  • CPU FAN Connector
    Yes
  • CPU FAN Connector
    Yes
  • CPU FAN Connector
    Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
  • CPU FAN Connector
    Yes
  • CPU FAN Connector
    Yes
  • CPU FAN Connector
    Yes
  • Number of SATA III connectors
    6
  • Number of SATA II connectors
    0
  • CPU FAN Connector
    Yes
  • Number of connectors for the case fan
    3

Extension connectors

  • PCI Express x1 slot (Gen 3.x)
    2
  • PCI Express x1 slot (Gen 3.x)
    2
  • PCI Express x16 slot(s) (Gen 3.x)
    3

Storage controller

  • RAID Levels
    0
  • Supported storage reader interfaces
    1
  • 10
  • SATA III

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • HDCP
    2-Way SLI
  • Maximum resolution
    Quad-GPU CrossFireX
  • Quad-GPU SLI
  • Yes
  • 4096 x 2160 pixels
