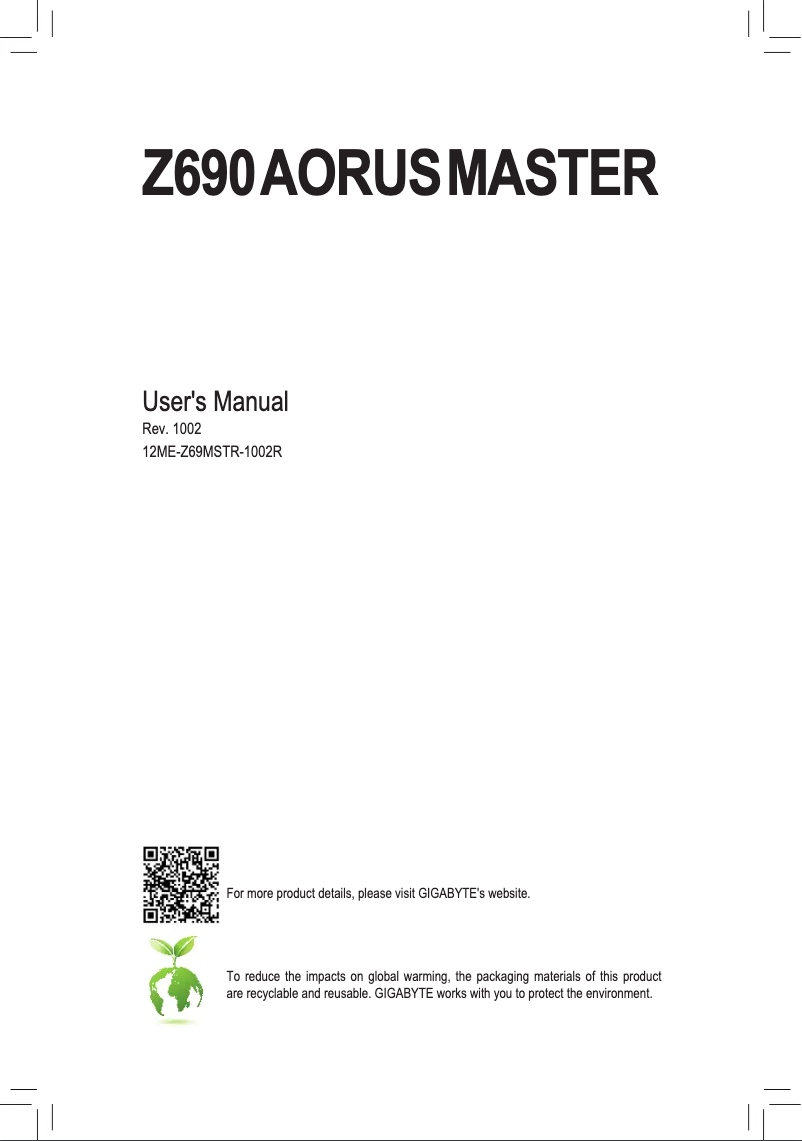

First page image of the manual for Z690 Aorus Master

User Manual
45 pages
View manual

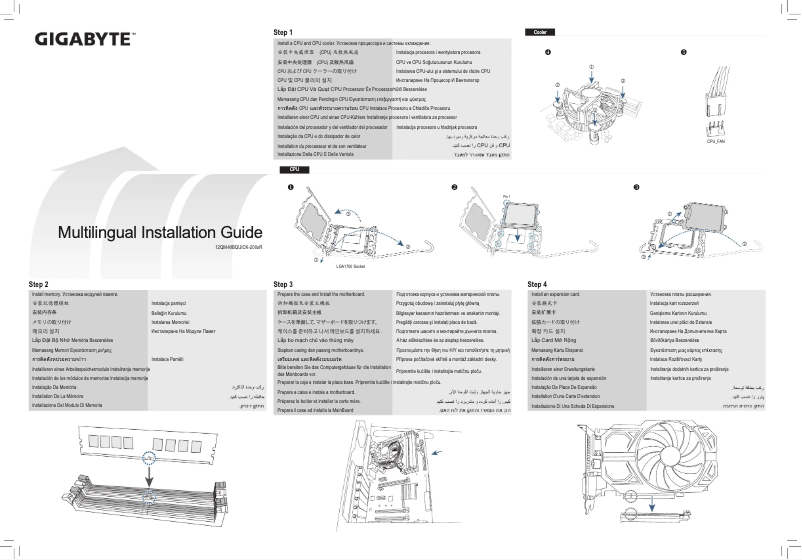

First page image of the manual for Z690 Aorus Master

Installation Guide
2 pages
View manual

Technical Specifications Z690 Aorus Master

General Information

Processor

  • Processor manufacturer
    Intel
  • Support for processor sockets
    LGA 1700
  • Support for processor sockets
    LGA 1700
  • Compatible processors
    Intel Core i5, Intel Core i7, Intel Core i9

Memory

  • Supported memory types
    DDR5-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Maximum internal memory
    128 GB
  • Support for memory clock speed
    4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200 MHz

Storage controller

  • Supported storage drive types
    HDD & SSD
  • RAID support
    Yes
  • RAID Levels
    0, 1.5, 10
  • Number of supported storage units
    11
  • Supported storage reader interfaces
    M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • HDCP
    Quad-GPU CrossFireX
  • Maximum resolution
    Yes
  • 4096 x 2304 pixels

Internal I/O

  • Thunderbolt bases
    2
  • Thunderbolt bases
    2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • Number of SATA III connectors
    6
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • Number of connectors for the case fan
    4
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • 12 V power connector
    Yes
  • Thunderbolt bases
    2

Extension connectors

  • Number of M.2 slots (M)
    5
  • PCI Express x16 slots
    3

Back panel of I/O ports (Input/Output)

  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    4
  • Headset output
    5
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • S/PDIF output port
    Yes
  • Headset output
    5
  • S/PDIF output port
    Yes
  • Jack WIFI-AP antenna
    2
  • USB connector
    USB Type-A, USB Type-C
  • DisplayPort version
    1.2

Network

  • Bluetooth
    Yes
  • Type of Ethernet interface
    10 Gigabit Ethernet
  • Bluetooth
    Yes
  • Wi-Fi standard
    Wi-Fi 6E (802.11ax)
  • Wifi standards
    802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • WLAN controller model
    Intel Wi-Fi 6E AX210
  • Bluetooth
    Yes
  • Bluetooth model
    5.2
  • Local Area Network (LAN) Controller
    Marvell AQtion AQC113C

Features

  • Component for
    PC
  • Motherboard form factor
    Extended ATX
  • Product component family
    Intel
  • Motherboard chipset
    Intel Z690
  • Audio chip
    Realtek ALC1220-VB
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    FAN, Noise, Temperature, Voltage, Water cooling
  • Support for the Windows operating system
    Windows 10 x64, Windows 11 x64

BIOS

  • Memory capacity of the BIOS
    256 Mbit
  • BIOS Type
    UEFI AMI
  • ACPI Version
    5.0
  • CMOS clear button
    Yes
  • CMOS clear button
    Yes
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7

Packaging contents

  • Cables included
    SATA
  • Provided software
    Norton Internet Security
  • cFosSpeed

Logistics data

  • Harmonized System Code
    84733020

Weight and dimensions

  • Height
    70 mm
  • Width
    305 mm
  • Depth
    259 mm

Other features

  • Weight
    1000 g
