Motherboard Gigabyte Z690 Aorus Pro DDR4

Gigabyte
Computers and accessories
Motherboard

The Z690 Aorus Pro DDR4 is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte Z690 Aorus Pro DDR4. We have also listed 88 specifications for product Motherboard Gigabyte Z690 Aorus Pro DDR4. Have a question about product Gigabyte Z690 Aorus Pro DDR4 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product Z690 Aorus Pro DDR4

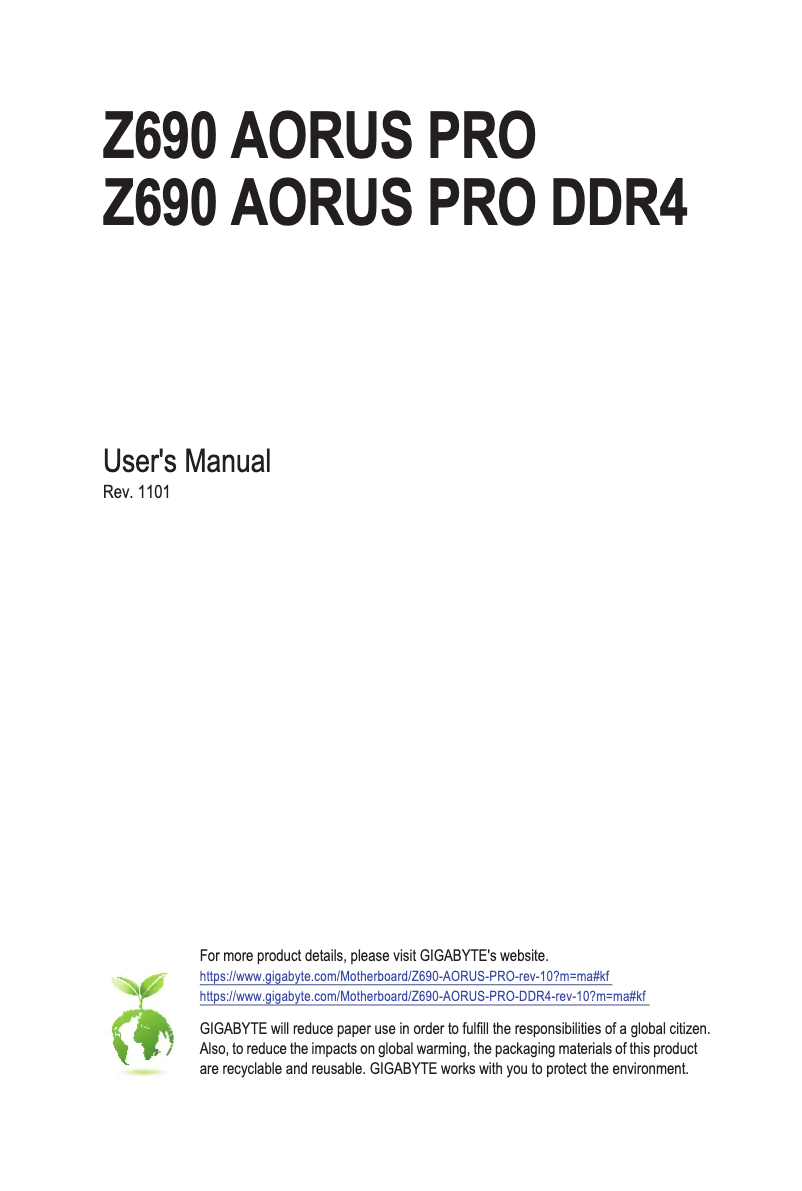

First page image of the manual for Z690 Aorus Pro DDR4

User Manual
46 pages
View manual
First page image of the manual for Z690 Aorus Pro DDR4

Installation Guide
2 pages
View manual

Technical Specifications Z690 Aorus Pro DDR4

General Information

Processor

  • Processor manufacturer
    Intel
  • Support for processor sockets
    LGA 1700
  • Compatible processors
    Intel Core i5, Intel Core i7, Intel Core i9
  • Support for processor sockets
    LGA 1700

Memory

  • Supported memory types
    DDR4-SDRAM
  • Number of housing units for reference
    4
  • Type of support (slot)
    DIMM
  • Memory channels
    Dual channel
  • Bufferless memory
    Yes
  • Bufferless memory
    Yes
  • Maximum internal memory
    128 GB
  • Bufferless memory
    Yes
  • Support for memory clock speed
    2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333, 5400, 5600 MHz

Storage controller

  • RAID support
    Yes
  • RAID Levels
    0, 1.5, 10
  • Supported storage drive types
    HDD & SSD
  • Supported storage reader interfaces
    M.2, PCI Express 4.0, SATA III
  • Number of supported storage units
    10

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • Maximum resolution
    Quad-GPU CrossFireX
  • HDCP
    4096 x 2304 pixels
  • Yes

Internal I/O

  • Thunderbolt bases
    2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    1
  • Number of SATA III connectors
    6
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • Number of connectors for the case fan
    4
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • Thunderbolt bases
    2

Extension connectors

  • Number of M.2 slots (M)
    4
  • PCI Express x16 slots
    3

Back panel of I/O ports (Input/Output)

  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    4
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    4
  • Quantity of DVI-D ports
    0
  • Quantity of USB 3.2 Gen 2 (3.1 Gen 2) type A ports
    4
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DisplayPort interfaces
    1
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • DisplayPort version
    1.2
  • Quantity of DisplayPort interfaces
    1
  • S/PDIF output port
    Yes
  • Jack WIFI-AP antenna
    2
  • S/PDIF output port
    Yes
  • USB connector
    USB Type-A, USB Type-C
  • Jack WIFI-AP antenna
    2

Network

  • Bluetooth
    Yes
  • Bluetooth
    Yes
  • Type of Ethernet interface
    2.5 Gigabit Ethernet
  • Wi-Fi standard
    Wi-Fi 6 (802.11ax)
  • Wifi standards
    802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth
    Yes
  • Bluetooth model
    5.2
  • WLAN controller model
    Intel Wi-Fi 6 AX200

Features

  • Component for
    PC
  • Motherboard form factor
    ATX
  • Product component family
    Intel
  • Motherboard chipset
    Intel Z690
  • Audio chip
    Realtek ALC4080
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    FAN, Noise, Temperature, Voltage, Water cooling
  • Support for the Windows operating system
    Windows 10 x64, Windows 11 x64

BIOS

  • BIOS Type
    UEFI AMI
  • Memory capacity of the BIOS
    256 Mbit
  • ACPI Version
    5.0
  • CMOS erase driver
    Yes
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm

Packaging contents

  • Cables included
    SATA
  • Provided software
    Norton Internet Security
  • cFosSpeed
