Motherboard Gigabyte Z690 UD DDR4 V2

Gigabyte
Computers and accessories
Motherboard

The Z690 UD DDR4 V2 is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte Z690 UD DDR4 V2. We have also listed 72 specifications for product Motherboard Gigabyte Z690 UD DDR4 V2. Have a question about product Gigabyte Z690 UD DDR4 V2 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product Z690 UD DDR4 V2

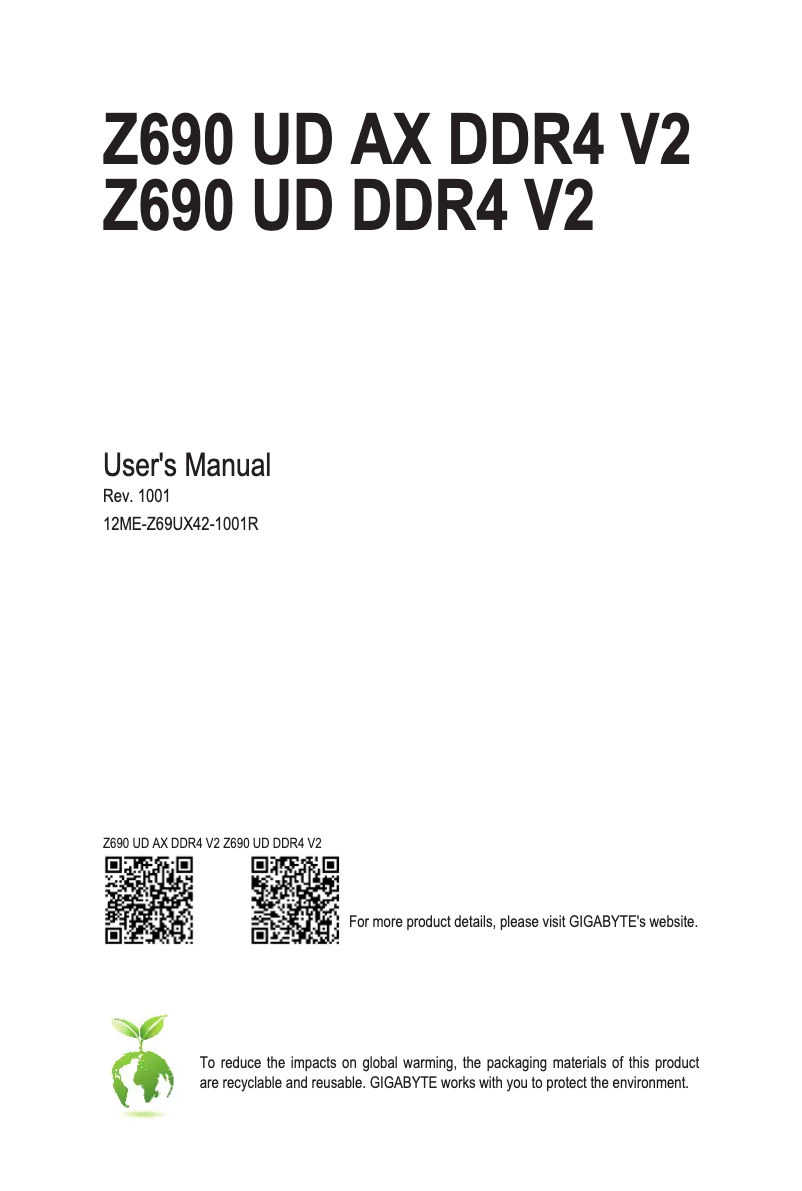

First page image of the manual for Z690 UD DDR4 V2

User Manual
40 pages
View manual

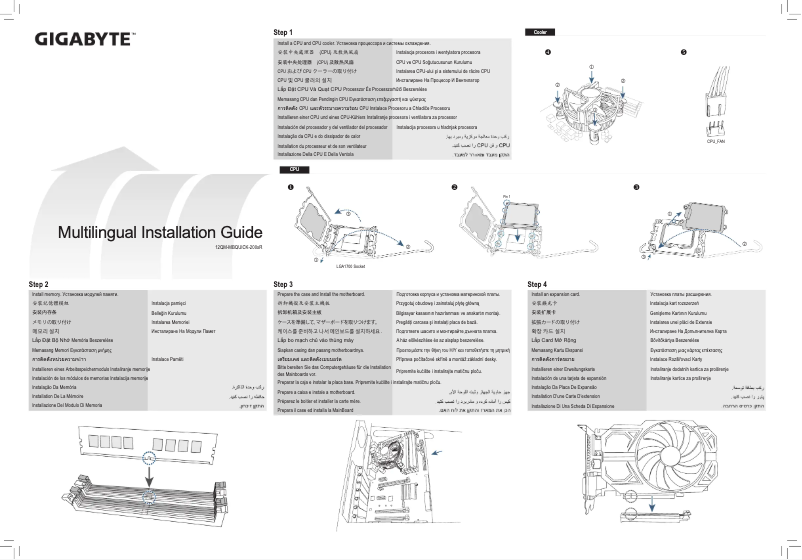

First page image of the manual for Z690 UD DDR4 V2

Installation Guide
2 pages
View manual

Technical Specifications Z690 UD DDR4 V2

General Information

Processor

  • Compatible processors
    Intel Core i5
  • Processor socket (processor receptacle)
    Intel Core i7
  • Processor manufacturer
    Intel Core i9
  • LGA 1700
  • Intel

Memory

  • Bufferless memory
    Yes
  • Maximum internal memory
    128 GB
  • Bufferless memory
    Yes
  • Support for memory clock speed
    2133,2400,2666,2800,2933,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
  • Memory channels
    Dual channel
  • Type of support (slot)
    DIMM
  • Bufferless memory
    Yes
  • Supported memory types
    DDR4-SDRAM
  • Number of housing units for reference
    4

Weight and dimensions

  • Width
    305 mm
  • Depth
    244 mm
  • Height
    70 mm

Network

  • Type of Ethernet interface
    2.5 Gigabit Ethernet
  • Ethernet/LAN
    Yes
  • Wifi
    No

Internal I/O

  • Thunderbolt bases
    2
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • Number of SATA III connectors
    6
  • RGB LED connector
    Yes
  • Thunderbolt bases
    2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    1
  • RGB LED connector
    Yes
  • RGB LED connector
    Yes

Back panel of I/O ports (Input/Output)

  • Number of VGA (D-Sub) ports
    -
  • Quantity of DVI-D ports
    -
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    4
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • S/PDIF output port
    Yes
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of Thunderbolt ports
    2
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    4
  • Quantity of USB Type C 3.2 Gen 1 (3.1 Gen 1) ports
    0
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1
  • Quantity of USB Type C ports 3.2 Gen 2 (3.1 Gen 2)
    1

Storage controller

  • RAID Levels
    0
  • Supported storage drive types
    1.5
  • Supported storage reader interfaces
    10
  • HDD & SSD
  • M.2, SATA III

Extension connectors

  • PCI Express x16 slots
    1

BIOS

  • BIOS Type
    UEFI AMI
  • Memory capacity of the BIOS
    256 Mbit
  • ACPI Version
    5.0
  • CMOS erase driver
    Yes
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7

Other features

  • Weight
    1000 g

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • HDCP
    Quad-GPU CrossFireX
  • Yes

Features

  • Motherboard chipset
    Intel Z690
  • Audio output channels
    7.1 channels
  • Monitoring of PC functionality
    FAN, Temperature, Voltage
  • Support for the Windows operating system
    Windows 10 x64
  • Motherboard form factor
    ATX
  • Product component family
    Intel
  • Component for
    PC
