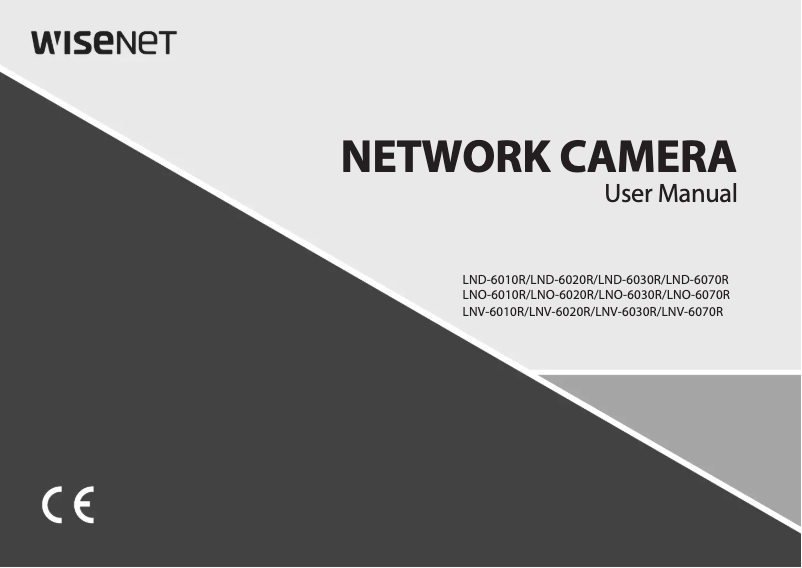

Manual of product LNV-6010R
Technical Specifications LNV-6010R
General Information
-
ModelLNV-6010R
-
Brand
-
Category
-
Type
-
SKU1427088
-
MPN1427088
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.9 "
-
Progressive scanYes
-
Effective pixel count (H x V)1984 x 1105 pixels
Video
-
Total megapixels2.19 MP
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Supported video formatH.264, M-JPEG
-
Maximum resolution1920 x 1080 pixels
-
Supported graphic resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Number of images per second30 fps
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Camera
-
Minimum illumination0.18 lux
-
Field of view of the lens, horizontal102 °
-
Angle of view of the lens, vertical54 °
-
Angle of view of the lens, diagonal120 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 350 °
-
Inclination angle0 - 67 °
-
Rotation angle355 °
-
White balanceATW, AWC, Indoor, Manual, Outdoor
-
Camera shutter typeElectronic
Objective system
-
Fixed Focal Length3 mm
-
Maximum number of openings2
-
Minimum focusing distance0.5 m
-
Number of lenses1
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Representation / realization
-
Supported installation-
-
Remote visualizationYes
-
Remote visualizationYes
-
Remote visualizationYes
-
Remote visualizationYes
-
TypeIP security camera
-
Connectivity technologyWired
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Alert notification typeEmail
-
Filtering IP addressesYes
Network
-
Wifi-
-
Bluetooth-
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Streaming methodMulticast, Unicast
-
Quality of Service (QoS)Yes
-
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
-
Network standardsIEEE 802.3af
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC
-
Maximum memory card size32 GB
Minimum system requirements
-
Support for the Windows operating systemWindows 10
-
Support for the Mac operating systemWindows 7
-
Windows 8.1
-
Mac OS X 10.10 Yosemite
-
Mac OS X 10.11 El Capitan
-
Mac OS X 10.12 Sierra
Management features
-
Web BrowserYes
Environmental conditions
-
Operating temperature-30 - 55 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 90 %
-
Relative humidity rate (storage)0 - 90 %
Design
-
International Protection Code (IP)IP66
-
Code IKIK10
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
-
Material of the case/bodyAluminum, Plastic
-
Protection functionsAnti-vandalism
Power
-
Power supply typePoE
-
Energy consumption (Power over Ethernet (PoE))6.5 W
Weight and dimensions
-
Depth120.3 mm
-
Depth120.3 mm
-
Height91.7 mm
-
Weight395 g
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product LNV-6010R specifications from brand Hanwha
Generalities
The brand of the product Hanwha LNV-6010R is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The product model Hanwha LNV-6010R is LNV-6010R | LNV-6010R. This model ensures optimal performance and an enhanced user experience.
Image sensor
The sensor type of the product Hanwha LNV-6010R is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hanwha LNV-6010R is 1/2.9 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hanwha LNV-6010R is 1. This number of sensors allows for precise and efficient image detection. Does the product Hanwha LNV-6010R have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The effective pixel count (H x V) of the product Hanwha LNV-6010R is 1984 x 1105 pixels. This specification ensures accurate and detailed image quality.
Camera
The minimum illumination of the product Hanwha LNV-6010R is 0.18 lux. This feature ensures optimal performance even in low light conditions. The angle of view of the lens, diagonal of the product Hanwha LNV-6010R is 120 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The field of view of the Hanwha LNV-6010R lens is 102 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hanwha LNV-6010R is 54 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. Does the product Hanwha LNV-6010R have a camera pan command? No. This feature is not available on this model. The tilt command of the Hanwha LNV-6010R camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The panoramic view of the product Hanwha LNV-6010R is 0 - 350 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Hanwha LNV-6010R is 355 °. This angle allows for optimal usage flexibility. The white balance of the product Hanwha LNV-6010R consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Hanwha LNV-6010R is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The tilt angle of the product Hanwha LNV-6010R is 0 - 67 °. This angle allows for adjusting the position for optimal comfort.
Video
The total megapixels of the product Hanwha LNV-6010R is 2.19 MP. This total ensures exceptional image quality for your photos. Does the product Hanwha LNV-6010R have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product Hanwha LNV-6010R have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hanwha LNV-6010R have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hanwha LNV-6010R have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hanwha LNV-6010R have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The supported video format of the product Hanwha LNV-6010R contains H.264, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The maximum resolution of the product Hanwha LNV-6010R is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hanwha LNV-6010R are 320 x 240,640 x 360,640 x 480 (VGA),720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The number of frames per second of the product Hanwha LNV-6010R is 30 ips. This specification ensures optimal smoothness when playing videos. The binary bitrate control of the product Hanwha LNV-6010R contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes.
Objective system
The product goal system Hanwha LNV-6010R has a fixed focal length of 3 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hanwha LNV-6010R is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hanwha LNV-6010R is 2. This feature allows for optimal use and increased flexibility. The minimum focusing distance of the product Hanwha LNV-6010R is 0.5 m. This feature allows for sharp images even at relatively far distances.
Night vision
The night vision distance of the product Hanwha LNV-6010R is 30 m. This feature allows for clear and precise observation even in darkness. Does the product Hanwha LNV-6010R have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hanwha LNV-6010R is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Security
Does the product Hanwha LNV-6010R have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hanwha LNV-6010R have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The alert notification type for the product Hanwha LNV-6010R is E-mail. This feature allows for real-time alerts for better security. Does the product Hanwha LNV-6010R have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hanwha LNV-6010R product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Representation / realization
Does the product Hanwha LNV-6010R have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The Hanwha LNV-6010R product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. Does the product Hanwha LNV-6010R have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hanwha LNV-6010R have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hanwha LNV-6010R is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hanwha LNV-6010R supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hanwha LNV-6010R features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Storage support
Does the Hanwha LNV-6010R have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hanwha LNV-6010R is 32 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hanwha LNV-6010R has compatible memory cards: MicroSD (TransFlash), MicroSDHC. These memory cards ensure optimal performance for storing your data. Does the Hanwha LNV-6010R have a built-in hard drive? No. This feature means that the product does not have internal storage.
Network
Does the product Hanwha LNV-6010R have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hanwha LNV-6010R contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hanwha LNV-6010R have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hanwha LNV-6010R is Fast Ethernet. This type of interface allows for fast and efficient network connections. The streaming method of the product Hanwha LNV-6010R is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. Does the product Hanwha LNV-6010R have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hanwha LNV-6010R are TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hanwha LNV-6010R are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Minimum system requirements
Does the product Hanwha LNV-6010R support the Windows operating system? Windows 10, Windows 7, Windows 8.1. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Hanwha LNV-6010R support the Mac operating system? Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra. This feature ensures optimal compatibility for Mac users.
Management features
Does the product Hanwha LNV-6010R have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Environmental conditions
The product Hanwha LNV-6010R has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hanwha LNV-6010R is -30 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Hanwha LNV-6010R is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Hanwha LNV-6010R is 0 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product.
Design
The International Protection Code (IP) for product Hanwha LNV-6010R contains IP66. This code indicates the level of protection against solid objects and moisture. The format of the product Hanwha LNV-6010R is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hanwha LNV-6010R is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The IK Code of the product Hanwha LNV-6010R is IK10. This IK Code allows for easy identification of the specific design of the item. The color of the product Hanwha LNV-6010R is Blanc. This shade gives it a modern and elegant look. The material of the product case Hanwha LNV-6010R is Aluminium, Plastic. This material ensures both durability and elegance. The product Hanwha LNV-6010R has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions.
Weight and dimensions
The width of the product Hanwha LNV-6010R is 120.3 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hanwha LNV-6010R is 91.7 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hanwha LNV-6010R is 120.3 mm. This dimension allows for optimal integration into your space. The weight of the product Hanwha LNV-6010R is 395 g. This weight is ideal for ensuring optimal use and easy handling.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hanwha LNV-6010R is 1. These ports provide a stable and fast network connection for your devices.
Power
The energy consumption of the product Hanwha LNV-6010R is 6.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hanwha LNV-6010R is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Packaging contents
The number of cameras of the product Hanwha LNV-6010R is 1. This product is equipped with a camera that allows capturing high-quality images.
