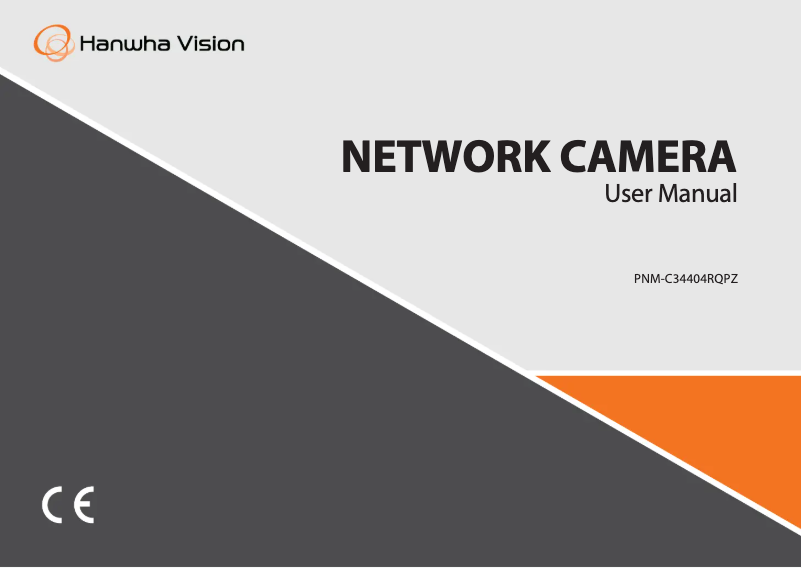

Manual of product PNM-C34404RQPZ
Technical Specifications PNM-C34404RQPZ
General Information
-
ModelPNM-C34404RQPZ
-
Brand
-
Category
-
Type
-
SKU1928979
-
MPN1928979
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Dynamic range120 dB
-
Languages taken into accountCZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, TUR
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Effective pixel count (H x V)3840 x 2160 pixels
Video
-
Maximum resolution3840 x 2160 pixels
-
Supported graphic resolutions640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),3840 x 2160
-
Visual compression formatsH.264, H.265, M-JPEG
-
Number of images per second20 ips
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Total megapixels2 MP
Camera
-
Minimum illumination0.01 lux
-
Panoramic0 - 360 °
-
Inclination angle9 - 65 °
-
Rotation angle90 °
-
White balanceATW, AWC, Indoor, Manual, Outdoor
-
Camera shutter typeElectronic
Objective system
-
Number of lenses-
-
Focal length3.3 - 5.7 mm
-
Maximum number of openings1.9
Security
-
MirrorYes
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance20 m
Network
-
Wifi-
-
Bluetooth-
-
Ethernet/LANYes
-
Type of Ethernet interfaceGigabit Ethernet
-
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size1024 GB
Environmental conditions
-
Operating temperature-40 - 50 °C
-
Relative humidity rate (storage)0 - 95 %
-
Temperature out of operation-50 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
Design
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Material of the case/bodyAluminium
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, White
Power
-
Power supply typePoE
-
Consumption (max)64 W
-
Typical electricity consumption45 W
Weight and dimensions
-
Weight7900 g
-
Diameter379.8 mm
-
Height301.9 mm
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product PNM-C34404RQPZ specifications from brand Hanwha
Image sensor
The optical sensor size of the product Hanwha PNM-C34404RQPZ is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hanwha PNM-C34404RQPZ is CMOS. This type of sensor ensures optimal image quality for your needs. The effective pixel count (H x V) of the product Hanwha PNM-C34404RQPZ is 3840 x 2160 pixels. This specification ensures accurate and detailed image quality.
Generalities
The brand of the product Hanwha PNM-C34404RQPZ is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The product model Hanwha PNM-C34404RQPZ is PNM-C34404RQPZ | PNM-C34404RQPZ. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hanwha PNM-C34404RQPZ is 8801089224552, 8801089224569. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The type of product Hanwha PNM-C34404RQPZ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hanwha PNM-C34404RQPZ supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hanwha PNM-C34404RQPZ is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The product Hanwha PNM-C34404RQPZ features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hanwha PNM-C34404RQPZ have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hanwha PNM-C34404RQPZ have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The dynamic range of the product Hanwha PNM-C34404RQPZ is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks. The languages considered for the product Hanwha PNM-C34404RQPZ are CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, TUR. This product thus caters to a wide international audience.
Video
The number of frames per second of the product Hanwha PNM-C34404RQPZ is 20 ips. This specification ensures optimal smoothness when playing videos. The product Hanwha PNM-C34404RQPZ has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hanwha PNM-C34404RQPZ are 640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),3840 x 2160. These resolutions provide optimal display quality for your content. The maximum resolution of the product Hanwha PNM-C34404RQPZ is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hanwha PNM-C34404RQPZ have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hanwha PNM-C34404RQPZ have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hanwha PNM-C34404RQPZ have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hanwha PNM-C34404RQPZ have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The total megapixels of the product Hanwha PNM-C34404RQPZ is 2 MP. This total ensures exceptional image quality for your photos.
Camera
The panoramic view of the product Hanwha PNM-C34404RQPZ is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The minimum illumination of the product Hanwha PNM-C34404RQPZ is 0.01 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hanwha PNM-C34404RQPZ is 9 - 65 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hanwha PNM-C34404RQPZ is 90 °. This angle allows for optimal usage flexibility. The white balance of the product Hanwha PNM-C34404RQPZ consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Hanwha PNM-C34404RQPZ is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography.
Security
Does the product Hanwha PNM-C34404RQPZ have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Objective system
The focal length of the product Hanwha PNM-C34404RQPZ is 3.3 - 5.7 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The number of lenses in the product Hanwha PNM-C34404RQPZ is -. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hanwha PNM-C34404RQPZ is 1.9. This feature allows for optimal use and increased flexibility.
Night vision
Does the product Hanwha PNM-C34404RQPZ have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hanwha PNM-C34404RQPZ is 20 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hanwha PNM-C34404RQPZ is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Storage support
Does the Hanwha PNM-C34404RQPZ have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hanwha PNM-C34404RQPZ have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hanwha PNM-C34404RQPZ is 1024 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hanwha PNM-C34404RQPZ has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Network
Does the product Hanwha PNM-C34404RQPZ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hanwha PNM-C34404RQPZ are IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Hanwha PNM-C34404RQPZ contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Hanwha PNM-C34404RQPZ is Gigabit Ethernet. This type of interface allows for fast and efficient network connections. Does the Hanwha PNM-C34404RQPZ have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices.
Environmental conditions
The operating temperature of the product Hanwha PNM-C34404RQPZ is -40 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Hanwha PNM-C34404RQPZ is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Hanwha PNM-C34404RQPZ is -50 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Hanwha PNM-C34404RQPZ has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Design
The IK Code of the product Hanwha PNM-C34404RQPZ is IK10. This IK Code allows for easy identification of the specific design of the item. The format of the product Hanwha PNM-C34404RQPZ is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hanwha PNM-C34404RQPZ is Aluminium. This material ensures both durability and elegance. The International Protection Code (IP) for product Hanwha PNM-C34404RQPZ contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hanwha PNM-C34404RQPZ is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hanwha PNM-C34404RQPZ is Black, White. This shade gives it a modern and elegant look.
Weight and dimensions
The weight of the product Hanwha PNM-C34404RQPZ is 7900 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hanwha PNM-C34404RQPZ is 379.8 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hanwha PNM-C34404RQPZ is 301.9 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Power
The maximum consumption of the product Hanwha PNM-C34404RQPZ is 64 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hanwha PNM-C34404RQPZ is PoE. This type of power supply ensures optimal performance and efficient use of the device. The typical power consumption of the product Hanwha PNM-C34404RQPZ is 45 W. This feature allows for the assessment of the energy efficiency of the device.
Packaging contents
The number of cameras of the product Hanwha PNM-C34404RQPZ is 1. This product is equipped with a camera that allows capturing high-quality images.
