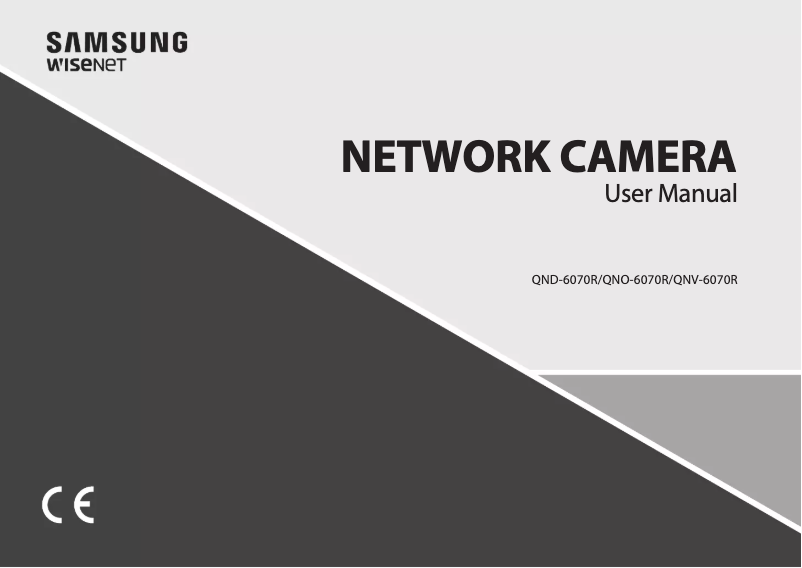

Manual of product QND-6070R
Technical Specifications QND-6070R
General Information
-
ModelQND-6070R
-
Brand
-
Category
-
Type
-
SKU1200652
-
MPN1200652
Network
-
Wifi-
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
-
Network standardsIEEE 802.1x
-
Quality of Service (QoS)Yes
-
Number of users6 user(s)
-
BluetoothNo
-
Streaming methodMulticast, Unicast
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor
-
Connectivity technologyWired
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
Number of languages17
-
Languages taken into accountMulti
-
PTZ ControlYes
-
CertificationCE
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsSD, SDHC, SDXC
-
Maximum memory card size128 GB
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorIvory
-
Material of the case/bodyPlastic
-
Protection functionsAnti-vandalism
-
International Protection Code (IP)IP66
-
Weather-resistantYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Security
-
Password protectionUser
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Security-supported algorithmHTTPS, SNMP, SSL/TLS
-
Motion detector (video)Yes
-
Alert notification typeE-mail, Snapshot alert message
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Camera
-
Camera pan command-
-
Minimum illumination0 lux
-
Rotation angle355 °
-
Field of view of the lens, horizontal103.8 °
-
Angle of view of the lens, vertical53.7 °
-
Angle of view of the lens, diagonal121.9 °
-
Inclination angle0 - 67 °
-
Panoramic0 - 350 °
-
White balanceATW, AWC, Indoor, Manual, Outdoor
-
Camera shutter typeElectronics
-
Camera tilt controlYes
Management features
-
Web-based managementYes
Power
-
Power supply typePoE
-
Consumption (max)5.5 W
-
Energy consumption (Power over Ethernet (PoE))6.7 W
-
Output CC in volts12
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.9 "
-
Progressive scanYes
-
Effective pixel count (H x V)1984 x 1105 pixels
Objective system
-
Number of lenses-
-
Zoom capacityYes
-
Maximum number of openings1.4
-
Focal length2.8 - 12 mm
-
TuningManual
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Temperature out of operation-30 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Minimum system requirements
-
Support for the Windows operating systemWindows 10 Education
-
Support for the Mac operating systemWindows 10 Education x64
-
Windows 10 Enterprise
-
Windows 10 Enterprise x64
-
Windows 10 Home
-
Windows 10 Home x64
-
Windows 10 Pro
-
Windows 10 Pro x64
-
Windows 7 Enterprise
-
Windows 7 Enterprise x64
-
Windows 7 Home Basic
-
Windows 7 Home Basic x64
-
Windows 7 Home Premium
-
Windows 7 Home Premium x64
-
Windows 7 Professional
-
Windows 7 Professional x64
-
Windows 7 Starter
-
Windows 7 Starter x64
-
Windows 7 Ultimate
-
Windows 7 Ultimate x64
-
Windows 8.1
-
Windows 8.1 Enterprise
-
Windows 8.1 Enterprise x64
-
Windows 8.1 Pro
-
Windows 8.1 Pro x64
-
Windows 8.1 x64
-
Mac OS X 10.10 Yosemite
-
Mac OS X 10.11 El Capitan
-
Mac OS X 10.9 Mavericks
Night vision
-
Night visionYes
-
Night vision distance20 m
-
Type of LEDIR
Weight and dimensions
-
Height98.8 mm
-
Diameter119.8 mm
-
Weight325 g
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2.19 MP
-
Visual compression formatsH.264, H.265, M-JPEG
-
Visual compression formatsH.264, H.265, M-JPEG
-
Supported graphic resolutions320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Supported video modes240p, 360p, 480p, 576p, 720p, 1080p
-
Number of images per second30 ips
-
Brightness compensationYes
-
Brightness compensationYes
-
Brightness compensationYes
-
Brightness compensationYes
Packaging contents
-
Number of cameras1
-
User manualYes
Audio
-
Audio system1-way
-
Supported audio formatsADPCM, G.711, G.726
-
Built-in microphoneYes
-
Voice codecsG.711, G.726
-
Sampling frequency8 kHz
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product QND-6070R specifications from brand Hanwha
Storage support
Does the Hanwha QND-6070R have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hanwha QND-6070R have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hanwha QND-6070R is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hanwha QND-6070R has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data.
Generalities
The brand of the product Hanwha QND-6070R is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The product model Hanwha QND-6070R is QND-6070R | QND-6070R. This model ensures optimal performance and an enhanced user experience.
Network
Does the product Hanwha QND-6070R have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hanwha QND-6070R is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hanwha QND-6070R contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hanwha QND-6070R are IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hanwha QND-6070R are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hanwha QND-6070R have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The streaming method of the product Hanwha QND-6070R is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The number of users of the product Hanwha QND-6070R is 6 utilisateur(s). This product is ideal for several people. Does the Hanwha QND-6070R have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Representation / realization
Does the product Hanwha QND-6070R have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hanwha QND-6070R features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hanwha QND-6070R supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hanwha QND-6070R is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hanwha QND-6070R have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hanwha QND-6070R have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The Hanwha QND-6070R product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The languages considered for the product Hanwha QND-6070R are Multi. This product thus caters to a wide international audience. The PTZ control of the product Hanwha QND-6070R is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The certification of the product Hanwha QND-6070R contains CE. This certification guarantees compliance with the required safety and performance standards. The number of languages of the product Hanwha QND-6070R is 17. This product offers an enriching multilingual experience.
Design
The format of the product Hanwha QND-6070R is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hanwha QND-6070R is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hanwha QND-6070R is Ivoire. This shade gives it a modern and elegant look. The material of the product case Hanwha QND-6070R is Plastique. This material ensures both durability and elegance. The product Hanwha QND-6070R has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions. The International Protection Code (IP) for product Hanwha QND-6070R contains IP66. This code indicates the level of protection against solid objects and moisture. Is the Hanwha QND-6070R weather-resistant? Oui. This product is designed to withstand the harshest weather conditions.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hanwha QND-6070R is 1. These ports provide a stable and fast network connection for your devices.
Management features
The Hanwha QND-6070R product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Security
Does the product Hanwha QND-6070R have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hanwha QND-6070R have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the Hanwha QND-6070R product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product Hanwha QND-6070R contains HTTPS, SNMP, SSL/TLS. This algorithm ensures optimal protection of your data. Does the product Hanwha QND-6070R have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The alert notification type for the product Hanwha QND-6070R is E-mail, Snapshot alert message. This feature allows for real-time alerts for better security. Does the product Hanwha QND-6070R have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. Does the product Hanwha QND-6070R have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Image sensor
The sensor type of the product Hanwha QND-6070R is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hanwha QND-6070R have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The effective pixel count (H x V) of the product Hanwha QND-6070R is 1984 x 1105 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product Hanwha QND-6070R is 1/2.9 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Power
The type of power source for the product Hanwha QND-6070R is PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hanwha QND-6070R has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hanwha QND-6070R is 5.5 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hanwha QND-6070R is 6.7 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Camera
The vertical field of view of the product Hanwha QND-6070R is 53.7 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The rotation angle of the product Hanwha QND-6070R is 355 °. This angle allows for optimal usage flexibility. The minimum illumination of the product Hanwha QND-6070R is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hanwha QND-6070R lens is 103.8 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Hanwha QND-6070R is 121.9 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hanwha QND-6070R is 0 - 67 °. This angle allows for adjusting the position for optimal comfort. The white balance of the product Hanwha QND-6070R consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The panoramic view of the product Hanwha QND-6070R is 0 - 350 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The type of shutter of the camera of the product Hanwha QND-6070R is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. Does the product Hanwha QND-6070R have a camera pan command? No. This feature is not available on this model. The tilt command of the Hanwha QND-6070R camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Objective system
The maximum number of openings for the product Hanwha QND-6070R is 1.4. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hanwha QND-6070R is -. This number determines the quality and versatility of the lens. Does the product Hanwha QND-6070R have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The focal length of the product Hanwha QND-6070R is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the Hanwha QND-6070R is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Environmental conditions
The product Hanwha QND-6070R has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hanwha QND-6070R is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hanwha QND-6070R is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Night vision
Does the product Hanwha QND-6070R have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hanwha QND-6070R is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hanwha QND-6070R is 20 m. This feature allows for clear and precise observation even in darkness.
Minimum system requirements
Does the product Hanwha QND-6070R support the Mac operating system? Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks. This feature ensures optimal compatibility for Mac users. Does the product Hanwha QND-6070R support the Windows operating system? Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Weight and dimensions
The diameter of the product Hanwha QND-6070R is 119.8 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hanwha QND-6070R is 98.8 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hanwha QND-6070R is 325 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging contents
Does the product Hanwha QND-6070R have a User Manual? Oui. This document provides clear instructions for optimal use of the product. The number of cameras of the product Hanwha QND-6070R is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The supported audio formats of the product Hanwha QND-6070R are ADPCM, G.711, G.726. These formats ensure optimal compatibility for an enriching listening experience. The audio system of the product Hanwha QND-6070R is stereo. This audio system provides an immersive and high-quality sound experience. Does the product Hanwha QND-6070R have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The voice codec of the Hanwha QND-6070R product contains G.711, G.726. This voice codec ensures optimal audio quality for your communications. The sampling frequency of the product Hanwha QND-6070R is 8 kHz. This feature ensures optimal sound quality for your recordings.
Video
The maximum resolution of the product Hanwha QND-6070R is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video format of the product Hanwha QND-6070R contains H.264, H.265, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The total megapixels of the product Hanwha QND-6070R is 2.19 MP. This total ensures exceptional image quality for your photos. The product Hanwha QND-6070R has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hanwha QND-6070R are 320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Hanwha QND-6070R is 240p, 360p, 480p, 576p, 720p, 1080p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Hanwha QND-6070R is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hanwha QND-6070R have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hanwha QND-6070R have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hanwha QND-6070R have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hanwha QND-6070R have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience.
