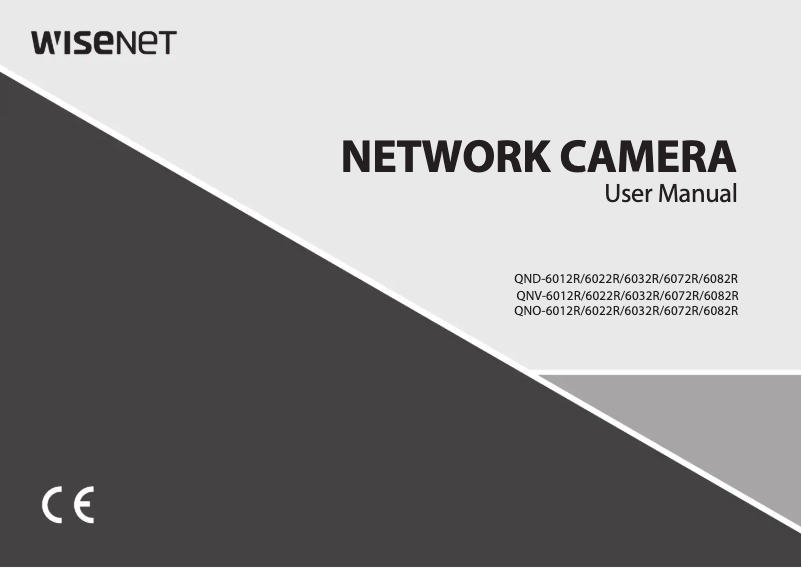

Manual of product QNO-6012R
Technical Specifications QNO-6012R
General Information
-
ModelQNO-6012R
-
Brand
-
Category
-
Type
-
SKU1201168
-
MPN1201168
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorGray
-
Material of the case/bodyAluminum
-
International Protection Code (IP)IP66
-
Code IKIK10
Camera
-
Camera tilt controlNo
-
Camera tilt controlNo
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal113.7 °
-
Angle of view of the lens, vertical61 °
-
Angle of view of the lens, diagonal134.5 °
-
White balanceATW, AWC, Indoor, Manual, Outdoor
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Effective pixel count (H x V)1920 x 1080 pixels
Objective system
-
Number of lenses1
-
Maximum number of openings2
-
Fixed Focal Length2.8 mm
Night vision
-
Night visionYes
-
Night vision distance20 m
-
Type of LEDIR
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsH.264, H.265
-
Visual compression formatsH.264, H.265
-
Supported graphic resolutions640 x 360,720 x 480,800 x 448,800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Number of images per second30 fps
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
Audio
-
Voice codecsG.711
-
G.711u
-
G.726
Network
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1af, IEEE 802.1x
-
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
-
Number of users6 user(s)
-
Streaming methodMulticast, Unicast
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsSD, SDHC, SDXC
-
Maximum memory card size512 GB
-
Flash memory256 MB
-
Internal memory128 MB
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
DC InputYes
Security
-
Password protectionYes
-
Password protectionYes
-
Alert notification typeEmail
-
Security-supported algorithmHTTPS, SNMPv2, SNMPv3, SSL/TLS
-
Password protectionYes
-
Password protectionUser
Power
-
Power supply typeDC, PoE
-
Consumption (max)6 W
-
Energy consumption (Power over Ethernet (PoE))7 W
-
Output CC in volts12
-
Typical electricity consumption4.5 W
Environmental conditions
-
Operating temperature-30 - 55 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 90 %
-
Relative humidity rate (storage)0 - 90 %
Minimum system requirements
-
Support for the Windows operating systemWindows 10
-
Support for the Mac operating systemWindows 7
-
Windows 8
-
Mac OS X 10.11 El Capitan
-
Mac OS X 10.13 High Sierra
-
Mac OS X 10.14 Mojave
Weight and dimensions
-
Height246 mm
-
Diameter70 mm
-
Weight700 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product QNO-6012R specifications from brand Hanwha
Generalities
The brand of the product Hanwha QNO-6012R is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The product model Hanwha QNO-6012R is QNO-6012R | QNO-6012R. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hanwha QNO-6012R is 8801089163905, 8801089164230. This code allows for the unique identification of the product in the distribution system.
Design
The format of the product Hanwha QNO-6012R is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hanwha QNO-6012R is Aluminium. This material ensures both durability and elegance. The mounting type of the product Hanwha QNO-6012R is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hanwha QNO-6012R is Gris. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hanwha QNO-6012R contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hanwha QNO-6012R is IK10. This IK Code allows for easy identification of the specific design of the item.
Representation / realization
The type of product Hanwha QNO-6012R is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hanwha QNO-6012R features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hanwha QNO-6012R supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hanwha QNO-6012R have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hanwha QNO-6012R have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hanwha QNO-6012R have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Camera
Does the product Hanwha QNO-6012R have a camera pan command? No. This feature is not available on this model. The tilt command of the Hanwha QNO-6012R camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The minimum illumination of the product Hanwha QNO-6012R is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hanwha QNO-6012R lens is 113.7 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hanwha QNO-6012R is 61 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hanwha QNO-6012R is 134.5 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The white balance of the product Hanwha QNO-6012R consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Image sensor
The effective pixel count (H x V) of the product Hanwha QNO-6012R is 1920 x 1080 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product Hanwha QNO-6012R is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hanwha QNO-6012R is CMOS. This type of sensor ensures optimal image quality for your needs.
Objective system
The product goal system Hanwha QNO-6012R has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The maximum number of openings for the product Hanwha QNO-6012R is 2. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hanwha QNO-6012R is 1. This number determines the quality and versatility of the lens.
Night vision
The type of LED of the product Hanwha QNO-6012R is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hanwha QNO-6012R is 20 m. This feature allows for clear and precise observation even in darkness. Does the product Hanwha QNO-6012R have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Audio
The voice codec of the Hanwha QNO-6012R product contains G.711, G.711u, G.726. This voice codec ensures optimal audio quality for your communications.
Video
The maximum resolution of the product Hanwha QNO-6012R is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video format of the product Hanwha QNO-6012R contains H.264, H.265. This format allows for smooth and high-quality playback of your multimedia content. The product Hanwha QNO-6012R has visual compression formats: H.264, H.265. These formats ensure optimal image quality for your videos. The total megapixels of the product Hanwha QNO-6012R is 2 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hanwha QNO-6012R are 640 x 360,720 x 480,800 x 448,800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The number of frames per second of the product Hanwha QNO-6012R is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hanwha QNO-6012R have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hanwha QNO-6012R have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hanwha QNO-6012R have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Network
Does the product Hanwha QNO-6012R have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Hanwha QNO-6012R have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Hanwha QNO-6012R contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Hanwha QNO-6012R is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hanwha QNO-6012R are IEEE 802.1af, IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hanwha QNO-6012R are TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hanwha QNO-6012R is 6 utilisateur(s). This product is ideal for several people. The streaming method of the product Hanwha QNO-6012R is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hanwha QNO-6012R is 1. These ports provide a stable and fast network connection for your devices. Does the product Hanwha QNO-6012R have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Storage support
Does the Hanwha QNO-6012R have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hanwha QNO-6012R has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hanwha QNO-6012R is 512 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hanwha QNO-6012R have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hanwha QNO-6012R has a flash memory of 256 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The internal memory of the product Hanwha QNO-6012R contains 128 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use.
Security
Does the Hanwha QNO-6012R product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hanwha QNO-6012R have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The supported security algorithm of the product Hanwha QNO-6012R contains HTTPS, SNMPv2, SNMPv3, SSL/TLS. This algorithm ensures optimal protection of your data. The alert notification type for the product Hanwha QNO-6012R is E-mail. This feature allows for real-time alerts for better security. Does the product Hanwha QNO-6012R have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hanwha QNO-6012R have Password Protection? Utilisateur. This feature ensures the security of your personal data.
Minimum system requirements
Does the product Hanwha QNO-6012R support the Windows operating system? Windows 10, Windows 7, Windows 8. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Hanwha QNO-6012R support the Mac operating system? Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave. This feature ensures optimal compatibility for Mac users.
Power
The maximum consumption of the product Hanwha QNO-6012R is 6 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hanwha QNO-6012R is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hanwha QNO-6012R is 7 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hanwha QNO-6012R has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The typical power consumption of the product Hanwha QNO-6012R is 4.5 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product Hanwha QNO-6012R is -30 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Hanwha QNO-6012R is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Hanwha QNO-6012R is 0 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Hanwha QNO-6012R has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
The number of cameras of the product Hanwha QNO-6012R is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The height of the product Hanwha QNO-6012R is 246 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hanwha QNO-6012R is 700 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hanwha QNO-6012R is 70 mm. This diameter allows for optimal use and fits perfectly with your needs.
