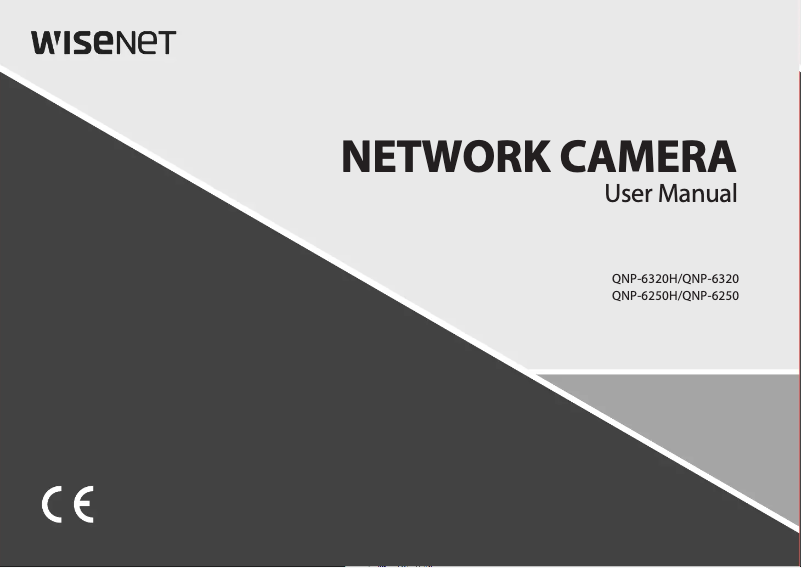

Manual of product QNP-6320
Technical Specifications QNP-6320
General Information
-
ModelQNP-6320
-
Brand
-
Category
-
Type
-
SKU1497451
-
MPN1497451
Image sensor
-
Optical sensor size1/2.8 "
-
Number of sensors1
-
Sensor typeCMOS
Objective system
-
Number of lenses1
-
Focal length4.44 - 142.6 mm
-
Optical zoom32 x
-
Auto focusYes
-
Maximum number of openings4.4
-
Minimum opening amount1.6
-
Minimum focusing distance1.5 m
-
Auto focusYes
Video
-
Total megapixels2 MP
-
Maximum resolution1920 x 1080 pixels
-
Supported graphic resolutions320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Number of images per second60 fps
-
Visual compression formatsH.264, H.265, M-JPEG
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Video broadcastingYes
Packaging contents
-
Number of cameras1
Camera
-
Minimum illumination0.005 lux
-
Field of view of the lens, horizontal64.66 °
-
Angle of view of the lens, vertical38.08 °
-
Panoramic0 - 360 °
-
Pan tilt preset speed700 °/sec
-
Panoramic speed200 °/sec
-
Inclination angle-15 - 90 °
-
Tilt speed300 °/sec
-
Camera tilt controlYes
-
Camera tilt controlYes
-
White balanceATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp
-
Camera shutter speed2 - 1/12000 s
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Security-supported algorithmEAP-PEAP, EAP-TLS
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Maximum memory card size256 GB
-
Internal memory1024 MB
-
Flash memory256 MB
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Number of users128 user(s)
-
Streaming methodMulticast, Unicast
-
Quality of Service (QoS)Yes
-
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
-
Network standardsIEEE 802.1x
Audio
-
Voice codecsG.711
-
G.711ulaw
-
G.726
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product QNP-6320 specifications from brand Hanwha
Image sensor
The optical sensor size of the product Hanwha QNP-6320 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hanwha QNP-6320 is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hanwha QNP-6320 is 1. This number of sensors allows for precise and efficient image detection.
Generalities
The brand of the product Hanwha QNP-6320 is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The product model Hanwha QNP-6320 is QNP-6320 | QNP-6320. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hanwha QNP-6320 is 8801089143945, 8801089204479. This code allows for the unique identification of the product in the distribution system.
Objective system
The number of lenses in the product Hanwha QNP-6320 is 1. This number determines the quality and versatility of the lens. The optical zoom of the product Hanwha QNP-6320 is 32 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Hanwha QNP-6320 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The focal length of the product Hanwha QNP-6320 is 4.44 - 142.6 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hanwha QNP-6320 is 4.4. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hanwha QNP-6320 is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The minimum focusing distance of the product Hanwha QNP-6320 is 1.5 m. This feature allows for sharp images even at relatively far distances. Does the Hanwha QNP-6320 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus.
Packaging contents
The number of cameras of the product Hanwha QNP-6320 is 1. This product is equipped with a camera that allows capturing high-quality images.
Representation / realization
Does the product Hanwha QNP-6320 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hanwha QNP-6320 have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hanwha QNP-6320 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hanwha QNP-6320 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort.
Video
The total megapixels of the product Hanwha QNP-6320 is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hanwha QNP-6320 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of frames per second of the product Hanwha QNP-6320 is 60 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hanwha QNP-6320 are 320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hanwha QNP-6320 has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hanwha QNP-6320 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the Hanwha QNP-6320 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. Does the product Hanwha QNP-6320 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hanwha QNP-6320 have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hanwha QNP-6320 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hanwha QNP-6320 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The binary bitrate control of the product Hanwha QNP-6320 contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Hanwha QNP-6320 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Camera
The panoramic view of the product Hanwha QNP-6320 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The vertical field of view of the product Hanwha QNP-6320 is 38.08 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the Hanwha QNP-6320 lens is 64.66 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product Hanwha QNP-6320 is 0.005 lux. This feature ensures optimal performance even in low light conditions. The product Hanwha QNP-6320 has a preset panning speed of 700 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The panning speed of the product Hanwha QNP-6320 is 200 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt angle of the product Hanwha QNP-6320 is -15 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Hanwha QNP-6320 is 300 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. Does the product Hanwha QNP-6320 have a camera pan command? No. This feature is not available on this model. The tilt command of the Hanwha QNP-6320 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The white balance of the product Hanwha QNP-6320 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The shutter speed of the camera of the product Hanwha QNP-6320 is 2 - 1/12000 s. This feature allows capturing sharp images even in low light conditions.
Security
Does the product Hanwha QNP-6320 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hanwha QNP-6320 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The supported security algorithm of the product Hanwha QNP-6320 contains EAP-PEAP, EAP-TLS. This algorithm ensures optimal protection of your data. Does the Hanwha QNP-6320 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Audio
The voice codec of the Hanwha QNP-6320 product contains G.711, G.711ulaw, G.726. This voice codec ensures optimal audio quality for your communications.
Storage support
Does the Hanwha QNP-6320 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hanwha QNP-6320 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hanwha QNP-6320 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hanwha QNP-6320 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The internal memory of the product Hanwha QNP-6320 contains 1024 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product Hanwha QNP-6320 has a flash memory of 256 Mo. This memory provides an ideal storage capacity for your files, photos, and videos.
Environmental conditions
The product Hanwha QNP-6320 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hanwha QNP-6320 is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hanwha QNP-6320 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Hanwha QNP-6320 is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Network
Does the product Hanwha QNP-6320 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hanwha QNP-6320 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hanwha QNP-6320 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hanwha QNP-6320 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hanwha QNP-6320 is 128 utilisateur(s). This product is ideal for several people. The streaming method of the product Hanwha QNP-6320 is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The network standards of the product Hanwha QNP-6320 are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hanwha QNP-6320 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hanwha QNP-6320 are IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP. These protocols ensure efficient and reliable communication for your networking needs.
