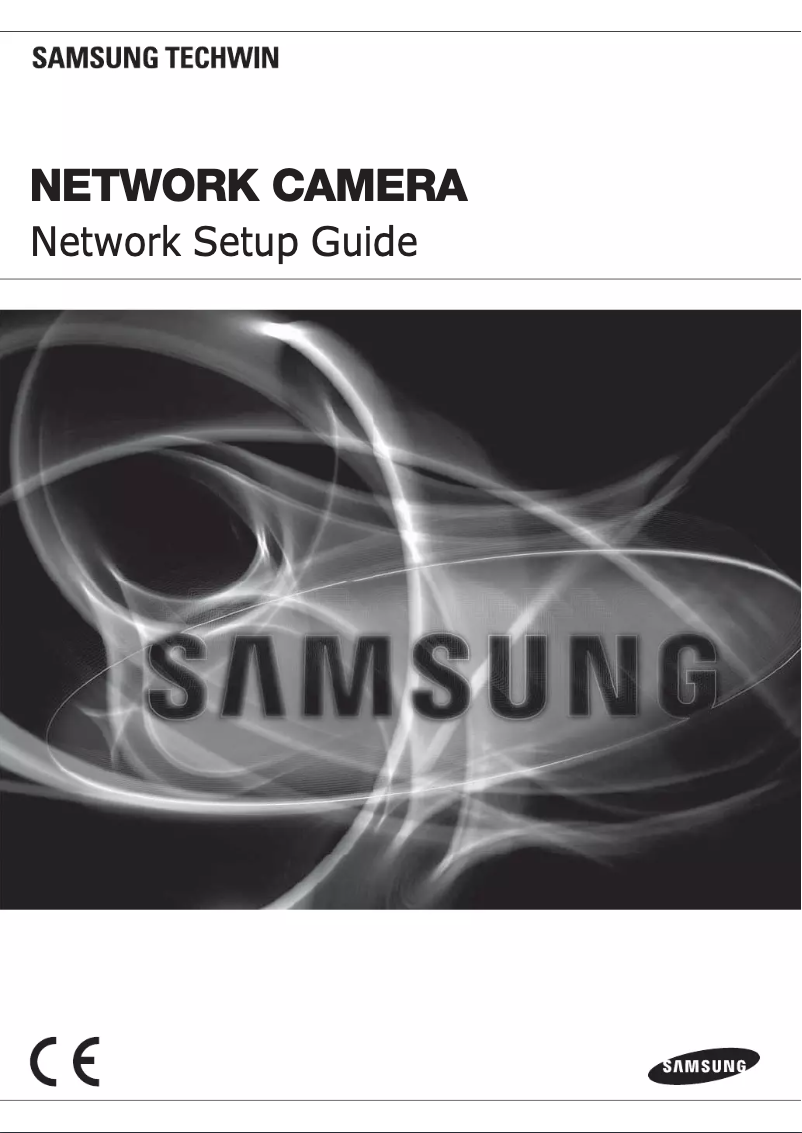

Manuals of product SNO-7084R
Technical Specifications SNO-7084R
General Information
-
ModelSNO-7084R
-
Brand
-
Category
-
Type
-
SKU1414645
-
MPN1414645
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Effective pixel count (H x V)2065 x 1553 pixels
Camera
-
Minimum illumination0 lux
-
White balanceATW, AWC, Indoor, Manual, Outdoor
-
Camera shutter speed1 - 1/12000 s
-
Camera shutter typeElectronic
-
Adjustment of shutter speedManual
Audio
-
Signal-to-noise ratio report50 dB
-
Audio detectionYes
-
Audio system2-way
-
Voice codecsG.711, G.711u, G.726
Technical details
-
Maximum output level1 Vpp
-
Output impedance75 Ohm
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance30 m
-
Number of lighting LEDs20
Objective system
-
Focal length3 - 8.5 mm
-
Maximum number of openings1.2
Packaging contents
-
Number of cameras1
-
Memory card includedYes
-
Included memory card size4 GB
Representation / realization
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
Languages taken into accountCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR
Video
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Visual compression formatsH.264, M-JPEG, MPEG4
-
Maximum resolution2048 x 1536 pixels
-
Supported graphic resolutions320 x 180,320 x 240,640 x 360,640 x 480 (VGA),800 x 450,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2048 x 1536 (QXGA)
-
Number of images per second60 fps
-
Total megapixels3 MP
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Video broadcastingYes
Design
-
Anti-fogYes
-
FormatPod
-
Product colorGray
-
Mounting typeCeiling/Wall/Desk
-
Material of the case/bodyAluminum
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Protection functionsAnti-vandalism
Security
-
Active anti-tampering alarmYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Active anti-tampering alarmYes
-
Active anti-tampering alarmYes
-
Active anti-tampering alarmYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users15 user(s)
-
Streaming methodMulticast, Unicast
-
Network standardsIEEE 802.1x, IEEE 802.3af
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Minimum system requirements
-
Mac CompatibilityYes
-
Support for the Mac operating systemMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
-
Support for the Windows operating systemWindows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Environmental conditions
-
Temperature out of operation-30 - 60 °C
Power
-
AC input voltage24 V
-
Output CC in volts12
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power supply typePoE
-
Energy consumption (Power over Ethernet (PoE))12.5 W
-
Consumption (max)19 W
Weight and dimensions
-
Depth82.4 mm
-
Depth82.4 mm
-
Height312.6 mm
-
Weight1190 g
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product SNO-7084R specifications from brand Hanwha
Image sensor
The sensor type of the product Hanwha SNO-7084R is CMOS. This type of sensor ensures optimal image quality for your needs. The effective pixel count (H x V) of the product Hanwha SNO-7084R is 2065 x 1553 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product Hanwha SNO-7084R is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hanwha SNO-7084R have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Audio
The signal-to-noise ratio of the product Hanwha SNO-7084R is 50 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The audio system of the product Hanwha SNO-7084R is stereo. This audio system provides an immersive and high-quality sound experience. Does the product Hanwha SNO-7084R have Audio Detection? Oui. This feature allows capturing and analyzing surrounding sounds for an enhanced audio experience. The voice codec of the Hanwha SNO-7084R product contains G.711, G.711u, G.726. This voice codec ensures optimal audio quality for your communications.
Generalities
The brand of the product Hanwha SNO-7084R is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hanwha SNO-7084R is 0641753485630, 6950207326509, 6950207326523, 8801089102379. This code allows for the unique identification of the product in the distribution system. The product model Hanwha SNO-7084R is SNO-7084R | SNO-7084RP/EX. This model ensures optimal performance and an enhanced user experience.
Camera
The minimum illumination of the product Hanwha SNO-7084R is 0 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product Hanwha SNO-7084R consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Hanwha SNO-7084R is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Hanwha SNO-7084R is 1 - 1/12000 s. This feature allows capturing sharp images even in low light conditions. The ability to adjust the shutter speed of the product Hanwha SNO-7084R is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control.
Technical details
The maximum output level of the product Hanwha SNO-7084R is 1 Vpp. This level ensures optimal performance for your audio needs. The output impedance of the Hanwha SNO-7084R is 75 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
Night vision
Does the product Hanwha SNO-7084R have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hanwha SNO-7084R is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hanwha SNO-7084R is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The number of lighting LEDs in the product Hanwha SNO-7084R is 20. This number determines the light intensity and energy efficiency of the device.
Packaging contents
The number of cameras of the product Hanwha SNO-7084R is 1. This product is equipped with a camera that allows capturing high-quality images. The product Hanwha SNO-7084R includes a memory card: Oui. This feature allows you to easily store your data right from the purchase. The included memory card size of the product Hanwha SNO-7084R is 4 Go. This specification ensures sufficient storage space for your needs.
Objective system
The focal length of the product Hanwha SNO-7084R is 3 - 8.5 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hanwha SNO-7084R is 1.2. This feature allows for optimal use and increased flexibility.
Security
Does the product Hanwha SNO-7084R have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hanwha SNO-7084R product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The intelligent video surveillance system of the product Hanwha SNO-7084R has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hanwha SNO-7084R have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hanwha SNO-7084R have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings.
Video
Does the product Hanwha SNO-7084R have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hanwha SNO-7084R have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hanwha SNO-7084R have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hanwha SNO-7084R have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The product Hanwha SNO-7084R has visual compression formats: H.264, M-JPEG, MPEG4. These formats ensure optimal image quality for your videos. The maximum resolution of the product Hanwha SNO-7084R is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hanwha SNO-7084R are 320 x 180,320 x 240,640 x 360,640 x 480 (VGA),800 x 450,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2048 x 1536 (QXGA). These resolutions provide optimal display quality for your content. The number of frames per second of the product Hanwha SNO-7084R is 60 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hanwha SNO-7084R is 3 MP. This total ensures exceptional image quality for your photos. The binary bitrate control of the product Hanwha SNO-7084R contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Hanwha SNO-7084R have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Representation / realization
Does the product Hanwha SNO-7084R have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product Hanwha SNO-7084R supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hanwha SNO-7084R have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product Hanwha SNO-7084R is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hanwha SNO-7084R have an entry/end Alarm? Oui. This feature effectively secures access to your space. The languages considered for the product Hanwha SNO-7084R are CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR. This product thus caters to a wide international audience. The product Hanwha SNO-7084R features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hanwha SNO-7084R is 1. These ports provide a stable and fast network connection for your devices. Does the product Hanwha SNO-7084R have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack.
Design
The mounting type of the product Hanwha SNO-7084R is Plafond/Mur/Bureau. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hanwha SNO-7084R is Gris. This shade gives it a modern and elegant look. Does the product Hanwha SNO-7084R have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The format of the product Hanwha SNO-7084R is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hanwha SNO-7084R is Aluminium. This material ensures both durability and elegance. The International Protection Code (IP) for product Hanwha SNO-7084R contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hanwha SNO-7084R is IK10. This IK Code allows for easy identification of the specific design of the item. The product Hanwha SNO-7084R has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions.
Environmental conditions
The non-operating temperature of the product Hanwha SNO-7084R is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Network
Does the product Hanwha SNO-7084R have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hanwha SNO-7084R is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hanwha SNO-7084R contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hanwha SNO-7084R have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The wiring technology of the product Hanwha SNO-7084R contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The supported network protocols of the product Hanwha SNO-7084R are TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The streaming method of the product Hanwha SNO-7084R is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The network standards of the product Hanwha SNO-7084R are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hanwha SNO-7084R have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hanwha SNO-7084R is 15 utilisateur(s). This product is ideal for several people.
Storage support
The product Hanwha SNO-7084R has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hanwha SNO-7084R have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hanwha SNO-7084R have a built-in hard drive? No. This feature means that the product does not have internal storage.
Minimum system requirements
Is the product Hanwha SNO-7084R compatible with Mac? No. This product is not compatible with Mac systems. Does the product Hanwha SNO-7084R support the Mac operating system? Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks. This feature ensures optimal compatibility for Mac users. Does the product Hanwha SNO-7084R support the Windows operating system? Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Power
Does the Hanwha SNO-7084R have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The AC input voltage of the Hanwha SNO-7084R is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product Hanwha SNO-7084R is PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hanwha SNO-7084R has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The energy consumption of the product Hanwha SNO-7084R is 12.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hanwha SNO-7084R is 19 W. This specification allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The height of the product Hanwha SNO-7084R is 312.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hanwha SNO-7084R is 82.4 mm. This dimension allows for optimal integration into your space. The weight of the product Hanwha SNO-7084R is 1190 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hanwha SNO-7084R is 82.4 mm. This dimension is essential to ensure optimal integration into your space.
