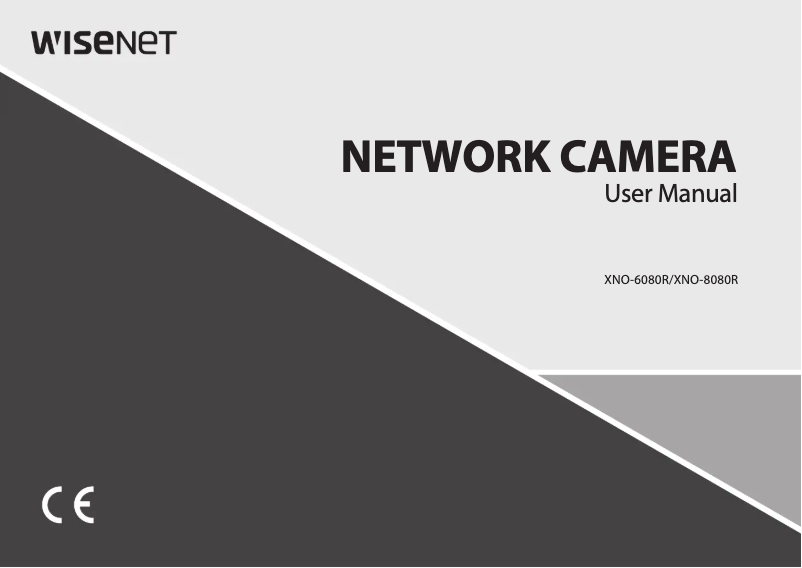

Manual of product XNO-6080R
Technical Specifications XNO-6080R
General Information
-
ModelXNO-6080R
-
Brand
-
Category
-
Type
-
SKU1664635
-
MPN1664635
Night vision
-
Night visionYes
-
Night vision distance50 m
-
Type of LEDIR
Power
-
Consumption (max)15 W
-
Energy consumption (Power over Ethernet (PoE))12.95 W
-
Power supply typePoE
-
Ethernet connection, supporting power over this port (PoE)Yes
Design
-
Product colorGray
-
Material of the case/bodyAluminum
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Anti-fogYes
-
Protection functionsAnti-vandalism
-
Code IKIK10
-
International Protection Code (IP)IP67
Weight and dimensions
-
Height368.6 mm
-
Diameter91 mm
-
Weight2180 g
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
PTZ ModesDigital PTZ
-
Connectivity technologyWired
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
Languages taken into accountCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR
Network
-
Supported network protocolsTCP/IP
-
Number of usersUDP/IP
-
Streaming methodRTP(UDP)
-
Ethernet/LANRTP(TCP)
-
BluetoothRTCP
-
BluetoothRTSP
-
Type of Ethernet interfaceNTP
-
Wiring technologyHTTP
-
Network standardsHTTPS
-
SSL/TLS
-
DHCP
-
PPPoE
-
FTP
-
SMTP
-
ICMP
-
IGMP
-
SNMPv1/v2c/v3(MIB-2)
-
ARP
-
DNS
-
DDNS
-
QoS
-
PIM-SM
-
UPnP
-
Bonjour
-
20 user(s)
-
Multicast
-
Unicast
-
Yes
-
No
-
No
-
Fast Ethernet
-
10/100Base-T(X)
-
IEEE 802.3af
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Audio
-
Signal-to-noise ratio report50 dB
-
Audio system2-way
-
Voice codecsG.711, G.711u, G.726
Video
-
Maximum resolution1920 x 1080 pixels
-
Visual compression formatsH.264, H.265, M-JPEG, MPEG4
-
Supported graphic resolutions320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Video broadcastingYes
-
Gain control typeAuto/Manual
-
Number of images per second60 fps
-
Total megapixels2 MP
-
Image quality adjustmentContrast
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
Camera
-
Minimum illumination0 lux
-
Camera shutter speed2 - 1/12000 s
-
White balanceATW, AWC, Indoor, Manual, Outdoor
-
Camera shutter typeElectronics
-
Adjustment of shutter speedManual
Environmental conditions
-
Operating temperature-40 - 55 °C
-
Temperature out of operation-50 - 60 °C
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Effective pixel count (H x V)1945 x 1097 pixels
Minimum system requirements
-
Support for the Mac operating systemMac OS X 10.10 Yosemite
-
Mac CompatibilityMac OS X 10.11 El Capitan
-
Support for the Windows operating systemMac OS X 10.12 Sierra
-
Yes
-
Windows 10
-
Windows 10 Education
-
Windows 10 Education x64
-
Windows 10 Enterprise
-
Windows 10 Enterprise x64
-
Windows 10 Home
-
Windows 10 Home x64
-
Windows 10 Pro
-
Windows 10 Pro x64
-
Windows 7
-
Windows 7 Enterprise
-
Windows 7 Enterprise x64
-
Windows 7 Home Basic
-
Windows 7 Home Basic x64
-
Windows 7 Home Premium
-
Windows 7 Home Premium x64
-
Windows 7 Professional
-
Windows 7 Professional x64
-
Windows 7 Starter
-
Windows 7 Starter x64
-
Windows 7 Ultimate
-
Windows 7 Ultimate x64
-
Windows 8.1
-
Windows 8.1 Enterprise
-
Windows 8.1 Enterprise x64
-
Windows 8.1 Pro
-
Windows 8.1 Pro x64
-
Windows 8.1 x64
Packaging contents
-
Number of cameras1
Objective system
-
Maximum number of openings3.6
-
Focal length2.8 - 12 mm
Security
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Technical details
-
IrisYes
-
Maximum output level1 Vpp
-
Output impedance75 Ohm
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsSD, SDHC, SDXC
-
Maximum memory card size512 GB
Other features
-
USB ConnectivityYes
Similar products
More product categories from brand Hanwha
More product types from brand Hanwha
Presentation of product XNO-6080R specifications from brand Hanwha
Generalities
The brand of the product Hanwha XNO-6080R is Hanwha. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hanwha XNO-6080R is 8801089091864. This code allows for the unique identification of the product in the distribution system. The product model Hanwha XNO-6080R is XNO-6080R | XNO-6080RP/EX. This model ensures optimal performance and an enhanced user experience.
Power
The maximum consumption of the product Hanwha XNO-6080R is 15 W. This specification allows for the assessment of the energy efficiency of the device. Does the Hanwha XNO-6080R have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The energy consumption of the product Hanwha XNO-6080R is 12.95 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hanwha XNO-6080R is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Design
The color of the product Hanwha XNO-6080R is Gris. This shade gives it a modern and elegant look. The material of the product case Hanwha XNO-6080R is Aluminium. This material ensures both durability and elegance. The mounting type of the product Hanwha XNO-6080R is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hanwha XNO-6080R is a bar. This format allows for practical and efficient use in various contexts. Does the product Hanwha XNO-6080R have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The product Hanwha XNO-6080R has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions. The IK Code of the product Hanwha XNO-6080R is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Hanwha XNO-6080R contains IP67. This code indicates the level of protection against solid objects and moisture.
Night vision
Does the product Hanwha XNO-6080R have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hanwha XNO-6080R is 50 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hanwha XNO-6080R is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Weight and dimensions
The height of the product Hanwha XNO-6080R is 368.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hanwha XNO-6080R is 91 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hanwha XNO-6080R is 2180 g. This weight is ideal for ensuring optimal use and easy handling.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hanwha XNO-6080R is 1. These ports provide a stable and fast network connection for your devices.
Representation / realization
The PTZ modes of the product Hanwha XNO-6080R contain PTZ numérique. These modes allow for increased flexibility and customization to meet your specific needs. The design of the product Hanwha XNO-6080R supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hanwha XNO-6080R is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hanwha XNO-6080R features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hanwha XNO-6080R have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hanwha XNO-6080R have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hanwha XNO-6080R have an entry/end Alarm? Oui. This feature effectively secures access to your space. The languages considered for the product Hanwha XNO-6080R are CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR. This product thus caters to a wide international audience. The PTZ control of the product Hanwha XNO-6080R is Oui. This control allows for precise and efficient management of pan, tilt, and zoom.
Network
The supported network protocols of the product Hanwha XNO-6080R are TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The streaming method of the product Hanwha XNO-6080R is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The number of users of the product Hanwha XNO-6080R is 20 utilisateur(s). This product is ideal for several people. Does the product Hanwha XNO-6080R have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hanwha XNO-6080R contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hanwha XNO-6080R have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hanwha XNO-6080R are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The Ethernet interface type of the product Hanwha XNO-6080R is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hanwha XNO-6080R contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs.
Audio
The audio system of the product Hanwha XNO-6080R is stereo. This audio system provides an immersive and high-quality sound experience. The signal-to-noise ratio of the product Hanwha XNO-6080R is 50 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The voice codec of the Hanwha XNO-6080R product contains G.711, G.711u, G.726. This voice codec ensures optimal audio quality for your communications.
Camera
The minimum illumination of the product Hanwha XNO-6080R is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hanwha XNO-6080R is 2 - 1/12000 s. This feature allows capturing sharp images even in low light conditions. The white balance of the product Hanwha XNO-6080R consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Hanwha XNO-6080R is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The ability to adjust the shutter speed of the product Hanwha XNO-6080R is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control.
Video
The maximum resolution of the product Hanwha XNO-6080R is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hanwha XNO-6080R are 320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product Hanwha XNO-6080R have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hanwha XNO-6080R has visual compression formats: H.264, H.265, M-JPEG, MPEG4. These formats ensure optimal image quality for your videos. The gain control type of the product Hanwha XNO-6080R is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The number of frames per second of the product Hanwha XNO-6080R is 60 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hanwha XNO-6080R is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hanwha XNO-6080R have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hanwha XNO-6080R have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product Hanwha XNO-6080R contains Contraste. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hanwha XNO-6080R have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hanwha XNO-6080R have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hanwha XNO-6080R have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hanwha XNO-6080R have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Environmental conditions
The operating temperature of the product Hanwha XNO-6080R is -40 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Hanwha XNO-6080R is -50 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Image sensor
The effective pixel count (H x V) of the product Hanwha XNO-6080R is 1945 x 1097 pixels. This specification ensures accurate and detailed image quality. The sensor type of the product Hanwha XNO-6080R is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hanwha XNO-6080R have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hanwha XNO-6080R is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Packaging contents
The number of cameras of the product Hanwha XNO-6080R is 1. This product is equipped with a camera that allows capturing high-quality images.
Minimum system requirements
Does the product Hanwha XNO-6080R support the Mac operating system? Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra. This feature ensures optimal compatibility for Mac users. Is the product Hanwha XNO-6080R compatible with Mac? No. This product is not compatible with Mac systems. Does the product Hanwha XNO-6080R support the Windows operating system? Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Objective system
The focal length of the product Hanwha XNO-6080R is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hanwha XNO-6080R is 3.6. This feature allows for optimal use and increased flexibility.
Security
The intelligent video surveillance system of the product Hanwha XNO-6080R has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hanwha XNO-6080R have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hanwha XNO-6080R product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hanwha XNO-6080R have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Technical details
The maximum output level of the product Hanwha XNO-6080R is 1 Vpp. This level ensures optimal performance for your audio needs. Is the product Hanwha XNO-6080R equipped with Iris? Oui. This specification indicates an essential feature of the product. The output impedance of the Hanwha XNO-6080R is 75 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
Storage support
The product Hanwha XNO-6080R has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data. Does the Hanwha XNO-6080R have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hanwha XNO-6080R is 512 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hanwha XNO-6080R have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Other features
Does the product Hanwha XNO-6080R have USB Connectivity? Oui. This feature allows for easy connection of various devices and accessories.
