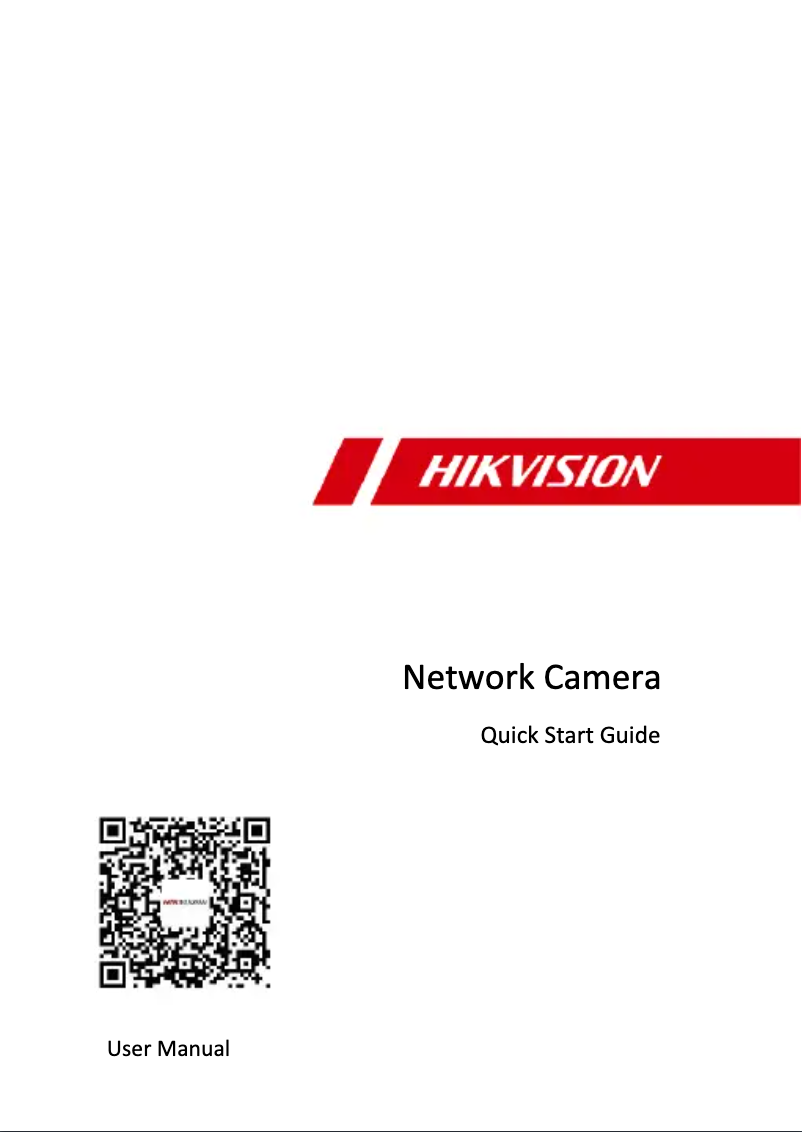

Manuals of product DS-2CD1743G0-IZ
Technical Specifications DS-2CD1743G0-IZ
General Information
-
ModelDS-2CD1743G0-IZ
-
Brand
-
Category
-
Type
-
SKU1448133
-
MPN1448133
Image sensor
-
Optical sensor size1/3 "
-
Sensor typeCMOS
-
Number of sensors1
-
Progressive scanYes
Camera
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal102 °
-
Angle of view of the lens, vertical54 °
-
Angle of view of the lens, diagonal123 °
-
Camera shutter speed1/3 - 1/100000 s
-
Inclination angle0 - 70 °
-
Panoramic0 - 355 °
-
Rotation angle355 °
-
Camera tilt controlYes
-
Camera tilt controlYes
Objective system
-
Focal length2.8-12 mm
-
Maximum number of openings1.6
-
Auto focusYes
-
Number of lenses1
Night vision
-
Night vision distance30 m
-
Infrared wavelength850 nm
-
Night visionYes
-
Type of LEDIR
Video
-
Total megapixels4 MP
-
Bitrate32 Kbps - 8 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Gain control typeAuto
-
Noise reduction technology3D digital noise reduction
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Number of images per second30 fps
-
Maximum resolution2560 x 1440 pixels
-
Supported graphic resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Coding of the region of interestYes
Network
-
Supported network protocolsTCP/IP
-
Type of Ethernet interfaceICMP
-
Quality of Service (QoS)HTTP
-
BluetoothHTTPS
-
BluetoothFTP
-
Network standardsDHCP
-
Number of usersDNS
-
Quality of Service (QoS)DDNS
-
RTP
-
RTSP
-
RTCP
-
NTP
-
UPnP™
-
SMTP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
Bonjour
-
IPv4
-
UDP
-
SSL/TLS
-
Fast Ethernet
-
Yes
-
No
-
No
-
IEEE 802.1x, IEEE 802.3af
-
32 user(s)
-
Yes
Power
-
Consumption (max)10 W
-
Output CC in amperes0.8 A
-
Energy consumption (Power over Ethernet (PoE))11.5 W
-
Output CC in volts12
-
Power supply typeDC, PoE
Weight and dimensions
-
Diameter141 mm
-
Height99.9 mm
-
Weight820 g
Packaging information
-
Package weight1200 g
-
Package depth140 mm
-
Package depth140 mm
-
Package height154 mm
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Representation / realization
-
CertificationFCC SDoC (47 CFR 15, B);
-
Day/Night ModeCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014);
-
Day/Night ModeRCM (AS/NZS CISPR 32: 2015);
-
Day/Night ModeIC VoC (ICES-003: 6, 2016);
-
TypeKC (KN 32: 2015, KN 35: 2015)
-
Supported installationUL (UL 60950-1);
-
Connectivity technologyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
-
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
-
BIS (IS 13252(1):2010+A1:2013+A2:2015)
-
Yes
-
Yes
-
Yes
-
IP security camera
-
Outdoor
-
Wired
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
Material of the case/bodyMetal
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
Packaging contents
-
Number of cameras1
Management features
-
Reset buttonYes
-
Reset buttonYes
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size128 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD1743G0-IZ specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD1743G0-IZ is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD1743G0-IZ is DS-2CD1743G0-IZ | DS-2CD1743G0-IZ(2.8-12MM)(C). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD1743G0-IZ is 6931847127527. This code allows for the unique identification of the product in the distribution system.
Image sensor
The optical sensor size of the product Hikvision DS-2CD1743G0-IZ is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD1743G0-IZ is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD1743G0-IZ is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2CD1743G0-IZ have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Objective system
The focal length of the product Hikvision DS-2CD1743G0-IZ is 2.8-12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. Does the Hikvision DS-2CD1743G0-IZ have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The number of lenses in the product Hikvision DS-2CD1743G0-IZ is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD1743G0-IZ is 1.6. This feature allows for optimal use and increased flexibility.
Camera
The minimum illumination of the product Hikvision DS-2CD1743G0-IZ is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2CD1743G0-IZ lens is 102 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Hikvision DS-2CD1743G0-IZ is 123 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The vertical field of view of the product Hikvision DS-2CD1743G0-IZ is 54 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The shutter speed of the camera of the product Hikvision DS-2CD1743G0-IZ is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt angle of the product Hikvision DS-2CD1743G0-IZ is 0 - 70 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD1743G0-IZ is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Hikvision DS-2CD1743G0-IZ is 355 °. This angle allows for optimal usage flexibility. Does the product Hikvision DS-2CD1743G0-IZ have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD1743G0-IZ camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Night vision
The night vision distance of the product Hikvision DS-2CD1743G0-IZ is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision DS-2CD1743G0-IZ is 850 nm. This feature allows for optimal use in various technological applications. Does the product Hikvision DS-2CD1743G0-IZ have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD1743G0-IZ is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Network
The Wifi of the product Hikvision DS-2CD1743G0-IZ contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2CD1743G0-IZ have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2CD1743G0-IZ is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2CD1743G0-IZ are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS. These protocols ensure efficient and reliable communication for your networking needs. Does the Hikvision DS-2CD1743G0-IZ have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2CD1743G0-IZ are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The number of users of the product Hikvision DS-2CD1743G0-IZ is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD1743G0-IZ have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Power
The maximum consumption of the product Hikvision DS-2CD1743G0-IZ is 10 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2CD1743G0-IZ is 11.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2CD1743G0-IZ has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product Hikvision DS-2CD1743G0-IZ has a DC output in amperes of 0.8 A. This specification ensures a stable power supply suitable for your needs. The type of power source for the product Hikvision DS-2CD1743G0-IZ is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Weight and dimensions
The weight of the product Hikvision DS-2CD1743G0-IZ is 820 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CD1743G0-IZ is 99.9 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CD1743G0-IZ is 141 mm. This diameter allows for optimal use and fits perfectly with your needs.
Packaging information
The depth of the product package Hikvision DS-2CD1743G0-IZ is 140 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD1743G0-IZ is 140 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD1743G0-IZ package is 1200 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Hikvision DS-2CD1743G0-IZ is 154 mm. This dimension is essential to ensure optimal transport and storage.
Environmental conditions
The non-operating temperature of the product Hikvision DS-2CD1743G0-IZ is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision DS-2CD1743G0-IZ is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD1743G0-IZ has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Hikvision DS-2CD1743G0-IZ is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Video
The bit rate of the product Hikvision DS-2CD1743G0-IZ is 32 Kbps - 8 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD1743G0-IZ have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The total megapixels of the product Hikvision DS-2CD1743G0-IZ is 4 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CD1743G0-IZ have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product Hikvision DS-2CD1743G0-IZ contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product Hikvision DS-2CD1743G0-IZ is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2CD1743G0-IZ have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2CD1743G0-IZ is 30 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision DS-2CD1743G0-IZ features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD1743G0-IZ have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The maximum resolution of the product Hikvision DS-2CD1743G0-IZ is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD1743G0-IZ are 320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2304 x 1296,2560 x 1440. These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD1743G0-IZ has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD1743G0-IZ have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
Representation / realization
Does the product Hikvision DS-2CD1743G0-IZ have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The certification of the product Hikvision DS-2CD1743G0-IZ contains FCC SDoC (47 CFR 15, B);\nCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011\n+A1: 2014);\nRCM (AS/NZS CISPR 32: 2015);\nIC VoC (ICES-003: 6, 2016);\nKC (KN 32: 2015, KN 35: 2015)\nUL (UL 60950-1);\nCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);\nCE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);\nBIS (IS 13252(1):2010+A1:2013+A2:2015). This certification guarantees compliance with the required safety and performance standards. Does the product Hikvision DS-2CD1743G0-IZ have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD1743G0-IZ have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hikvision DS-2CD1743G0-IZ is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD1743G0-IZ supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD1743G0-IZ features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Design
The format of the product Hikvision DS-2CD1743G0-IZ is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2CD1743G0-IZ contains IP67. This code indicates the level of protection against solid objects and moisture. The material of the product case Hikvision DS-2CD1743G0-IZ is Métal. This material ensures both durability and elegance. The IK Code of the product Hikvision DS-2CD1743G0-IZ is IK10. This IK Code allows for easy identification of the specific design of the item. The mounting type of the product Hikvision DS-2CD1743G0-IZ is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD1743G0-IZ is Blanc. This shade gives it a modern and elegant look.
Management features
The Hikvision DS-2CD1743G0-IZ product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD1743G0-IZ have a Reset Button? Oui. This button allows you to easily reset the product settings.
Packaging contents
The number of cameras of the product Hikvision DS-2CD1743G0-IZ is 1. This product is equipped with a camera that allows capturing high-quality images.
Security
Does the Hikvision DS-2CD1743G0-IZ have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product Hikvision DS-2CD1743G0-IZ have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. The Hikvision DS-2CD1743G0-IZ has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD1743G0-IZ have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD1743G0-IZ have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD1743G0-IZ have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD1743G0-IZ product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD1743G0-IZ is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The product Hikvision DS-2CD1743G0-IZ has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD1743G0-IZ is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD1743G0-IZ have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD1743G0-IZ have a built-in hard drive? No. This feature means that the product does not have internal storage.
