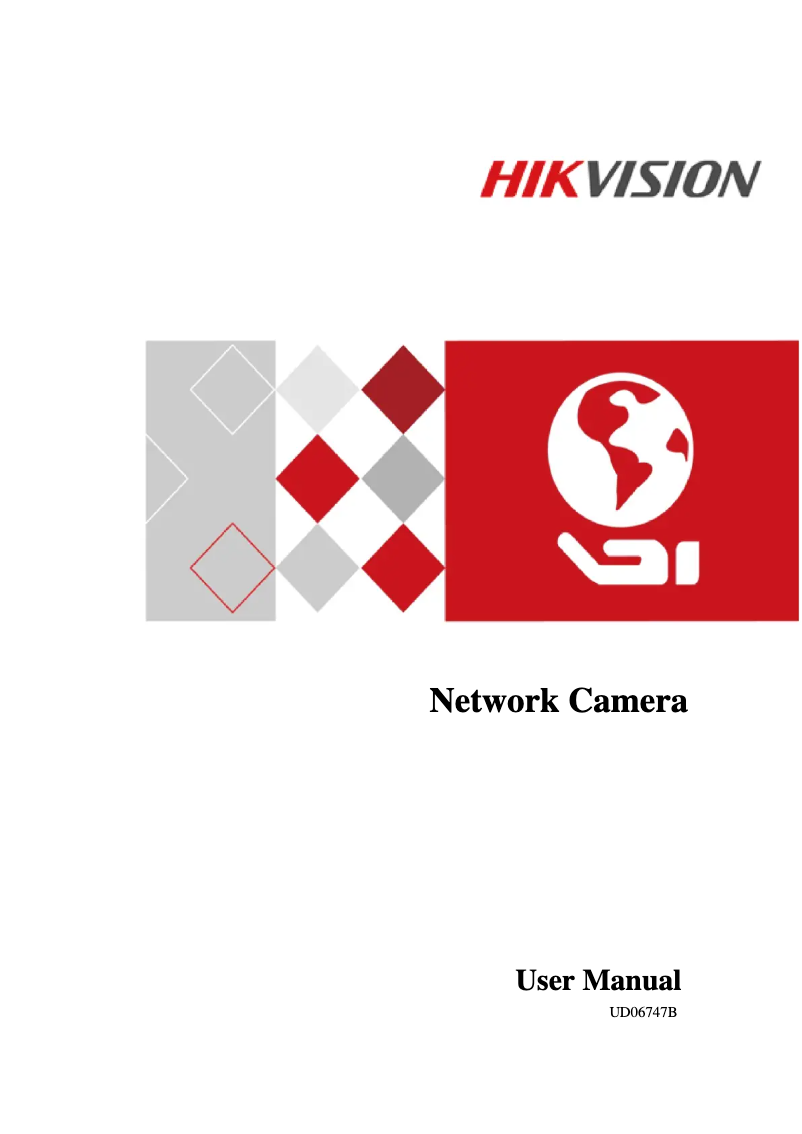

Manual of product DS-2CD2025FHWD
Technical Specifications DS-2CD2025FHWD
General Information
-
ModelDS-2CD2025FHWD
-
Brand
-
Category
-
Type
-
SKU1134628
-
MPN1134628
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Plug and PlayYes
-
Plug and PlayYes
-
Plug and PlayYes
-
Plug and PlayYes
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
Camera
-
Camera pan command-
-
Camera tilt control-
-
Minimum illumination0.005 lux
-
Rotation angle360 °
-
Field of view of the lens, horizontal86.4 °
-
Inclination angle0 - 90 °
-
Panoramic0 - 360 °
-
White balanceManual
-
Camera shutter typeElectronic
-
Camera shutter speed1/3 - 1/100000 s
-
Adjustment of shutter speedAuto/Manual
Security
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Security-supported algorithm802.1x RADIUS
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Management features
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Objective system
-
Number of lenses1
-
Fixed focusYes
-
Maximum number of openings1.6
-
Minimum opening amount1.2
-
Fixed Focal Length2.8 mm
Power
-
Power supply typeDC, PoE
-
Consumption (max)5 W
-
Energy consumption (Power over Ethernet (PoE))6.5 W
-
Output CC in volts12
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)5 - 95 %
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Number of images per second60 fps
-
Analog signal format systemNTSC, PAL
-
Smart IRYes
-
Smart IRYes
-
Noise reduction technology3D digital noise reduction
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
-
Bitrate32 Kbps - 16 Mbps
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
Weight and dimensions
-
Diameter70 mm
-
Product length155.03 mm
-
Weight410 g
Packaging information
-
Package width216 mm
-
Package depth121 mm
-
Package height118 mm
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2025FHWD specifications from brand Hikvision
Storage support
Does the Hikvision DS-2CD2025FHWD have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2025FHWD has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2025FHWD have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2CD2025FHWD is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Generalities
The brand of the product Hikvision DS-2CD2025FHWD is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2025FHWD is 0842571121315, 6954273642839. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2025FHWD is DS-2CD2025FHWD | DS-2CD2025FHWD-I(2.8MM). This model ensures optimal performance and an enhanced user experience.
Representation / realization
The type of product Hikvision DS-2CD2025FHWD is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2025FHWD supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2025FHWD have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2CD2025FHWD features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD2025FHWD have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The Hikvision DS-2CD2025FHWD product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. Does the product Hikvision DS-2CD2025FHWD have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable.
Design
The mounting type of the product Hikvision DS-2CD2025FHWD is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2025FHWD is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD2025FHWD is Blanc. This shade gives it a modern and elegant look.
Network
Does the product Hikvision DS-2CD2025FHWD have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD2025FHWD contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Hikvision DS-2CD2025FHWD is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the Hikvision DS-2CD2025FHWD have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2CD2025FHWD are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD2025FHWD are TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2025FHWD have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision DS-2CD2025FHWD is 32 utilisateur(s). This product is ideal for several people.
Camera
Does the product Hikvision DS-2CD2025FHWD have a camera pan command? No. This feature is not available on this model. The rotation angle of the product Hikvision DS-2CD2025FHWD is 360 °. This angle allows for optimal usage flexibility. The tilt command of the Hikvision DS-2CD2025FHWD camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The minimum illumination of the product Hikvision DS-2CD2025FHWD is 0.005 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2CD2025FHWD lens is 86.4 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The tilt angle of the product Hikvision DS-2CD2025FHWD is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD2025FHWD is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The white balance of the product Hikvision DS-2CD2025FHWD consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Hikvision DS-2CD2025FHWD is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Hikvision DS-2CD2025FHWD is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The ability to adjust the shutter speed of the product Hikvision DS-2CD2025FHWD is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control.
Image sensor
The sensor type of the product Hikvision DS-2CD2025FHWD is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2CD2025FHWD is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2CD2025FHWD is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2CD2025FHWD have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Management features
Does the product Hikvision DS-2CD2025FHWD have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Hikvision DS-2CD2025FHWD product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD2025FHWD have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the Hikvision DS-2CD2025FHWD have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. Is the Hikvision DS-2CD2025FHWD product Remote Controlled? Oui. This feature allows for convenient and easy remote control. The Hikvision DS-2CD2025FHWD system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
Does the product Hikvision DS-2CD2025FHWD have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2CD2025FHWD product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2025FHWD have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD2025FHWD have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. The supported security algorithm of the product Hikvision DS-2CD2025FHWD contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2CD2025FHWD have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2CD2025FHWD have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2025FHWD has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2025FHWD have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD2025FHWD have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content.
Objective system
Is the Hikvision DS-2CD2025FHWD product fixed focus? No. This product is designed to provide optimal usage flexibility. The number of lenses in the product Hikvision DS-2CD2025FHWD is 1. This number determines the quality and versatility of the lens. The minimum opening number of the product Hikvision DS-2CD2025FHWD is 1.2. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision DS-2CD2025FHWD is 1.6. This feature allows for optimal use and increased flexibility. The product goal system Hikvision DS-2CD2025FHWD has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality.
Environmental conditions
The product Hikvision DS-2CD2025FHWD has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2025FHWD is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Night vision
Does the product Hikvision DS-2CD2025FHWD have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD2025FHWD is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CD2025FHWD is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision DS-2CD2025FHWD is 850 nm. This feature allows for optimal use in various technological applications.
Power
The maximum consumption of the product Hikvision DS-2CD2025FHWD is 5 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2CD2025FHWD is 6.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2CD2025FHWD has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CD2025FHWD is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Weight and dimensions
The diameter of the product Hikvision DS-2CD2025FHWD is 70 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2025FHWD is 410 g. This weight is ideal for ensuring optimal use and easy handling. The length of the product Hikvision DS-2CD2025FHWD is 155.03 mm. This dimension is essential to ensure optimal use.
Packaging information
The depth of the product package Hikvision DS-2CD2025FHWD is 121 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD2025FHWD is 216 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2025FHWD is 118 mm. This dimension is essential to ensure optimal transport and storage.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2025FHWD is 1. This product is equipped with a camera that allows capturing high-quality images.
Video
The maximum resolution of the product Hikvision DS-2CD2025FHWD is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD2025FHWD are 352 x 240,352 x 288,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2025FHWD has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2CD2025FHWD is 2 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2CD2025FHWD is 60 ips. This specification ensures optimal smoothness when playing videos. The analog signal format system of the product Hikvision DS-2CD2025FHWD contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product Hikvision DS-2CD2025FHWD have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD2025FHWD have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD2025FHWD features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The image quality setting of the product Hikvision DS-2CD2025FHWD contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2025FHWD have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product Hikvision DS-2CD2025FHWD have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2CD2025FHWD have Timestamp Overlay? Oui. This feature allows you to display the date and time directly on the video, providing valuable temporal context. Does the product Hikvision DS-2CD2025FHWD have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product Hikvision DS-2CD2025FHWD have a Portrait Mode? Oui. This feature allows you to capture images with a depth effect, highlighting the main subject while blurring the background. The bit rate of the product Hikvision DS-2CD2025FHWD is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2025FHWD have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience. Does the product Hikvision DS-2CD2025FHWD have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2025FHWD have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2025FHWD have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
