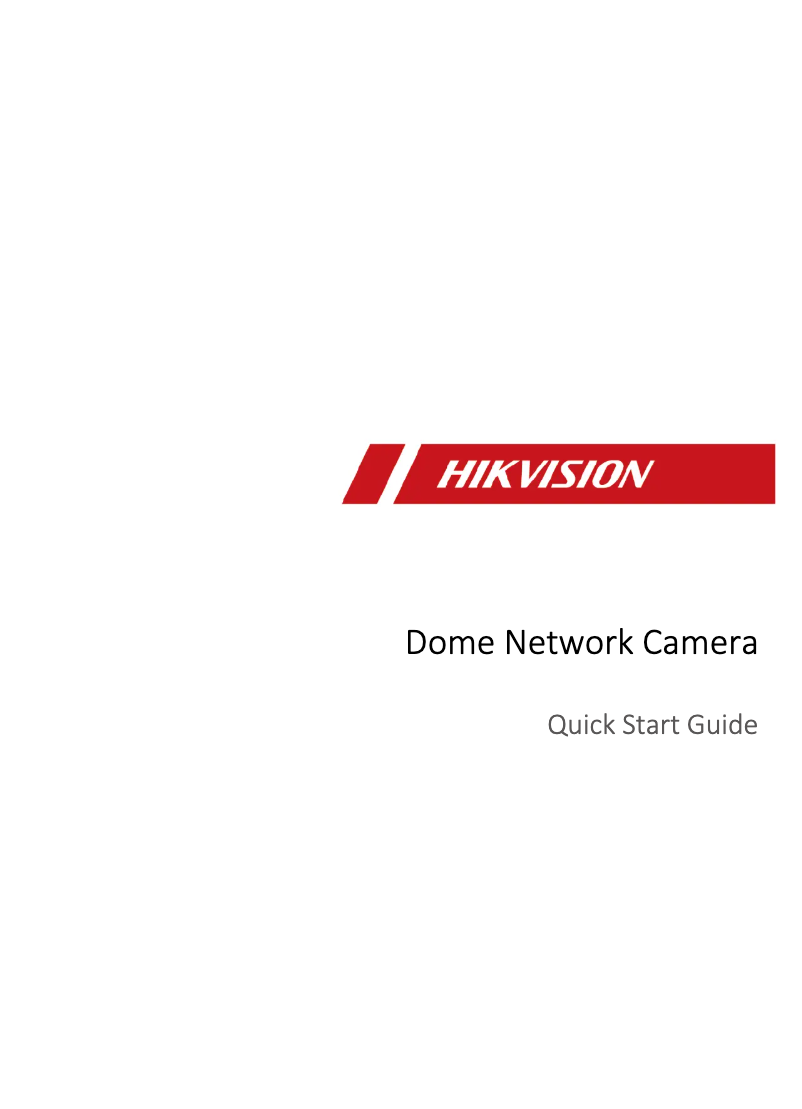

Manuals of product DS-2CD2121G0-IS
Technical Specifications DS-2CD2121G0-IS
General Information
-
ModelDS-2CD2121G0-IS
-
Brand
-
Category
-
Type
-
SKU1776750
-
MPN1776750
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Representation / realization
-
TypeIP security camera
-
Connectivity technologyWired
-
Supported installationIndoor and outdoor
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Dynamic range120 dB
-
Entry/exit alarmYes
-
Number of languages33
-
Languages taken into accountMulti
-
CertificationFCC, CE-EMC, RCM, IC, KC, UL, CB, CE-LVD, LOA, BIS, CE-RoHS, Reach
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels6 channels
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Client interoperabilityiVMS-4200, Hik-Connect, Hik-Central
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
Video
-
Maximum resolution1920 x 1080 pixels
-
Masking of personal dataYes
-
Total megapixels2 MP
-
Number of images per second30 fps
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 8 Mbps
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise reduction
-
Masking of personal dataYes
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 355 °
-
Inclination angle0 - 75 °
-
Rotation angle355 °
-
Field of view of the lens, horizontal111.6 °
-
Angle of view of the lens, vertical59.1 °
-
Angle of view of the lens, diagonal133.9 °
Packaging contents
-
Number of cameras1
Technical details
-
Lens mount interfaceM12
-
Audio input1
Objective system
-
Fixed focusYes
-
Maximum number of openings1.6
-
Number of lenses1
-
Fixed Focal Length2.8 mm
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Infrared wavelength850 nm
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Alarm output channels1
-
Alarm output channels1
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection, Line crossing detection
Other features
-
Audio output1
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes0.4 A
-
Consumption (max)5 W
-
Energy consumption (Power over Ethernet (PoE))6.5 W
Weight and dimensions
-
Diameter110.8 mm
-
Height84.7 mm
-
Weight497 g
Packaging information
-
Package depth135 mm
-
Package depth135 mm
-
Package height110 mm
-
Package weight597 g
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2121G0-IS specifications from brand Hikvision
Storage support
Does the Hikvision DS-2CD2121G0-IS have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2CD2121G0-IS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2CD2121G0-IS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2121G0-IS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Generalities
The brand of the product Hikvision DS-2CD2121G0-IS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2121G0-IS is DS-2CD2121G0-IS | DS-2CD2121G0-IS(2.8MM). This model ensures optimal performance and an enhanced user experience.
Network
The number of users of the product Hikvision DS-2CD2121G0-IS is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision DS-2CD2121G0-IS contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. Does the product Hikvision DS-2CD2121G0-IS have a live view? Oui. This feature allows you to see in real-time what the camera captures. Does the product Hikvision DS-2CD2121G0-IS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD2121G0-IS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2121G0-IS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD2121G0-IS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The number of simultaneous live viewing channels for the product Hikvision DS-2CD2121G0-IS is 6 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. Does the Hikvision DS-2CD2121G0-IS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The product Hikvision DS-2CD2121G0-IS has client interoperability iVMS-4200, Hik-Connect, Hik-Central, thus ensuring optimal compatibility with various systems and protocols. The Ethernet interface type of the product Hikvision DS-2CD2121G0-IS is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2CD2121G0-IS are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Image sensor
Does the product Hikvision DS-2CD2121G0-IS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2CD2121G0-IS is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD2121G0-IS is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2121G0-IS is 1. This number of sensors allows for precise and efficient image detection.
Representation / realization
The product Hikvision DS-2CD2121G0-IS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2CD2121G0-IS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD2121G0-IS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product Hikvision DS-2CD2121G0-IS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2121G0-IS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2121G0-IS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The number of languages of the product Hikvision DS-2CD2121G0-IS is 33. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2CD2121G0-IS are Multi. This product thus caters to a wide international audience. The dynamic range of the product Hikvision DS-2CD2121G0-IS is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks. Does the product Hikvision DS-2CD2121G0-IS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The certification of the product Hikvision DS-2CD2121G0-IS contains FCC, CE-EMC, RCM, IC, KC, UL, CB, CE-LVD, LOA, BIS, CE-RoHS, Reach. This certification guarantees compliance with the required safety and performance standards.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2121G0-IS is 1. This product is equipped with a camera that allows capturing high-quality images.
Video
The maximum resolution of the product Hikvision DS-2CD2121G0-IS is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2CD2121G0-IS is 2 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2CD2121G0-IS is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2121G0-IS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The supported graphic resolutions of the product Hikvision DS-2CD2121G0-IS are 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2121G0-IS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2CD2121G0-IS is 32 Kbps - 8 Mbp. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2121G0-IS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The image quality setting of the product Hikvision DS-2CD2121G0-IS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2121G0-IS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2CD2121G0-IS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2121G0-IS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Technical details
The lens mount of the Hikvision DS-2CD2121G0-IS product is M12. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots. The product Hikvision DS-2CD2121G0-IS has an audio input. This feature allows you to connect various audio devices for an enhanced sound experience.
Camera
The minimum illumination of the product Hikvision DS-2CD2121G0-IS is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD2121G0-IS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt command of the Hikvision DS-2CD2121G0-IS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Hikvision DS-2CD2121G0-IS have a camera pan command? No. This feature is not available on this model. The panoramic view of the product Hikvision DS-2CD2121G0-IS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CD2121G0-IS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD2121G0-IS is 355 °. This angle allows for optimal usage flexibility. The field of view of the Hikvision DS-2CD2121G0-IS lens is 111.6 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2121G0-IS is 59.1 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2121G0-IS is 133.9 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Objective system
The maximum number of openings for the product Hikvision DS-2CD2121G0-IS is 1.6. This feature allows for optimal use and increased flexibility. Is the Hikvision DS-2CD2121G0-IS product fixed focus? No. This product is designed to provide optimal usage flexibility. The product goal system Hikvision DS-2CD2121G0-IS has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2CD2121G0-IS is 1. This number determines the quality and versatility of the lens.
Night vision
Does the product Hikvision DS-2CD2121G0-IS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CD2121G0-IS is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision DS-2CD2121G0-IS is 850 nm. This feature allows for optimal use in various technological applications.
Management features
Does the product Hikvision DS-2CD2121G0-IS have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD2121G0-IS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD2121G0-IS have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Hikvision DS-2CD2121G0-IS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Other features
The product Hikvision DS-2CD2121G0-IS has an audio output of 1. This feature allows for easy connection to audio devices for an optimal sound experience.
Security
The alarm output channel of the product Hikvision DS-2CD2121G0-IS contains 1. This channel allows for the effective reporting of any alerts or important events. The alarm input channel of the product Hikvision DS-2CD2121G0-IS contains 1. This channel allows for efficient integration of security systems. Does the product Hikvision DS-2CD2121G0-IS have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources. Does the product Hikvision DS-2CD2121G0-IS have Network Attached Storage (NAS)? Oui. This system allows secure and centralized access to data, ideal for sharing and backup. Does the product Hikvision DS-2CD2121G0-IS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD2121G0-IS have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hikvision DS-2CD2121G0-IS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2121G0-IS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2121G0-IS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD2121G0-IS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD2121G0-IS have Privacy Protection? Oui. This feature ensures the security of your personal data and enhances your trust in using the product. Does the product Hikvision DS-2CD2121G0-IS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the Hikvision DS-2CD2121G0-IS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2121G0-IS is 1. These ports provide a stable and fast network connection for your devices.
Power
The type of power source for the product Hikvision DS-2CD2121G0-IS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CD2121G0-IS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product Hikvision DS-2CD2121G0-IS has a DC output in amperes of 0.4 A. This specification ensures a stable power supply suitable for your needs. The maximum consumption of the product Hikvision DS-2CD2121G0-IS is 5 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2CD2121G0-IS is 6.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Packaging information
The width of the package of the product Hikvision DS-2CD2121G0-IS is 135 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2121G0-IS is 110 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD2121G0-IS package is 597 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD2121G0-IS is 135 mm. This dimension is essential to ensure proper packaging and secure transport.
Weight and dimensions
The diameter of the product Hikvision DS-2CD2121G0-IS is 110.8 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2CD2121G0-IS is 84.7 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2CD2121G0-IS is 497 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The non-operating temperature of the product Hikvision DS-2CD2121G0-IS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision DS-2CD2121G0-IS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD2121G0-IS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Hikvision DS-2CD2121G0-IS is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Design
The IK Code of the product Hikvision DS-2CD2121G0-IS is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Hikvision DS-2CD2121G0-IS contains IP67. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2CD2121G0-IS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD2121G0-IS is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD2121G0-IS is Blanc. This shade gives it a modern and elegant look.
