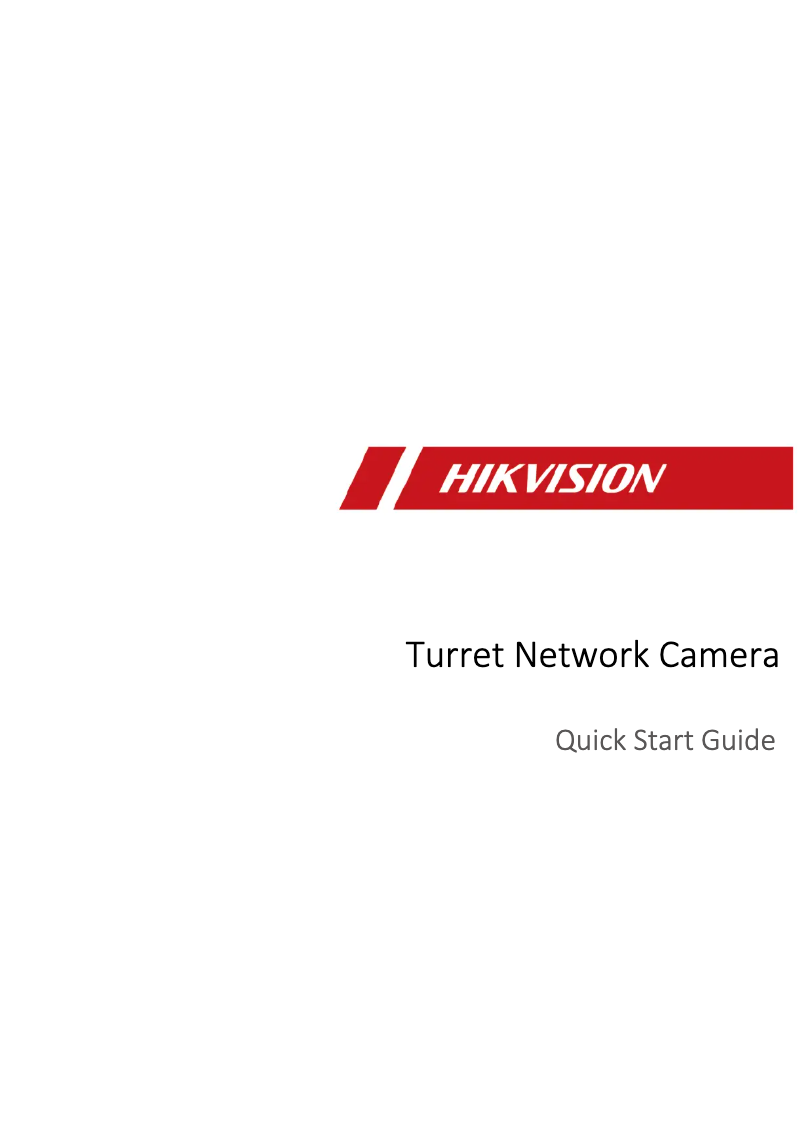

Manuals of product DS-2CD2346G1-I/SL
Technical Specifications DS-2CD2346G1-I/SL
General Information
-
ModelDS-2CD2346G1-I/SL
-
Brand
-
Category
-
Type
-
SKU1129641
-
MPN1129641
Objective system
-
Fixed Focal Length2.8 mm
-
Number of lenses1
-
Maximum number of openings1.6
-
Fixed focusYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Progressive scanYes
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes0.5 A
-
Consumption (max)6 W
-
Energy consumption (Power over Ethernet (PoE))7.5 W
Packaging contents
-
Number of cameras1
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Camera shutter speed1/3 - 1/100000 s
-
Rotation angle360 °
-
Panoramic0 - 360 °
-
Inclination angle0 - 75 °
-
Field of view of the lens, horizontal104 °
-
Angle of view of the lens, vertical58 °
-
Angle of view of the lens, diagonal124 °
-
White balanceManual
Video
-
Masking of personal dataYes
-
Noise reduction technologyDigital noise suppression 3D
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Bitrate32 Kbps - 16 Mbps
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Masking of personal dataYes
-
Number of images per second30 fps
-
Supported graphic resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Gain control typeAuto
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
Representation / realization
-
Day/Night ModeYes
-
TypeIP security camera
-
Supported installationIndoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
-
Type of Ethernet interfaceFast Ethernet
Night vision
-
Night vision distance30 m
-
Night visionYes
-
Type of LEDIR
-
Infrared wavelength850 nm
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonYes
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Change of environment
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Audio
-
Built-in speakersYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Design
-
Material of the case/bodyMetal, Plastic
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorBlack, White
Weight and dimensions
-
Diameter138.3 mm
-
Height126.3 mm
-
Weight430 g
Packaging information
-
Package weight733 g
-
Package depth170 mm
-
Package depth170 mm
-
Package height150 mm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2346G1-I/SL specifications from brand Hikvision
Objective system
The product goal system Hikvision DS-2CD2346G1-I/SL has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2CD2346G1-I/SL is 1. This number determines the quality and versatility of the lens. Is the Hikvision DS-2CD2346G1-I/SL product fixed focus? No. This product is designed to provide optimal usage flexibility. The maximum number of openings for the product Hikvision DS-2CD2346G1-I/SL is 1.6. This feature allows for optimal use and increased flexibility.
Generalities
The brand of the product Hikvision DS-2CD2346G1-I/SL is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2346G1-I/SL is 0842571126228. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2346G1-I/SL is DS-2CD2346G1-I/SL | DS-2CD2346G1-I/SL(2.8MM). This model ensures optimal performance and an enhanced user experience.
Power
The type of power source for the product Hikvision DS-2CD2346G1-I/SL is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CD2346G1-I/SL has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD2346G1-I/SL is 6 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2346G1-I/SL has a DC output in amperes of 0.5 A. This specification ensures a stable power supply suitable for your needs. The energy consumption of the product Hikvision DS-2CD2346G1-I/SL is 7.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Image sensor
The sensor type of the product Hikvision DS-2CD2346G1-I/SL is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2CD2346G1-I/SL have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD2346G1-I/SL is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2346G1-I/SL is 1. This number of sensors allows for precise and efficient image detection.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2346G1-I/SL is 1. This product is equipped with a camera that allows capturing high-quality images.
Representation / realization
Does the product Hikvision DS-2CD2346G1-I/SL have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2CD2346G1-I/SL features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2CD2346G1-I/SL supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hikvision DS-2CD2346G1-I/SL is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD2346G1-I/SL have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2346G1-I/SL have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort.
Camera
The minimum illumination of the product Hikvision DS-2CD2346G1-I/SL is 0 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2CD2346G1-I/SL have a camera pan command? No. This feature is not available on this model. The shutter speed of the camera of the product Hikvision DS-2CD2346G1-I/SL is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt command of the Hikvision DS-2CD2346G1-I/SL camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Hikvision DS-2CD2346G1-I/SL is 360 °. This angle allows for optimal usage flexibility. The panoramic view of the product Hikvision DS-2CD2346G1-I/SL is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The vertical field of view of the product Hikvision DS-2CD2346G1-I/SL is 58 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2346G1-I/SL is 124 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hikvision DS-2CD2346G1-I/SL is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The field of view of the Hikvision DS-2CD2346G1-I/SL lens is 104 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Hikvision DS-2CD2346G1-I/SL consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Video
Does the product Hikvision DS-2CD2346G1-I/SL have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The total megapixels of the product Hikvision DS-2CD2346G1-I/SL is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD2346G1-I/SL is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD2346G1-I/SL features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The bit rate of the product Hikvision DS-2CD2346G1-I/SL is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The product Hikvision DS-2CD2346G1-I/SL has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD2346G1-I/SL have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2CD2346G1-I/SL is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2CD2346G1-I/SL are 320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2CD2346G1-I/SL have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The image quality setting of the product Hikvision DS-2CD2346G1-I/SL contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product Hikvision DS-2CD2346G1-I/SL is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2CD2346G1-I/SL have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD2346G1-I/SL have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2346G1-I/SL have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Night vision
The infrared wavelength of the product Hikvision DS-2CD2346G1-I/SL is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CD2346G1-I/SL is 30 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD2346G1-I/SL have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD2346G1-I/SL is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Management features
The Hikvision DS-2CD2346G1-I/SL system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2CD2346G1-I/SL product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD2346G1-I/SL have a Reset Button? Oui. This button allows you to easily reset the product settings.
Network
Does the product Hikvision DS-2CD2346G1-I/SL have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2CD2346G1-I/SL are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Hikvision DS-2CD2346G1-I/SL contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2346G1-I/SL have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2CD2346G1-I/SL are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2CD2346G1-I/SL have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Hikvision DS-2CD2346G1-I/SL is Fast Ethernet. This type of interface allows for fast and efficient network connections. The number of users of the product Hikvision DS-2CD2346G1-I/SL is 32 utilisateur(s). This product is ideal for several people.
Environmental conditions
The product Hikvision DS-2CD2346G1-I/SL has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2346G1-I/SL is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Security
The intelligent video surveillance system of the product Hikvision DS-2CD2346G1-I/SL has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the Hikvision DS-2CD2346G1-I/SL have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2346G1-I/SL has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2346G1-I/SL have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD2346G1-I/SL have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the product Hikvision DS-2CD2346G1-I/SL have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD2346G1-I/SL have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD2346G1-I/SL product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Storage support
Does the Hikvision DS-2CD2346G1-I/SL have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2CD2346G1-I/SL is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2CD2346G1-I/SL has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2346G1-I/SL have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2346G1-I/SL is 1. These ports provide a stable and fast network connection for your devices.
Audio
Does the product Hikvision DS-2CD2346G1-I/SL have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Design
The material of the product case Hikvision DS-2CD2346G1-I/SL is Metal, Plastic. This material ensures both durability and elegance. The format of the product Hikvision DS-2CD2346G1-I/SL is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD2346G1-I/SL is Black, White. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CD2346G1-I/SL is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Weight and dimensions
The diameter of the product Hikvision DS-2CD2346G1-I/SL is 138.3 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2346G1-I/SL is 430 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CD2346G1-I/SL is 126.3 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Packaging information
The weight of the Hikvision DS-2CD2346G1-I/SL package is 733 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Hikvision DS-2CD2346G1-I/SL is 150 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product Hikvision DS-2CD2346G1-I/SL is 170 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Hikvision DS-2CD2346G1-I/SL is 170 mm. This dimension is essential to ensure proper packaging and secure transport.
