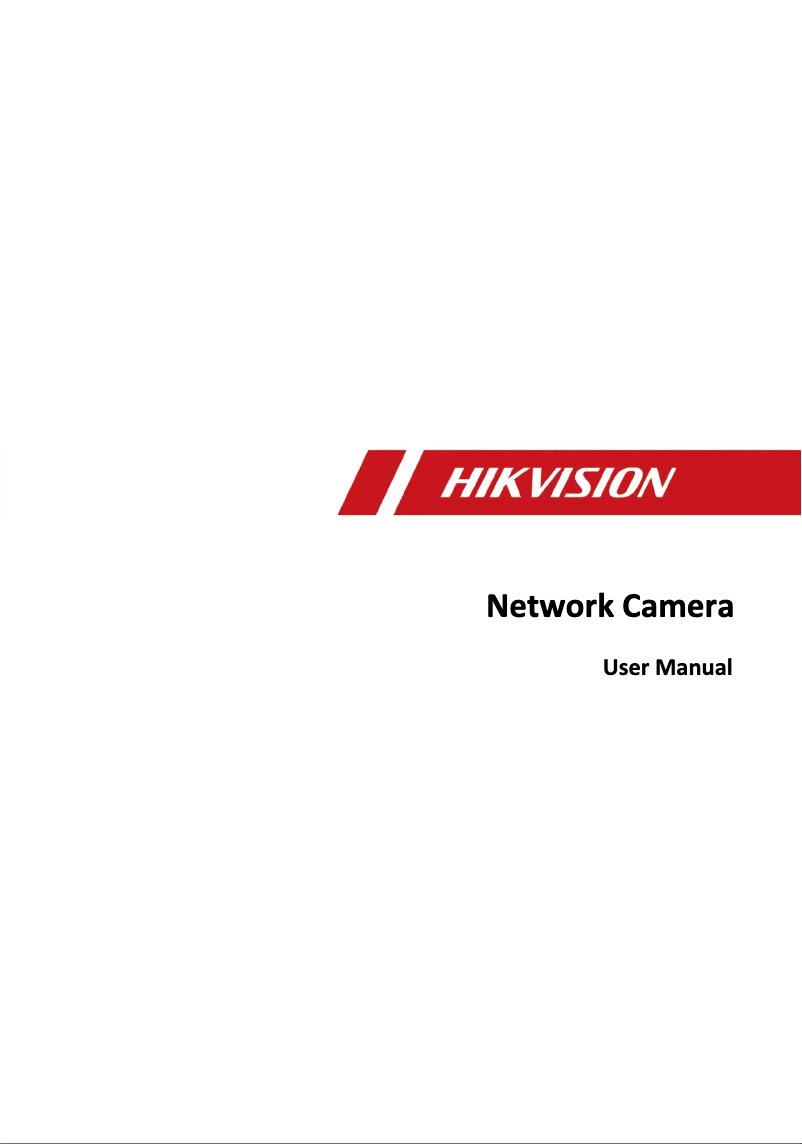

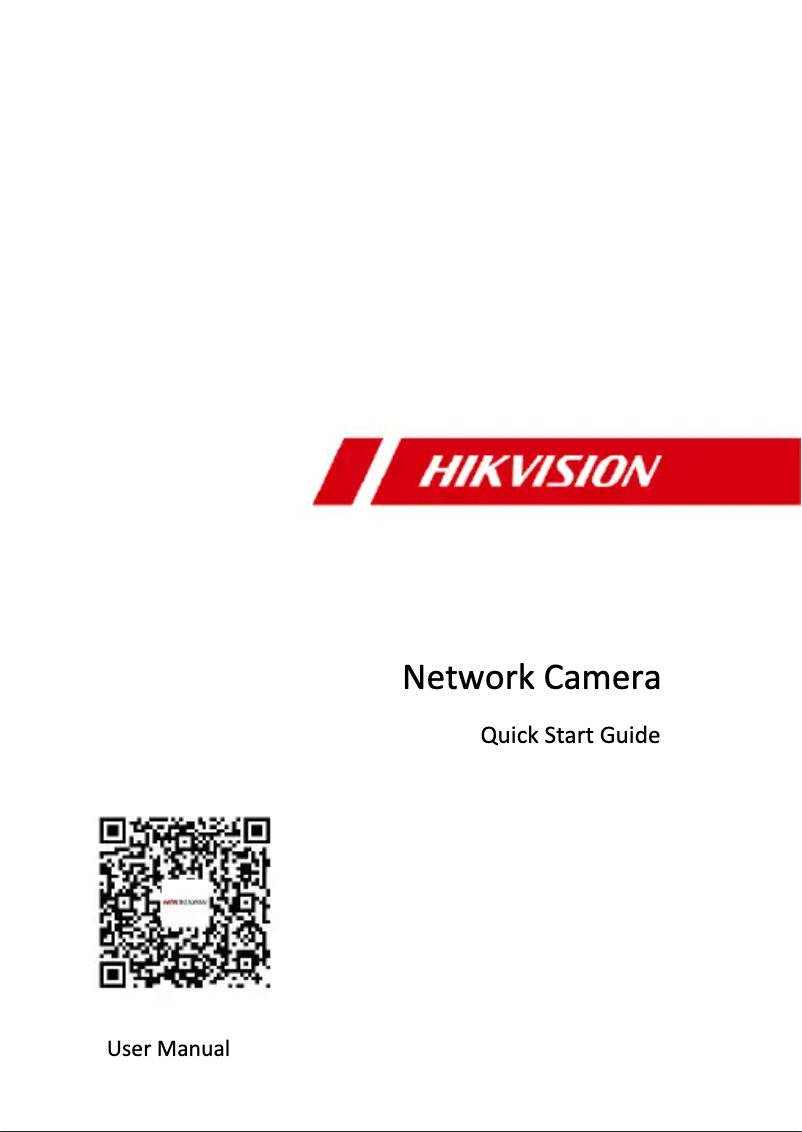

Manuals of product DS-2CD2346G2-IU
Technical Specifications DS-2CD2346G2-IU
General Information
-
ModelDS-2CD2346G2-IU
-
Brand
-
Category
-
Type
-
SKU1302098
-
MPN1302098
Representation / realization
-
TypeIP security camera
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Supported installationOutdoor
-
Connectivity technologyWired
-
CertificationFCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)
-
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Progressive scanYes
Objective system
-
Number of lenses1
-
Fixed Focal Length2.8 mm
-
Maximum number of openings1.4
Camera
-
Minimum illumination0.003 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 360 °
-
Inclination angle0 - 75 °
-
Rotation angle360 °
-
Field of view of the lens, horizontal103 °
-
Angle of view of the lens, vertical55 °
-
Angle of view of the lens, diagonal123 °
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Video
-
Total megapixels4 MP
-
Maximum resolution2592 x 1944 pixels
-
Number of images per second30 fps
-
Supported graphic resolutions320 x 240, 360 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
-
Visual compression formatsH.264, H.265, M-JPEG
-
Masking of personal dataYes
-
Bitrate32Kbps - 8Mbps
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise reduction
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Masking of personal dataYes
Packaging contents
-
Number of cameras1
Audio
-
Sampling frequency48 kHz
-
Voice codecsG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
-
Built-in microphoneYes
Network
-
Supported network protocolsTCP/IP
-
Ethernet/LANICMP
-
Network standardsHTTP
-
Ethernet/LANHTTPS
-
BluetoothFTP
-
BluetoothDHCP
-
Number of usersDNS
-
Type of Ethernet interfaceDDNS
-
RTP
-
RTSP
-
NTP
-
UPnP
-
SMTP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
SSL/TLS
-
Yes
-
IEEE 802.1x
-
IEEE 802.3af
-
Yes
-
No
-
No
-
32 user(s)
-
Fast Ethernet
Security
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes0.48 A
-
Consumption (max)5.8 W
-
Energy consumption (Power over Ethernet (PoE))6.8 W
Design
-
Material of the case/bodyMetal
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66
Weight and dimensions
-
Diameter138.3 mm
-
Height126.3 mm
-
Weight770 g
Packaging information
-
Package weight1073 g
-
Package depth170 mm
-
Package depth170 mm
-
Package height150 mm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2346G2-IU specifications from brand Hikvision
Objective system
The product goal system Hikvision DS-2CD2346G2-IU has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2CD2346G2-IU is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2346G2-IU is 1.4. This feature allows for optimal use and increased flexibility.
Image sensor
The sensor type of the product Hikvision DS-2CD2346G2-IU is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD2346G2-IU is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2346G2-IU is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision DS-2CD2346G2-IU have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Generalities
The brand of the product Hikvision DS-2CD2346G2-IU is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2346G2-IU is 6941264039365. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2346G2-IU is DS-2CD2346G2-IU | DS-2CD2346G2-IU(2.8MM). This model ensures optimal performance and an enhanced user experience.
Representation / realization
The type of product Hikvision DS-2CD2346G2-IU is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2346G2-IU supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2346G2-IU have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2346G2-IU have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2CD2346G2-IU features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product Hikvision DS-2CD2346G2-IU contains FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN\n61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC\n(ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)\nUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN\n60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1). This certification guarantees compliance with the required safety and performance standards.
Night vision
Does the product Hikvision DS-2CD2346G2-IU have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD2346G2-IU is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CD2346G2-IU is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision DS-2CD2346G2-IU is 850 nm. This feature allows for optimal use in various technological applications.
Camera
The shutter speed of the camera of the product Hikvision DS-2CD2346G2-IU is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The minimum illumination of the product Hikvision DS-2CD2346G2-IU is 0.003 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2CD2346G2-IU have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD2346G2-IU camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The panoramic view of the product Hikvision DS-2CD2346G2-IU is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CD2346G2-IU is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD2346G2-IU is 360 °. This angle allows for optimal usage flexibility. The field of view of the Hikvision DS-2CD2346G2-IU lens is 103 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2346G2-IU is 55 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2346G2-IU is 123 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Storage support
The maximum size of the memory card for the product Hikvision DS-2CD2346G2-IU is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2CD2346G2-IU has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2346G2-IU have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2CD2346G2-IU have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Video
The total megapixels of the product Hikvision DS-2CD2346G2-IU is 4 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2CD2346G2-IU is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2CD2346G2-IU are 320 x 240,360 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2304 x 1296,2592 x 1944,2688 x 1520. These resolutions provide optimal display quality for your content. The maximum resolution of the product Hikvision DS-2CD2346G2-IU is 2592 x 1944 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD2346G2-IU has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD2346G2-IU have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The bit rate of the product Hikvision DS-2CD2346G2-IU is 32Kbps - 8Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The binary bitrate control of the product Hikvision DS-2CD2346G2-IU contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Hikvision DS-2CD2346G2-IU have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD2346G2-IU have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2346G2-IU have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2346G2-IU have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD2346G2-IU features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The image quality setting of the product Hikvision DS-2CD2346G2-IU contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2346G2-IU have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2346G2-IU is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The sampling frequency of the product Hikvision DS-2CD2346G2-IU is 48 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the Hikvision DS-2CD2346G2-IU product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. Does the product Hikvision DS-2CD2346G2-IU have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Network
Does the product Hikvision DS-2CD2346G2-IU have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD2346G2-IU are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2346G2-IU have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The network standards of the product Hikvision DS-2CD2346G2-IU are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The Wifi of the product Hikvision DS-2CD2346G2-IU contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2346G2-IU have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2CD2346G2-IU is 32 utilisateur(s). This product is ideal for several people. The Ethernet interface type of the product Hikvision DS-2CD2346G2-IU is Fast Ethernet. This type of interface allows for fast and efficient network connections.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2346G2-IU is 1. These ports provide a stable and fast network connection for your devices.
Management features
The Hikvision DS-2CD2346G2-IU product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD2346G2-IU have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Hikvision DS-2CD2346G2-IU system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2346G2-IU have a Reset Button? Oui. This button allows you to easily reset the product settings.
Security
Does the product Hikvision DS-2CD2346G2-IU have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD2346G2-IU have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2CD2346G2-IU product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2346G2-IU have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD2346G2-IU have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2346G2-IU has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2346G2-IU have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD2346G2-IU is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Hikvision DS-2CD2346G2-IU is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Hikvision DS-2CD2346G2-IU is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Hikvision DS-2CD2346G2-IU has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Design
The format of the product Hikvision DS-2CD2346G2-IU is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision DS-2CD2346G2-IU is Métal. This material ensures both durability and elegance. The color of the product Hikvision DS-2CD2346G2-IU is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CD2346G2-IU is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2CD2346G2-IU contains IP66. This code indicates the level of protection against solid objects and moisture.
Packaging information
The weight of the Hikvision DS-2CD2346G2-IU package is 1073 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD2346G2-IU is 170 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD2346G2-IU is 170 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2346G2-IU is 150 mm. This dimension is essential to ensure optimal transport and storage.
Weight and dimensions
The weight of the product Hikvision DS-2CD2346G2-IU is 770 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CD2346G2-IU is 126.3 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CD2346G2-IU is 138.3 mm. This diameter allows for optimal use and fits perfectly with your needs.
Power
The product Hikvision DS-2CD2346G2-IU has a DC output in amperes of 0.48 A. This specification ensures a stable power supply suitable for your needs. The product Hikvision DS-2CD2346G2-IU has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CD2346G2-IU is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD2346G2-IU is 5.8 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2CD2346G2-IU is 6.8 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
