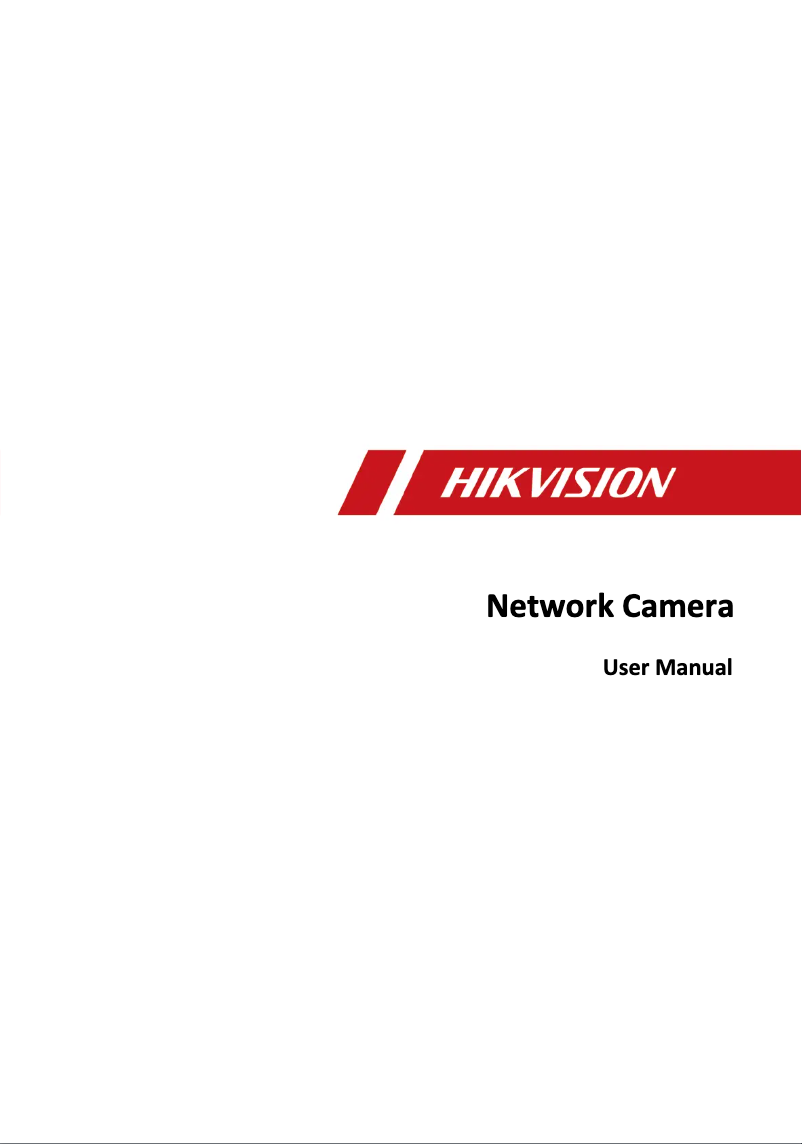

Manual of product DS-2CD2366G2-ISU
Technical Specifications DS-2CD2366G2-ISU
General Information
-
ModelDS-2CD2366G2-ISU
-
Brand
-
Category
-
Type
-
SKU1448064
-
MPN1448064
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Number of languages33
-
Languages taken into accountMulti
-
CertificationFCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)
-
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
-
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) No 1907/2006)
Network
-
Number of users32 user(s)
-
Ethernet/LANYes
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.3af
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Security
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
Security-supported algorithmTLS
-
MirrorYes
-
Functions of the IVS system (intelligent video surveillance)Change of environment
-
MirrorYes
-
MirrorYes
-
MirrorYes
Design
-
FormatTurret
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP67
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
-
Rotation angle360 °
-
Field of view of the lens, horizontal105.1 °
-
Angle of view of the lens, vertical53.4 °
-
Angle of view of the lens, diagonal128.6 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 360 °
-
Camera shutter speed1/3 - 1/100000 s
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Power
-
Power supply typeDC, PoE
-
Consumption (max)8.4 W
-
Energy consumption (Power over Ethernet (PoE))9.7 W
-
Output CC in volts12
-
Output CC in amperes0.7 A
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.4 "
-
Progressive scanYes
Objective system
-
Number of lenses1
-
Maximum number of openings1.6
-
Fixed Focal Length2.8 mm
-
Detection distance (wide)78.6 m
-
Observation distance (wide)31.2 m
-
Recognition distance (wide)15.7 m
-
Identification distance (wide)7.9 m
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Weight and dimensions
-
Height112.1 mm
-
Diameter138.3 mm
-
Weight820 g
Packaging information
-
Package depth170 mm
-
Package depth170 mm
-
Package height150 mm
-
Package weight1150 g
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Video
-
Maximum resolution3200 x 1800 pixels
-
Total megapixels6 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
-
Number of images per second30 ips
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Noise reduction technology3D digital noise reduction
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Coding of the region of interestYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate32 Kbps - 16 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Packaging contents
-
Number of cameras1
Audio
-
Built-in microphoneYes
-
Supported audio formatsMP3
-
Sampling frequency48 kHz
-
Built-in microphoneYes
-
Voice codecsAAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2366G2-ISU specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD2366G2-ISU is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2366G2-ISU is 6931847120900. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2366G2-ISU is DS-2CD2366G2-ISU | DS-2CD2366G2-ISU/SL(2.8MM)(C). This model ensures optimal performance and an enhanced user experience.
Storage support
The maximum size of the memory card for the product Hikvision DS-2CD2366G2-ISU is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2CD2366G2-ISU has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2366G2-ISU have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD2366G2-ISU have a built-in hard drive? No. This feature means that the product does not have internal storage.
Representation / realization
The design of the product Hikvision DS-2CD2366G2-ISU supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2366G2-ISU have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2CD2366G2-ISU features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2CD2366G2-ISU is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD2366G2-ISU have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2366G2-ISU have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2CD2366G2-ISU have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The number of languages of the product Hikvision DS-2CD2366G2-ISU is 33. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2CD2366G2-ISU are Multi. This product thus caters to a wide international audience. The certification of the product Hikvision DS-2CD2366G2-ISU contains FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)\nUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )\nCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) No 1907/2006). This certification guarantees compliance with the required safety and performance standards.
Network
The number of users of the product Hikvision DS-2CD2366G2-ISU is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD2366G2-ISU have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Wifi of the product Hikvision DS-2CD2366G2-ISU contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2CD2366G2-ISU have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Hikvision DS-2CD2366G2-ISU have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2CD2366G2-ISU is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2CD2366G2-ISU are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD2366G2-ISU are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP. These protocols ensure efficient and reliable communication for your networking needs.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2366G2-ISU is 1. These ports provide a stable and fast network connection for your devices.
Design
The mounting type of the product Hikvision DS-2CD2366G2-ISU is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2366G2-ISU is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD2366G2-ISU is Blanc. This shade gives it a modern and elegant look. The material of the product case Hikvision DS-2CD2366G2-ISU is Métal. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD2366G2-ISU contains IP67. This code indicates the level of protection against solid objects and moisture.
Security
Does the Hikvision DS-2CD2366G2-ISU product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2366G2-ISU have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The supported security algorithm of the product Hikvision DS-2CD2366G2-ISU contains TLS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2CD2366G2-ISU have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD2366G2-ISU have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The intelligent video surveillance system of the product Hikvision DS-2CD2366G2-ISU has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the Hikvision DS-2CD2366G2-ISU have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2366G2-ISU has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2366G2-ISU have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Camera
The tilt command of the Hikvision DS-2CD2366G2-ISU camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Hikvision DS-2CD2366G2-ISU have a camera pan command? No. This feature is not available on this model. The rotation angle of the product Hikvision DS-2CD2366G2-ISU is 360 °. This angle allows for optimal usage flexibility. The minimum illumination of the product Hikvision DS-2CD2366G2-ISU is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2CD2366G2-ISU lens is 105.1 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2366G2-ISU is 53.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2366G2-ISU is 128.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2CD2366G2-ISU is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD2366G2-ISU is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt angle of the product Hikvision DS-2CD2366G2-ISU is 0 - 75 °. This angle allows for adjusting the position for optimal comfort.
Management features
The Hikvision DS-2CD2366G2-ISU system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2CD2366G2-ISU product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2CD2366G2-ISU have a Reset Button? Oui. This button allows you to easily reset the product settings.
Power
The type of power source for the product Hikvision DS-2CD2366G2-ISU is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2CD2366G2-ISU is 9.7 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2CD2366G2-ISU is 8.4 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2366G2-ISU has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product Hikvision DS-2CD2366G2-ISU has a DC output in amperes of 0.7 A. This specification ensures a stable power supply suitable for your needs.
Image sensor
The number of sensors of the product Hikvision DS-2CD2366G2-ISU is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD2366G2-ISU is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2CD2366G2-ISU have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD2366G2-ISU is 1/2.4 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Weight and dimensions
The height of the product Hikvision DS-2CD2366G2-ISU is 112.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2CD2366G2-ISU is 820 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2CD2366G2-ISU is 138.3 mm. This diameter allows for optimal use and fits perfectly with your needs.
Objective system
The maximum number of openings for the product Hikvision DS-2CD2366G2-ISU is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2CD2366G2-ISU is 1. This number determines the quality and versatility of the lens. The detection distance (wide) of the product Hikvision DS-2CD2366G2-ISU is 78.6 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The product goal system Hikvision DS-2CD2366G2-ISU has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The observation distance (wide) of the product Hikvision DS-2CD2366G2-ISU is 31.2 m. This feature allows for an extended and clear view over long distances. The recognition distance (wide) of the product Hikvision DS-2CD2366G2-ISU is 15.7 m. This feature allows for effective identification over long distances. The identification distance (wide) of the product Hikvision DS-2CD2366G2-ISU is 7.9 m. This specification ensures optimal performance for applications requiring long-range recognition.
Environmental conditions
The relative humidity (storage) rate of the product Hikvision DS-2CD2366G2-ISU is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Hikvision DS-2CD2366G2-ISU is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Hikvision DS-2CD2366G2-ISU has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2366G2-ISU is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging information
The depth of the product package Hikvision DS-2CD2366G2-ISU is 170 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD2366G2-ISU is 170 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2366G2-ISU is 150 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD2366G2-ISU package is 1150 g. This weight ensures optimal protection during transport and delivery.
Night vision
The night vision distance of the product Hikvision DS-2CD2366G2-ISU is 30 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD2366G2-ISU have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD2366G2-ISU is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The infrared wavelength of the product Hikvision DS-2CD2366G2-ISU is 850 nm. This feature allows for optimal use in various technological applications.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2366G2-ISU is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The supported audio formats of the product Hikvision DS-2CD2366G2-ISU are MP3. These formats ensure optimal compatibility for an enriching listening experience. Does the product Hikvision DS-2CD2366G2-ISU have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The sampling frequency of the product Hikvision DS-2CD2366G2-ISU is 48 kHz. This feature ensures optimal sound quality for your recordings. Does the product Hikvision DS-2CD2366G2-ISU have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The voice codec of the Hikvision DS-2CD2366G2-ISU product contains AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Video
The maximum resolution of the product Hikvision DS-2CD2366G2-ISU is 3200 x 1800 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD2366G2-ISU are 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520,3200 x 1800. These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2366G2-ISU has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2CD2366G2-ISU is 6 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2CD2366G2-ISU is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2366G2-ISU have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD2366G2-ISU have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The image quality setting of the product Hikvision DS-2CD2366G2-ISU contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2366G2-ISU have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The binary bitrate control of the product Hikvision DS-2CD2366G2-ISU contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The product Hikvision DS-2CD2366G2-ISU features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The bit rate of the product Hikvision DS-2CD2366G2-ISU is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2366G2-ISU have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2366G2-ISU have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2366G2-ISU have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
