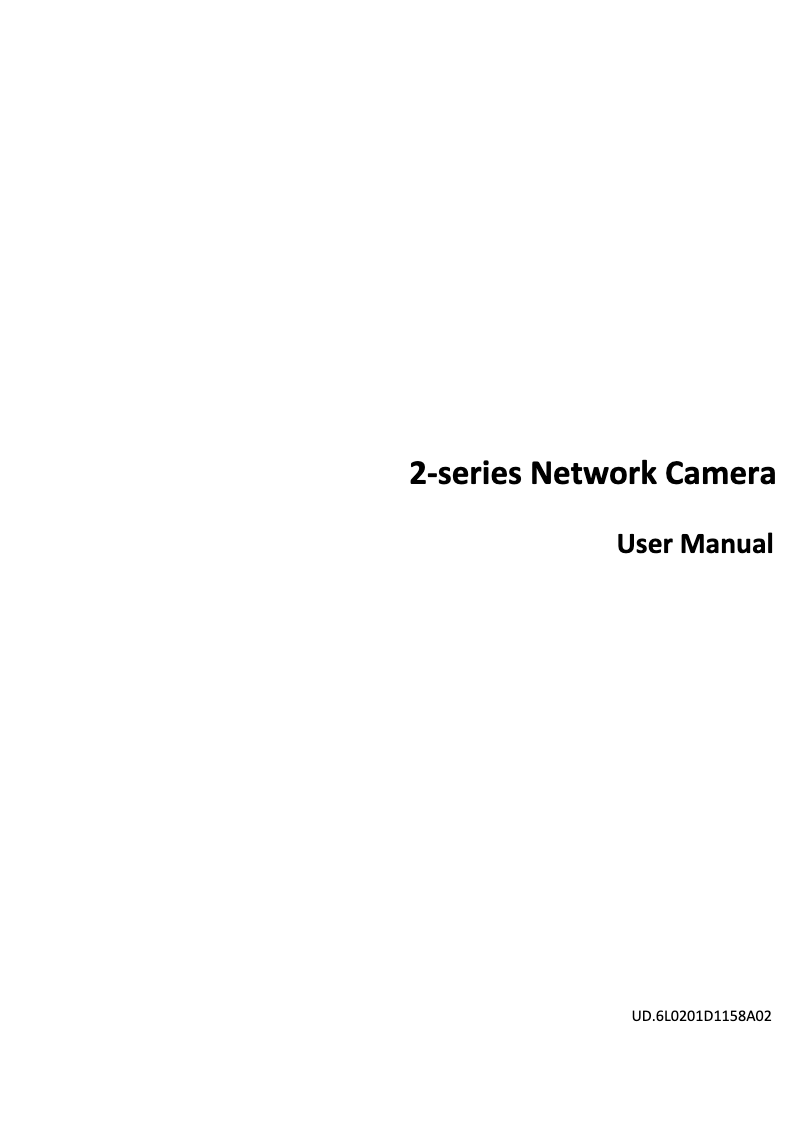

Manual of product DS-2CD2512F-I
Technical Specifications DS-2CD2512F-I
General Information
-
ModelDS-2CD2512F-I
-
Brand
-
Category
-
Type
-
SKU1897014
-
MPN1897014
Representation / realization
-
PTZ Control-
-
TypeIP security camera
-
Supported installationOutdoor
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Connectivity technologyWired
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
Video
-
Maximum resolution1280 x 960 pixels
-
Supported video formatH.264, M-JPEG
-
Supported graphic resolutions704 x 576, 1280 x 720 (HD 720), 640 x 480 (VGA)
-
Supported video modes720p
-
Number of images per second30 fps
-
Total megapixels1.3 MP
Camera
-
Minimum illumination0.028 lux
-
Field of view (FOV)73.1 °
-
Inclination angle0 - 75 °
-
Panoramic-30 - 30 °
-
Rotation angle360 °
-
Camera shutter speed1/30 - 1/100000 s
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Optical sensor size1/3
Objective system
-
Zoom capacity-
-
Optical zoom- x
-
Tuning2.0
-
Fixed Focal Length6 mm
Security
-
Motion detectorYes
-
Password protectionUser
-
Motion detectorYes
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size64 GB
Night vision
-
Night visionYes
-
Night vision distance10 m
-
Type of LEDIR
Network
-
Ethernet/LANYes
-
Wiring technology10/100Base-T(X)
-
WifiNo
-
Supported network protocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Audio
-
Built-in microphone-
Weight and dimensions
-
Width99.9 mm
-
Depth97.5 mm
-
Height56.5 mm
-
Weight350 g
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Output CC in volts+12V
-
Consumption (max)5 W
-
Power supply typePoE
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2512F-I specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD2512F-I is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2512F-I is DS-2CD2512F-I | DS-2CD2512F-I(6MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD2512F-I is 0816783016431, 0816783016448, 0816783016639, 4005922406745, 6954273605407, 6954273605414, 8167830164318, 8167830164486, 8167830166398. This code allows for the unique identification of the product in the distribution system.
Design
The format of the product Hikvision DS-2CD2512F-I is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD2512F-I is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD2512F-I is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2CD2512F-I contains IP66. This code indicates the level of protection against solid objects and moisture.
Video
The maximum resolution of the product Hikvision DS-2CD2512F-I is 1280 x 960 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD2512F-I are 704 x 576,1280 x 720 (HD 720),640 x 480 (VGA). These resolutions provide optimal display quality for your content. The supported video format of the product Hikvision DS-2CD2512F-I contains H.264, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The supported video mode of the product Hikvision DS-2CD2512F-I is 720p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Hikvision DS-2CD2512F-I is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2CD2512F-I is 1.3 MP. This total ensures exceptional image quality for your photos.
Representation / realization
The type of product Hikvision DS-2CD2512F-I is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2512F-I supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hikvision DS-2CD2512F-I is -. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2CD2512F-I have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD2512F-I have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2CD2512F-I features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Camera
The field of view (FOV) of the product Hikvision DS-2CD2512F-I is 73.1 °. This wide field of view allows for capturing images with an immersive and detailed perspective. The minimum illumination of the product Hikvision DS-2CD2512F-I is 0.028 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hikvision DS-2CD2512F-I is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD2512F-I is -30 - 30 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Hikvision DS-2CD2512F-I is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CD2512F-I is 1/30 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Image sensor
The optical sensor size of the product Hikvision DS-2CD2512F-I is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2CD2512F-I have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2CD2512F-I is CMOS. This type of sensor ensures optimal image quality for your needs.
Objective system
The adjustment of the Hikvision DS-2CD2512F-I is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The optical zoom of the product Hikvision DS-2CD2512F-I is - x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Hikvision DS-2CD2512F-I have zoom capacity? -. This feature allows you to capture precise details, even from a distance. The product goal system Hikvision DS-2CD2512F-I has a fixed focal length of 6 mm. This feature allows for images with great sharpness and exceptional quality.
Storage support
Does the Hikvision DS-2CD2512F-I have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2512F-I has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2512F-I have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2CD2512F-I is 64 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Night vision
The type of LED of the product Hikvision DS-2CD2512F-I is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CD2512F-I is 10 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD2512F-I have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Security
Does the product Hikvision DS-2CD2512F-I have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the product Hikvision DS-2CD2512F-I have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2CD2512F-I have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2512F-I is 1. These ports provide a stable and fast network connection for your devices.
Network
The Wifi of the product Hikvision DS-2CD2512F-I contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The wiring technology of the product Hikvision DS-2CD2512F-I contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the product Hikvision DS-2CD2512F-I have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2CD2512F-I are TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS. These protocols ensure efficient and reliable communication for your networking needs.
Audio
Does the product Hikvision DS-2CD2512F-I have a built-in Microphone? -. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Weight and dimensions
The depth of the product Hikvision DS-2CD2512F-I is 97.5 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2CD2512F-I is 56.5 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Hikvision DS-2CD2512F-I is 99.9 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2CD2512F-I is 350 g. This weight is ideal for ensuring optimal use and easy handling.
Power
Does the Hikvision DS-2CD2512F-I have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The maximum consumption of the product Hikvision DS-2CD2512F-I is 5 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2512F-I has a DC output in volts of +12V. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CD2512F-I is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD2512F-I is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD2512F-I has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
