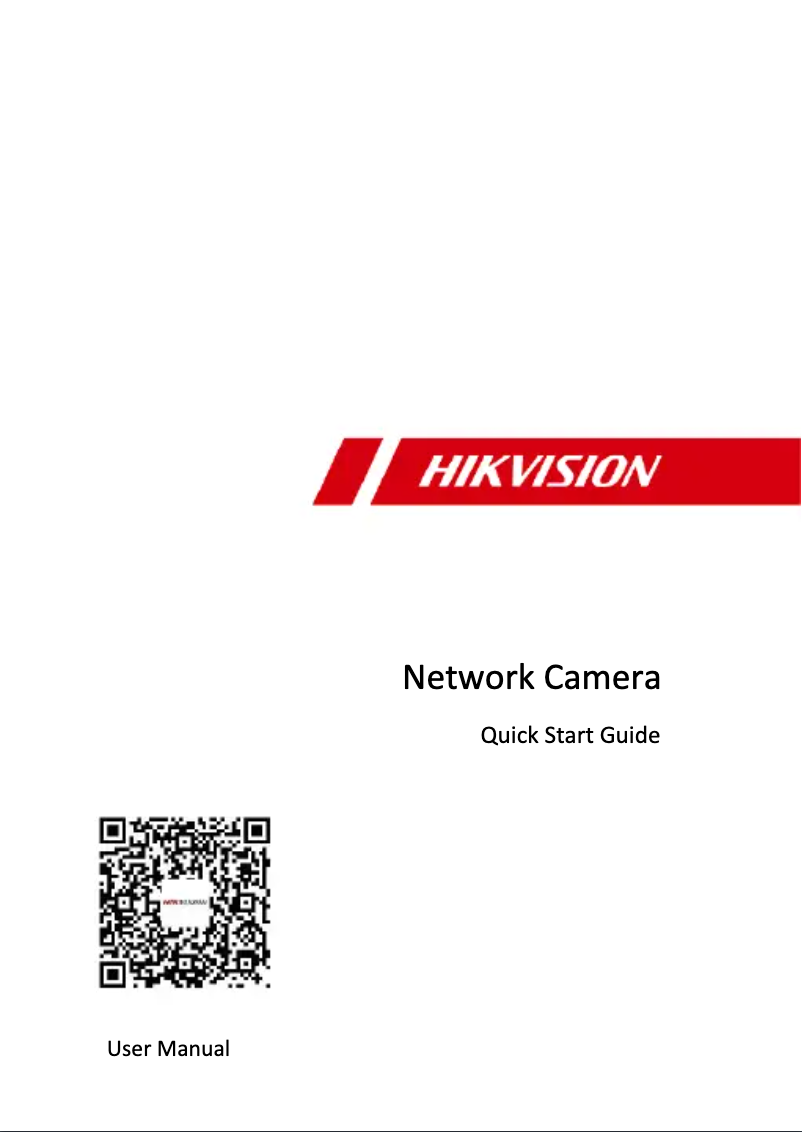

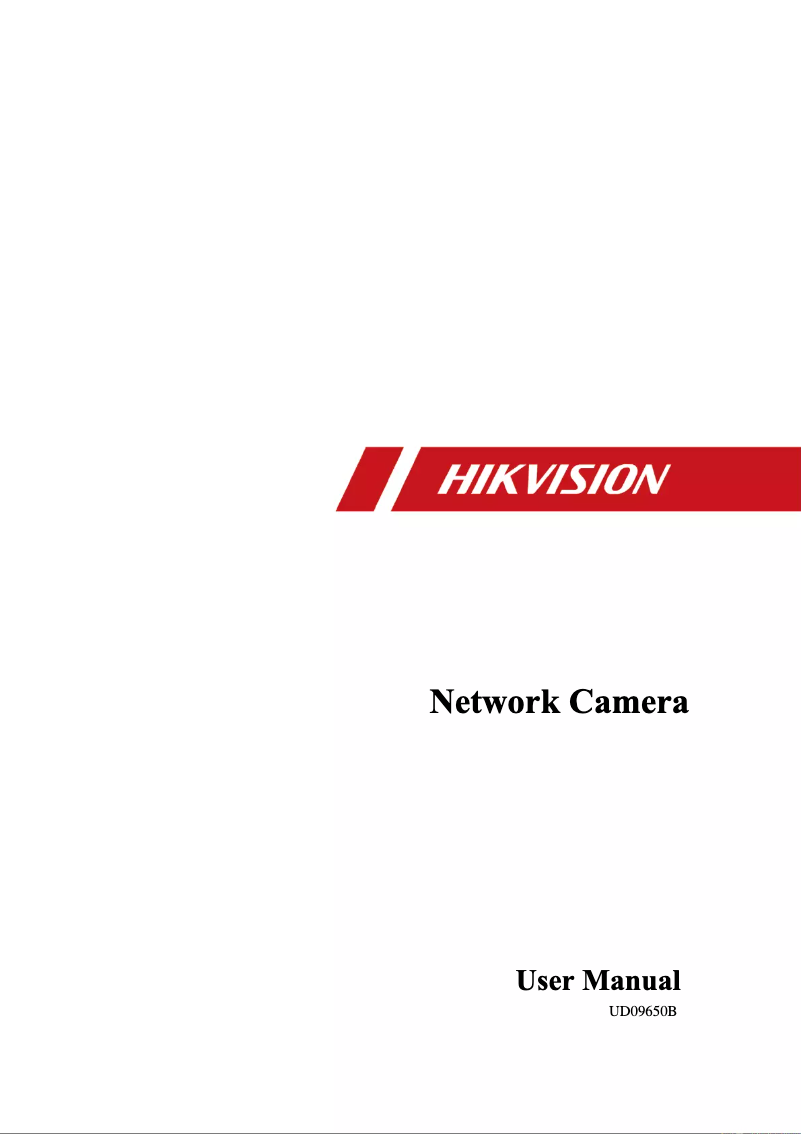

Manuals of product DS-2CD2543G0-IWS
Technical Specifications DS-2CD2543G0-IWS
General Information
-
ModelDS-2CD2543G0-IWS
-
Brand
-
Category
-
Type
-
SKU1096597
-
MPN1096597
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Connectivity technologyWired & wireless
-
Infrared cutoff filterYes
Network
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
Wiring technology10/100Base-T(X)
-
Wifi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Frequency band2.412 - 2.4835 GHz
-
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
-
Maximum data transfer rate via the wireless local area network150 Mbit/s
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Connectivity
-
Microphone jack inputYes
-
InterfaceRJ-45/WLAN
-
Number of Ethernet LAN ports (RJ-45)1
Design
-
Mounting type-
-
FormatDome
-
Product colorBlack, White
-
Material of the case/bodyMetal, Plastic
-
International Protection Code (IP)IP66
-
Code IKIK08
-
Weather-resistantYes
Audio
-
Audio input channels2 channels
-
Audio output channels1 channel
-
Built-in microphoneYes
-
Supported audio formatsG.711, G.722.1, G.726, MP2L2, PCM
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Number of images per second30 fps
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Analog signal format systemNTSC, PAL
-
Masking of personal dataYes
-
Bitrate32 Kbps to 16 Mbps
Weight and dimensions
-
Height56.4 mm
-
Diameter110 mm
-
Weight400 g
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Consumption (max)8.5 W
-
Output CC in amperes0.7 A
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Energy consumption (Power over Ethernet (PoE))10 W
Camera
-
Camera pan command-
-
Camera tilt control-
-
Minimum illumination0 lux
-
Inclination angle0 - 75 °
-
Panoramic-30 - 30 °
-
Rotation angle360 °
-
Camera shutter speed1/3 - 1/100000 s
-
Field of view of the lens, horizontal98 °
-
Angle of view of the lens, vertical55 °
-
Angle of view of the lens, diagonal114 °
Management features
-
Reset buttonYes
-
Behavior analysisIntrusion detection, Line crossing detection
-
Reset buttonYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/3 "
-
Progressive scanYes
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Objective system
-
Number of lenses-
-
Maximum number of openings1.6
-
Fixed Focal Length2.8 mm
Packaging contents
-
Number of cameras1
Security
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Integrated hard driveNo
-
Maximum memory card size128 GB
Night vision
-
Night visionYes
-
Night vision distance10 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2543G0-IWS specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD2543G0-IWS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2543G0-IWS is DS-2CD2543G0-IWS | DS-2CD2543G0-IWS(2.8MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD2543G0-IWS is 0842571120424. This code allows for the unique identification of the product in the distribution system.
Connectivity
Does the product Hikvision DS-2CD2543G0-IWS have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The product Hikvision DS-2CD2543G0-IWS has an Interface RJ-45/WLAN. This interface allows for easy and quick connection with various devices. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2543G0-IWS is 1. These ports provide a stable and fast network connection for your devices.
Representation / realization
The type of product Hikvision DS-2CD2543G0-IWS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD2543G0-IWS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2543G0-IWS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Hikvision DS-2CD2543G0-IWS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2543G0-IWS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2CD2543G0-IWS features a Avec fil &sans fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD2543G0-IWS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy.
Audio
The number of audio input channels of the product Hikvision DS-2CD2543G0-IWS is 2 canaux. This specification ensures optimal sound quality and an enriching listening experience. The supported audio formats of the product Hikvision DS-2CD2543G0-IWS are G.711, G.722.1, G.726, MP2L2, PCM. These formats ensure optimal compatibility for an enriching listening experience. The audio output channels of the Hikvision DS-2CD2543G0-IWS are 1 canaux. This specification allows for an immersive and high-quality sound experience. Does the product Hikvision DS-2CD2543G0-IWS have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Network
Does the product Hikvision DS-2CD2543G0-IWS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD2543G0-IWS contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2543G0-IWS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The wiring technology of the product Hikvision DS-2CD2543G0-IWS contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The wifi standard of the product Hikvision DS-2CD2543G0-IWS contains 802.11b, 802.11g, Wi-Fi 4 (802.11n). This wifi standard ensures a fast and reliable connection for all your devices. The network standards of the product Hikvision DS-2CD2543G0-IWS are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The frequency band of the product Hikvision DS-2CD2543G0-IWS is 2.412 - 2.4835 GHz. This feature allows for effective communication within the specified frequency range. The maximum data transfer rate via the wireless local area network of the product Hikvision DS-2CD2543G0-IWS is 150 Mbit/s. This high rate allows for a fast and smooth connection for all your devices. Does the product Hikvision DS-2CD2543G0-IWS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD2543G0-IWS are TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2CD2543G0-IWS is 32 utilisateur(s). This product is ideal for several people.
Design
The mounting type of the product Hikvision DS-2CD2543G0-IWS is -. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD2543G0-IWS is Black, White. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2CD2543G0-IWS is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision DS-2CD2543G0-IWS is Metal, Plastic. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD2543G0-IWS contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2CD2543G0-IWS is IK08. This IK Code allows for easy identification of the specific design of the item. Is the Hikvision DS-2CD2543G0-IWS weather-resistant? Oui. This product is designed to withstand the harshest weather conditions.
Weight and dimensions
The weight of the product Hikvision DS-2CD2543G0-IWS is 400 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2CD2543G0-IWS is 110 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2CD2543G0-IWS is 56.4 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Power
The type of power source for the product Hikvision DS-2CD2543G0-IWS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD2543G0-IWS is 8.5 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2543G0-IWS has a DC output in amperes of 0.7 A. This specification ensures a stable power supply suitable for your needs. The product Hikvision DS-2CD2543G0-IWS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. Does the Hikvision DS-2CD2543G0-IWS have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The energy consumption of the product Hikvision DS-2CD2543G0-IWS is 10 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Video
The total megapixels of the product Hikvision DS-2CD2543G0-IWS is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD2543G0-IWS is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD2543G0-IWS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD2543G0-IWS have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hikvision DS-2CD2543G0-IWS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision DS-2CD2543G0-IWS is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2543G0-IWS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2543G0-IWS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The image quality setting of the product Hikvision DS-2CD2543G0-IWS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2543G0-IWS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The analog signal format system of the product Hikvision DS-2CD2543G0-IWS contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product Hikvision DS-2CD2543G0-IWS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The bit rate of the product Hikvision DS-2CD2543G0-IWS is 32 Kbps to 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience.
Management features
The Hikvision DS-2CD2543G0-IWS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD2543G0-IWS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2543G0-IWS have a Reset Button? Oui. This button allows you to easily reset the product settings.
Camera
The panoramic view of the product Hikvision DS-2CD2543G0-IWS is -30 - 30 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CD2543G0-IWS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The minimum illumination of the product Hikvision DS-2CD2543G0-IWS is 0 lux. This feature ensures optimal performance even in low light conditions. The rotation angle of the product Hikvision DS-2CD2543G0-IWS is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CD2543G0-IWS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. Does the product Hikvision DS-2CD2543G0-IWS have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD2543G0-IWS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The field of view of the Hikvision DS-2CD2543G0-IWS lens is 98 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2543G0-IWS is 55 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2543G0-IWS is 114 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Environmental conditions
The product Hikvision DS-2CD2543G0-IWS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2543G0-IWS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Image sensor
The sensor type of the product Hikvision DS-2CD2543G0-IWS is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2CD2543G0-IWS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD2543G0-IWS is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2543G0-IWS is 1. This number of sensors allows for precise and efficient image detection.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2543G0-IWS is 1. This product is equipped with a camera that allows capturing high-quality images.
Objective system
The product goal system Hikvision DS-2CD2543G0-IWS has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2CD2543G0-IWS is -. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2543G0-IWS is 1.6. This feature allows for optimal use and increased flexibility.
Night vision
Does the product Hikvision DS-2CD2543G0-IWS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CD2543G0-IWS is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CD2543G0-IWS is 10 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD2543G0-IWS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Storage support
The maximum size of the memory card for the product Hikvision DS-2CD2543G0-IWS is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2543G0-IWS have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2543G0-IWS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2543G0-IWS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Security
Does the Hikvision DS-2CD2543G0-IWS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2543G0-IWS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD2543G0-IWS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD2543G0-IWS have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hikvision DS-2CD2543G0-IWS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product Hikvision DS-2CD2543G0-IWS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. The Hikvision DS-2CD2543G0-IWS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2543G0-IWS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content.
