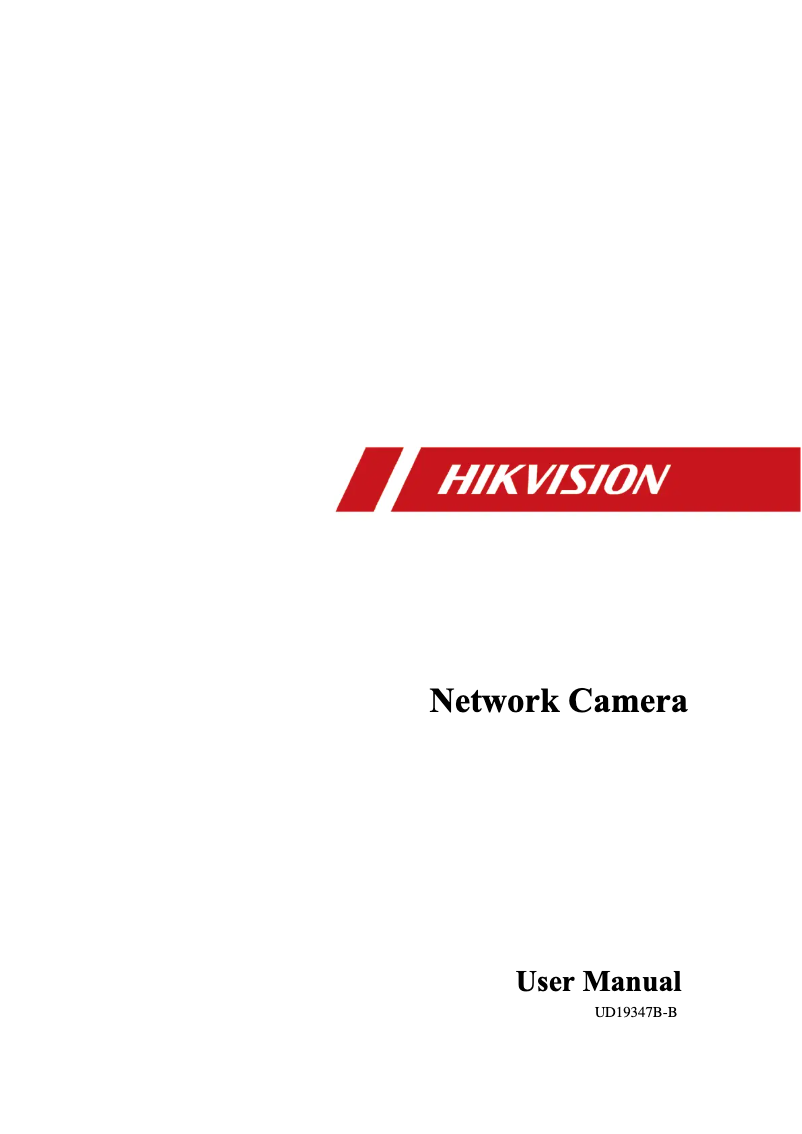

Manuals of product DS-2CD2545FWD-I
Technical Specifications DS-2CD2545FWD-I
General Information
-
ModelDS-2CD2545FWD-I
-
Brand
-
Category
-
Type
-
SKU1704415
-
MPN1704415
Objective system
-
Fixed Focal Length2.8 mm
-
Fixed focusYes
-
Maximum number of openings1.6
-
Number of lenses1
Video
-
Total megapixels4 MP
-
Maximum resolution2688 x 1520 pixels
-
Video broadcastingYes
-
Noise reduction technology3D digital noise suppression
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 16 Mbps
-
Number of images per second30 ips
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Video broadcastingYes
-
Supported graphic resolutions320 x 240, 352 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
-
Gain control typeAuto
-
Video broadcastingYes
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.5 "
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Field of view of the lens, horizontal109 °
-
Angle of view of the lens, vertical60 °
-
Angle of view of the lens, diagonal131 °
-
Inclination angle0 - 75 °
-
Panoramic-30 - 30 °
-
Rotation angle360 °
Representation / realization
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Number of languages32
-
Languages taken into accountMulti
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
-
Integrated hard driveNo
Security
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Pixel counterYes
-
Functions of the IVS system (intelligent video surveillance)Intrusion, Scene change
-
Alert notification typeEmail
-
Pixel counterYes
-
Pixel counterYes
Network
-
Supported network protocolsTCP/IP
-
Ethernet/LANUDP
-
BluetoothICMP
-
Ethernet/LANHTTP
-
BluetoothHTTPS
-
Type of Ethernet interfaceFTP
-
Network standardsDHCP
-
Number of usersDNS
-
User access levelDDNS
-
RTP
-
RTSP
-
RTCP
-
PPPoE
-
NTP
-
UPnP
-
SMTP
-
SNMP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
SSL/TLS
-
Yes
-
No
-
Yes
-
No
-
Fast Ethernet
-
IEEE 802.1x, IEEE 802.3af
-
32 user(s)
-
Administrator, Operator, User
Management features
-
Web BrowserYes
-
Behavior analysisIntrusion detection
-
Web BrowserLine crossing detection
-
Object removal detection
-
Unattended baggage detection
-
Yes
Connectivity
-
Port on the terminal blockYes
-
Number of Ethernet LAN ports (RJ-45)1
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
-
Output CC in amperes0.7 A
-
Consumption (max)8.5 W
-
Energy consumption (Power over Ethernet (PoE))10 W
Design
-
International Protection Code (IP)IP66
-
Code IKIK08
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorBlack
-
Protection functionsDust resistant, Vandal proof, Water resistant
Night vision
-
Night visionYes
-
Night vision distance10 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Weight and dimensions
-
Diameter120 mm
-
Height67.4 mm
-
Weight400 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2545FWD-I specifications from brand Hikvision
Objective system
The maximum number of openings for the product Hikvision DS-2CD2545FWD-I is 1.6. This feature allows for optimal use and increased flexibility. The product goal system Hikvision DS-2CD2545FWD-I has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. Is the Hikvision DS-2CD2545FWD-I product fixed focus? No. This product is designed to provide optimal usage flexibility. The number of lenses in the product Hikvision DS-2CD2545FWD-I is 1. This number determines the quality and versatility of the lens.
Image sensor
Does the product Hikvision DS-2CD2545FWD-I have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2CD2545FWD-I is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2CD2545FWD-I is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2CD2545FWD-I is 1/2.5 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Generalities
The brand of the product Hikvision DS-2CD2545FWD-I is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2545FWD-I is DS-2CD2545FWD-I | DS-2CD2545FWD-I(BLACK)(2.8MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD2545FWD-I is 6954273679347. This code allows for the unique identification of the product in the distribution system.
Camera
The minimum illumination of the product Hikvision DS-2CD2545FWD-I is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD2545FWD-I is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2CD2545FWD-I lens is 109 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2545FWD-I is 60 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2545FWD-I is 131 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hikvision DS-2CD2545FWD-I is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD2545FWD-I is -30 - 30 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Hikvision DS-2CD2545FWD-I is 360 °. This angle allows for optimal usage flexibility.
Storage support
Does the Hikvision DS-2CD2545FWD-I have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD2545FWD-I have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2545FWD-I has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD2545FWD-I is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Video
The total megapixels of the product Hikvision DS-2CD2545FWD-I is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD2545FWD-I is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD2545FWD-I features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2545FWD-I have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD2545FWD-I has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2CD2545FWD-I is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The number of frames per second of the product Hikvision DS-2CD2545FWD-I is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2545FWD-I have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2545FWD-I have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The image quality setting of the product Hikvision DS-2CD2545FWD-I contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2545FWD-I have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2545FWD-I have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The supported graphic resolutions of the product Hikvision DS-2CD2545FWD-I are 320 x 240,352 x 240,352 x 288,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2304 x 1296,2688 x 1520. These resolutions provide optimal display quality for your content. The gain control type of the product Hikvision DS-2CD2545FWD-I is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2CD2545FWD-I have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Representation / realization
Does the product Hikvision DS-2CD2545FWD-I have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD2545FWD-I have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2545FWD-I have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hikvision DS-2CD2545FWD-I is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2545FWD-I supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD2545FWD-I features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The number of languages of the product Hikvision DS-2CD2545FWD-I is 32. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2CD2545FWD-I are Multi. This product thus caters to a wide international audience.
Management features
Does the product Hikvision DS-2CD2545FWD-I have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD2545FWD-I system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2545FWD-I have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2545FWD-I is 1. These ports provide a stable and fast network connection for your devices. Does the product Hikvision DS-2CD2545FWD-I have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations.
Security
Does the product Hikvision DS-2CD2545FWD-I have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD2545FWD-I have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hikvision DS-2CD2545FWD-I product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2545FWD-I have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The Hikvision DS-2CD2545FWD-I has a heart rate. This feature allows you to monitor your health in real time. Does the Hikvision DS-2CD2545FWD-I have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product Hikvision DS-2CD2545FWD-I have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD2545FWD-I have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. The intelligent video surveillance system of the product Hikvision DS-2CD2545FWD-I has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. The alert notification type for the product Hikvision DS-2CD2545FWD-I is E-mail. This feature allows for real-time alerts for better security. Does the product Hikvision DS-2CD2545FWD-I have Email password reset? Oui. This feature allows users to easily regain access to their account in case of a forgotten password, thereby enhancing the security of their personal information. The product Hikvision DS-2CD2545FWD-I has a pixel counter. This device allows tracking user interactions on the site, thereby enhancing data security.
Environmental conditions
The product Hikvision DS-2CD2545FWD-I has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2545FWD-I is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Network
Does the product Hikvision DS-2CD2545FWD-I have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the product Hikvision DS-2CD2545FWD-I have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD2545FWD-I are TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Hikvision DS-2CD2545FWD-I contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The network standards of the product Hikvision DS-2CD2545FWD-I are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the Hikvision DS-2CD2545FWD-I have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2CD2545FWD-I is Fast Ethernet. This type of interface allows for fast and efficient network connections. The number of users of the product Hikvision DS-2CD2545FWD-I is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision DS-2CD2545FWD-I contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user.
Power
The product Hikvision DS-2CD2545FWD-I has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CD2545FWD-I is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD2545FWD-I is 8.5 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2545FWD-I has a DC output in amperes of 0.7 A. This specification ensures a stable power supply suitable for your needs. The energy consumption of the product Hikvision DS-2CD2545FWD-I is 10 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Design
The International Protection Code (IP) for product Hikvision DS-2CD2545FWD-I contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2CD2545FWD-I is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2545FWD-I is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision DS-2CD2545FWD-I is IK08. This IK Code allows for easy identification of the specific design of the item. The color of the product Hikvision DS-2CD2545FWD-I is Noir. This shade gives it a modern and elegant look. The product Hikvision DS-2CD2545FWD-I has Dust resistant, Vandal proof, Water resistant protection features. These characteristics ensure reliable use in various environmental conditions.
Night vision
Does the product Hikvision DS-2CD2545FWD-I have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CD2545FWD-I is 10 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD2545FWD-I is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The infrared wavelength of the product Hikvision DS-2CD2545FWD-I is 850 nm. This feature allows for optimal use in various technological applications.
Weight and dimensions
The height of the product Hikvision DS-2CD2545FWD-I is 67.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CD2545FWD-I is 120 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2545FWD-I is 400 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2545FWD-I is 1. This product is equipped with a camera that allows capturing high-quality images.
