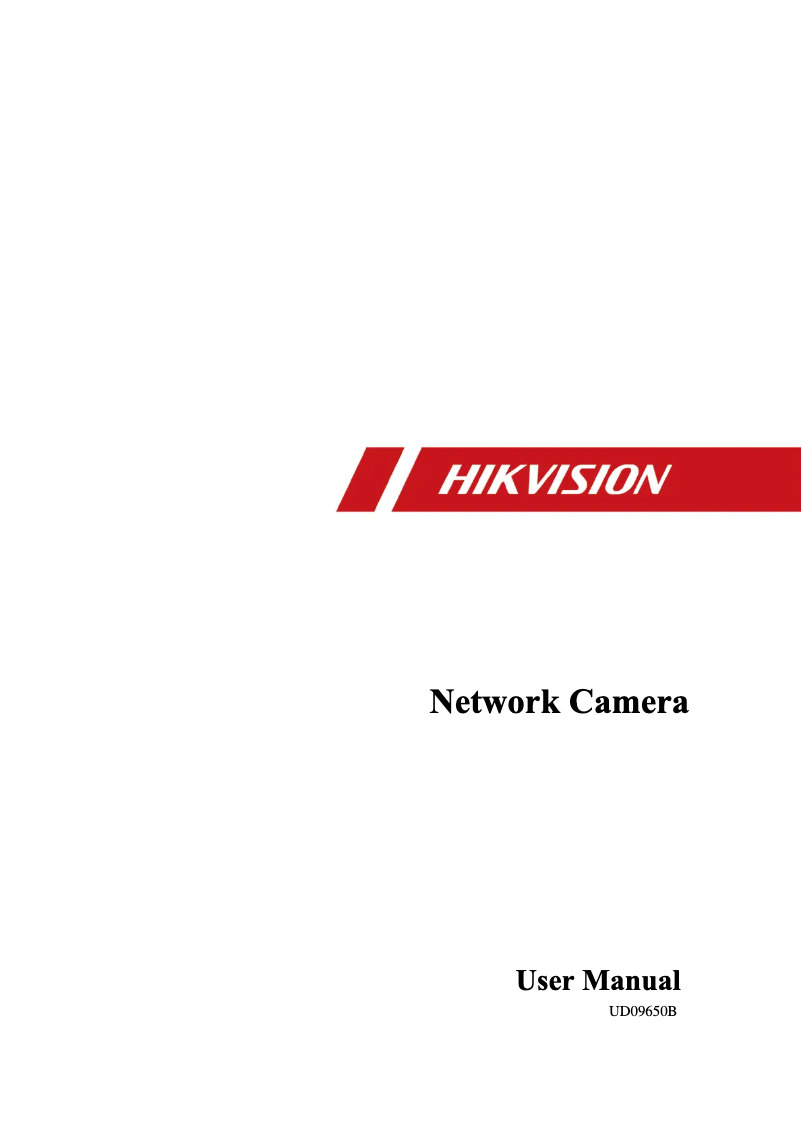

Manuals of product DS-2CD2647G2-LZS
Technical Specifications DS-2CD2647G2-LZS
General Information
-
ModelDS-2CD2647G2-LZS
-
Brand
-
Category
-
Type
-
SKU1575764
-
MPN1575764
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Number of languages33
Storage support
-
Integrated hard driveNo
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Image sensor
-
Progressive scanYes
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Sensor typeCMOS
Objective system
-
Maximum number of openings1
-
Focal length3.6-9 mm
-
Maximum number of openings1
-
Detection distance (wide)124 m
-
Observation distance (wide)49.3 m
-
Recognition distance (wide)24.8 m
-
Identification distance (wide)12.4 m
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes1.21 A
-
Energy consumption (Power over Ethernet (PoE))18 W
-
Consumption (max)14.5 W
Video
-
Total megapixels4 MP
-
Maximum resolution2688 x 1520 pixels
-
Number of images per second30 ips
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Masking of personal dataYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 8 Mbps
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reduction technology3D digital noise reduction
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
Packaging contents
-
Number of cameras1
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 355 °
-
Inclination angle0 - 90 °
-
Rotation angle360 °
-
Camera shutter speed1/3 - 1/100000 s
-
Field of view of the lens, horizontal92.3 °
-
Angle of view of the lens, vertical48.4 °
-
Angle of view of the lens, diagonal112.2 °
Night vision
-
Night visionYes
-
Night vision distance60 m
Audio
-
Voice codecsAAC
-
Supported audio formatsG.711alaw
-
Sampling frequencyG.711ulaw
-
G.722.1
-
G.726
-
MP2L2
-
PCM
-
MP3
-
48 kHz
Network
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Quality of Service (QoS)HTTP
-
BluetoothHTTPS
-
BluetoothFTP
-
Number of usersDHCP
-
Quality of Service (QoS)DNS
-
Type of Ethernet interfaceDDNS
-
RTP
-
RTSP
-
NTP
-
UPnP
-
SMTP
-
IGMP
-
802.1X
-
QoS
-
IPv4
-
IPv6
-
UDP
-
Bonjour
-
SSL/TLS
-
PPPoE
-
SNMP
-
ARP
-
IEEE 802.1x
-
IEEE 802.3at
-
Yes
-
No
-
No
-
32 user(s)
-
Yes
-
Fast Ethernet
Security
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
Functions of the IVS system (intelligent video surveillance)Change of environment
-
MirrorYes
-
MirrorYes
-
MirrorYes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Weight and dimensions
-
Product length327.9 mm
-
Width97.9 mm
-
Depth90.9 mm
-
Weight1520 g
Packaging information
-
Package width385 mm
-
Package depth190 mm
-
Package height180 mm
-
Package weight2521 g
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2647G2-LZS specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD2647G2-LZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2647G2-LZS is DS-2CD2647G2-LZS | DS-2CD2647G2-LZS(3.6-9MM)(C). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD2647G2-LZS is 6941264099376. This code allows for the unique identification of the product in the distribution system.
Image sensor
Does the product Hikvision DS-2CD2647G2-LZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD2647G2-LZS is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2647G2-LZS is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD2647G2-LZS is CMOS. This type of sensor ensures optimal image quality for your needs.
Storage support
Does the Hikvision DS-2CD2647G2-LZS have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2CD2647G2-LZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2CD2647G2-LZS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2CD2647G2-LZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Representation / realization
The design of the product Hikvision DS-2CD2647G2-LZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hikvision DS-2CD2647G2-LZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2CD2647G2-LZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD2647G2-LZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2647G2-LZS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD2647G2-LZS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2CD2647G2-LZS is 33. This product offers an enriching multilingual experience.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2647G2-LZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Power
The type of power source for the product Hikvision DS-2CD2647G2-LZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2CD2647G2-LZS is 18 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2CD2647G2-LZS has a DC output in amperes of 1.21 A. This specification ensures a stable power supply suitable for your needs. The product Hikvision DS-2CD2647G2-LZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD2647G2-LZS is 14.5 W. This specification allows for the assessment of the energy efficiency of the device.
Objective system
The focal length of the product Hikvision DS-2CD2647G2-LZS is 3.6-9 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The number of lenses in the product Hikvision DS-2CD2647G2-LZS is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2647G2-LZS is 1. This feature allows for optimal use and increased flexibility. The detection distance (wide) of the product Hikvision DS-2CD2647G2-LZS is 124 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The observation distance (wide) of the product Hikvision DS-2CD2647G2-LZS is 49.3 m. This feature allows for an extended and clear view over long distances. The recognition distance (wide) of the product Hikvision DS-2CD2647G2-LZS is 24.8 m. This feature allows for effective identification over long distances. The identification distance (wide) of the product Hikvision DS-2CD2647G2-LZS is 12.4 m. This specification ensures optimal performance for applications requiring long-range recognition.
Night vision
Does the product Hikvision DS-2CD2647G2-LZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CD2647G2-LZS is 60 m. This feature allows for clear and precise observation even in darkness.
Video
The number of frames per second of the product Hikvision DS-2CD2647G2-LZS is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2CD2647G2-LZS is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2CD2647G2-LZS is 4 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hikvision DS-2CD2647G2-LZS are 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2CD2647G2-LZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The product Hikvision DS-2CD2647G2-LZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2CD2647G2-LZS is 32 Kbps - 8 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2647G2-LZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The image quality setting of the product Hikvision DS-2CD2647G2-LZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The binary bitrate control of the product Hikvision DS-2CD2647G2-LZS contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The product Hikvision DS-2CD2647G2-LZS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2647G2-LZS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CD2647G2-LZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2647G2-LZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2647G2-LZS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Audio
The voice codec of the Hikvision DS-2CD2647G2-LZS product contains AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The sampling frequency of the product Hikvision DS-2CD2647G2-LZS is 48 kHz. This feature ensures optimal sound quality for your recordings. The supported audio formats of the product Hikvision DS-2CD2647G2-LZS are MP3. These formats ensure optimal compatibility for an enriching listening experience.
Camera
Does the product Hikvision DS-2CD2647G2-LZS have a camera pan command? No. This feature is not available on this model. The panoramic view of the product Hikvision DS-2CD2647G2-LZS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt command of the Hikvision DS-2CD2647G2-LZS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The minimum illumination of the product Hikvision DS-2CD2647G2-LZS is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hikvision DS-2CD2647G2-LZS is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD2647G2-LZS is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CD2647G2-LZS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2CD2647G2-LZS lens is 92.3 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2647G2-LZS is 48.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2647G2-LZS is 112.2 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2647G2-LZS is 1. These ports provide a stable and fast network connection for your devices.
Management features
The Hikvision DS-2CD2647G2-LZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2647G2-LZS have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD2647G2-LZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Network
The supported network protocols of the product Hikvision DS-2CD2647G2-LZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2647G2-LZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD2647G2-LZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The network standards of the product Hikvision DS-2CD2647G2-LZS are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The Ethernet interface type of the product Hikvision DS-2CD2647G2-LZS is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the Hikvision DS-2CD2647G2-LZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2CD2647G2-LZS is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD2647G2-LZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Security
Does the product Hikvision DS-2CD2647G2-LZS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD2647G2-LZS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2647G2-LZS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD2647G2-LZS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The intelligent video surveillance system of the product Hikvision DS-2CD2647G2-LZS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. The Hikvision DS-2CD2647G2-LZS has a heart rate. This feature allows you to monitor your health in real time. Does the Hikvision DS-2CD2647G2-LZS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product Hikvision DS-2CD2647G2-LZS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Weight and dimensions
The width of the product Hikvision DS-2CD2647G2-LZS is 97.9 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Hikvision DS-2CD2647G2-LZS is 90.9 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-2CD2647G2-LZS is 1520 g. This weight is ideal for ensuring optimal use and easy handling. The length of the product Hikvision DS-2CD2647G2-LZS is 327.9 mm. This dimension is essential to ensure optimal use.
Packaging information
The width of the package of the product Hikvision DS-2CD2647G2-LZS is 385 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD2647G2-LZS package is 2521 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD2647G2-LZS is 190 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Hikvision DS-2CD2647G2-LZS is 180 mm. This dimension is essential to ensure optimal transport and storage.
Environmental conditions
The product Hikvision DS-2CD2647G2-LZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2647G2-LZS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Hikvision DS-2CD2647G2-LZS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Hikvision DS-2CD2647G2-LZS is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Design
The mounting type of the product Hikvision DS-2CD2647G2-LZS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2647G2-LZS is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision DS-2CD2647G2-LZS is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Hikvision DS-2CD2647G2-LZS contains IP67. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2CD2647G2-LZS is Blanc. This shade gives it a modern and elegant look.
