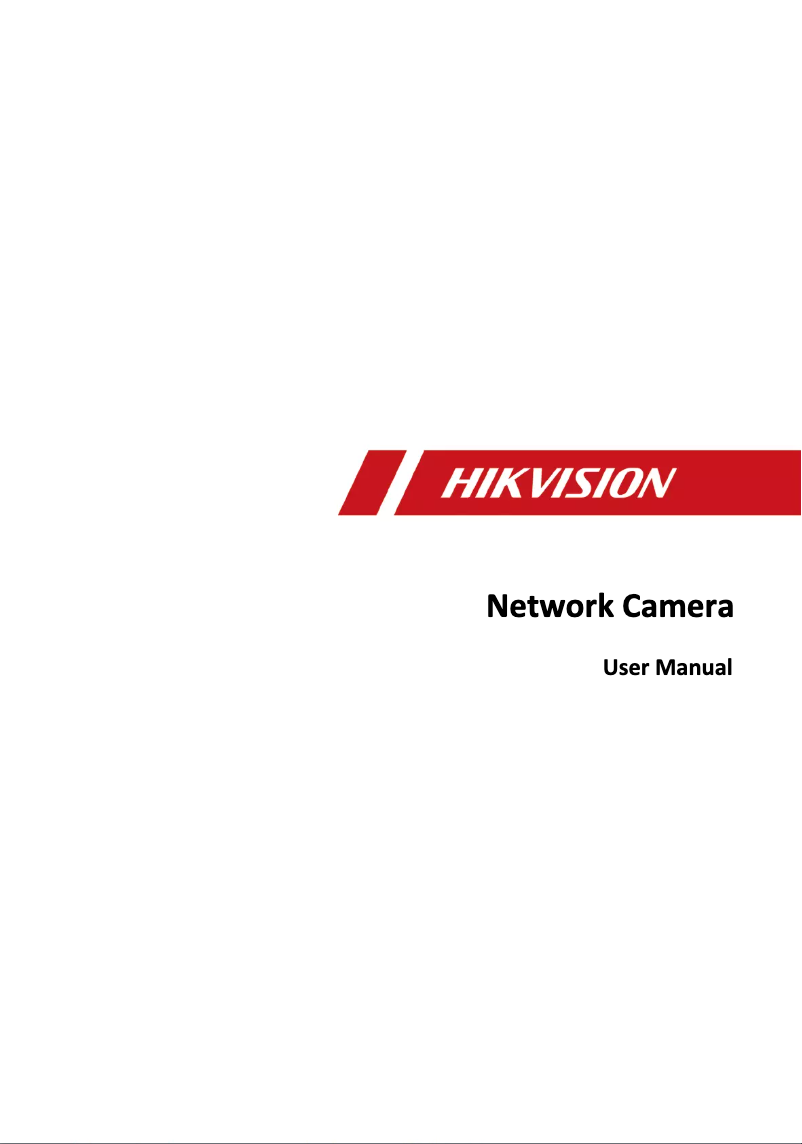

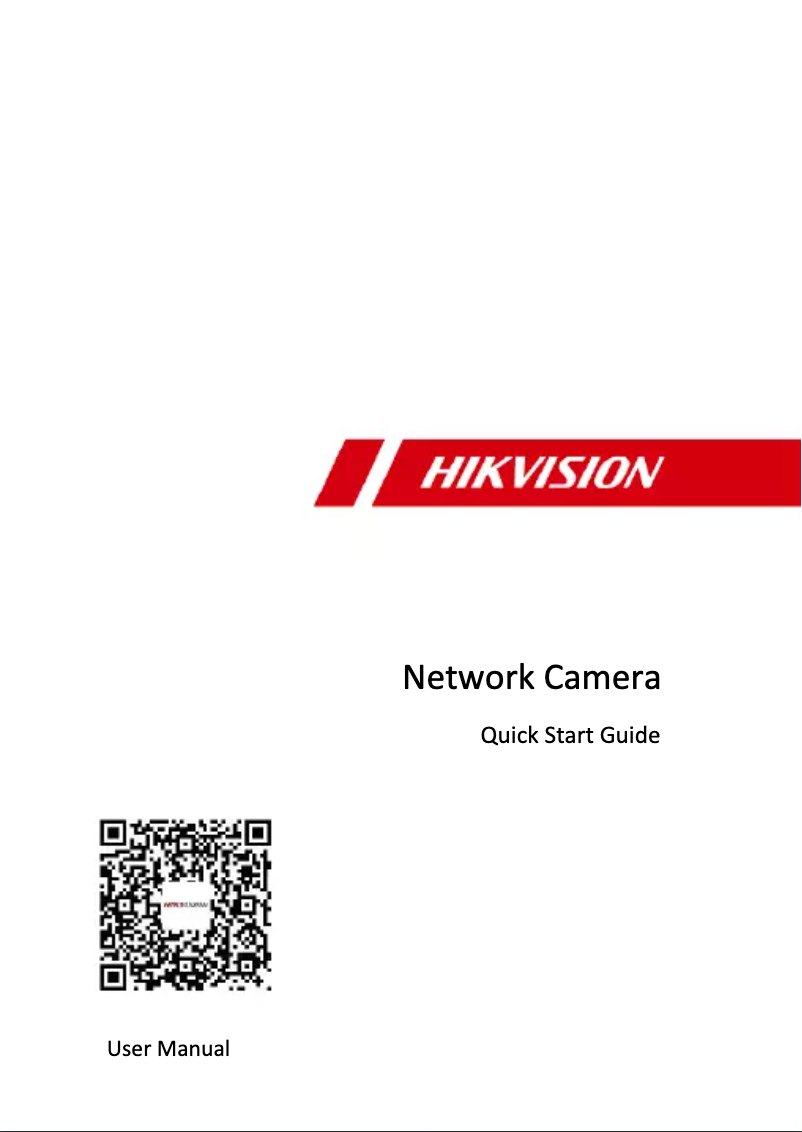

Manuals of product DS-2CD2686G2-IZSU
Technical Specifications DS-2CD2686G2-IZSU
General Information
-
ModelDS-2CD2686G2-IZSU
-
Brand
-
Category
-
Type
-
SKU1448129
-
MPN1448129
Camera
-
Camera shutter speed1/3 - 1/100000 s
-
Panoramic0 - 355 °
-
Inclination angle0 - 90 °
-
Rotation angle360 °
-
Field of view of the lens, horizontal108 °
-
Angle of view of the lens, vertical58 °
-
Angle of view of the lens, diagonal52 °
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
Image sensor
-
Optical sensor size1/1.8 "
-
Sensor type
-
Number of sensorsCMOS
-
Progressive scan
-
1
-
-
Yes
Objective system
-
Focal length2.8-12 mm
-
Maximum number of openings1.4
-
Detection distance (wide)86 m
-
Detection distance (tele)214 m
-
Observation distance (wide)34.1 m
-
Observation distance (tele)84.9 m
-
Recognition distance (wide)17.2 m
-
Recognition distance (tele)42.8 m
-
Identification distance (wide)8.6 m
-
Identification distance (tele)21.4 m
-
Number of lenses1
Network
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Type of Ethernet interfaceHTTP
-
Quality of Service (QoS)HTTPS
-
BluetoothFTP
-
BluetoothDHCP
-
Number of usersDNS
-
Quality of Service (QoS)DDNS
-
RTP
-
RTSP
-
NTP
-
UPnP
-
SMTP
-
IGMP
-
802.1X
-
QoS
-
IPv4
-
IPv6
-
UDP
-
Bonjour
-
SSL/TLS
-
PPPoE
-
SNMP
-
ARP
-
IEEE 802.1x
-
IEEE 802.3at
-
Fast Ethernet
-
Yes
-
No
-
No
-
32 user(s)
-
Yes
Audio
-
Sampling frequency48 kHz
-
Voice codecsG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Video
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate32 Kbps - 16 Mbps
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reduction technology3D digital noise suppression
-
Video broadcastingYes
-
Video broadcastingYes
-
Number of images per second30 ips
-
Total megapixels8 MP
-
Maximum resolution3840 x 2160 pixels
-
Supported graphic resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance60 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Packaging information
-
Package weight2541 g
-
Package width385 mm
-
Package depth190 mm
-
Package height180 mm
Weight and dimensions
-
Weight1450 g
-
Diameter144.1 mm
-
Product length342.7 mm
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
-
Consumption (max)14.5 W
-
Energy consumption (Power over Ethernet (PoE))18 W
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonRegion entrance detection
-
Region exiting detection
-
Yes
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Change of environment
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
MirrorYes
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Material of the case/bodyAluminum
Representation / realization
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Day/Night ModeYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Integrated hard driveNo
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2686G2-IZSU specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD2686G2-IZSU is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2686G2-IZSU is DS-2CD2686G2-IZSU | DS-2CD2686G2-IZSU/SL(2.8-12MM)(C). This model ensures optimal performance and an enhanced user experience.
Image sensor
The optical sensor size of the product Hikvision DS-2CD2686G2-IZSU is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2CD2686G2-IZSU is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2CD2686G2-IZSU is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision DS-2CD2686G2-IZSU have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Objective system
The focal length of the product Hikvision DS-2CD2686G2-IZSU is 2.8-12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hikvision DS-2CD2686G2-IZSU is 1.4. This feature allows for optimal use and increased flexibility. The detection distance (tele) of the product Hikvision DS-2CD2686G2-IZSU is 214 m. This specification ensures optimal performance for your remote detection needs. The detection distance (wide) of the product Hikvision DS-2CD2686G2-IZSU is 86 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The observation distance (wide) of the product Hikvision DS-2CD2686G2-IZSU is 34.1 m. This feature allows for an extended and clear view over long distances. The observation (tele) distance of the product Hikvision DS-2CD2686G2-IZSU is 84.9 m. This specification allows for an appreciation of the lens's range for distant shots. The recognition distance (wide) of the product Hikvision DS-2CD2686G2-IZSU is 17.2 m. This feature allows for effective identification over long distances. The recognition (tele) distance of the product Hikvision DS-2CD2686G2-IZSU is 42.8 m. This specification allows for assessing the effective range of the lens in terms of detecting subjects at a distance. The identification distance (wide) of the product Hikvision DS-2CD2686G2-IZSU is 8.6 m. This specification ensures optimal performance for applications requiring long-range recognition. The identification (tele) distance of the product Hikvision DS-2CD2686G2-IZSU is 21.4 m. This specification allows for determining the remote identification range, essential for optimal use. The number of lenses in the product Hikvision DS-2CD2686G2-IZSU is 1. This number determines the quality and versatility of the lens.
Camera
The shutter speed of the camera of the product Hikvision DS-2CD2686G2-IZSU is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt angle of the product Hikvision DS-2CD2686G2-IZSU is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD2686G2-IZSU is 360 °. This angle allows for optimal usage flexibility. The panoramic view of the product Hikvision DS-2CD2686G2-IZSU is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view of the Hikvision DS-2CD2686G2-IZSU lens is 108 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2686G2-IZSU is 58 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. Does the product Hikvision DS-2CD2686G2-IZSU have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD2686G2-IZSU camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2686G2-IZSU is 52 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The minimum illumination of the product Hikvision DS-2CD2686G2-IZSU is 0 lux. This feature ensures optimal performance even in low light conditions.
Audio
The voice codec of the Hikvision DS-2CD2686G2-IZSU product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The sampling frequency of the product Hikvision DS-2CD2686G2-IZSU is 48 kHz. This feature ensures optimal sound quality for your recordings.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2686G2-IZSU is 1. This product is equipped with a camera that allows capturing high-quality images.
Network
The supported network protocols of the product Hikvision DS-2CD2686G2-IZSU are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2686G2-IZSU have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The network standards of the product Hikvision DS-2CD2686G2-IZSU are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The Ethernet interface type of the product Hikvision DS-2CD2686G2-IZSU is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hikvision DS-2CD2686G2-IZSU contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2686G2-IZSU have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2CD2686G2-IZSU is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD2686G2-IZSU have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Night vision
Does the product Hikvision DS-2CD2686G2-IZSU have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CD2686G2-IZSU is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CD2686G2-IZSU is 60 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD2686G2-IZSU is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Video
Does the product Hikvision DS-2CD2686G2-IZSU have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2686G2-IZSU have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2686G2-IZSU have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The binary bitrate control of the product Hikvision DS-2CD2686G2-IZSU contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product Hikvision DS-2CD2686G2-IZSU is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The image quality setting of the product Hikvision DS-2CD2686G2-IZSU contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The product Hikvision DS-2CD2686G2-IZSU features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2686G2-IZSU have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CD2686G2-IZSU have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2CD2686G2-IZSU is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2CD2686G2-IZSU is 8 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD2686G2-IZSU is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD2686G2-IZSU are 640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160. These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2686G2-IZSU has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Packaging information
The weight of the Hikvision DS-2CD2686G2-IZSU package is 2541 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD2686G2-IZSU is 190 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD2686G2-IZSU is 385 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2686G2-IZSU is 180 mm. This dimension is essential to ensure optimal transport and storage.
Weight and dimensions
The length of the product Hikvision DS-2CD2686G2-IZSU is 342.7 mm. This dimension is essential to ensure optimal use. The diameter of the product Hikvision DS-2CD2686G2-IZSU is 144.1 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2686G2-IZSU is 1450 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The relative humidity (storage) rate of the product Hikvision DS-2CD2686G2-IZSU is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Hikvision DS-2CD2686G2-IZSU has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hikvision DS-2CD2686G2-IZSU is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision DS-2CD2686G2-IZSU is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The product Hikvision DS-2CD2686G2-IZSU has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The energy consumption of the product Hikvision DS-2CD2686G2-IZSU is 18 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hikvision DS-2CD2686G2-IZSU is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD2686G2-IZSU is 14.5 W. This specification allows for the assessment of the energy efficiency of the device.
Management features
Does the product Hikvision DS-2CD2686G2-IZSU have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD2686G2-IZSU product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD2686G2-IZSU system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Design
The International Protection Code (IP) for product Hikvision DS-2CD2686G2-IZSU contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2CD2686G2-IZSU is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CD2686G2-IZSU is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2686G2-IZSU is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision DS-2CD2686G2-IZSU is IK10. This IK Code allows for easy identification of the specific design of the item. The material of the product case Hikvision DS-2CD2686G2-IZSU is Aluminium. This material ensures both durability and elegance.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2686G2-IZSU is 1. These ports provide a stable and fast network connection for your devices.
Security
The intelligent video surveillance system of the product Hikvision DS-2CD2686G2-IZSU has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the Hikvision DS-2CD2686G2-IZSU product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2686G2-IZSU have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD2686G2-IZSU have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD2686G2-IZSU have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2686G2-IZSU has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2686G2-IZSU have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Representation / realization
Does the product Hikvision DS-2CD2686G2-IZSU have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2686G2-IZSU have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD2686G2-IZSU have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The type of product Hikvision DS-2CD2686G2-IZSU is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2686G2-IZSU supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD2686G2-IZSU features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Storage support
Does the Hikvision DS-2CD2686G2-IZSU have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2CD2686G2-IZSU has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD2686G2-IZSU is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2686G2-IZSU have a built-in hard drive? No. This feature means that the product does not have internal storage.
