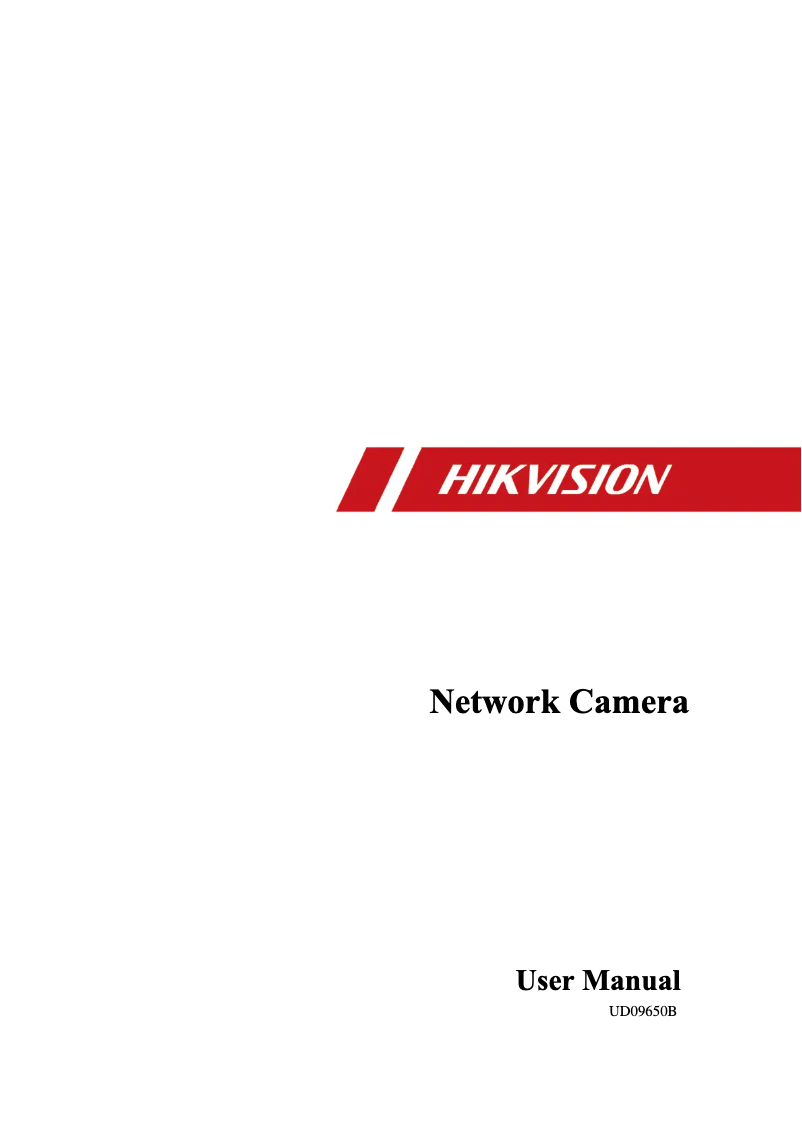

Manual of product DS-2CD2765FWD-IZS
Technical Specifications DS-2CD2765FWD-IZS
General Information
-
ModelDS-2CD2765FWD-IZS
-
Brand
-
Category
-
Type
-
SKU1132232
-
MPN1132232
Weight and dimensions
-
Weight1300 g
-
Diameter153.4 mm
-
Height133.1 mm
Packaging contents
-
Number of cameras1
Packaging information
-
Package weight1500 g
Design
-
International Protection Code (IP)IP66
-
Code IKIK10
-
FormatDome
-
Mounting typeCeiling/Wall
-
Product colorBlack, White
-
Material of the case/bodyMetal, Plastic
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Consumption (max)10.5 W
-
Energy consumption (Power over Ethernet (PoE))12.5 W
Network
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Audio
-
Sampling frequency48 kHz
-
Voice codecsG.711, G.722.1, G.726, MP2L2
-
Audio output channels1 channels
-
Audio output channels1 channels
Connectivity
-
Component output1
-
Component output1
Representation / realization
-
Large dynamic range (WRD)Yes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Maximum memory card size128 GB
Video
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Noise reduction technologyDigital noise suppression 3D
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Video broadcastingYes
-
Maximum resolution3072 x 2048 pixels
-
Total megapixels6 MP
-
Supported graphic resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3072 x 1728, 3072 x 2048
-
Number of images per second30 fps
-
Video broadcastingYes
-
Bitrate32 Kbps - 16 Mbps
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Security
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Scene change
Night vision
-
Night vision distance30 m
-
Type of LEDIR
-
Night visionYes
-
Infrared wavelength850 nm
Objective system
-
Focal length2.8 - 12 mm
-
Number of lenses1
-
Maximum number of openings1.4
Image sensor
-
Optical sensor size1/2.4 "
-
Sensor typeCMOS
-
Number of sensors1
-
Progressive scanYes
Camera
-
Rotation angle355 °
-
Panoramic0 - 355 °
-
Inclination angle0 - 75 °
-
Field of view of the lens, horizontal114 °
-
Angle of view of the lens, vertical71 °
-
Angle of view of the lens, diagonal154 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0.011 lux
-
Camera shutter speed1/3 - 1/100000 s
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2765FWD-IZS specifications from brand Hikvision
Packaging information
The weight of the Hikvision DS-2CD2765FWD-IZS package is 1500 g. This weight ensures optimal protection during transport and delivery.
Weight and dimensions
The diameter of the product Hikvision DS-2CD2765FWD-IZS is 153.4 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2765FWD-IZS is 1300 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CD2765FWD-IZS is 133.1 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2765FWD-IZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Generalities
The brand of the product Hikvision DS-2CD2765FWD-IZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2765FWD-IZS is 6954273679231. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2765FWD-IZS is DS-2CD2765FWD-IZS | DS-2CD2765FWD-IZS(2.8-12MM). This model ensures optimal performance and an enhanced user experience.
Power
The type of power source for the product Hikvision DS-2CD2765FWD-IZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CD2765FWD-IZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The energy consumption of the product Hikvision DS-2CD2765FWD-IZS is 12.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2CD2765FWD-IZS is 10.5 W. This specification allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD2765FWD-IZS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD2765FWD-IZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Design
The International Protection Code (IP) for product Hikvision DS-2CD2765FWD-IZS contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2CD2765FWD-IZS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD2765FWD-IZS is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision DS-2CD2765FWD-IZS is IK10. This IK Code allows for easy identification of the specific design of the item. The color of the product Hikvision DS-2CD2765FWD-IZS is Black, White. This shade gives it a modern and elegant look. The material of the product case Hikvision DS-2CD2765FWD-IZS is Metal, Plastic. This material ensures both durability and elegance.
Network
The network standards of the product Hikvision DS-2CD2765FWD-IZS are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The Wifi of the product Hikvision DS-2CD2765FWD-IZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2765FWD-IZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2CD2765FWD-IZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2CD2765FWD-IZS is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2CD2765FWD-IZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2765FWD-IZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision DS-2CD2765FWD-IZS is 32 utilisateur(s). This product is ideal for several people.
Audio
The voice codec of the Hikvision DS-2CD2765FWD-IZS product contains G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The sampling frequency of the product Hikvision DS-2CD2765FWD-IZS is 48 kHz. This feature ensures optimal sound quality for your recordings. The number of audio input channels of the product Hikvision DS-2CD2765FWD-IZS is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2CD2765FWD-IZS are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Connectivity
The output component of the product Hikvision DS-2CD2765FWD-IZS contains 1. This specification ensures optimal connectivity for efficient use. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2765FWD-IZS is 1. These ports provide a stable and fast network connection for your devices.
Management features
The Hikvision DS-2CD2765FWD-IZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD2765FWD-IZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2765FWD-IZS have a Reset Button? Oui. This button allows you to easily reset the product settings.
Representation / realization
The product Hikvision DS-2CD2765FWD-IZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD2765FWD-IZS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision DS-2CD2765FWD-IZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2765FWD-IZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD2765FWD-IZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2765FWD-IZS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2765FWD-IZS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions.
Storage support
Does the Hikvision DS-2CD2765FWD-IZS have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2CD2765FWD-IZS is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2765FWD-IZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2CD2765FWD-IZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Security
The intelligent video surveillance system of the product Hikvision DS-2CD2765FWD-IZS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Night vision
The night vision distance of the product Hikvision DS-2CD2765FWD-IZS is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD2765FWD-IZS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision DS-2CD2765FWD-IZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CD2765FWD-IZS is 850 nm. This feature allows for optimal use in various technological applications.
Video
Does the product Hikvision DS-2CD2765FWD-IZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2765FWD-IZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2CD2765FWD-IZS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The image quality setting of the product Hikvision DS-2CD2765FWD-IZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2765FWD-IZS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The maximum resolution of the product Hikvision DS-2CD2765FWD-IZS is 3072 x 2048 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2CD2765FWD-IZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The total megapixels of the product Hikvision DS-2CD2765FWD-IZS is 6 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2CD2765FWD-IZS is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2765FWD-IZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The supported graphic resolutions of the product Hikvision DS-2CD2765FWD-IZS are 320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,2944 x 1656,3072 x 1728,3072 x 2048. These resolutions provide optimal display quality for your content. The bit rate of the product Hikvision DS-2CD2765FWD-IZS is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The product Hikvision DS-2CD2765FWD-IZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Image sensor
The sensor type of the product Hikvision DS-2CD2765FWD-IZS is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD2765FWD-IZS is 1/2.4 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2765FWD-IZS is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision DS-2CD2765FWD-IZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Objective system
The number of lenses in the product Hikvision DS-2CD2765FWD-IZS is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2765FWD-IZS is 1.4. This feature allows for optimal use and increased flexibility. The focal length of the product Hikvision DS-2CD2765FWD-IZS is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Camera
The panoramic view of the product Hikvision DS-2CD2765FWD-IZS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view of the Hikvision DS-2CD2765FWD-IZS lens is 114 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The rotation angle of the product Hikvision DS-2CD2765FWD-IZS is 355 °. This angle allows for optimal usage flexibility. The tilt angle of the product Hikvision DS-2CD2765FWD-IZS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The vertical field of view of the product Hikvision DS-2CD2765FWD-IZS is 71 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2765FWD-IZS is 154 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. Does the product Hikvision DS-2CD2765FWD-IZS have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision DS-2CD2765FWD-IZS is 0.011 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2CD2765FWD-IZS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The shutter speed of the camera of the product Hikvision DS-2CD2765FWD-IZS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
