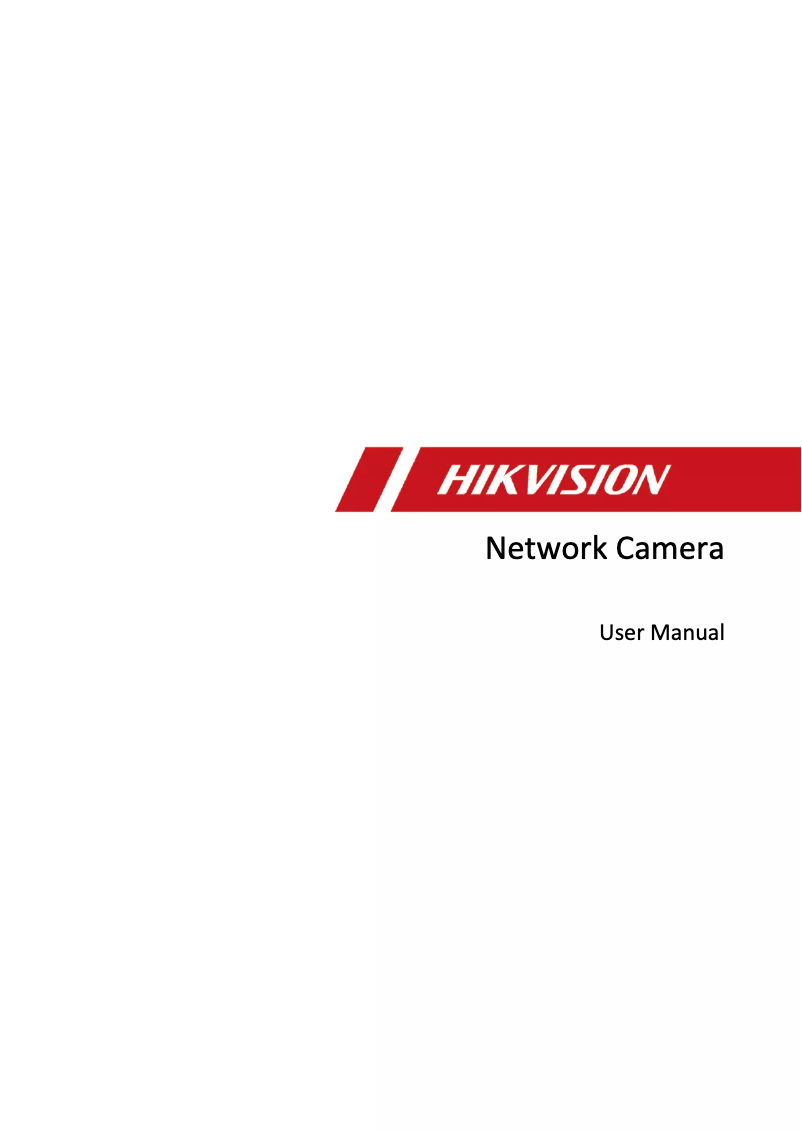

Manuals of product DS-2CD2H43G2-IZS
Technical Specifications DS-2CD2H43G2-IZS
General Information
-
ModelDS-2CD2H43G2-IZS
-
Brand
-
Category
-
Type
-
SKU1329015
-
MPN1329015
Design
-
Code IKIK10
-
Material of the case/bodyAluminum
-
FormatTurret
-
International Protection Code (IP)IP67
-
Mounting typeCeiling/wall
-
Product colorWhite
Weight and dimensions
-
Weight830 g
-
Diameter138.3 mm
-
Height126 mm
Packaging information
-
Package weight1115 g
-
Package width216 mm
-
Package depth121 mm
-
Package height118 mm
Objective system
-
Focal length2.8-12 mm
-
Maximum number of openings1.6
-
Number of lenses1
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Audio
-
Voice codecsG.711alaw
-
Supported audio formatsG.711ulaw
-
Sampling frequencyG.722.1
-
G.726
-
MP2L2
-
AAC
-
MP3
-
PCM
-
48 kHz
Video
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Bitrate32 Kbps - 8 Mbps
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Noise reductionYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reduction technology3D Digital Noise Reduction
-
Noise reductionYes
-
Noise reductionYes
-
Number of images per second30 ips
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Total megapixels4 MP
-
Maximum resolution2688 x 1520 pixels
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Sustainability
-
Sustainability certificatesREACH
-
RoHS
Packaging contents
-
Number of cameras1
Night vision
-
Infrared wavelength850 nm
-
Type of LEDIR
-
Night visionYes
-
Night vision distance40 m
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Image sensor
-
Progressive scanYes
-
Number of sensors1
-
Optical sensor size1/3 "
-
Sensor typeCMOS
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes0.92 A
-
Energy consumption (Power over Ethernet (PoE))12.5 W
-
Consumption (max)11 W
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonYes
-
Reset buttonYes
-
Yes
Camera
-
Camera shutter speed1/3 - 1/100000 s
-
Panoramic0 - 360 °
-
Inclination angle0 - 90 °
-
Field of view of the lens, horizontal95.8 °
-
Angle of view of the lens, vertical50.6 °
-
Angle of view of the lens, diagonal114.6 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
-
Rotation angle360 °
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Representation / realization
-
CertificationFCC SDoC (47 CFR 15, B)
-
Number of languagesCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
-
Day/Night ModeRCM (AS/NZS CISPR 32: 2015)
-
Day/Night ModeIC VoC (ICES-003: 6, 2016)
-
Day/Night ModeKC (KN 32: 2015, KN 35: 2015)
-
TypeUL (UL 60950-1)
-
Supported installationCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
-
Connectivity technologyCE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
-
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
-
LOA (IEC/EN 60950-1)
-
33
-
Yes
-
Yes
-
Yes
-
IP security camera
-
Outdoor
-
Wired
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Logistics data
-
Harmonized System Code85258900
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2H43G2-IZS specifications from brand Hikvision
Generalities
The product model Hikvision DS-2CD2H43G2-IZS is DS-2CD2H43G2-IZS | DS-2CD2H43G2-IZS(2.8-12MM). This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2CD2H43G2-IZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2H43G2-IZS is 6941264073628. This code allows for the unique identification of the product in the distribution system.
Weight and dimensions
The height of the product Hikvision DS-2CD2H43G2-IZS is 126 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2CD2H43G2-IZS is 830 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2CD2H43G2-IZS is 138.3 mm. This diameter allows for optimal use and fits perfectly with your needs.
Packaging information
The weight of the Hikvision DS-2CD2H43G2-IZS package is 1115 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product Hikvision DS-2CD2H43G2-IZS is 216 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD2H43G2-IZS is 118 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Hikvision DS-2CD2H43G2-IZS is 121 mm. This dimension is essential to ensure proper packaging and secure transport.
Design
The IK Code of the product Hikvision DS-2CD2H43G2-IZS is IK10. This IK Code allows for easy identification of the specific design of the item. The material of the product case Hikvision DS-2CD2H43G2-IZS is Aluminium. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD2H43G2-IZS contains IP67. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2CD2H43G2-IZS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD2H43G2-IZS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD2H43G2-IZS is Blanc. This shade gives it a modern and elegant look.
Audio
The supported audio formats of the product Hikvision DS-2CD2H43G2-IZS are AAC, MP3, PCM. These formats ensure optimal compatibility for an enriching listening experience. The sampling frequency of the product Hikvision DS-2CD2H43G2-IZS is 48 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the Hikvision DS-2CD2H43G2-IZS product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications.
Objective system
The maximum number of openings for the product Hikvision DS-2CD2H43G2-IZS is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2CD2H43G2-IZS is 1. This number determines the quality and versatility of the lens. The focal length of the product Hikvision DS-2CD2H43G2-IZS is 2.8-12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2H43G2-IZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Network
The Wifi of the product Hikvision DS-2CD2H43G2-IZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2H43G2-IZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2CD2H43G2-IZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Does the product Hikvision DS-2CD2H43G2-IZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of users of the product Hikvision DS-2CD2H43G2-IZS is 32 utilisateur(s). This product is ideal for several people. The supported network protocols of the product Hikvision DS-2CD2H43G2-IZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hikvision DS-2CD2H43G2-IZS are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The Ethernet interface type of the product Hikvision DS-2CD2H43G2-IZS is Fast Ethernet. This type of interface allows for fast and efficient network connections.
Sustainability
The product Hikvision DS-2CD2H43G2-IZS has Sustainability Certificates: REACH, RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Night vision
The infrared wavelength of the product Hikvision DS-2CD2H43G2-IZS is 850 nm. This feature allows for optimal use in various technological applications. The type of LED of the product Hikvision DS-2CD2H43G2-IZS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CD2H43G2-IZS is 40 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD2H43G2-IZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Video
Does the product Hikvision DS-2CD2H43G2-IZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD2H43G2-IZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2H43G2-IZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The bit rate of the product Hikvision DS-2CD2H43G2-IZS is 32 Kbps - 8 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2H43G2-IZS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The binary bitrate control of the product Hikvision DS-2CD2H43G2-IZS contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The image quality setting of the product Hikvision DS-2CD2H43G2-IZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The product Hikvision DS-2CD2H43G2-IZS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2H43G2-IZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD2H43G2-IZS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision DS-2CD2H43G2-IZS is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2CD2H43G2-IZS is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD2H43G2-IZS is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD2H43G2-IZS are 640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2H43G2-IZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD2H43G2-IZS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The relative humidity (storage) rate of the product Hikvision DS-2CD2H43G2-IZS is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Hikvision DS-2CD2H43G2-IZS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Hikvision DS-2CD2H43G2-IZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Image sensor
The number of sensors of the product Hikvision DS-2CD2H43G2-IZS is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision DS-2CD2H43G2-IZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD2H43G2-IZS is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2CD2H43G2-IZS is CMOS. This type of sensor ensures optimal image quality for your needs.
Power
The product Hikvision DS-2CD2H43G2-IZS has a DC output in amperes of 0.92 A. This specification ensures a stable power supply suitable for your needs. The type of power source for the product Hikvision DS-2CD2H43G2-IZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2CD2H43G2-IZS is 12.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2CD2H43G2-IZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD2H43G2-IZS is 11 W. This specification allows for the assessment of the energy efficiency of the device.
Management features
The Hikvision DS-2CD2H43G2-IZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2H43G2-IZS have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. Does the product Hikvision DS-2CD2H43G2-IZS have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD2H43G2-IZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Security
Does the Hikvision DS-2CD2H43G2-IZS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD2H43G2-IZS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD2H43G2-IZS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. The intelligent video surveillance system of the product Hikvision DS-2CD2H43G2-IZS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2CD2H43G2-IZS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2CD2H43G2-IZS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD2H43G2-IZS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD2H43G2-IZS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2H43G2-IZS is 1. These ports provide a stable and fast network connection for your devices.
Camera
The panoramic view of the product Hikvision DS-2CD2H43G2-IZS is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD2H43G2-IZS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The tilt angle of the product Hikvision DS-2CD2H43G2-IZS is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The field of view of the Hikvision DS-2CD2H43G2-IZS lens is 95.8 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2H43G2-IZS is 114.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The vertical field of view of the product Hikvision DS-2CD2H43G2-IZS is 50.6 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. Does the product Hikvision DS-2CD2H43G2-IZS have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD2H43G2-IZS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Hikvision DS-2CD2H43G2-IZS is 360 °. This angle allows for optimal usage flexibility. The minimum illumination of the product Hikvision DS-2CD2H43G2-IZS is 0 lux. This feature ensures optimal performance even in low light conditions.
Logistics data
The Harmonized System code for the product Hikvision DS-2CD2H43G2-IZS is 85258900. This code allows for the unique identification of goods in international trade.
Storage support
The product Hikvision DS-2CD2H43G2-IZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD2H43G2-IZS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2H43G2-IZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD2H43G2-IZS have a built-in hard drive? No. This feature means that the product does not have internal storage.
Representation / realization
The number of languages of the product Hikvision DS-2CD2H43G2-IZS is 33. This product offers an enriching multilingual experience. The certification of the product Hikvision DS-2CD2H43G2-IZS contains FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)\nUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);\nLOA (IEC/EN 60950-1). This certification guarantees compliance with the required safety and performance standards. Does the product Hikvision DS-2CD2H43G2-IZS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD2H43G2-IZS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD2H43G2-IZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hikvision DS-2CD2H43G2-IZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2H43G2-IZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD2H43G2-IZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
