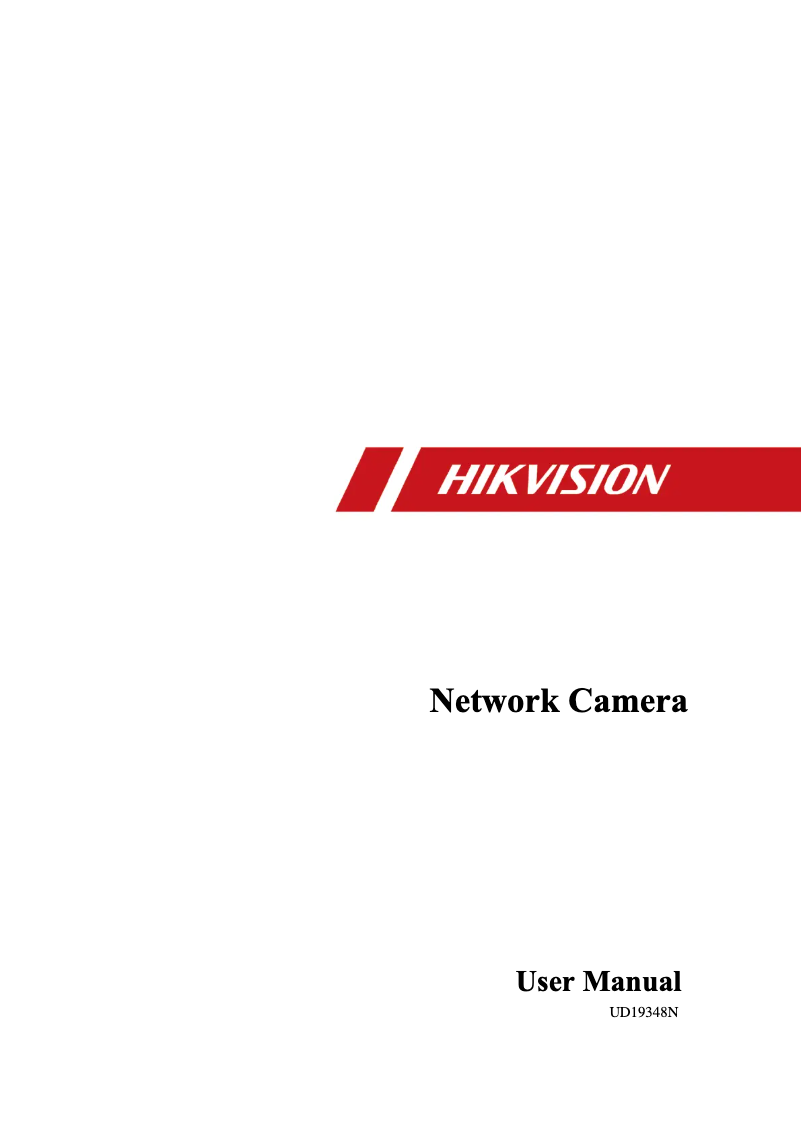

Manuals of product DS-2CD2H83G1-IZ
Technical Specifications DS-2CD2H83G1-IZ
General Information
-
ModelDS-2CD2H83G1-IZ
-
Brand
-
Category
-
Type
-
SKU1109116
-
MPN1109116
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
Audio
-
Supported audio formatsG.711
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Network
-
Wifi-
-
Bluetooth-
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Weather-resistantYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Camera
-
Camera pan command-
-
Camera tilt control-
-
Minimum illumination0.018 lux
-
Rotation angle360 °
-
Field of view of the lens, horizontal88 °
-
Angle of view of the lens, vertical56 °
-
Angle of view of the lens, diagonal110 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 355 °
-
Camera shutter speed1/3 - 1/100000 s
Security
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Image sensor
-
Number of sensors-
-
Sensor typeCMOS
-
Optical sensor size1/2.9 "
-
Progressive scanYes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Power
-
Power supply typeDC, PoE
-
Consumption (max)11 W
-
Energy consumption (Power over Ethernet (PoE))12.5 W
-
Output CC in volts12
-
Output CC in amperes0.92 A
Objective system
-
Number of lenses-
-
Maximum number of openings1.4
-
Focal length- mm
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Weight and dimensions
-
Width138.3 mm
-
Height126 mm
Video
-
Maximum resolution3840 x 2160 pixels
-
Total megapixels8 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Number of images per second30 fps
-
Analog signal format systemNTSC, PAL
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Noise reduction technology3D digital noise reduction
-
Bitrate32Kbps~16Mbps
Packaging contents
-
Number of cameras1
Packaging information
-
Package depth170 mm
-
Package depth170 mm
-
Package height150 mm
-
Package weight1420 g
