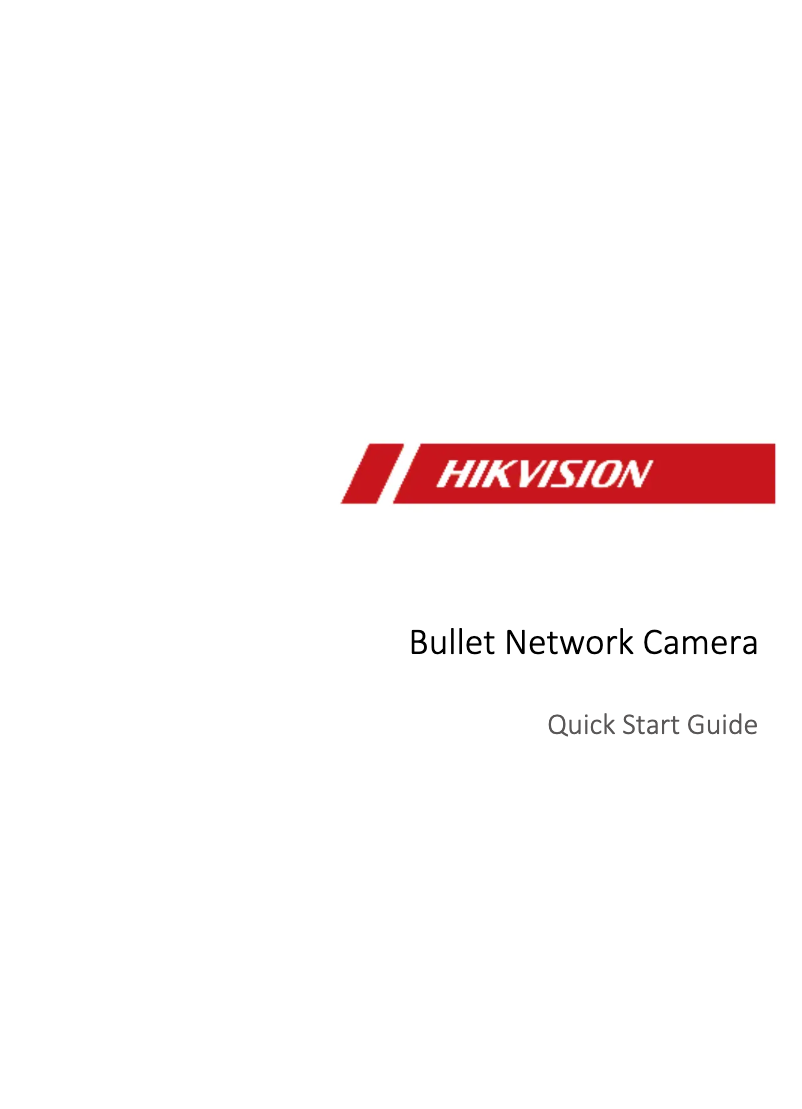

Manuals of product DS-2CD2T26G1-4I
Technical Specifications DS-2CD2T26G1-4I
General Information
-
ModelDS-2CD2T26G1-4I
-
Brand
-
Category
-
Type
-
SKU1225485
-
MPN1225485
Video
-
Total megapixels2 MP
-
Analog signal format systemNTSC, PAL
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Visual compression formatsH.264, H.265, M-JPEG
-
Maximum resolution1920 x 1080 pixels
-
Number of images per second30 fps
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Image sensor
-
Number of sensors-
-
Progressive scanYes
-
Sensor typeCMOS
-
Optical sensor size1/2.8
Camera
-
Camera pan command-
-
Camera tilt control-
-
Minimum illumination0.005 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Inclination angle0 - 90 °
-
Panoramic0 - 360 °
-
Rotation angle360 °
-
Field of view of the lens, horizontal108 °
-
Angle of view of the lens, vertical58 °
-
Angle of view of the lens, diagonal128 °
Representation / realization
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Network
-
Bluetooth-
-
Wifi-
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Ethernet/LANHTTP
-
Ethernet/LANHTTPS
-
Type of Ethernet interfaceFTP
-
Wiring technologyDHCP
-
Number of usersDNS
-
DDNS
-
RTP
-
RTSP
-
RTCP
-
PPPoE
-
NTP
-
UPnP
-
SMTP
-
SNMP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
IEEE 802.1x
-
IEEE 802.3at
-
Yes
-
Yes
-
Fast Ethernet
-
10/100Base-T(X)
-
32 user(s)
Management features
-
Web BrowserYes
-
Behavior analysisIntrusion detection, Line crossing detection
-
Web BrowserYes
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Output CC in volts12
-
Output CC in amperes1.2 A
-
Consumption (max)14 W
-
Energy consumption (Power over Ethernet (PoE))17 W
-
Power supply typeDC, PoE
Design
-
Mounting type-
-
Weather-resistantYes
-
International Protection Code (IP)IP67
-
Material of the case/bodyMetal
-
FormatTerminal
-
Product colorBlack, White
Night vision
-
Night visionYes
-
Night vision distance80 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Weight and dimensions
-
Diameter105 mm
-
Product length289.5 mm
-
Weight1100 g
Packaging information
-
Package weight1600 g
Objective system
-
Number of lenses-
-
Maximum number of openings1.6
-
Fixed Focal Length2.8 mm
Security
-
Active anti-tampering alarmYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2T26G1-4I specifications from brand Hikvision
Image sensor
Does the product Hikvision DS-2CD2T26G1-4I have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product Hikvision DS-2CD2T26G1-4I is -. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2CD2T26G1-4I is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2CD2T26G1-4I is CMOS. This type of sensor ensures optimal image quality for your needs.
Generalities
The brand of the product Hikvision DS-2CD2T26G1-4I is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD2T26G1-4I is DS-2CD2T26G1-4I | DS-2CD2T26G1-4I(2.8MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD2T26G1-4I is 6954273679088. This code allows for the unique identification of the product in the distribution system.
Video
The total megapixels of the product Hikvision DS-2CD2T26G1-4I is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CD2T26G1-4I have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CD2T26G1-4I have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The analog signal format system of the product Hikvision DS-2CD2T26G1-4I contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The product Hikvision DS-2CD2T26G1-4I has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The maximum resolution of the product Hikvision DS-2CD2T26G1-4I is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of frames per second of the product Hikvision DS-2CD2T26G1-4I is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD2T26G1-4I have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The image quality setting of the product Hikvision DS-2CD2T26G1-4I contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD2T26G1-4I have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD2T26G1-4I have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
Camera
The minimum illumination of the product Hikvision DS-2CD2T26G1-4I is 0.005 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hikvision DS-2CD2T26G1-4I is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD2T26G1-4I is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD2T26G1-4I is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The rotation angle of the product Hikvision DS-2CD2T26G1-4I is 360 °. This angle allows for optimal usage flexibility. Does the product Hikvision DS-2CD2T26G1-4I have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2CD2T26G1-4I camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The field of view of the Hikvision DS-2CD2T26G1-4I lens is 108 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2T26G1-4I is 58 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2T26G1-4I is 128 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Representation / realization
Does the product Hikvision DS-2CD2T26G1-4I have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2T26G1-4I have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The type of product Hikvision DS-2CD2T26G1-4I is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD2T26G1-4I have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Hikvision DS-2CD2T26G1-4I supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD2T26G1-4I features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Storage support
The maximum size of the memory card for the product Hikvision DS-2CD2T26G1-4I is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2T26G1-4I have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2T26G1-4I has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD2T26G1-4I have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Management features
The Hikvision DS-2CD2T26G1-4I system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2T26G1-4I have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Hikvision DS-2CD2T26G1-4I have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Network
Does the Hikvision DS-2CD2T26G1-4I have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2CD2T26G1-4I have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The network standards of the product Hikvision DS-2CD2T26G1-4I are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD2T26G1-4I are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD2T26G1-4I have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2CD2T26G1-4I is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hikvision DS-2CD2T26G1-4I contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The wiring technology of the product Hikvision DS-2CD2T26G1-4I contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The number of users of the product Hikvision DS-2CD2T26G1-4I is 32 utilisateur(s). This product is ideal for several people.
Environmental conditions
The product Hikvision DS-2CD2T26G1-4I has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD2T26G1-4I is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The product Hikvision DS-2CD2T26G1-4I has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD2T26G1-4I is 14 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD2T26G1-4I has a DC output in amperes of 1.2 A. This specification ensures a stable power supply suitable for your needs. The energy consumption of the product Hikvision DS-2CD2T26G1-4I is 17 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hikvision DS-2CD2T26G1-4I is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Night vision
Does the product Hikvision DS-2CD2T26G1-4I have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CD2T26G1-4I is 80 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD2T26G1-4I is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The infrared wavelength of the product Hikvision DS-2CD2T26G1-4I is 850 nm. This feature allows for optimal use in various technological applications.
Design
Is the Hikvision DS-2CD2T26G1-4I weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The material of the product case Hikvision DS-2CD2T26G1-4I is Métal. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD2T26G1-4I contains IP67. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2CD2T26G1-4I is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD2T26G1-4I is Black, White. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CD2T26G1-4I is -. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Weight and dimensions
The diameter of the product Hikvision DS-2CD2T26G1-4I is 105 mm. This diameter allows for optimal use and fits perfectly with your needs. The length of the product Hikvision DS-2CD2T26G1-4I is 289.5 mm. This dimension is essential to ensure optimal use. The weight of the product Hikvision DS-2CD2T26G1-4I is 1100 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Hikvision DS-2CD2T26G1-4I package is 1600 g. This weight ensures optimal protection during transport and delivery.
Security
Does the product Hikvision DS-2CD2T26G1-4I have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings.
Objective system
The number of lenses in the product Hikvision DS-2CD2T26G1-4I is -. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2T26G1-4I is 1.6. This feature allows for optimal use and increased flexibility. The product goal system Hikvision DS-2CD2T26G1-4I has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2T26G1-4I is 1. This product is equipped with a camera that allows capturing high-quality images.
Connectivity
The product Hikvision DS-2CD2T26G1-4I has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2T26G1-4I is 1. These ports provide a stable and fast network connection for your devices.
