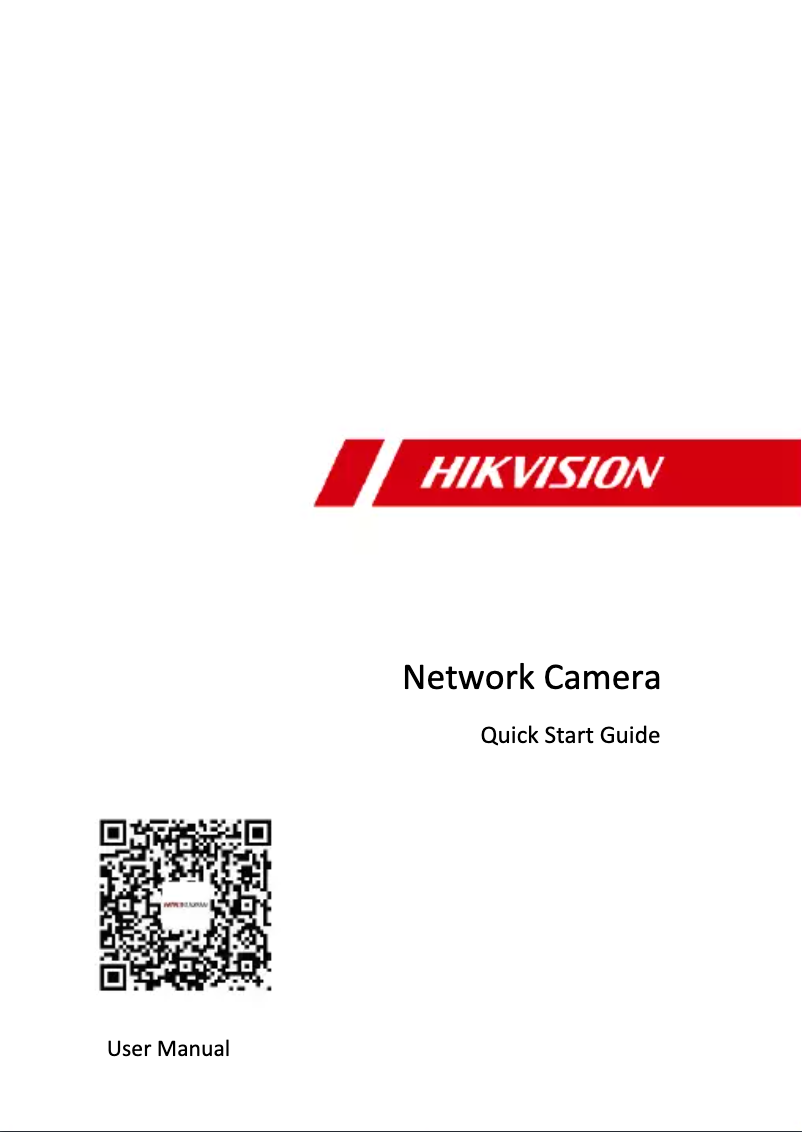

Manuals of product DS-2CD2T66G2-ISU
Technical Specifications DS-2CD2T66G2-ISU
General Information
-
ModelDS-2CD2T66G2-ISU
-
Brand
-
Category
-
Type
-
SKU1448126
-
MPN1448126
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Number of languages33
-
Languages taken into accountMulti
-
CertificationFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
-
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
-
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP67
-
Protection functionsDust resistant, Water resistant
-
Material of the case/bodyMetal
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.4 "
-
Progressive scanYes
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Inclination angle0 - 90 °
-
Panoramic0 - 360 °
-
Rotation angle360 °
-
Field of view of the lens, horizontal105.1 °
-
Angle of view of the lens, vertical53.4 °
-
Angle of view of the lens, diagonal128.6 °
Objective system
-
Number of lenses1
-
Maximum number of openings1.6
-
Fixed Focal Length2.8 mm
-
Detection distance (wide)78.6 m
-
Observation distance (wide)31.2 m
-
Recognition distance (wide)15.7 m
-
Identification distance (wide)7.9 m
Video
-
Total megapixels6 MP
-
Maximum resolution3200 x 1800 pixels
-
Gain control typeAuto
-
Masking of personal dataYes
-
Number of images per second30 fps
-
Supported graphic resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate32 Kbps - 16 Mbps
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise reduction
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Masking of personal dataYes
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance60 m
-
Infrared wavelength850 nm
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.3af
-
Number of users32 user(s)
-
Quality of Service (QoS)Yes
Audio
-
Voice codecsAAC
-
Sampling rateG.711alaw
-
Signal-to-noise ratio reportG.711ulaw
-
Audio output channelsG.722.1
-
Audio output channelsG.726
-
Built-in microphoneMP2L2
-
Built-in microphonePCM
-
8 - 48 kHz
-
52 dB
-
1 channels
-
1 channels
-
Yes
-
Yes
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Security
-
Security-supported algorithmTLS
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Alert notification typeE-mail
-
Functions of the IVS system (intelligent video surveillance)Face detection, Scene change
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
-
Password reset by emailYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Management features
-
Software resetYes
-
Software resetYes
-
Behavior analysisIntrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
-
Software resetYes
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes0.88 A
-
Consumption (max)10.5 W
-
Energy consumption (Power over Ethernet (PoE))12.5 W
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Weight and dimensions
-
Diameter105 mm
-
Product length287.6 mm
-
Weight1155 g
Packaging information
-
Package width386 mm
-
Package depth156 mm
-
Package height155 mm
-
Package weight1659 g
