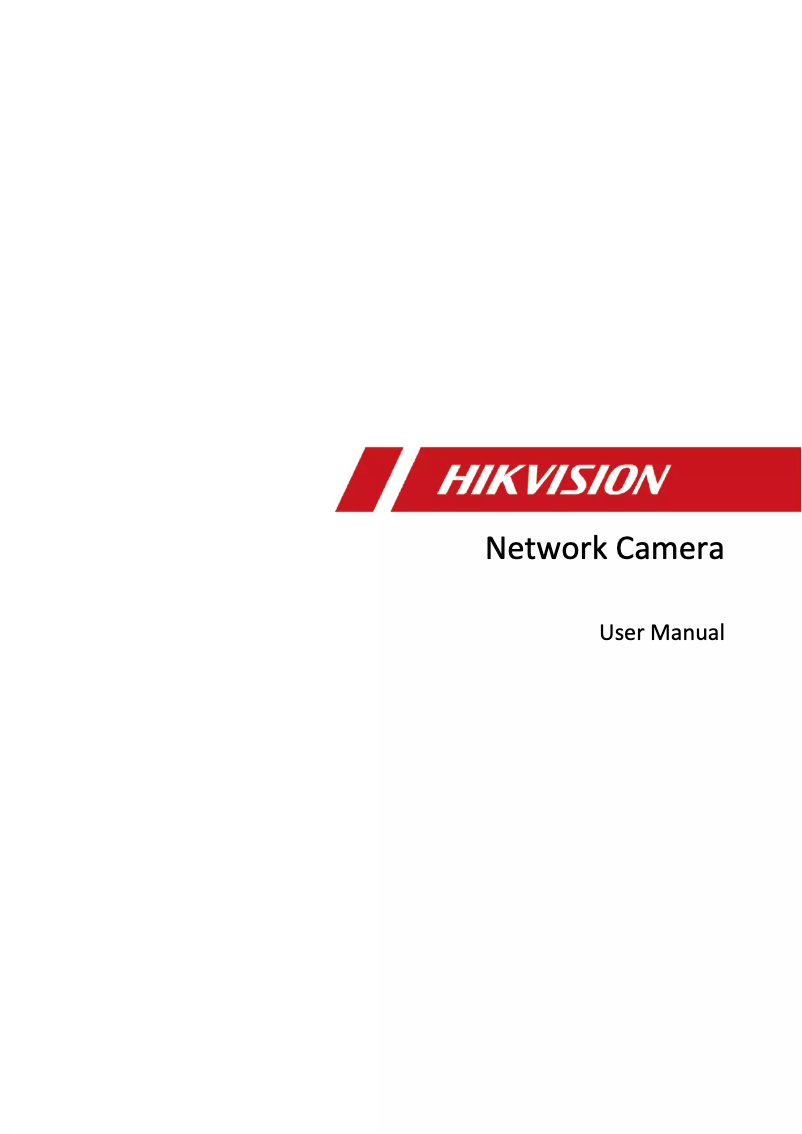

Manuals of product DS-2CD2T87G2-L
Technical Specifications DS-2CD2T87G2-L
General Information
-
ModelDS-2CD2T87G2-L
-
Brand
-
Category
-
Type
-
SKU1329025
-
MPN1329025
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Number of languages33
-
CertificationFCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
-
IC VoC (ICES-003: Issue 6, 2016)
-
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP67
-
Material of the case/bodyMetal
Image sensor
-
Progressive scanYes
-
Number of sensors1
-
Optical sensor size1/1.2 "
-
Sensor typeCMOS
Objective system
-
Maximum number of openings1
-
Fixed Focal Length2.8 mm
-
Maximum number of openings1
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 360 °
-
Inclination angle0 - 90 °
-
Rotation angle360 °
-
Camera shutter speed1/3 - 1/100000 s
-
Field of view of the lens, horizontal102 °
-
Angle of view of the lens, vertical52 °
-
Angle of view of the lens, diagonal124 °
Network
-
Type of Ethernet interfaceFast Ethernet
-
Ethernet/LANYes
-
Number of users32 user(s)
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
Night vision
-
Night vision distance60 m
-
Night visionYes
Video
-
Maximum resolution3840 x 2160 pixels
-
Total megapixels8 MP
-
Supported graphic resolutions320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520,3072 x 1728,3840 x 2160
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Number of images per second30 ips
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Masking of personal dataYes
-
Bitrate32 Kbps - 16 Mbps
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise reduction
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Packaging contents
-
Number of cameras1
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Security
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Change of environment
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
-
Output CC in amperes0.7 A
-
Energy consumption (Power over Ethernet (PoE))9.5 W
-
Consumption (max)8.5 W
Weight and dimensions
-
Product length289.5 mm
-
Diameter105 mm
-
Weight1260 g
Packaging information
-
Package weight1931 g
Sustainability
-
Sustainability certificatesREACH
-
RoHS
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD2T87G2-L specifications from brand Hikvision
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD2T87G2-L is 1. These ports provide a stable and fast network connection for your devices.
Storage support
Does the Hikvision DS-2CD2T87G2-L have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD2T87G2-L has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD2T87G2-L is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD2T87G2-L have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Generalities
The brand of the product Hikvision DS-2CD2T87G2-L is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CD2T87G2-L is 6941264076018. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD2T87G2-L is DS-2CD2T87G2-L | DS-2CD2T87G2-L(2.8MM). This model ensures optimal performance and an enhanced user experience.
Representation / realization
The type of product Hikvision DS-2CD2T87G2-L is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD2T87G2-L supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CD2T87G2-L features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD2T87G2-L have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD2T87G2-L have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The number of languages of the product Hikvision DS-2CD2T87G2-L is 33. This product offers an enriching multilingual experience. The certification of the product Hikvision DS-2CD2T87G2-L contains FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);\nIC VoC (ICES-003: Issue 6, 2016)\nUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014). This certification guarantees compliance with the required safety and performance standards.
Image sensor
Does the product Hikvision DS-2CD2T87G2-L have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2CD2T87G2-L is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD2T87G2-L is 1/1.2 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD2T87G2-L is 1. This number of sensors allows for precise and efficient image detection.
Design
The format of the product Hikvision DS-2CD2T87G2-L is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD2T87G2-L is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD2T87G2-L is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2CD2T87G2-L contains IP67. This code indicates the level of protection against solid objects and moisture. The material of the product case Hikvision DS-2CD2T87G2-L is Métal. This material ensures both durability and elegance.
Objective system
The product goal system Hikvision DS-2CD2T87G2-L has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2CD2T87G2-L is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD2T87G2-L is 1. This feature allows for optimal use and increased flexibility.
Night vision
The night vision distance of the product Hikvision DS-2CD2T87G2-L is 60 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD2T87G2-L have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Camera
The minimum illumination of the product Hikvision DS-2CD2T87G2-L is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2CD2T87G2-L camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Hikvision DS-2CD2T87G2-L have a camera pan command? No. This feature is not available on this model. The panoramic view of the product Hikvision DS-2CD2T87G2-L is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CD2T87G2-L is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD2T87G2-L is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CD2T87G2-L is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2CD2T87G2-L lens is 102 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD2T87G2-L is 52 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD2T87G2-L is 124 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Network
Does the product Hikvision DS-2CD2T87G2-L have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Hikvision DS-2CD2T87G2-L is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2CD2T87G2-L are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2CD2T87G2-L is 32 utilisateur(s). This product is ideal for several people. The network standards of the product Hikvision DS-2CD2T87G2-L are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2CD2T87G2-L have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD2T87G2-L contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD2T87G2-L have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Packaging contents
The number of cameras of the product Hikvision DS-2CD2T87G2-L is 1. This product is equipped with a camera that allows capturing high-quality images.
Management features
The Hikvision DS-2CD2T87G2-L product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD2T87G2-L system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD2T87G2-L have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Hikvision DS-2CD2T87G2-L have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Video
The maximum resolution of the product Hikvision DS-2CD2T87G2-L is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2CD2T87G2-L is 8 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hikvision DS-2CD2T87G2-L are 320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520,3072 x 1728,3840 x 2160. These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD2T87G2-L has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product Hikvision DS-2CD2T87G2-L is 30 ips. This specification ensures optimal smoothness when playing videos. The binary bitrate control of the product Hikvision DS-2CD2T87G2-L contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product Hikvision DS-2CD2T87G2-L have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD2T87G2-L have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The bit rate of the product Hikvision DS-2CD2T87G2-L is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD2T87G2-L have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD2T87G2-L have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2CD2T87G2-L features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD2T87G2-L have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CD2T87G2-L have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product Hikvision DS-2CD2T87G2-L contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience.
Security
Does the Hikvision DS-2CD2T87G2-L have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product Hikvision DS-2CD2T87G2-L have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The Hikvision DS-2CD2T87G2-L has a heart rate. This feature allows you to monitor your health in real time. The intelligent video surveillance system of the product Hikvision DS-2CD2T87G2-L has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2CD2T87G2-L have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD2T87G2-L have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2CD2T87G2-L product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Environmental conditions
The relative humidity (storage) rate of the product Hikvision DS-2CD2T87G2-L is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The product Hikvision DS-2CD2T87G2-L has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hikvision DS-2CD2T87G2-L is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision DS-2CD2T87G2-L is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The length of the product Hikvision DS-2CD2T87G2-L is 289.5 mm. This dimension is essential to ensure optimal use. The diameter of the product Hikvision DS-2CD2T87G2-L is 105 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD2T87G2-L is 1260 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The weight of the Hikvision DS-2CD2T87G2-L package is 1931 g. This weight ensures optimal protection during transport and delivery.
Sustainability
The product Hikvision DS-2CD2T87G2-L has Sustainability Certificates: REACH, RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Power
The product Hikvision DS-2CD2T87G2-L has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product Hikvision DS-2CD2T87G2-L has a DC output in amperes of 0.7 A. This specification ensures a stable power supply suitable for your needs. The energy consumption of the product Hikvision DS-2CD2T87G2-L is 9.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hikvision DS-2CD2T87G2-L is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD2T87G2-L is 8.5 W. This specification allows for the assessment of the energy efficiency of the device.
