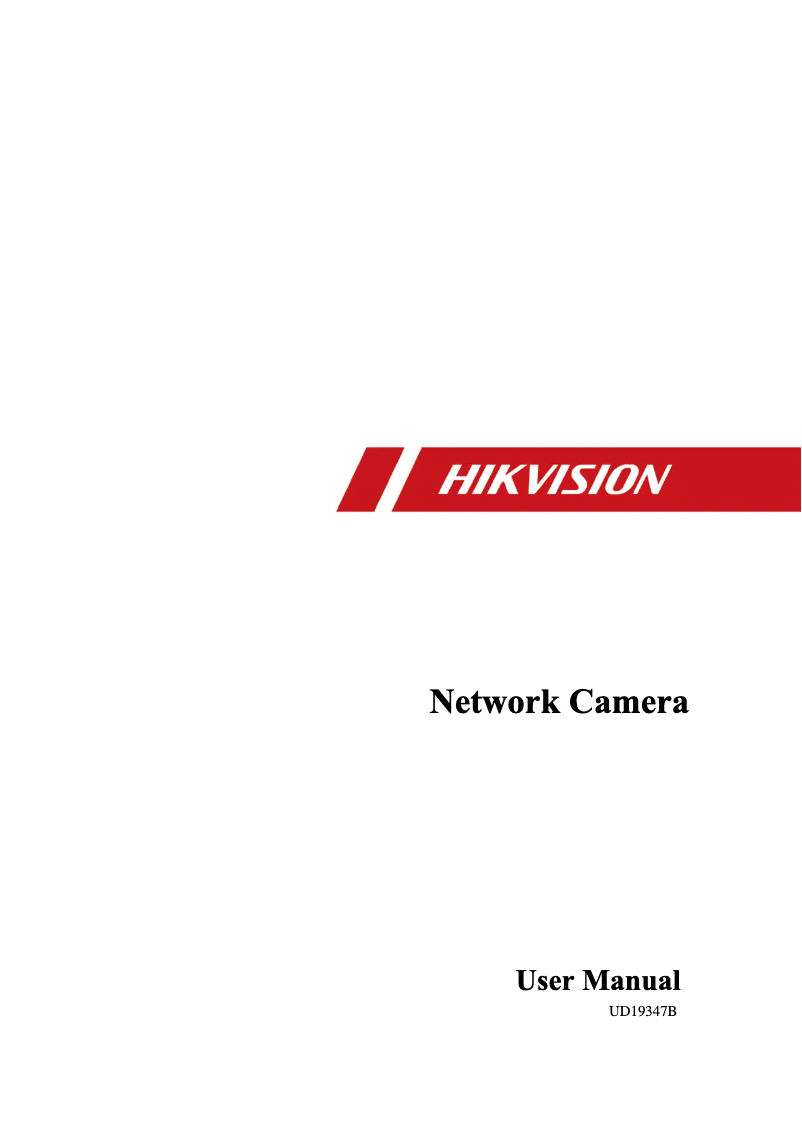

Manual of product DS-2CD3T25G0-4IS
Technical Specifications DS-2CD3T25G0-4IS
General Information
-
ModelDS-2CD3T25G0-4IS
-
Brand
-
Category
-
Type
-
SKU1447991
-
MPN1447991
Representation / realization
-
Supported installation-
-
TypeIP security camera
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Number of languages32
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels6 channels
-
Ethernet/LANYes
-
SIM card locationNo
-
SIM card locationNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
-
SIM card locationNo
Storage support
-
Built-in SSDNo
-
Built-in SSDNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP67
Security
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Functions of the IVS system (intelligent video surveillance)Face detection, Crossing line, Intrusion
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
-
Digest AuthenticationYes
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
-
Rotation angle360 °
-
Field of view of the lens, horizontal108 °
-
Angle of view of the lens, vertical59 °
-
Angle of view of the lens, diagonal129 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 360 °
-
Camera shutter speed1/3 - 1/100000 s
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Power
-
Power supply typeDC, PoE
-
Consumption (max)10 W
-
Energy consumption (Power over Ethernet (PoE))12 W
-
Output CC in amperes0.33 A
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Objective system
-
Number of lenses1
-
Fixed focusYes
-
Fixed Focal Length2.8 mm
Weight and dimensions
-
Diameter105 mm
-
Product length325.5 mm
-
Weight1100 g
Packaging information
-
Package width386 mm
-
Package depth156 mm
-
Package height155 mm
-
Package weight1800 g
-
Type of packagingBox
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Packaging contents
-
Number of cameras1
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsM-JPEG, H.264, H.265
-
Supported graphic resolutions1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 320 x 240, 640 x 480 (VGA)
-
Coding of the region of interestYes
-
Number of images per second60 fps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Noise reduction technology3D digital noise reduction
-
Gain control typeAuto
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Coding of the region of interestYes
-
Bitrate32 Kbps - 16 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Audio
-
Built-in speakersNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD3T25G0-4IS specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD3T25G0-4IS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD3T25G0-4IS is DS-2CD3T25G0-4IS | DS-2CD3T25G0-4IS(B)(2.8MM). This model ensures optimal performance and an enhanced user experience.
Storage support
Does the Hikvision DS-2CD3T25G0-4IS have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2CD3T25G0-4IS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the product Hikvision DS-2CD3T25G0-4IS have a built-in SSD? No. This feature means that the product does not have pre-installed SSD storage. The product Hikvision DS-2CD3T25G0-4IS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD3T25G0-4IS is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Network
The user access level of the product Hikvision DS-2CD3T25G0-4IS contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. The number of users of the product Hikvision DS-2CD3T25G0-4IS is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD3T25G0-4IS have a live view? Oui. This feature allows you to see in real-time what the camera captures. Does the product Hikvision DS-2CD3T25G0-4IS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of simultaneous live viewing channels for the product Hikvision DS-2CD3T25G0-4IS is 6 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. Does the product Hikvision DS-2CD3T25G0-4IS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD3T25G0-4IS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD3T25G0-4IS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2CD3T25G0-4IS is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2CD3T25G0-4IS are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD3T25G0-4IS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the Hikvision DS-2CD3T25G0-4IS have a SIM card slot? No. This product does not have that feature.
Representation / realization
The type of product Hikvision DS-2CD3T25G0-4IS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD3T25G0-4IS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2CD3T25G0-4IS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2CD3T25G0-4IS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD3T25G0-4IS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD3T25G0-4IS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The number of languages of the product Hikvision DS-2CD3T25G0-4IS is 32. This product offers an enriching multilingual experience.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD3T25G0-4IS is 1. These ports provide a stable and fast network connection for your devices. Does the product Hikvision DS-2CD3T25G0-4IS have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack.
Design
The format of the product Hikvision DS-2CD3T25G0-4IS is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision DS-2CD3T25G0-4IS is Métal. This material ensures both durability and elegance. The mounting type of the product Hikvision DS-2CD3T25G0-4IS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD3T25G0-4IS is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2CD3T25G0-4IS contains IP67. This code indicates the level of protection against solid objects and moisture.
Image sensor
Does the product Hikvision DS-2CD3T25G0-4IS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product Hikvision DS-2CD3T25G0-4IS is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD3T25G0-4IS is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD3T25G0-4IS is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Power
The type of power source for the product Hikvision DS-2CD3T25G0-4IS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CD3T25G0-4IS has a DC output in amperes of 0.33 A. This specification ensures a stable power supply suitable for your needs. The maximum consumption of the product Hikvision DS-2CD3T25G0-4IS is 10 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2CD3T25G0-4IS is 12 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Camera
Does the product Hikvision DS-2CD3T25G0-4IS have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision DS-2CD3T25G0-4IS is 0 lux. This feature ensures optimal performance even in low light conditions. The rotation angle of the product Hikvision DS-2CD3T25G0-4IS is 360 °. This angle allows for optimal usage flexibility. The tilt command of the Hikvision DS-2CD3T25G0-4IS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The field of view of the Hikvision DS-2CD3T25G0-4IS lens is 108 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD3T25G0-4IS is 59 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The panoramic view of the product Hikvision DS-2CD3T25G0-4IS is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD3T25G0-4IS is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD3T25G0-4IS is 129 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hikvision DS-2CD3T25G0-4IS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort.
Security
Does the product Hikvision DS-2CD3T25G0-4IS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD3T25G0-4IS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD3T25G0-4IS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD3T25G0-4IS have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2CD3T25G0-4IS have Privacy Protection? Oui. This feature ensures the security of your personal data and enhances your trust in using the product. The intelligent video surveillance system of the product Hikvision DS-2CD3T25G0-4IS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2CD3T25G0-4IS have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. Does the Hikvision DS-2CD3T25G0-4IS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD3T25G0-4IS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD3T25G0-4IS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD3T25G0-4IS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the product Hikvision DS-2CD3T25G0-4IS have Email password reset? Oui. This feature allows users to easily regain access to their account in case of a forgotten password, thereby enhancing the security of their personal information. The product Hikvision DS-2CD3T25G0-4IS has a pixel counter. This device allows tracking user interactions on the site, thereby enhancing data security. Does the product Hikvision DS-2CD3T25G0-4IS have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources. Does the product Hikvision DS-2CD3T25G0-4IS have Digest authentication? Oui. This feature ensures enhanced security during information exchanges.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD3T25G0-4IS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD3T25G0-4IS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Objective system
The number of lenses in the product Hikvision DS-2CD3T25G0-4IS is 1. This number determines the quality and versatility of the lens. The product goal system Hikvision DS-2CD3T25G0-4IS has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. Is the Hikvision DS-2CD3T25G0-4IS product fixed focus? No. This product is designed to provide optimal usage flexibility.
Packaging information
The width of the package of the product Hikvision DS-2CD3T25G0-4IS is 386 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD3T25G0-4IS package is 1800 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD3T25G0-4IS is 156 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Hikvision DS-2CD3T25G0-4IS is 155 mm. This dimension is essential to ensure optimal transport and storage. The packaging type of the product Hikvision DS-2CD3T25G0-4IS is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Weight and dimensions
The diameter of the product Hikvision DS-2CD3T25G0-4IS is 105 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD3T25G0-4IS is 1100 g. This weight is ideal for ensuring optimal use and easy handling. The length of the product Hikvision DS-2CD3T25G0-4IS is 325.5 mm. This dimension is essential to ensure optimal use.
Night vision
The night vision distance of the product Hikvision DS-2CD3T25G0-4IS is 40 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CD3T25G0-4IS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD3T25G0-4IS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The infrared wavelength of the product Hikvision DS-2CD3T25G0-4IS is 850 nm. This feature allows for optimal use in various technological applications.
Packaging contents
The number of cameras of the product Hikvision DS-2CD3T25G0-4IS is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
Does the product Hikvision DS-2CD3T25G0-4IS have built-in speakers? Non. These speakers provide an immersive and convenient audio experience.
Video
The total megapixels of the product Hikvision DS-2CD3T25G0-4IS is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD3T25G0-4IS is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD3T25G0-4IS has visual compression formats: M-JPEG, H.264, H.265. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2CD3T25G0-4IS are 1920 x 1080 (HD 1080),1280 x 720 (HD 720),320 x 240,640 x 480 (VGA). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2CD3T25G0-4IS have a Video Recording? Oui. This feature allows you to capture moving moments with optimal quality. The number of frames per second of the product Hikvision DS-2CD3T25G0-4IS is 60 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision DS-2CD3T25G0-4IS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CD3T25G0-4IS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD3T25G0-4IS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The gain control type of the product Hikvision DS-2CD3T25G0-4IS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The image quality setting of the product Hikvision DS-2CD3T25G0-4IS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD3T25G0-4IS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The bit rate of the product Hikvision DS-2CD3T25G0-4IS is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD3T25G0-4IS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD3T25G0-4IS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD3T25G0-4IS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
