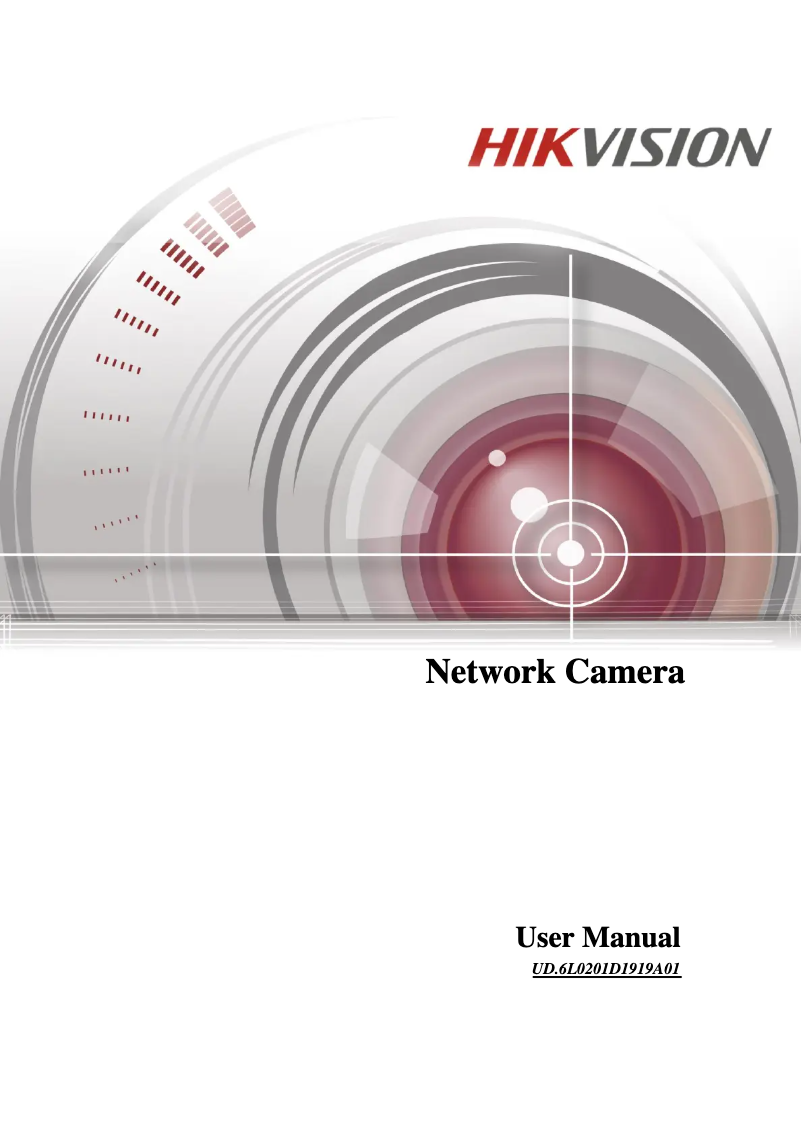

Manual of product DS-2CD4A35FWD-IZH
Technical Specifications DS-2CD4A35FWD-IZH
General Information
-
ModelDS-2CD4A35FWD-IZH
-
Brand
-
Category
-
Type
-
SKU775623
-
MPN775623
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Remote visualizationYes
-
Remote visualizationYes
-
Remote visualizationYes
-
Remote visualizationYes
-
PTZ ControlNo
-
Remote visualizationYes
Design
-
FormatTerminal
-
Product colorWhite
-
Mounting typeCeiling/wall
-
Weather-resistantYes
-
International Protection Code (IP)IP67
Video
-
Maximum resolution2048 x 1536 pixels
-
Masking of personal dataYes
-
Visual compression formatsH.264, M-JPEG
-
Visual compression formatsH.264, M-JPEG
-
Number of images per second30 fps
-
Total megapixels3 MP
-
Masking of personal dataYes
-
Supported graphic resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
-
Supported video modes720p, 1080p
-
Image quality adjustmentBrightness, Contrast, Saturation
-
Masking of personal dataYes
-
Masking of personal dataYes
Objective system
-
Auto focusYes
-
Focal length- mm
-
Maximum number of openings1.4
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage24 V
-
Consumption (max)15.5 W
-
Power supply typePoE
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1 - 100000 s
Packaging contents
-
Number of cameras1
Technical details
-
IrisYes
Storage support
-
Integrated hard driveYes
-
Integrated hard driveYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Night vision
-
Night visionYes
-
Night vision distance50 m
-
Type of LEDIR
Network
-
Quality of Service (QoS)Yes
-
WifiNo
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
-
Quality of Service (QoS)Yes
-
Network standardsIEEE 802.1x, IEEE 802.3at
Audio
-
Audio detectionYes
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Security-supported algorithmHTTPS, SNMP
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Weight2000 g
-
Width100 mm
-
Depth311.8 mm
-
Height103.9 mm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD4A35FWD-IZH specifications from brand Hikvision
Generalities
The EAN code of the product Hikvision DS-2CD4A35FWD-IZH is 813908021288, 0813908021288. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD4A35FWD-IZH is DS-2CD4A35FWD-IZH | DS-2CD4A35FWD-IZH. This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2CD4A35FWD-IZH is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Design
The format of the product Hikvision DS-2CD4A35FWD-IZH is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD4A35FWD-IZH is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD4A35FWD-IZH is Blanc. This shade gives it a modern and elegant look. Is the Hikvision DS-2CD4A35FWD-IZH weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The International Protection Code (IP) for product Hikvision DS-2CD4A35FWD-IZH contains IP67. This code indicates the level of protection against solid objects and moisture.
Representation / realization
The type of product Hikvision DS-2CD4A35FWD-IZH is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2CD4A35FWD-IZH features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2CD4A35FWD-IZH supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD4A35FWD-IZH have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD4A35FWD-IZH have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD4A35FWD-IZH have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2CD4A35FWD-IZH have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The Hikvision DS-2CD4A35FWD-IZH product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The PTZ control of the product Hikvision DS-2CD4A35FWD-IZH is Non. This control allows for precise and efficient management of pan, tilt, and zoom.
Video
The maximum resolution of the product Hikvision DS-2CD4A35FWD-IZH is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video format of the product Hikvision DS-2CD4A35FWD-IZH contains H.264, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. Does the product Hikvision DS-2CD4A35FWD-IZH have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD4A35FWD-IZH has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product Hikvision DS-2CD4A35FWD-IZH is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2CD4A35FWD-IZH is 3 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CD4A35FWD-IZH have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The supported video mode of the product Hikvision DS-2CD4A35FWD-IZH is 720p, 1080p. This mode allows you to enjoy optimal image quality for your videos. The image quality setting of the product Hikvision DS-2CD4A35FWD-IZH contains Brightness, Contrast, Saturation. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD4A35FWD-IZH have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The supported graphic resolutions of the product Hikvision DS-2CD4A35FWD-IZH are 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2CD4A35FWD-IZH have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Power
Does the Hikvision DS-2CD4A35FWD-IZH have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The maximum consumption of the product Hikvision DS-2CD4A35FWD-IZH is 15.5 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hikvision DS-2CD4A35FWD-IZH is PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2CD4A35FWD-IZH is 24 V. This specification ensures optimal compatibility with standard electrical systems.
Objective system
Does the Hikvision DS-2CD4A35FWD-IZH have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The focal length of the product Hikvision DS-2CD4A35FWD-IZH is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hikvision DS-2CD4A35FWD-IZH is 1.4. This feature allows for optimal use and increased flexibility.
Image sensor
The sensor type of the product Hikvision DS-2CD4A35FWD-IZH is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD4A35FWD-IZH is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2CD4A35FWD-IZH have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The minimum illumination of the product Hikvision DS-2CD4A35FWD-IZH is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD4A35FWD-IZH is 1 - 100000 s. This feature allows capturing sharp images even in low light conditions.
Packaging contents
The number of cameras of the product Hikvision DS-2CD4A35FWD-IZH is 1. This product is equipped with a camera that allows capturing high-quality images.
Technical details
Is the product Hikvision DS-2CD4A35FWD-IZH equipped with Iris? Oui. This specification indicates an essential feature of the product.
Storage support
Does the Hikvision DS-2CD4A35FWD-IZH have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2CD4A35FWD-IZH is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD4A35FWD-IZH have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD4A35FWD-IZH has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Night vision
Does the product Hikvision DS-2CD4A35FWD-IZH have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CD4A35FWD-IZH is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CD4A35FWD-IZH is 50 m. This feature allows for clear and precise observation even in darkness.
Audio
Does the product Hikvision DS-2CD4A35FWD-IZH have Audio Detection? Oui. This feature allows capturing and analyzing surrounding sounds for an enhanced audio experience.
Network
Does the product Hikvision DS-2CD4A35FWD-IZH have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the product Hikvision DS-2CD4A35FWD-IZH have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD4A35FWD-IZH are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Hikvision DS-2CD4A35FWD-IZH contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The network standards of the product Hikvision DS-2CD4A35FWD-IZH are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols.
Security
Does the product Hikvision DS-2CD4A35FWD-IZH have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2CD4A35FWD-IZH have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. The supported security algorithm of the product Hikvision DS-2CD4A35FWD-IZH contains HTTPS, SNMP. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2CD4A35FWD-IZH product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Environmental conditions
The product Hikvision DS-2CD4A35FWD-IZH has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD4A35FWD-IZH is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The height of the product Hikvision DS-2CD4A35FWD-IZH is 103.9 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2CD4A35FWD-IZH is 311.8 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-2CD4A35FWD-IZH is 2000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-2CD4A35FWD-IZH is 100 mm. This dimension is essential to ensure optimal integration into your space.
