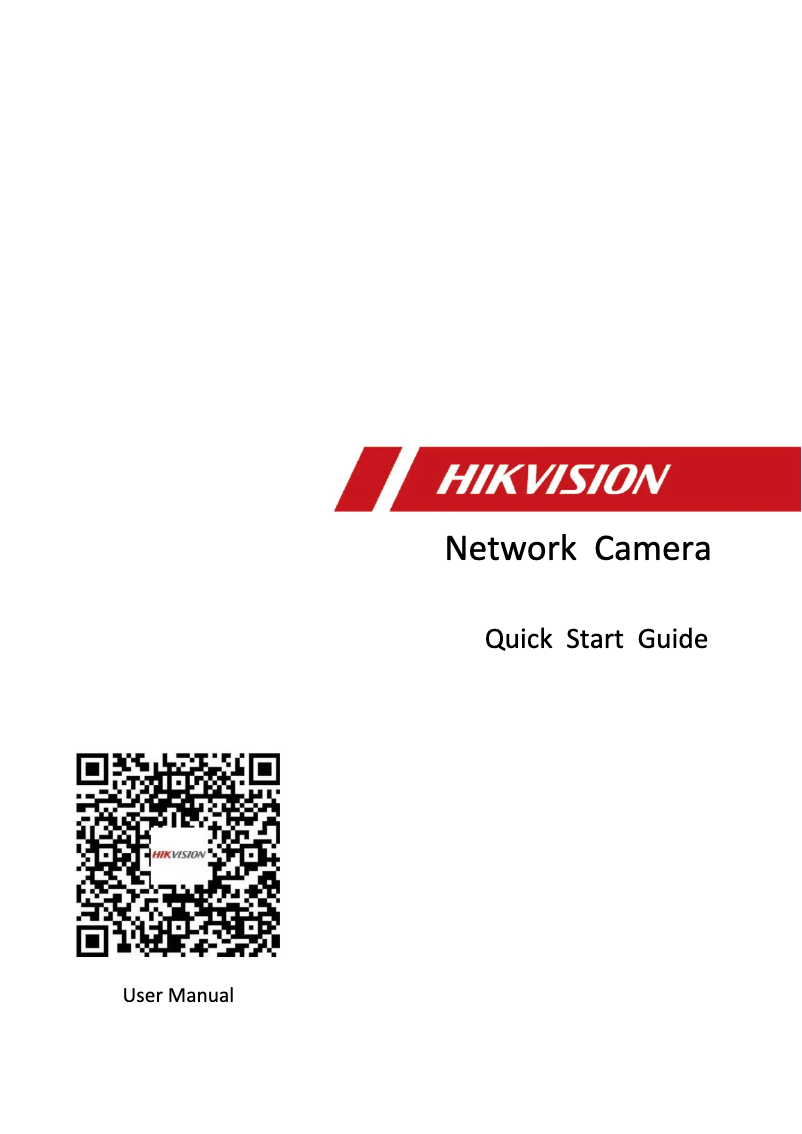

Manuals of product DS-2CD5026G0
Technical Specifications DS-2CD5026G0
General Information
-
ModelDS-2CD5026G0
-
Brand
-
Category
-
Type
-
SKU1098632
-
MPN1098632
Video
-
Total megapixels2 MP
-
Coding of the region of interestYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Number of images per second60 fps
-
Maximum resolution1920 x 1080 pixels
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Bitrate32 Kbps - 16 Mbps
-
Gain control typeAuto
-
Supported graphic resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Noise reduction technology3D digital noise reduction
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/1.8 "
Camera
-
Minimum illumination0.0002 lux
-
Camera shutter speed1 - 1/100000 s
Representation / realization
-
Supported installation-
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
TypeIP security camera
-
CertificationIC: IC-VoC(ICES-003 Issue 7:2020),
-
FCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B),
-
KC: KN32:2015, KN35:2015,
-
CE: CE-EMC(EN 55024:2010 +A1:2015, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013),
-
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
-
CB: IEC 60950-1,
-
UL: UL 60950-1:2014, CAN/CSA C22.2 No. 60950-1-07:2014,
-
LOA: SANS IEC60950-1,
-
BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
-
CE: CE-RoHS(2011/65/EU, 2012/19/EU),
-
REACH SVHC: Regulation (EC) No 1907/2006
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
Functions of the IVS system (intelligent video surveillance)Defocus, Face detection, Scene change
Network
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Ethernet/LANHTTP
-
Wiring technologyHTTPS
-
WifiFTP
-
Ethernet/LANDHCP
-
WifiDNS
-
Type of Ethernet interfaceDDNS
-
Number of usersRTP
-
User access levelRTSP
-
RTCP
-
PPPoE
-
NTP
-
UPnP
-
SMTP
-
SNMP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
IEEE 802.1x
-
IEEE 802.3af
-
Yes
-
10/100/1000Base-T(X)
-
No
-
Yes
-
No
-
Gigabit Ethernet
-
32 user(s)
-
Administrator
-
Operator
-
User
Connectivity
-
Component output1
-
Component output1
-
Component output1
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Audio CodecsG.711/G.722.1/G.726/MP2L2/PCM
-
Sampling frequency48 kHz
Management features
-
Web BrowserYes
-
Behavior analysisIntrusion detection
-
Web BrowserLine crossing detection
-
Object removal detection
-
Region entrance detection
-
Region exiting detection
-
Unattended baggage detection
-
Yes
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Power supply typeAC, DC, PoE
-
Output CC in volts12
-
AC input voltage24 V
-
Consumption (max)10 W
-
Output CC in amperes0.8 A
Weight and dimensions
-
Width69.8 mm
-
Depth142.6 mm
-
Height68 mm
-
Weight690 g
Packaging information
-
Package depth140 mm
-
Package depth140 mm
-
Package height315 mm
-
Package weight975 g
Objective system
-
Number of lenses-
-
Maximum number of openings1.2
Packaging contents
-
Number of cameras1
Night vision
-
Night vision-
Design
-
Mounting type-
-
FormatBox
-
Product colorBlack, White
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD5026G0 specifications from brand Hikvision
Generalities
The EAN code of the product Hikvision DS-2CD5026G0 is 0842571117738, 6954273650063. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CD5026G0 is DS-2CD5026G0 | DS-2CD5026G0. This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2CD5026G0 is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Image sensor
Does the product Hikvision DS-2CD5026G0 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD5026G0 is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2CD5026G0 is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2CD5026G0 is 1. This number of sensors allows for precise and efficient image detection.
Camera
The minimum illumination of the product Hikvision DS-2CD5026G0 is 0.0002 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD5026G0 is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Representation / realization
The product Hikvision DS-2CD5026G0 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD5026G0 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD5026G0 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD5026G0 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD5026G0 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision DS-2CD5026G0 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD5026G0 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The certification of the product Hikvision DS-2CD5026G0 contains IC: IC-VoC(ICES-003 Issue 7:2020), \n\nFCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B), \n\nKC: KN32:2015, KN35:2015, \n\nCE: CE-EMC(EN 55024:2010 +A1:2015, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013), \n\nRCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015\n\nCB: IEC 60950-1, \n\nUL: UL 60950-1:2014, CAN/CSA C22.2 No. 60950-1-07:2014, \n\nLOA: SANS IEC60950-1, \n\nBIS: IS 13252(Part 1)2010+A1:2013+A2:2015\n\nCE: CE-RoHS(2011/65/EU, 2012/19/EU), \n\nREACH SVHC: Regulation (EC) No 1907/2006. This certification guarantees compliance with the required safety and performance standards.
Video
Does the product Hikvision DS-2CD5026G0 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The total megapixels of the product Hikvision DS-2CD5026G0 is 2 MP. This total ensures exceptional image quality for your photos. The product Hikvision DS-2CD5026G0 has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product Hikvision DS-2CD5026G0 is 60 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2CD5026G0 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2CD5026G0 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD5026G0 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2CD5026G0 have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The image quality setting of the product Hikvision DS-2CD5026G0 contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD5026G0 have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The bit rate of the product Hikvision DS-2CD5026G0 is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The gain control type of the product Hikvision DS-2CD5026G0 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The supported graphic resolutions of the product Hikvision DS-2CD5026G0 are 640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hikvision DS-2CD5026G0 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience.
Storage support
Does the Hikvision DS-2CD5026G0 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2CD5026G0 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2CD5026G0 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD5026G0 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD5026G0 is 1. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Hikvision DS-2CD5026G0 contains 1. This port allows for robust serial communication and is ideal for industrial applications. The output component of the product Hikvision DS-2CD5026G0 contains 1. This specification ensures optimal connectivity for efficient use.
Security
Does the Hikvision DS-2CD5026G0 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD5026G0 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD5026G0 have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the Hikvision DS-2CD5026G0 have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD5026G0 has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD5026G0 have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the product Hikvision DS-2CD5026G0 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD5026G0 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The intelligent video surveillance system of the product Hikvision DS-2CD5026G0 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Audio
The audio codecs of the product Hikvision DS-2CD5026G0 contain G.711/G.722.1/G.726/MP2L2/PCM. These codecs ensure optimal sound quality and a smooth listening experience. The audio output channels of the Hikvision DS-2CD5026G0 are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Hikvision DS-2CD5026G0 is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The sampling frequency of the product Hikvision DS-2CD5026G0 is 48 kHz. This feature ensures optimal sound quality for your recordings.
Network
The supported network protocols of the product Hikvision DS-2CD5026G0 are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hikvision DS-2CD5026G0 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2CD5026G0 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The wiring technology of the product Hikvision DS-2CD5026G0 contains 10/100/1000Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the Hikvision DS-2CD5026G0 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2CD5026G0 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of users of the product Hikvision DS-2CD5026G0 is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision DS-2CD5026G0 contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. The Wifi of the product Hikvision DS-2CD5026G0 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Hikvision DS-2CD5026G0 is Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Management features
Does the product Hikvision DS-2CD5026G0 have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Hikvision DS-2CD5026G0 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD5026G0 have a Reset Button? Oui. This button allows you to easily reset the product settings.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD5026G0 is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD5026G0 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Power
The type of power source for the product Hikvision DS-2CD5026G0 is AC, DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD5026G0 is 10 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD5026G0 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The AC input voltage of the Hikvision DS-2CD5026G0 is 24 V. This specification ensures optimal compatibility with standard electrical systems. The product Hikvision DS-2CD5026G0 has a DC output in amperes of 0.8 A. This specification ensures a stable power supply suitable for your needs.
Weight and dimensions
The width of the product Hikvision DS-2CD5026G0 is 69.8 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-2CD5026G0 is 68 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2CD5026G0 is 142.6 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-2CD5026G0 is 690 g. This weight is ideal for ensuring optimal use and easy handling.
Objective system
The maximum number of openings for the product Hikvision DS-2CD5026G0 is 1.2. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2CD5026G0 is -. This number determines the quality and versatility of the lens.
Packaging information
The width of the package of the product Hikvision DS-2CD5026G0 is 140 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Hikvision DS-2CD5026G0 is 140 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the Hikvision DS-2CD5026G0 package is 975 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Hikvision DS-2CD5026G0 is 315 mm. This dimension is essential to ensure optimal transport and storage.
Packaging contents
The number of cameras of the product Hikvision DS-2CD5026G0 is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Hikvision DS-2CD5026G0 have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Design
The mounting type of the product Hikvision DS-2CD5026G0 is -. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2CD5026G0 is Black, White. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2CD5026G0 is a bar. This format allows for practical and efficient use in various contexts.
