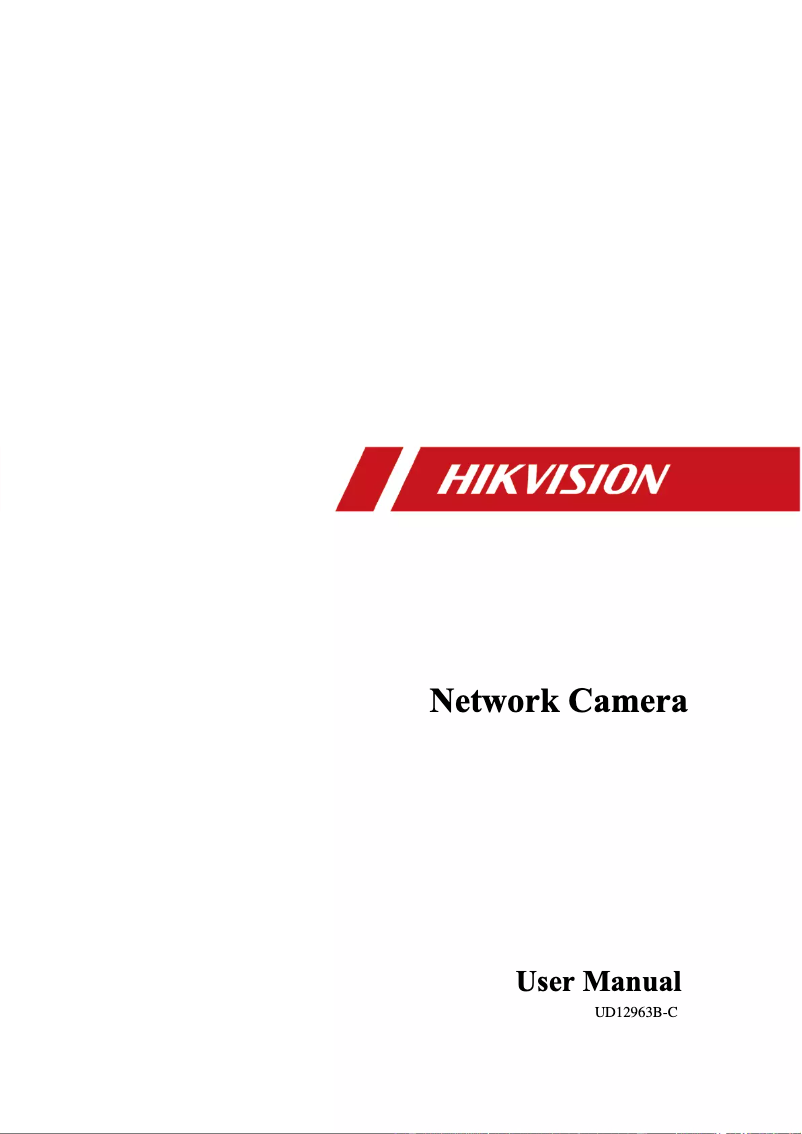

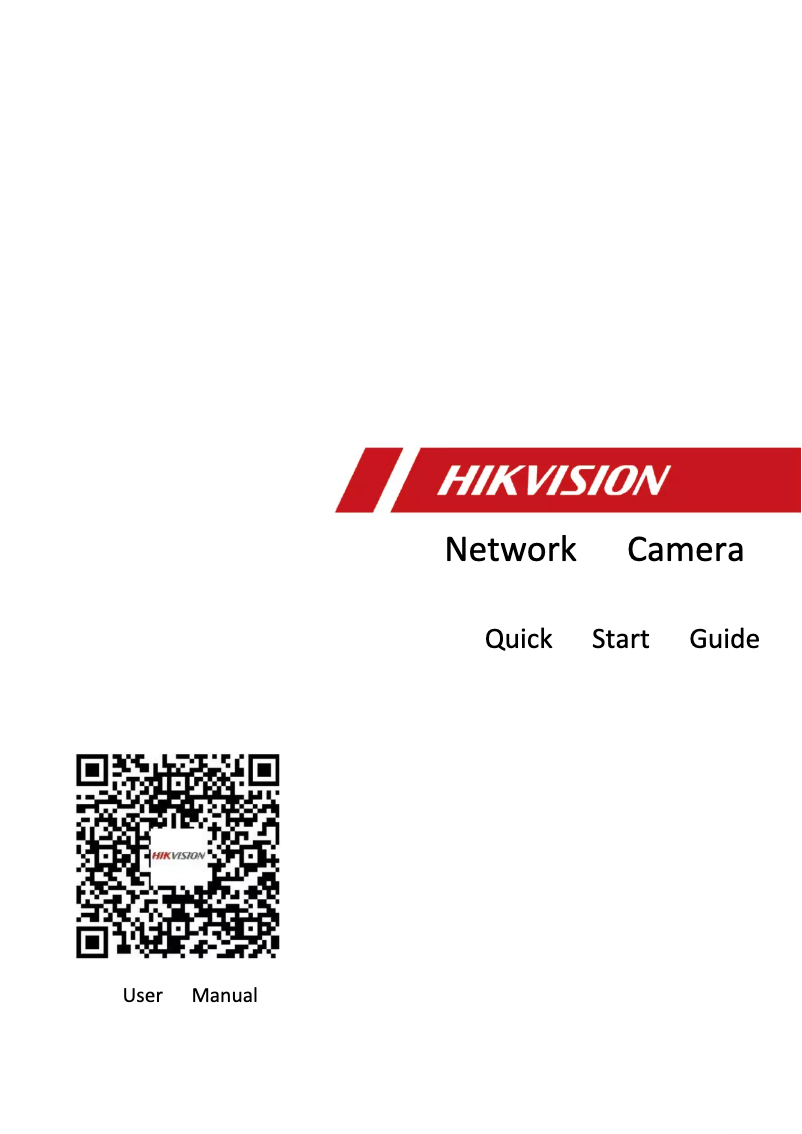

Manuals of product DS-2CD5526G0-IZS
Technical Specifications DS-2CD5526G0-IZS
General Information
-
ModelDS-2CD5526G0-IZS
-
Brand
-
Category
-
Type
-
SKU1841390
-
MPN1841390
Weight and dimensions
-
Weight1450 g
-
Diameter162 mm
-
Height140.3 mm
Packaging information
-
Package weight1950 g
-
Package width251 mm
-
Package depth215 mm
-
Package height189 mm
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
Material of the case/bodyAluminium
-
Product colorBlack, White
-
FormatDome
-
Mounting typeCeiling
Power
-
Output CC in volts12
-
Electricity consumption200 mA
-
Consumption (max)8.5 W
-
Power supply typeDC, PoE
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Integrated hard driveNo
-
Built-in memory card readerYes
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Defocus, Face detection, Intrusion, Scene change
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Packaging contents
-
Number of cameras1
Objective system
-
Focal length8 - 32 mm
-
TuningMotorized/manual
-
Number of lenses1
-
Auto focusYes
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonObject removal detection
-
Unattended baggage detection
-
Yes
-
Yes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Progressive scanYes
Camera
-
Camera shutter speed1 - 1/100000 s
-
Rotation angle355 °
-
Panoramic0 - 355 °
-
Inclination angle0 - 75 °
-
Minimum illumination0 lux
Video
-
3D NR (3D Noise Reduction)Yes
-
3D NR (3D Noise Reduction)Yes
-
3D NR (3D Noise Reduction)Yes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
3D NR (3D Noise Reduction)Yes
-
3D NR (3D Noise Reduction)Yes
-
Number of images per second60 fps
-
3D NR (3D Noise Reduction)Yes
-
3D NR (3D Noise Reduction)Yes
-
3D NR (3D Noise Reduction)Yes
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Audio
-
Voice codecsG.711
-
Sampling frequencyG.722.1
-
Audio output channelsG.726
-
Audio output channelsMP2L2
-
48 kHz
-
1 channel
-
1 channel
Connectivity
-
RS-485 ports1
-
RS-485 ports1
-
InterfaceRJ-45
Representation / realization
-
Connectivity technologyWith wire
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationIndoor and outdoor
Network
-
Number of users32 user(s)
-
Ethernet/LANYes
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceGigabit Ethernet
-
Wiring technology10/100/1000Base-T(X)
-
Network standardsIEEE 802.1x, IEEE 802.3at
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD5526G0-IZS specifications from brand Hikvision
Weight and dimensions
The height of the product Hikvision DS-2CD5526G0-IZS is 140.3 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2CD5526G0-IZS is 1450 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2CD5526G0-IZS is 162 mm. This diameter allows for optimal use and fits perfectly with your needs.
Generalities
The brand of the product Hikvision DS-2CD5526G0-IZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD5526G0-IZS is DS-2CD5526G0-IZS | DS-2CD5526G0-IZS(8-32MM). This model ensures optimal performance and an enhanced user experience.
Packaging information
The weight of the Hikvision DS-2CD5526G0-IZS package is 1950 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision DS-2CD5526G0-IZS is 215 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD5526G0-IZS is 251 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD5526G0-IZS is 189 mm. This dimension is essential to ensure optimal transport and storage.
Design
The color of the product Hikvision DS-2CD5526G0-IZS is Black, White. This shade gives it a modern and elegant look. The IK Code of the product Hikvision DS-2CD5526G0-IZS is IK10. This IK Code allows for easy identification of the specific design of the item. The material of the product case Hikvision DS-2CD5526G0-IZS is Aluminium. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD5526G0-IZS contains IP67. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2CD5526G0-IZS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD5526G0-IZS is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Power
The product Hikvision DS-2CD5526G0-IZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD5526G0-IZS is 8.5 W. This specification allows for the assessment of the energy efficiency of the device. The electrical consumption of the product Hikvision DS-2CD5526G0-IZS is 200 mA. This consumption ensures optimal operation while guaranteeing energy efficiency. The type of power source for the product Hikvision DS-2CD5526G0-IZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Night vision
Does the product Hikvision DS-2CD5526G0-IZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CD5526G0-IZS is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision DS-2CD5526G0-IZS is 850 nm. This feature allows for optimal use in various technological applications. The type of LED of the product Hikvision DS-2CD5526G0-IZS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Storage support
The product Hikvision DS-2CD5526G0-IZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD5526G0-IZS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD5526G0-IZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD5526G0-IZS have a built-in hard drive? No. This feature means that the product does not have internal storage.
Packaging contents
The number of cameras of the product Hikvision DS-2CD5526G0-IZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Security
The intelligent video surveillance system of the product Hikvision DS-2CD5526G0-IZS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2CD5526G0-IZS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the Hikvision DS-2CD5526G0-IZS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD5526G0-IZS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD5526G0-IZS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2CD5526G0-IZS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD5526G0-IZS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2CD5526G0-IZS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Management features
Does the product Hikvision DS-2CD5526G0-IZS have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD5526G0-IZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD5526G0-IZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Objective system
Does the Hikvision DS-2CD5526G0-IZS have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The focal length of the product Hikvision DS-2CD5526G0-IZS is 8 - 32 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The number of lenses in the product Hikvision DS-2CD5526G0-IZS is 1. This number determines the quality and versatility of the lens. The adjustment of the Hikvision DS-2CD5526G0-IZS is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Environmental conditions
The product Hikvision DS-2CD5526G0-IZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD5526G0-IZS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Image sensor
Does the product Hikvision DS-2CD5526G0-IZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product Hikvision DS-2CD5526G0-IZS is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD5526G0-IZS is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD5526G0-IZS is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Camera
The panoramic view of the product Hikvision DS-2CD5526G0-IZS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD5526G0-IZS is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The rotation angle of the product Hikvision DS-2CD5526G0-IZS is 355 °. This angle allows for optimal usage flexibility. The tilt angle of the product Hikvision DS-2CD5526G0-IZS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The minimum illumination of the product Hikvision DS-2CD5526G0-IZS is 0 lux. This feature ensures optimal performance even in low light conditions.
Audio
The voice codec of the Hikvision DS-2CD5526G0-IZS product contains G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The sampling frequency of the product Hikvision DS-2CD5526G0-IZS is 48 kHz. This feature ensures optimal sound quality for your recordings. The audio output channels of the Hikvision DS-2CD5526G0-IZS are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Hikvision DS-2CD5526G0-IZS is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Connectivity
The output component of the product Hikvision DS-2CD5526G0-IZS contains 1. This specification ensures optimal connectivity for efficient use. The product Hikvision DS-2CD5526G0-IZS has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The RS-485 port of the Hikvision DS-2CD5526G0-IZS contains 1. This port allows for robust serial communication and is ideal for industrial applications.
Video
Does the product Hikvision DS-2CD5526G0-IZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD5526G0-IZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision DS-2CD5526G0-IZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD5526G0-IZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD5526G0-IZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD5526G0-IZS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The number of frames per second of the product Hikvision DS-2CD5526G0-IZS is 60 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD5526G0-IZS have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Hikvision DS-2CD5526G0-IZS have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product Hikvision DS-2CD5526G0-IZS have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The maximum resolution of the product Hikvision DS-2CD5526G0-IZS is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2CD5526G0-IZS is 2 MP. This total ensures exceptional image quality for your photos. The product Hikvision DS-2CD5526G0-IZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2CD5526G0-IZS are 640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content.
Representation / realization
The product Hikvision DS-2CD5526G0-IZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD5526G0-IZS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CD5526G0-IZS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD5526G0-IZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD5526G0-IZS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision DS-2CD5526G0-IZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD5526G0-IZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Network
Does the product Hikvision DS-2CD5526G0-IZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of users of the product Hikvision DS-2CD5526G0-IZS is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2CD5526G0-IZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Wifi of the product Hikvision DS-2CD5526G0-IZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD5526G0-IZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2CD5526G0-IZS is Gigabit Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hikvision DS-2CD5526G0-IZS contains 10/100/1000Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product Hikvision DS-2CD5526G0-IZS are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD5526G0-IZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs.
