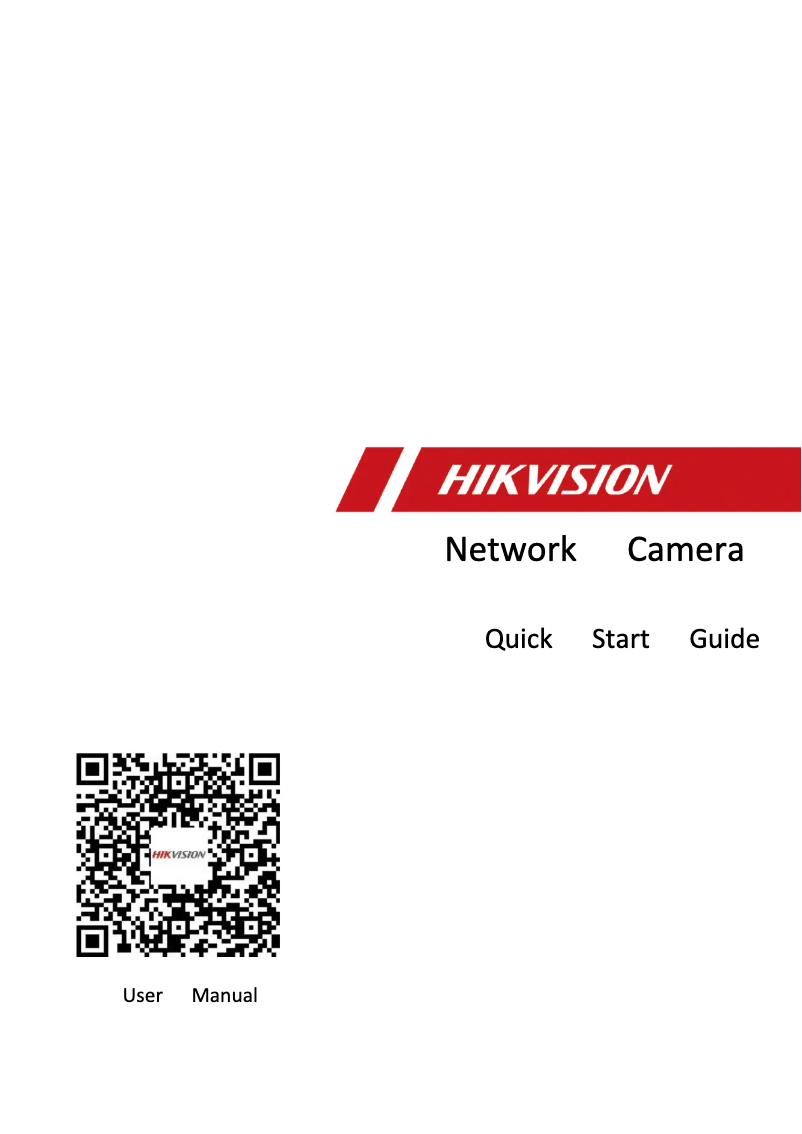

Manuals of product DS-2CD5546G0-IZHSY
Technical Specifications DS-2CD5546G0-IZHSY
General Information
-
ModelDS-2CD5546G0-IZHSY
-
Brand
-
Category
-
Type
-
SKU1109109
-
MPN1109109
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
Audio
-
Sampling frequency48 kHz
-
Voice codecsG.711, G.722.1, G.726, MP2L2
-
Audio output channels1 channels
-
Audio output channels1 channels
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.1x, IEEE 802.3at
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, White
-
Material of the case/bodyAluminum
-
International Protection Code (IP)IP67
-
Code IKIK10
Connectivity
-
Component output1
-
Component output1
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
-
Rotation angle355 °
-
Field of view of the lens, horizontal102 °
-
Angle of view of the lens, vertical53 °
-
Angle of view of the lens, diagonal122.2 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 355 °
-
Camera shutter speed1 - 1/100000 s
Security
-
Password protectionNo
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Progressive scanYes
Management features
-
Reset buttonYes
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Objective system
-
Number of lenses1
-
Maximum number of openings1.2
-
Focal length2.8 - 12 mm
Power
-
Power supply typeDC, PoE
-
Consumption (max)17 W
-
Output CC in volts12
Environmental conditions
-
Operating temperature-40 - 60 °C
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Weight and dimensions
-
Height140.3 mm
-
Diameter162 mm
-
Weight1450 g
Video
-
Maximum resolution2560 x 1440 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions1920 x 1080 (HD 1080), 2560 x 1440
-
Number of images per second30 ips
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Noise reduction technology3D digital noise reduction
-
Bitrate256 Kbps - 16 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Packaging information
-
Package width251 mm
-
Package depth215 mm
-
Package height189 mm
-
Package weight1950 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD5546G0-IZHSY specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD5546G0-IZHSY is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD5546G0-IZHSY is DS-2CD5546G0-IZHSY | DS-2CD5546G0-IZHSY(2.8-12MM). This model ensures optimal performance and an enhanced user experience.
Audio
The sampling frequency of the product Hikvision DS-2CD5546G0-IZHSY is 48 kHz. This feature ensures optimal sound quality for your recordings. The number of audio input channels of the product Hikvision DS-2CD5546G0-IZHSY is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2CD5546G0-IZHSY are 1 canaux. This specification allows for an immersive and high-quality sound experience. The voice codec of the Hikvision DS-2CD5546G0-IZHSY product contains G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications.
Representation / realization
The type of product Hikvision DS-2CD5546G0-IZHSY is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD5546G0-IZHSY have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2CD5546G0-IZHSY features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2CD5546G0-IZHSY supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CD5546G0-IZHSY have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CD5546G0-IZHSY have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2CD5546G0-IZHSY have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy.
Network
Does the product Hikvision DS-2CD5546G0-IZHSY have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD5546G0-IZHSY contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD5546G0-IZHSY have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2CD5546G0-IZHSY are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2CD5546G0-IZHSY are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD5546G0-IZHSY have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision DS-2CD5546G0-IZHSY is 32 utilisateur(s). This product is ideal for several people.
Storage support
Does the Hikvision DS-2CD5546G0-IZHSY have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2CD5546G0-IZHSY have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD5546G0-IZHSY has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2CD5546G0-IZHSY is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Design
The mounting type of the product Hikvision DS-2CD5546G0-IZHSY is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD5546G0-IZHSY is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD5546G0-IZHSY is Black, White. This shade gives it a modern and elegant look. The material of the product case Hikvision DS-2CD5546G0-IZHSY is Aluminium. This material ensures both durability and elegance. The International Protection Code (IP) for product Hikvision DS-2CD5546G0-IZHSY contains IP67. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2CD5546G0-IZHSY is IK10. This IK Code allows for easy identification of the specific design of the item.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD5546G0-IZHSY is 1. These ports provide a stable and fast network connection for your devices. The output component of the product Hikvision DS-2CD5546G0-IZHSY contains 1. This specification ensures optimal connectivity for efficient use.
Security
Does the Hikvision DS-2CD5546G0-IZHSY product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2CD5546G0-IZHSY have Password Protection? Non. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD5546G0-IZHSY have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The intelligent video surveillance system of the product Hikvision DS-2CD5546G0-IZHSY has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Image sensor
The sensor type of the product Hikvision DS-2CD5546G0-IZHSY is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2CD5546G0-IZHSY is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD5546G0-IZHSY is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision DS-2CD5546G0-IZHSY have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The tilt command of the Hikvision DS-2CD5546G0-IZHSY camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Hikvision DS-2CD5546G0-IZHSY have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision DS-2CD5546G0-IZHSY is 0 lux. This feature ensures optimal performance even in low light conditions. The rotation angle of the product Hikvision DS-2CD5546G0-IZHSY is 355 °. This angle allows for optimal usage flexibility. The field of view of the Hikvision DS-2CD5546G0-IZHSY lens is 102 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD5546G0-IZHSY is 53 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CD5546G0-IZHSY is 122.2 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hikvision DS-2CD5546G0-IZHSY is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CD5546G0-IZHSY is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2CD5546G0-IZHSY is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Management features
Does the product Hikvision DS-2CD5546G0-IZHSY have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD5546G0-IZHSY product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2CD5546G0-IZHSY system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD5546G0-IZHSY is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The product Hikvision DS-2CD5546G0-IZHSY has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CD5546G0-IZHSY is 17 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hikvision DS-2CD5546G0-IZHSY is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Objective system
The number of lenses in the product Hikvision DS-2CD5546G0-IZHSY is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD5546G0-IZHSY is 1.2. This feature allows for optimal use and increased flexibility. The focal length of the product Hikvision DS-2CD5546G0-IZHSY is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Night vision
Does the product Hikvision DS-2CD5546G0-IZHSY have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CD5546G0-IZHSY is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CD5546G0-IZHSY is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD5546G0-IZHSY is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Weight and dimensions
The height of the product Hikvision DS-2CD5546G0-IZHSY is 140.3 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CD5546G0-IZHSY is 162 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD5546G0-IZHSY is 1450 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The width of the package of the product Hikvision DS-2CD5546G0-IZHSY is 251 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD5546G0-IZHSY is 189 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Hikvision DS-2CD5546G0-IZHSY is 215 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the Hikvision DS-2CD5546G0-IZHSY package is 1950 g. This weight ensures optimal protection during transport and delivery.
Packaging contents
The number of cameras of the product Hikvision DS-2CD5546G0-IZHSY is 1. This product is equipped with a camera that allows capturing high-quality images.
Video
The total megapixels of the product Hikvision DS-2CD5546G0-IZHSY is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD5546G0-IZHSY is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2CD5546G0-IZHSY has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2CD5546G0-IZHSY are 1920 x 1080 (HD 1080), 2560 x 1440. These resolutions provide optimal display quality for your content. The number of frames per second of the product Hikvision DS-2CD5546G0-IZHSY is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CD5546G0-IZHSY have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2CD5546G0-IZHSY have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD5546G0-IZHSY features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The bit rate of the product Hikvision DS-2CD5546G0-IZHSY is 256 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD5546G0-IZHSY have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD5546G0-IZHSY have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD5546G0-IZHSY have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
