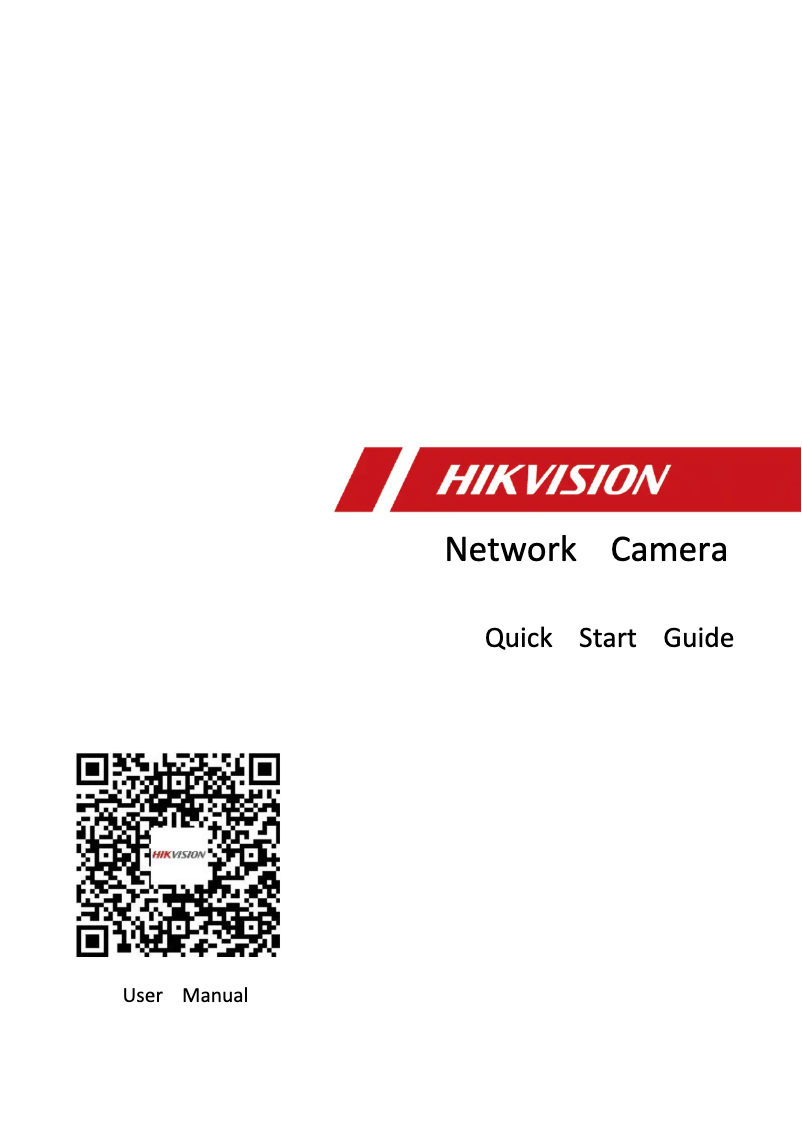

Manuals of product DS-2CD5AC5G0-IZS
Technical Specifications DS-2CD5AC5G0-IZS
General Information
-
ModelDS-2CD5AC5G0-IZS
-
Brand
-
Category
-
Type
-
SKU1101603
-
MPN1101603
Image sensor
-
Progressive scanYes
-
Optical sensor size1/1.7 "
-
Number of sensors1
-
Sensor typeCMOS
Objective system
-
Number of lenses1
-
Focal length- mm
-
Maximum number of openings1.2
-
Auto focusYes
-
TuningMotorized/manual
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1 - 1/100000 s
-
Panoramic0 - 355 °
-
Inclination angle0 - 90 °
-
Rotation angle360 °
-
Field of view of the lens, horizontal101 °
-
Angle of view of the lens, vertical72 °
-
Angle of view of the lens, diagonal130 °
-
Camera pan commandYes
-
Camera tilt controlNo
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Entry/exit alarmYes
Video
-
Noise reductionYes
-
Noise reductionYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 16 Mbps
-
Noise reductionYes
-
Noise reductionYes
-
Maximum resolution4000 x 3000 pixels
-
Total megapixels12 MP
-
Supported graphic resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3072 x 1728, 3840 x 2160, 4096 x 2160
-
Number of images per second30 ips
-
Noise reductionYes
-
Noise reductionYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reductionYes
-
Gain control typeAuto
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance50 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonObject removal detection
-
Unattended baggage detection
-
Yes
-
Yes
Storage support
-
Maximum memory card size256 GB
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Security
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Network
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Number of usersHTTP
-
Ethernet/LANHTTPS
-
Ethernet/LANFTP
-
BluetoothDHCP
-
BluetoothDNS
-
Type of Ethernet interfaceDDNS
-
Wiring technologyRTP
-
RTSP
-
RTCP
-
PPPoE
-
NTP
-
UPnP
-
SMTP
-
SNMP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
IEEE 802.1x
-
IEEE 802.3at
-
32 user(s)
-
Yes
-
Yes
-
No
-
No
-
Gigabit Ethernet
-
10/100/1000Base-T(X)
Connectivity
-
InterfaceRJ-45
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
-
Output CC in amperes1 A
-
Consumption (max)11 W
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
FormatTerminal
-
Product colorBlack, White
-
Mounting typeCeiling/wall
-
Material of the case/bodyAluminium
Weight and dimensions
-
Diameter144 mm
-
Product length347 mm
-
Weight2450 g
Packaging information
-
Package weight2700 g
-
Package width405 mm
-
Package depth190 mm
-
Package height180 mm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD5AC5G0-IZS specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD5AC5G0-IZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD5AC5G0-IZS is DS-2CD5AC5G0-IZS | DS-2CD5AC5G0-IZS. This model ensures optimal performance and an enhanced user experience.
Image sensor
Does the product Hikvision DS-2CD5AC5G0-IZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD5AC5G0-IZS is 1/1.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD5AC5G0-IZS is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD5AC5G0-IZS is CMOS. This type of sensor ensures optimal image quality for your needs.
Objective system
The number of lenses in the product Hikvision DS-2CD5AC5G0-IZS is 1. This number determines the quality and versatility of the lens. The focal length of the product Hikvision DS-2CD5AC5G0-IZS is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hikvision DS-2CD5AC5G0-IZS is 1.2. This feature allows for optimal use and increased flexibility. Does the Hikvision DS-2CD5AC5G0-IZS have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The adjustment of the Hikvision DS-2CD5AC5G0-IZS is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Camera
The minimum illumination of the product Hikvision DS-2CD5AC5G0-IZS is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD5AC5G0-IZS is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The panoramic view of the product Hikvision DS-2CD5AC5G0-IZS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CD5AC5G0-IZS is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CD5AC5G0-IZS is 360 °. This angle allows for optimal usage flexibility. The field of view of the Hikvision DS-2CD5AC5G0-IZS lens is 101 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CD5AC5G0-IZS is 72 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. Does the product Hikvision DS-2CD5AC5G0-IZS have a camera pan command? No. This feature is not available on this model. The angle of view of the lens, diagonal of the product Hikvision DS-2CD5AC5G0-IZS is 130 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt command of the Hikvision DS-2CD5AC5G0-IZS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Packaging contents
The number of cameras of the product Hikvision DS-2CD5AC5G0-IZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Representation / realization
Does the product Hikvision DS-2CD5AC5G0-IZS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CD5AC5G0-IZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2CD5AC5G0-IZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CD5AC5G0-IZS have the people counting feature? Oui. This feature allows tracking the number of people present in a given space, thus providing valuable data for management and flow optimization. The type of product Hikvision DS-2CD5AC5G0-IZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CD5AC5G0-IZS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The design of the product Hikvision DS-2CD5AC5G0-IZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Management features
The Hikvision DS-2CD5AC5G0-IZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD5AC5G0-IZS have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD5AC5G0-IZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Night vision
Does the product Hikvision DS-2CD5AC5G0-IZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CD5AC5G0-IZS is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CD5AC5G0-IZS is 50 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CD5AC5G0-IZS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Storage support
Does the Hikvision DS-2CD5AC5G0-IZS have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2CD5AC5G0-IZS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD5AC5G0-IZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2CD5AC5G0-IZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Video
Does the product Hikvision DS-2CD5AC5G0-IZS have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. The product Hikvision DS-2CD5AC5G0-IZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD5AC5G0-IZS have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The bit rate of the product Hikvision DS-2CD5AC5G0-IZS is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD5AC5G0-IZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2CD5AC5G0-IZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The maximum resolution of the product Hikvision DS-2CD5AC5G0-IZS is 4000 x 3000 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CD5AC5G0-IZS are 640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3072 x 1728,3840 x 2160,4096 x 2160. These resolutions provide optimal display quality for your content. The total megapixels of the product Hikvision DS-2CD5AC5G0-IZS is 12 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CD5AC5G0-IZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CD5AC5G0-IZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The number of frames per second of the product Hikvision DS-2CD5AC5G0-IZS is 30 ips. This specification ensures optimal smoothness when playing videos. The image quality setting of the product Hikvision DS-2CD5AC5G0-IZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CD5AC5G0-IZS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The gain control type of the product Hikvision DS-2CD5AC5G0-IZS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2CD5AC5G0-IZS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD5AC5G0-IZS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience.
Security
Does the product Hikvision DS-2CD5AC5G0-IZS have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2CD5AC5G0-IZS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD5AC5G0-IZS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2CD5AC5G0-IZS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The Hikvision DS-2CD5AC5G0-IZS has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD5AC5G0-IZS have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2CD5AC5G0-IZS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content.
Connectivity
The output component of the product Hikvision DS-2CD5AC5G0-IZS contains 1. This specification ensures optimal connectivity for efficient use. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD5AC5G0-IZS is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2CD5AC5G0-IZS has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Environmental conditions
The operating temperature of the product Hikvision DS-2CD5AC5G0-IZS is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CD5AC5G0-IZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Network
Does the product Hikvision DS-2CD5AC5G0-IZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2CD5AC5G0-IZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2CD5AC5G0-IZS is 32 utilisateur(s). This product is ideal for several people. The network standards of the product Hikvision DS-2CD5AC5G0-IZS are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2CD5AC5G0-IZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CD5AC5G0-IZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD5AC5G0-IZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The wiring technology of the product Hikvision DS-2CD5AC5G0-IZS contains 10/100/1000Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The Ethernet interface type of the product Hikvision DS-2CD5AC5G0-IZS is Gigabit Ethernet. This type of interface allows for fast and efficient network connections.
Power
The product Hikvision DS-2CD5AC5G0-IZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The product Hikvision DS-2CD5AC5G0-IZS has a DC output in amperes of 1 A. This specification ensures a stable power supply suitable for your needs. The type of power source for the product Hikvision DS-2CD5AC5G0-IZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CD5AC5G0-IZS is 11 W. This specification allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The weight of the product Hikvision DS-2CD5AC5G0-IZS is 2450 g. This weight is ideal for ensuring optimal use and easy handling. The length of the product Hikvision DS-2CD5AC5G0-IZS is 347 mm. This dimension is essential to ensure optimal use. The diameter of the product Hikvision DS-2CD5AC5G0-IZS is 144 mm. This diameter allows for optimal use and fits perfectly with your needs.
Design
The IK Code of the product Hikvision DS-2CD5AC5G0-IZS is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Hikvision DS-2CD5AC5G0-IZS contains IP67. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2CD5AC5G0-IZS is Black, White. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2CD5AC5G0-IZS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CD5AC5G0-IZS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The material of the product case Hikvision DS-2CD5AC5G0-IZS is Aluminium. This material ensures both durability and elegance.
Packaging information
The depth of the product package Hikvision DS-2CD5AC5G0-IZS is 190 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision DS-2CD5AC5G0-IZS is 405 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Hikvision DS-2CD5AC5G0-IZS is 180 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision DS-2CD5AC5G0-IZS package is 2700 g. This weight ensures optimal protection during transport and delivery.
