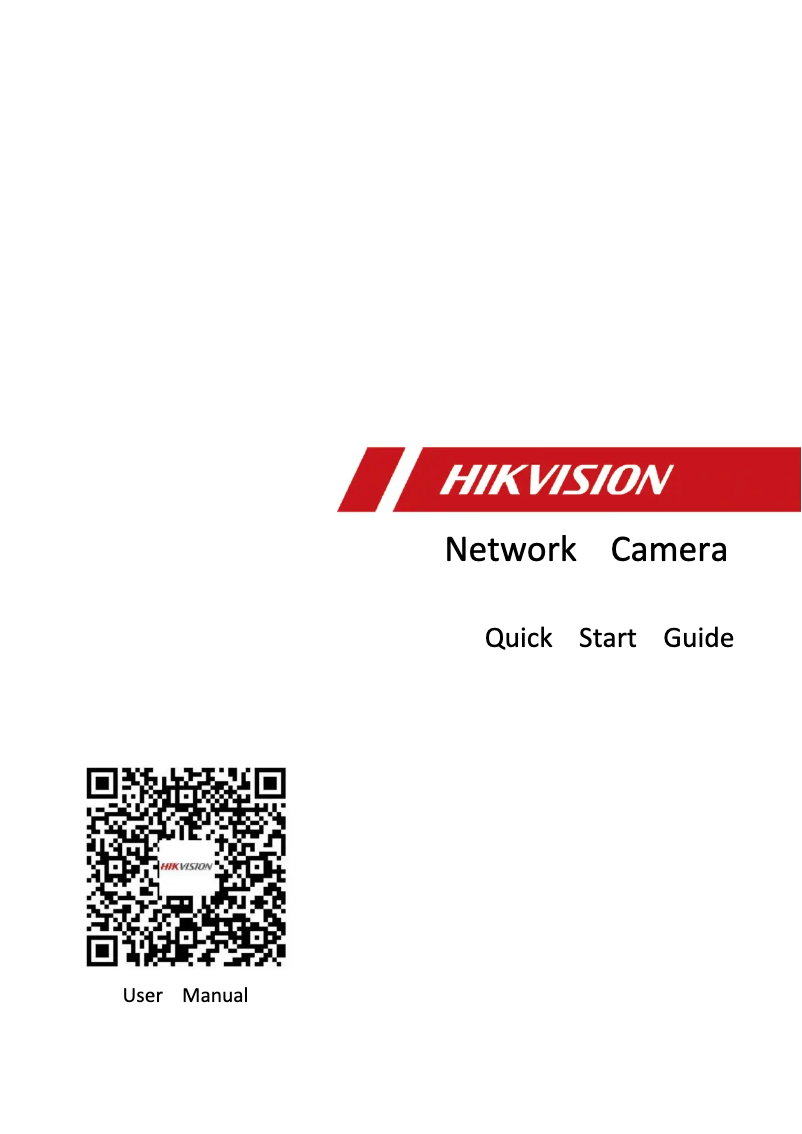

Manuals of product DS-2CD63C5G0E-S/RC
Technical Specifications DS-2CD63C5G0E-S/RC
General Information
-
ModelDS-2CD63C5G0E-S/RC
-
Brand
-
Category
-
Type
-
SKU1129636
-
MPN1129636
Packaging contents
-
Number of cameras1
Image sensor
-
Progressive scanYes
-
Optical sensor size1/1.7 "
-
Sensor typeCMOS
-
Number of sensors1
Objective system
-
Number of lenses1
-
Fixed Focal Length2 mm
-
Maximum number of openings2.4
Camera
-
Minimum illumination0.012 lux
-
Camera shutter speed1 - 1/100000 s
-
Field of view (FOV)360 °
-
Camera tilt controlNo
-
Camera tilt controlNo
-
White balanceManual
Video
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise suppression
-
Masking of personal dataYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Total megapixels12 MP
-
Maximum resolution4000 x 3000 pixels
-
Masking of personal dataYes
-
Bitrate32 Kbps - 16 Mbps
-
Masking of personal dataYes
-
Number of images per second20 ips
-
Supported graphic resolutions640 x 480 (VGA), 720 x 720, 4000 x 3000
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Gain control typeAuto
-
Masking of personal dataYes
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonObject removal detection
-
Unattended baggage detection
-
Yes
-
Yes
Design
-
Format-
-
Mounting typeCeiling
-
Product colorWhite
-
Material of the case/bodyMetal, Plastic
Representation / realization
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationIndoor
Audio
-
Sampling frequency16 kHz
-
Voice codecsG.711, G.722.1, G.726, MP2L2
-
Built-in microphoneYes
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Integrated hard driveNo
-
Built-in memory card readerYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
Security
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Security-supported algorithmHTTPS
-
Digital watermarkYes
-
Digital watermarkYes
Network
-
Ethernet/LANYes
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceGigabit Ethernet
-
Number of users32 user(s)
Environmental conditions
-
Operating temperature-10 - 40 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Consumption (max)6 W
-
Energy consumption (Power over Ethernet (PoE))12 W
-
Output CC in amperes0.5 A
Weight and dimensions
-
Diameter165 mm
-
Height67 mm
-
Weight480 g
Night vision
-
Night vision-
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CD63C5G0E-S/RC specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CD63C5G0E-S/RC is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CD63C5G0E-S/RC is DS-2CD63C5G0E-S/RC | DS-2CD63C5G0E-S/RC(2MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CD63C5G0E-S/RC is 6941264010166, 0842571129885. This code allows for the unique identification of the product in the distribution system.
Packaging contents
The number of cameras of the product Hikvision DS-2CD63C5G0E-S/RC is 1. This product is equipped with a camera that allows capturing high-quality images.
Image sensor
Does the product Hikvision DS-2CD63C5G0E-S/RC have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2CD63C5G0E-S/RC is 1/1.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2CD63C5G0E-S/RC is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CD63C5G0E-S/RC is CMOS. This type of sensor ensures optimal image quality for your needs.
Objective system
The number of lenses in the product Hikvision DS-2CD63C5G0E-S/RC is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2CD63C5G0E-S/RC is 2.4. This feature allows for optimal use and increased flexibility. The product goal system Hikvision DS-2CD63C5G0E-S/RC has a fixed focal length of 2 mm. This feature allows for images with great sharpness and exceptional quality.
Camera
The minimum illumination of the product Hikvision DS-2CD63C5G0E-S/RC is 0.012 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2CD63C5G0E-S/RC is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. Does the product Hikvision DS-2CD63C5G0E-S/RC have a camera pan command? No. This feature is not available on this model. The field of view (FOV) of the product Hikvision DS-2CD63C5G0E-S/RC is 360 °. This wide field of view allows for capturing images with an immersive and detailed perspective. The tilt command of the Hikvision DS-2CD63C5G0E-S/RC camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The white balance of the product Hikvision DS-2CD63C5G0E-S/RC consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Design
The mounting type of the product Hikvision DS-2CD63C5G0E-S/RC is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CD63C5G0E-S/RC is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CD63C5G0E-S/RC is Blanc. This shade gives it a modern and elegant look. The material of the product case Hikvision DS-2CD63C5G0E-S/RC is Metal, Plastic. This material ensures both durability and elegance.
Management features
The Hikvision DS-2CD63C5G0E-S/RC system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2CD63C5G0E-S/RC have a Reset Button? Oui. This button allows you to easily reset the product settings. The Hikvision DS-2CD63C5G0E-S/RC product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Representation / realization
The PTZ control of the product Hikvision DS-2CD63C5G0E-S/RC is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2CD63C5G0E-S/RC have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2CD63C5G0E-S/RC features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2CD63C5G0E-S/RC is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CD63C5G0E-S/RC supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Video
Does the product Hikvision DS-2CD63C5G0E-S/RC have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CD63C5G0E-S/RC has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2CD63C5G0E-S/RC have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. The product Hikvision DS-2CD63C5G0E-S/RC features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The total megapixels of the product Hikvision DS-2CD63C5G0E-S/RC is 12 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CD63C5G0E-S/RC is 4000 x 3000 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2CD63C5G0E-S/RC have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The bit rate of the product Hikvision DS-2CD63C5G0E-S/RC is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2CD63C5G0E-S/RC have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The number of frames per second of the product Hikvision DS-2CD63C5G0E-S/RC is 20 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2CD63C5G0E-S/RC are 640 x 480 (VGA),720 x 720,4000 x 3000. These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2CD63C5G0E-S/RC have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CD63C5G0E-S/RC have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision DS-2CD63C5G0E-S/RC contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product Hikvision DS-2CD63C5G0E-S/RC is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2CD63C5G0E-S/RC have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Storage support
The maximum size of the memory card for the product Hikvision DS-2CD63C5G0E-S/RC is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2CD63C5G0E-S/RC have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2CD63C5G0E-S/RC has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2CD63C5G0E-S/RC have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Audio
The sampling frequency of the product Hikvision DS-2CD63C5G0E-S/RC is 16 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the Hikvision DS-2CD63C5G0E-S/RC product contains G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. Does the product Hikvision DS-2CD63C5G0E-S/RC have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2CD63C5G0E-S/RC is 1. These ports provide a stable and fast network connection for your devices. Does the product Hikvision DS-2CD63C5G0E-S/RC have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack.
Environmental conditions
The product Hikvision DS-2CD63C5G0E-S/RC has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CD63C5G0E-S/RC is -10 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Security
Does the product Hikvision DS-2CD63C5G0E-S/RC have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CD63C5G0E-S/RC have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2CD63C5G0E-S/RC have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The Hikvision DS-2CD63C5G0E-S/RC has a heart rate. This feature allows you to monitor your health in real time. Does the product Hikvision DS-2CD63C5G0E-S/RC have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the Hikvision DS-2CD63C5G0E-S/RC product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product Hikvision DS-2CD63C5G0E-S/RC contains HTTPS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2CD63C5G0E-S/RC have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the Hikvision DS-2CD63C5G0E-S/RC have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience.
Power
The product Hikvision DS-2CD63C5G0E-S/RC has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CD63C5G0E-S/RC is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2CD63C5G0E-S/RC is 12 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2CD63C5G0E-S/RC is 6 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CD63C5G0E-S/RC has a DC output in amperes of 0.5 A. This specification ensures a stable power supply suitable for your needs.
Network
The network standards of the product Hikvision DS-2CD63C5G0E-S/RC are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2CD63C5G0E-S/RC have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2CD63C5G0E-S/RC are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2CD63C5G0E-S/RC have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Wifi of the product Hikvision DS-2CD63C5G0E-S/RC contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CD63C5G0E-S/RC have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2CD63C5G0E-S/RC is Gigabit Ethernet. This type of interface allows for fast and efficient network connections. The number of users of the product Hikvision DS-2CD63C5G0E-S/RC is 32 utilisateur(s). This product is ideal for several people.
Weight and dimensions
The height of the product Hikvision DS-2CD63C5G0E-S/RC is 67 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CD63C5G0E-S/RC is 165 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2CD63C5G0E-S/RC is 480 g. This weight is ideal for ensuring optimal use and easy handling.
Night vision
Does the product Hikvision DS-2CD63C5G0E-S/RC have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
