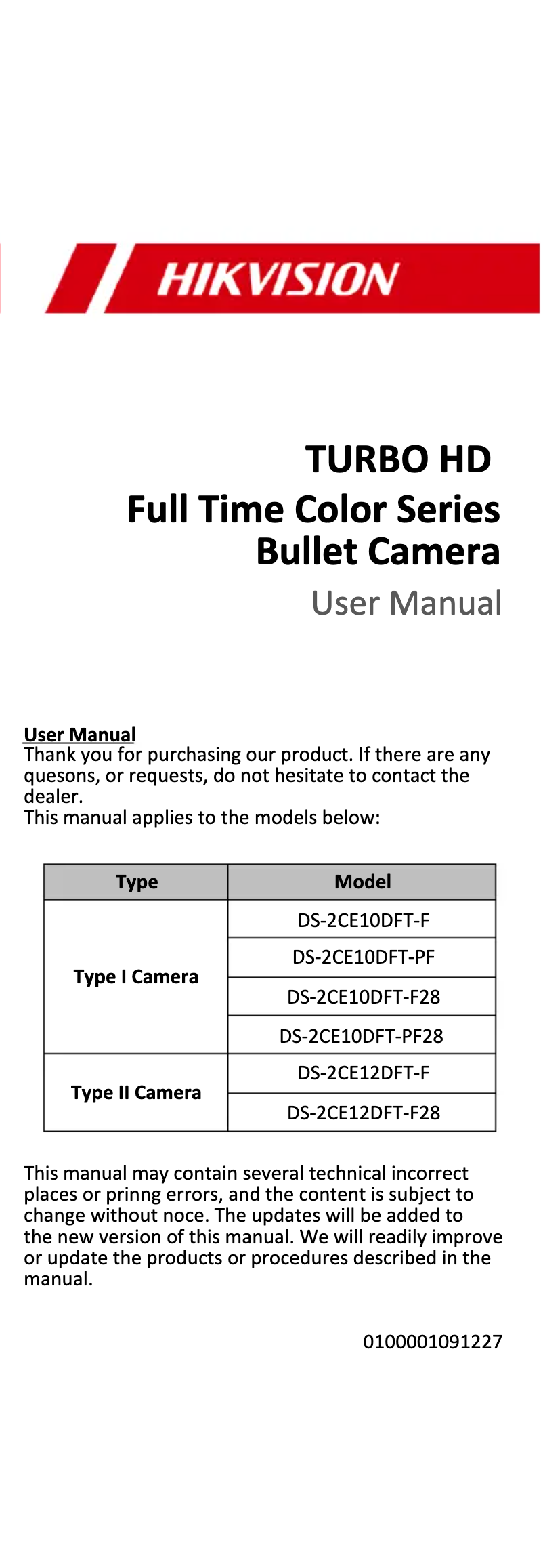

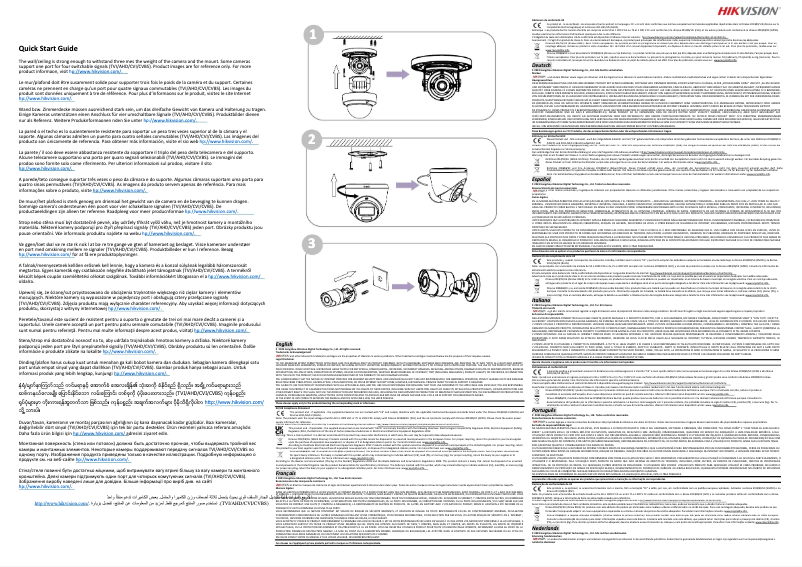

Manuals of product DS-2CE12DFT-F28
Technical Specifications DS-2CE12DFT-F28
General Information
-
ModelDS-2CE12DFT-F28
-
Brand
-
Category
-
Type
-
SKU1137157
-
MPN1137157
Representation / realization
-
TypeCCTV security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Dynamic range130 dB
Network
-
BluetoothNo
-
BluetoothNo
-
BluetoothNo
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
Objective system
-
Number of lenses1
-
Fixed Focal Length2.8 mm
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Supported video modes1080p
-
Gain control typeAuto
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Image quality adjustmentBrightness, Sharpness
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Analog signal format systemNTSC, PAL
-
Noise reduction technology3D digital noise reduction
-
Number of images per second30 fps
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Weather-resistantYes
-
International Protection Code (IP)IP67
-
Weather-resistantYes
-
Material of the case/bodyMetal, Plastic
Camera
-
Camera shutter speed1/50000 - 1/30 s
-
White balanceAuto, Manual
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Rotation angle360 °
-
Inclination angle0 - 180 °
-
Panoramic0 - 360 °
-
Field of view of the lens, horizontal104 °
-
Angle of view of the lens, vertical54 °
-
Angle of view of the lens, diagonal126 °
Packaging contents
-
Number of cameras1
Security
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Power
-
Output CC in volts12
-
Power supply typeCC
-
Consumption (max)4.2 W
Weight and dimensions
-
Depth223.1 mm
-
Width77.1 mm
-
Height82.6 mm
-
Weight436 g
Storage support
-
Integrated hard driveNo
Connectivity
-
Component output1
Technical details
-
Lens mount interfaceM16
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CE12DFT-F28 specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CE12DFT-F28 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2CE12DFT-F28 is 6941264012955, 0842571129809. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2CE12DFT-F28 is DS-2CE12DFT-F28 | DS-2CE12DFT-F28(2.8MM). This model ensures optimal performance and an enhanced user experience.
Image sensor
The sensor type of the product Hikvision DS-2CE12DFT-F28 is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2CE12DFT-F28 is 1. This number of sensors allows for precise and efficient image detection.
Network
Does the product Hikvision DS-2CE12DFT-F28 have Ethernet/LAN? Non. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CE12DFT-F28 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CE12DFT-F28 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Representation / realization
The type of product Hikvision DS-2CE12DFT-F28 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CE12DFT-F28 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CE12DFT-F28 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2CE12DFT-F28 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CE12DFT-F28 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The dynamic range of the product Hikvision DS-2CE12DFT-F28 is 130 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks.
Objective system
The number of lenses in the product Hikvision DS-2CE12DFT-F28 is 1. This number determines the quality and versatility of the lens. The product goal system Hikvision DS-2CE12DFT-F28 has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality.
Packaging contents
The number of cameras of the product Hikvision DS-2CE12DFT-F28 is 1. This product is equipped with a camera that allows capturing high-quality images.
Camera
The shutter speed of the camera of the product Hikvision DS-2CE12DFT-F28 is 1/50000 - 1/30 s. This feature allows capturing sharp images even in low light conditions. The white balance of the product Hikvision DS-2CE12DFT-F28 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. Does the product Hikvision DS-2CE12DFT-F28 have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision DS-2CE12DFT-F28 is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2CE12DFT-F28 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Hikvision DS-2CE12DFT-F28 is 360 °. This angle allows for optimal usage flexibility. The tilt angle of the product Hikvision DS-2CE12DFT-F28 is 0 - 180 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CE12DFT-F28 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view of the Hikvision DS-2CE12DFT-F28 lens is 104 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2CE12DFT-F28 is 54 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2CE12DFT-F28 is 126 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Design
Does the product Hikvision DS-2CE12DFT-F28 have indicators? Oui. These indicators allow you to visualize the operating status of the device. The mounting type of the product Hikvision DS-2CE12DFT-F28 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2CE12DFT-F28 is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CE12DFT-F28 is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2CE12DFT-F28 contains IP67. This code indicates the level of protection against solid objects and moisture. Is the Hikvision DS-2CE12DFT-F28 weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The material of the product case Hikvision DS-2CE12DFT-F28 is Metal, Plastic. This material ensures both durability and elegance.
Video
The maximum resolution of the product Hikvision DS-2CE12DFT-F28 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The gain control type of the product Hikvision DS-2CE12DFT-F28 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The total megapixels of the product Hikvision DS-2CE12DFT-F28 is 2 MP. This total ensures exceptional image quality for your photos. The supported video mode of the product Hikvision DS-2CE12DFT-F28 is 1080p. This mode allows you to enjoy optimal image quality for your videos. Does the product Hikvision DS-2CE12DFT-F28 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CE12DFT-F28 have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience. The image quality setting of the product Hikvision DS-2CE12DFT-F28 contains Brightness, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CE12DFT-F28 have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2CE12DFT-F28 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2CE12DFT-F28 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2CE12DFT-F28 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The number of frames per second of the product Hikvision DS-2CE12DFT-F28 is 30 ips. This specification ensures optimal smoothness when playing videos. The analog signal format system of the product Hikvision DS-2CE12DFT-F28 contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience.
Security
Does the product Hikvision DS-2CE12DFT-F28 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2CE12DFT-F28 have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space.
Night vision
Does the product Hikvision DS-2CE12DFT-F28 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CE12DFT-F28 is 40 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CE12DFT-F28 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Environmental conditions
The product Hikvision DS-2CE12DFT-F28 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CE12DFT-F28 is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The depth of the product Hikvision DS-2CE12DFT-F28 is 223.1 mm. This dimension allows for optimal integration into your space. The width of the product Hikvision DS-2CE12DFT-F28 is 77.1 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2CE12DFT-F28 is 436 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CE12DFT-F28 is 82.6 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Storage support
Does the Hikvision DS-2CE12DFT-F28 have a built-in hard drive? No. This feature means that the product does not have internal storage.
Power
The product Hikvision DS-2CE12DFT-F28 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CE12DFT-F28 is CC. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2CE12DFT-F28 is 4.2 W. This specification allows for the assessment of the energy efficiency of the device.
Connectivity
The output component of the product Hikvision DS-2CE12DFT-F28 contains 1. This specification ensures optimal connectivity for efficient use.
Technical details
The lens mount of the Hikvision DS-2CE12DFT-F28 product is M16. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots.
