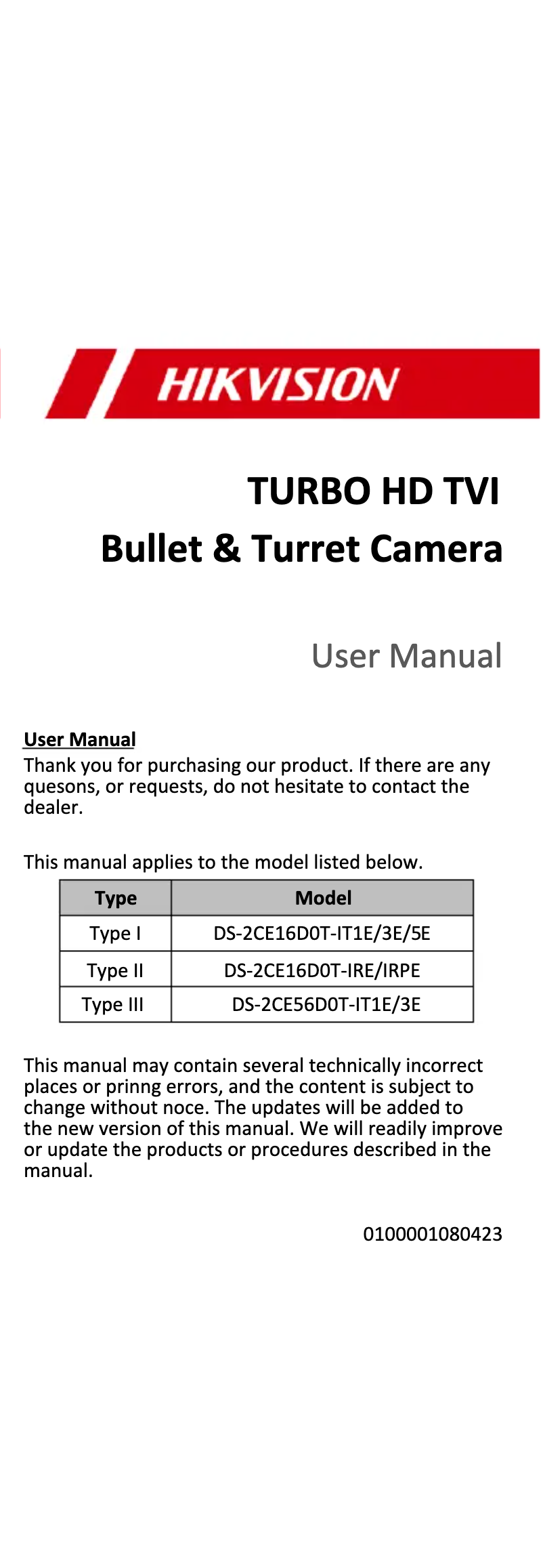

Manuals of product DS-2CE16D0T-IT3E
Technical Specifications DS-2CE16D0T-IT3E
General Information
-
ModelDS-2CE16D0T-IT3E
-
Brand
-
Category
-
Type
-
SKU1065687
-
MPN1065687
Design
-
FormatTerminal
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
-
Material of the case/bodyMetal, Plastic
Video
-
Maximum resolution1920 x 1080 pixels
-
Smart IRYes
-
Total megapixels2 MP
-
Number of images per second30 fps
-
Supported video modes1080p
-
Analog signal format systemNTSC, PAL
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
Image sensor
-
Sensor typeCMOS
-
Progressive scanYes
Objective system
-
Fixed Focal Length3.6 mm
Packaging contents
-
Number of cameras1
Storage support
-
Integrated hard driveNo
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
Camera
-
Minimum illumination0 lux
-
Field of view of the lens, horizontal82.63 °
-
Inclination angle0 - 180 °
-
Panoramic0 - 360 °
-
Rotation angle360 °
-
Camera shutter speed1//50000 - 1/25 s
Technical details
-
Lens mount interfaceM12
-
Output impedance75 Ohm
Representation / realization
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Connectivity technologyWired
-
TypeCCTV security camera
-
Supported installationIndoor and outdoor
Audio
-
Signal-to-noise ratio report62 dB
Connectivity
-
BNC output ports1
-
InterfaceBNC
Environmental conditions
-
Operating temperature-40 - 60 °C
Power
-
Ethernet connection, supporting power over this port (PoE)-
-
Output CC in volts12
-
Consumption (max)4 W
-
Power supply typeCC
Weight and dimensions
-
Width86.7 mm
-
Depth226 mm
-
Height81.6 mm
-
Weight430 g
Network
-
BluetoothNo
-
BluetoothNo
-
BluetoothNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CE16D0T-IT3E specifications from brand Hikvision
Generalities
The EAN code of the product Hikvision DS-2CE16D0T-IT3E is 6954273651060. This code allows for the unique identification of the product in the distribution system. The brand of the product Hikvision DS-2CE16D0T-IT3E is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CE16D0T-IT3E is DS-2CE16D0T-IT3E | DS-2CE16D0T-IT3E(3.6MM). This model ensures optimal performance and an enhanced user experience.
Image sensor
Does the product Hikvision DS-2CE16D0T-IT3E have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2CE16D0T-IT3E is CMOS. This type of sensor ensures optimal image quality for your needs.
Video
The total megapixels of the product Hikvision DS-2CE16D0T-IT3E is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CE16D0T-IT3E is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2CE16D0T-IT3E have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The number of frames per second of the product Hikvision DS-2CE16D0T-IT3E is 30 ips. This specification ensures optimal smoothness when playing videos. The supported video mode of the product Hikvision DS-2CE16D0T-IT3E is 1080p. This mode allows you to enjoy optimal image quality for your videos. The analog signal format system of the product Hikvision DS-2CE16D0T-IT3E contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product Hikvision DS-2CE16D0T-IT3E have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product Hikvision DS-2CE16D0T-IT3E have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CE16D0T-IT3E have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience.
Design
The mounting type of the product Hikvision DS-2CE16D0T-IT3E is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2CE16D0T-IT3E contains IP66. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2CE16D0T-IT3E is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2CE16D0T-IT3E is Blanc. This shade gives it a modern and elegant look. The material of the product case Hikvision DS-2CE16D0T-IT3E is Metal, Plastic. This material ensures both durability and elegance.
Objective system
The product goal system Hikvision DS-2CE16D0T-IT3E has a fixed focal length of 3.6 mm. This feature allows for images with great sharpness and exceptional quality.
Packaging contents
The number of cameras of the product Hikvision DS-2CE16D0T-IT3E is 1. This product is equipped with a camera that allows capturing high-quality images.
Storage support
Does the Hikvision DS-2CE16D0T-IT3E have a built-in hard drive? No. This feature means that the product does not have internal storage.
Night vision
Does the product Hikvision DS-2CE16D0T-IT3E have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2CE16D0T-IT3E is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CE16D0T-IT3E is 40 m. This feature allows for clear and precise observation even in darkness.
Camera
The tilt angle of the product Hikvision DS-2CE16D0T-IT3E is 0 - 180 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CE16D0T-IT3E is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The minimum illumination of the product Hikvision DS-2CE16D0T-IT3E is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2CE16D0T-IT3E lens is 82.63 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The rotation angle of the product Hikvision DS-2CE16D0T-IT3E is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CE16D0T-IT3E is 1//50000 - 1/25 s. This feature allows capturing sharp images even in low light conditions.
Representation / realization
The type of product Hikvision DS-2CE16D0T-IT3E is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CE16D0T-IT3E have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2CE16D0T-IT3E features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CE16D0T-IT3E have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The design of the product Hikvision DS-2CE16D0T-IT3E supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Technical details
The lens mount of the Hikvision DS-2CE16D0T-IT3E product is M12. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots. The output impedance of the Hikvision DS-2CE16D0T-IT3E is 75 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
Audio
The signal-to-noise ratio of the product Hikvision DS-2CE16D0T-IT3E is 62 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Environmental conditions
The operating temperature of the product Hikvision DS-2CE16D0T-IT3E is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Connectivity
The product Hikvision DS-2CE16D0T-IT3E has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The product Hikvision DS-2CE16D0T-IT3E has an Interface BNC. This interface allows for easy and quick connection with various devices.
Power
The maximum consumption of the product Hikvision DS-2CE16D0T-IT3E is 4 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2CE16D0T-IT3E has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2CE16D0T-IT3E is CC. This type of power supply ensures optimal performance and efficient use of the device. Does the Hikvision DS-2CE16D0T-IT3E have an Ethernet connection, supporting power over this port (PoE)? -. This feature allows for simplified and efficient power supply to connected devices.
Weight and dimensions
The width of the product Hikvision DS-2CE16D0T-IT3E is 86.7 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-2CE16D0T-IT3E is 81.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2CE16D0T-IT3E is 430 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Hikvision DS-2CE16D0T-IT3E is 226 mm. This dimension allows for optimal integration into your space.
Network
The Wifi of the product Hikvision DS-2CE16D0T-IT3E contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2CE16D0T-IT3E have Ethernet/LAN? Non. This specification determines the network connectivity of the product. Does the Hikvision DS-2CE16D0T-IT3E have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
