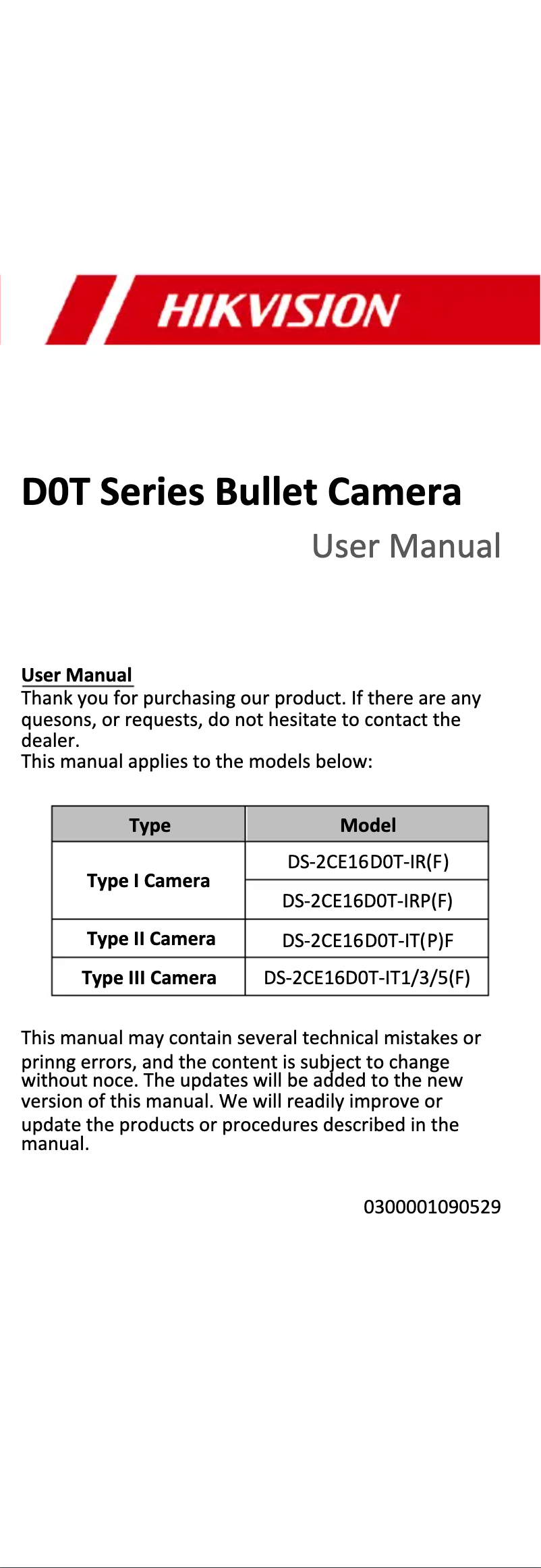

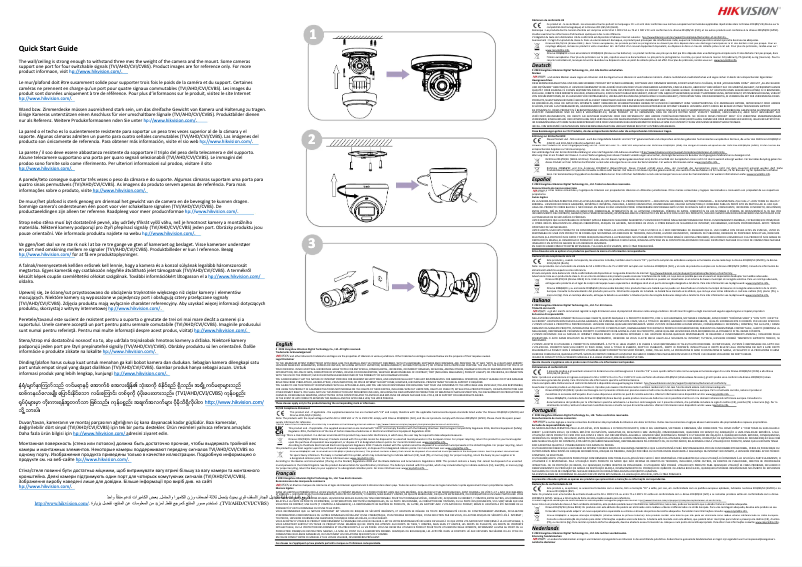

Manuals of product DS-2CE16D0T-IT3F
Technical Specifications DS-2CE16D0T-IT3F
General Information
-
ModelDS-2CE16D0T-IT3F
-
Brand
-
Category
-
Type
-
SKU915316
-
MPN915316
Design
-
FormatTerminal
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
Video
-
Maximum resolution1920 x 1080 pixels
-
Supported video modes1080p
-
Total megapixels2 MP
-
Full HDYes
-
Analog signal format systemNTSC, PAL
-
Number of images per second30 fps
Image sensor
-
Sensor typeCMOS
Representation / realization
-
Infrared cutoff filterYes
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
TypeCCTV security camera
-
Supported installationIndoor and outdoor
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1/25 (1/30) - 1/50000 s
-
Field of view (FOV)82.2 °
-
Panoramic-180 - 180 °
-
Inclination angle0 - 180 °
-
Rotation angle360 °
Objective system
-
Fixed Focal Length3.6 mm
Technical details
-
Lens mount interfaceM12
Audio
-
Signal-to-noise ratio report62 dB
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Power
-
Output CC in volts12
-
Power supply typeCC
-
Ethernet connection, supporting power over this port (PoE)No
-
Consumption (max)4 W
Packaging contents
-
Number of cameras1
Weight and dimensions
-
Product length226 mm
-
Width86.7 mm
-
Height81.6 mm
-
Weight430 g
Network
-
BluetoothNo
-
BluetoothNo
-
BluetoothNo
Storage support
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CE16D0T-IT3F specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CE16D0T-IT3F is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CE16D0T-IT3F is DS-2CE16D0T-IT3F | DS-2CE16D0T-IT3F(3.6MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CE16D0T-IT3F is 6954273638917. This code allows for the unique identification of the product in the distribution system.
Design
The format of the product Hikvision DS-2CE16D0T-IT3F is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2CE16D0T-IT3F contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2CE16D0T-IT3F is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CE16D0T-IT3F is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Image sensor
The sensor type of the product Hikvision DS-2CE16D0T-IT3F is CMOS. This type of sensor ensures optimal image quality for your needs.
Video
The maximum resolution of the product Hikvision DS-2CE16D0T-IT3F is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2CE16D0T-IT3F is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CE16D0T-IT3F have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The supported video mode of the product Hikvision DS-2CE16D0T-IT3F is 1080p. This mode allows you to enjoy optimal image quality for your videos. The analog signal format system of the product Hikvision DS-2CE16D0T-IT3F contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The number of frames per second of the product Hikvision DS-2CE16D0T-IT3F is 30 ips. This specification ensures optimal smoothness when playing videos.
Night vision
Does the product Hikvision DS-2CE16D0T-IT3F have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2CE16D0T-IT3F is 40 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CE16D0T-IT3F is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Representation / realization
The product Hikvision DS-2CE16D0T-IT3F features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CE16D0T-IT3F have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CE16D0T-IT3F have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The type of product Hikvision DS-2CE16D0T-IT3F is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2CE16D0T-IT3F supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Objective system
The product goal system Hikvision DS-2CE16D0T-IT3F has a fixed focal length of 3.6 mm. This feature allows for images with great sharpness and exceptional quality.
Camera
The minimum illumination of the product Hikvision DS-2CE16D0T-IT3F is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view (FOV) of the product Hikvision DS-2CE16D0T-IT3F is 82.2 °. This wide field of view allows for capturing images with an immersive and detailed perspective. The shutter speed of the camera of the product Hikvision DS-2CE16D0T-IT3F is 1/25 (1/30) - 1/50000 s. This feature allows capturing sharp images even in low light conditions. The panoramic view of the product Hikvision DS-2CE16D0T-IT3F is -180 - 180 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2CE16D0T-IT3F is 0 - 180 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2CE16D0T-IT3F is 360 °. This angle allows for optimal usage flexibility.
Audio
The signal-to-noise ratio of the product Hikvision DS-2CE16D0T-IT3F is 62 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Environmental conditions
The product Hikvision DS-2CE16D0T-IT3F has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CE16D0T-IT3F is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Technical details
The lens mount of the Hikvision DS-2CE16D0T-IT3F product is M12. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots.
Power
The type of power source for the product Hikvision DS-2CE16D0T-IT3F is CC. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CE16D0T-IT3F has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CE16D0T-IT3F is 4 W. This specification allows for the assessment of the energy efficiency of the device. Does the Hikvision DS-2CE16D0T-IT3F have an Ethernet connection, supporting power over this port (PoE)? Non. This feature allows for simplified and efficient power supply to connected devices.
Packaging contents
The number of cameras of the product Hikvision DS-2CE16D0T-IT3F is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The weight of the product Hikvision DS-2CE16D0T-IT3F is 430 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CE16D0T-IT3F is 81.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Hikvision DS-2CE16D0T-IT3F is 86.7 mm. This dimension is essential to ensure optimal integration into your space. The length of the product Hikvision DS-2CE16D0T-IT3F is 226 mm. This dimension is essential to ensure optimal use.
Network
The Wifi of the product Hikvision DS-2CE16D0T-IT3F contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CE16D0T-IT3F have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2CE16D0T-IT3F have Ethernet/LAN? Non. This specification determines the network connectivity of the product.
Storage support
Does the Hikvision DS-2CE16D0T-IT3F have a built-in hard drive? No. This feature means that the product does not have internal storage.
