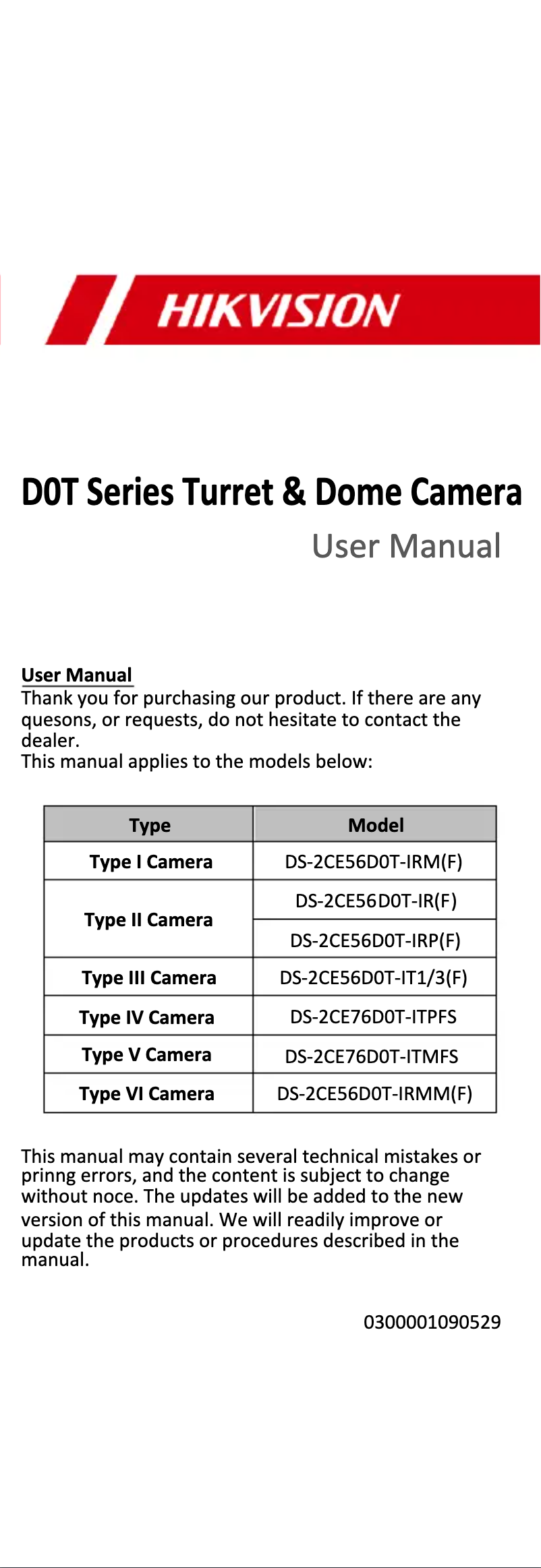

Manuals of product DS-2CE56D0T-IR
Technical Specifications DS-2CE56D0T-IR
General Information
-
ModelDS-2CE56D0T-IR
-
Brand
-
Category
-
Type
-
SKU1046995
-
MPN1046995
Representation / realization
-
TypeCCTV security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Remote visualizationYes
-
Remote visualizationYes
-
Remote visualizationYes
-
CertificationCE, FCC
Connectivity
-
InterfaceBNC
Audio
-
Signal-to-noise ratio report62 dB
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
Weather-resistantYes
-
International Protection Code (IP)IP66
Weight and dimensions
-
Depth89.5 mm
-
Depth89.5 mm
-
Depth89.5 mm
-
Product length69.8 mm
-
Product length69.8 mm
-
Weight280 g
Video
-
Maximum resolution1920 x 1080 pixels
-
Analog signal format systemNTSC, PAL
-
Supported video modes1080p
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Number of images per second30 fps
-
Total megapixels2 MP
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
Power
-
Power supply typeCC
-
Output CC in volts12
-
Consumption (max)4 W
-
Ethernet connection, supporting power over this port (PoE)No
Camera
-
Minimum illumination0.01 lux
-
Field of view (FOV)103 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 360 °
-
Rotation angle360 °
-
Camera shutter speed1/25 - 1/50000 s
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Image sensor
-
Sensor typeCMOS
Objective system
-
Minimum opening amount1.2
-
Fixed Focal Length2.8 mm
Packaging contents
-
Number of cameras1
Technical details
-
Lens mount interfaceM12
Storage support
-
Integrated hard driveNo
Night vision
-
Night visionYes
-
Night vision distance20 m
-
Type of LEDIR
Network
-
BluetoothNo
-
BluetoothNo
-
BluetoothNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CE56D0T-IR specifications from brand Hikvision
Connectivity
The product Hikvision DS-2CE56D0T-IR has an Interface BNC. This interface allows for easy and quick connection with various devices.
Audio
The signal-to-noise ratio of the product Hikvision DS-2CE56D0T-IR is 62 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Generalities
The brand of the product Hikvision DS-2CE56D0T-IR is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CE56D0T-IR is DS-2CE56D0T-IR | DS-2CE56D0T-IR(2.8MM). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2CE56D0T-IR is 6954273633134, 0842571108552, 0842571103526. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The type of product Hikvision DS-2CE56D0T-IR is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2CE56D0T-IR have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product Hikvision DS-2CE56D0T-IR supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2CE56D0T-IR features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2CE56D0T-IR have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The Hikvision DS-2CE56D0T-IR product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The certification of the product Hikvision DS-2CE56D0T-IR contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Design
The color of the product Hikvision DS-2CE56D0T-IR is Blanc. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2CE56D0T-IR is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2CE56D0T-IR is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. Is the Hikvision DS-2CE56D0T-IR weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The International Protection Code (IP) for product Hikvision DS-2CE56D0T-IR contains IP66. This code indicates the level of protection against solid objects and moisture.
Weight and dimensions
The diameter of the product Hikvision DS-2CE56D0T-IR is 89.5 mm. This diameter allows for optimal use and fits perfectly with your needs. The width of the product Hikvision DS-2CE56D0T-IR is 89.5 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-2CE56D0T-IR is 69.8 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2CE56D0T-IR is 89.5 mm. This dimension allows for optimal integration into your space. The length of the product Hikvision DS-2CE56D0T-IR is 69.8 mm. This dimension is essential to ensure optimal use. The weight of the product Hikvision DS-2CE56D0T-IR is 280 g. This weight is ideal for ensuring optimal use and easy handling.
Power
The type of power source for the product Hikvision DS-2CE56D0T-IR is CC. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2CE56D0T-IR has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CE56D0T-IR is 4 W. This specification allows for the assessment of the energy efficiency of the device. Does the Hikvision DS-2CE56D0T-IR have an Ethernet connection, supporting power over this port (PoE)? Non. This feature allows for simplified and efficient power supply to connected devices.
Video
The analog signal format system of the product Hikvision DS-2CE56D0T-IR contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported video mode of the product Hikvision DS-2CE56D0T-IR is 1080p. This mode allows you to enjoy optimal image quality for your videos. The maximum resolution of the product Hikvision DS-2CE56D0T-IR is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CE56D0T-IR are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The number of frames per second of the product Hikvision DS-2CE56D0T-IR is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2CE56D0T-IR is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2CE56D0T-IR have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Hikvision DS-2CE56D0T-IR have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Hikvision DS-2CE56D0T-IR have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience.
Image sensor
The sensor type of the product Hikvision DS-2CE56D0T-IR is CMOS. This type of sensor ensures optimal image quality for your needs.
Environmental conditions
The operating temperature of the product Hikvision DS-2CE56D0T-IR is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2CE56D0T-IR has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Camera
The minimum illumination of the product Hikvision DS-2CE56D0T-IR is 0.01 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hikvision DS-2CE56D0T-IR is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CE56D0T-IR is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The field of view (FOV) of the product Hikvision DS-2CE56D0T-IR is 103 °. This wide field of view allows for capturing images with an immersive and detailed perspective. The rotation angle of the product Hikvision DS-2CE56D0T-IR is 360 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision DS-2CE56D0T-IR is 1/25 - 1/50000 s. This feature allows capturing sharp images even in low light conditions.
Packaging contents
The number of cameras of the product Hikvision DS-2CE56D0T-IR is 1. This product is equipped with a camera that allows capturing high-quality images.
Objective system
The product goal system Hikvision DS-2CE56D0T-IR has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. The minimum opening number of the product Hikvision DS-2CE56D0T-IR is 1.2. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Technical details
The lens mount of the Hikvision DS-2CE56D0T-IR product is M12. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots.
Storage support
Does the Hikvision DS-2CE56D0T-IR have a built-in hard drive? No. This feature means that the product does not have internal storage.
Night vision
The type of LED of the product Hikvision DS-2CE56D0T-IR is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2CE56D0T-IR is 20 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2CE56D0T-IR have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Network
Does the product Hikvision DS-2CE56D0T-IR have Ethernet/LAN? Non. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2CE56D0T-IR contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2CE56D0T-IR have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
