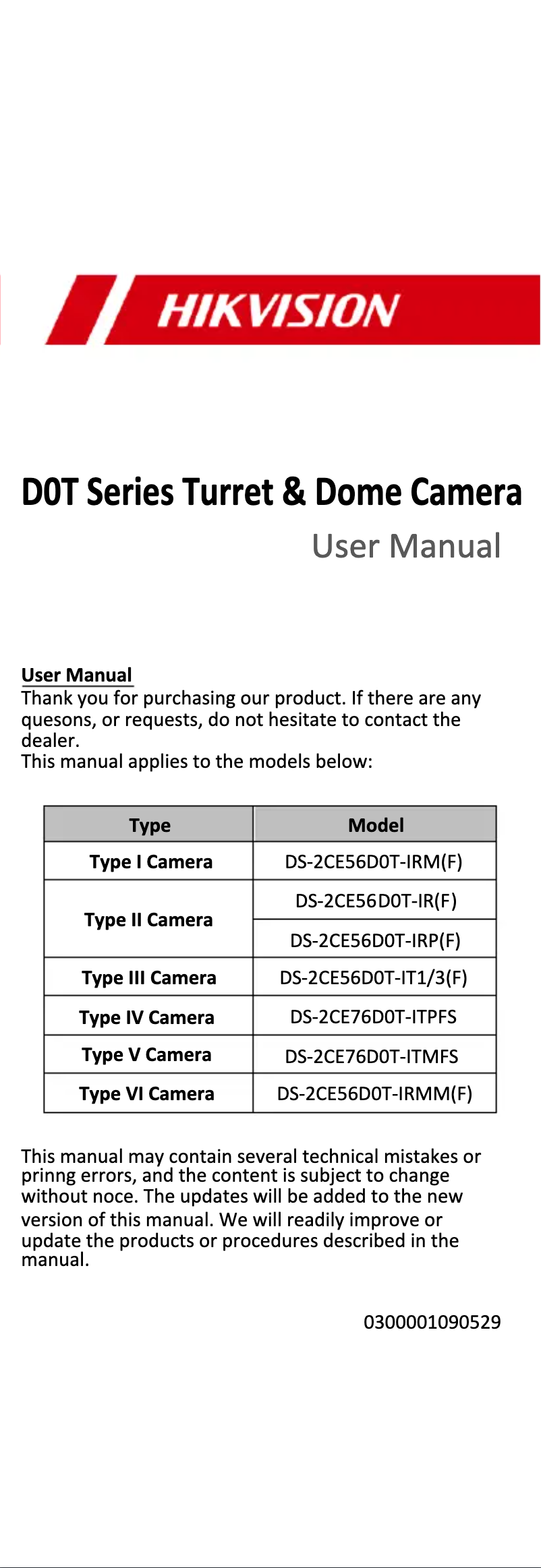

Manuals of product DS-2CE56D0T-IT1
Technical Specifications DS-2CE56D0T-IT1
General Information
-
ModelDS-2CE56D0T-IT1
-
Brand
-
Category
-
Type
-
SKU1135994
-
MPN1135994
Representation / realization
-
TypeCCTV security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Plug and PlayYes
-
Plug and PlayYes
-
Plug and PlayYes
-
Plug and PlayYes
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
-
Material of the case/bodyPlastic
-
International Protection Code (IP)IP67
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
-
Rotation angle360 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 360 °
-
White balanceAuto, Manual
-
Camera shutter speed1/25 - 1/50000 s
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Effective pixel count (H x V)1920 x 1080 pixels
Objective system
-
Number of lenses1
-
Maximum number of openings1.2
-
Fixed Focal Length2.8 mm
Night vision
-
Night visionYes
-
Type of LEDIR
-
Infrared wavelength850 nm
-
Night vision distance30 m
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Number of images per second30 fps
-
Smart IRYes
-
Noise reduction technologyUltra 2D Noise Reduction
-
Image quality adjustmentBrightness, Sharpness
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
-
Smart IRYes
Network
-
BluetoothNo
-
BluetoothNo
-
BluetoothNo
Storage support
-
Integrated hard drive-
Connectivity
-
Port on the terminal blockYes
Power
-
Power supply typeCC
-
Consumption (max)2.2 W
-
Output CC in volts12
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Diameter110 mm
-
Height93.2 mm
-
Weight211 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2CE56D0T-IT1 specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2CE56D0T-IT1 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2CE56D0T-IT1 is DS-2CE56D0T-IT1 | DS-2CE56D0T-IT1(2.8MM). This model ensures optimal performance and an enhanced user experience.
Design
The format of the product Hikvision DS-2CE56D0T-IT1 is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision DS-2CE56D0T-IT1 is Plastique. This material ensures both durability and elegance. The color of the product Hikvision DS-2CE56D0T-IT1 is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2CE56D0T-IT1 is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2CE56D0T-IT1 contains IP67. This code indicates the level of protection against solid objects and moisture.
Representation / realization
The type of product Hikvision DS-2CE56D0T-IT1 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2CE56D0T-IT1 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2CE56D0T-IT1 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2CE56D0T-IT1 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2CE56D0T-IT1 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2CE56D0T-IT1 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2CE56D0T-IT1 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable.
Camera
Does the product Hikvision DS-2CE56D0T-IT1 have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision DS-2CE56D0T-IT1 is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2CE56D0T-IT1 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Hikvision DS-2CE56D0T-IT1 is 360 °. This angle allows for optimal usage flexibility. The tilt angle of the product Hikvision DS-2CE56D0T-IT1 is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Hikvision DS-2CE56D0T-IT1 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The white balance of the product Hikvision DS-2CE56D0T-IT1 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The shutter speed of the camera of the product Hikvision DS-2CE56D0T-IT1 is 1/25 - 1/50000 s. This feature allows capturing sharp images even in low light conditions.
Image sensor
The number of sensors of the product Hikvision DS-2CE56D0T-IT1 is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2CE56D0T-IT1 is CMOS. This type of sensor ensures optimal image quality for your needs. The effective pixel count (H x V) of the product Hikvision DS-2CE56D0T-IT1 is 1920 x 1080 pixels. This specification ensures accurate and detailed image quality.
Objective system
The maximum number of openings for the product Hikvision DS-2CE56D0T-IT1 is 1.2. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2CE56D0T-IT1 is 1. This number determines the quality and versatility of the lens. The product goal system Hikvision DS-2CE56D0T-IT1 has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality.
Night vision
Does the product Hikvision DS-2CE56D0T-IT1 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Hikvision DS-2CE56D0T-IT1 is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product Hikvision DS-2CE56D0T-IT1 is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2CE56D0T-IT1 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Storage support
Does the Hikvision DS-2CE56D0T-IT1 have a built-in hard drive? No. This feature means that the product does not have internal storage.
Network
The Wifi of the product Hikvision DS-2CE56D0T-IT1 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2CE56D0T-IT1 have Ethernet/LAN? Non. This specification determines the network connectivity of the product. Does the Hikvision DS-2CE56D0T-IT1 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Connectivity
Does the product Hikvision DS-2CE56D0T-IT1 have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations.
Video
The total megapixels of the product Hikvision DS-2CE56D0T-IT1 is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2CE56D0T-IT1 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2CE56D0T-IT1 are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Hikvision DS-2CE56D0T-IT1 is 1080p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Hikvision DS-2CE56D0T-IT1 is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2CE56D0T-IT1 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2CE56D0T-IT1 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2CE56D0T-IT1 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2CE56D0T-IT1 have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision DS-2CE56D0T-IT1 contains Brightness, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision DS-2CE56D0T-IT1 have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. Does the product Hikvision DS-2CE56D0T-IT1 have a smart IR? Oui. This feature allows for precise and quick motion detection, thereby enhancing the user experience.
Power
The product Hikvision DS-2CE56D0T-IT1 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2CE56D0T-IT1 is 2.2 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hikvision DS-2CE56D0T-IT1 is CC. This type of power supply ensures optimal performance and efficient use of the device.
Weight and dimensions
The weight of the product Hikvision DS-2CE56D0T-IT1 is 211 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2CE56D0T-IT1 is 93.2 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2CE56D0T-IT1 is 110 mm. This diameter allows for optimal use and fits perfectly with your needs.
Environmental conditions
The product Hikvision DS-2CE56D0T-IT1 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2CE56D0T-IT1 is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging contents
The number of cameras of the product Hikvision DS-2CE56D0T-IT1 is 1. This product is equipped with a camera that allows capturing high-quality images.
